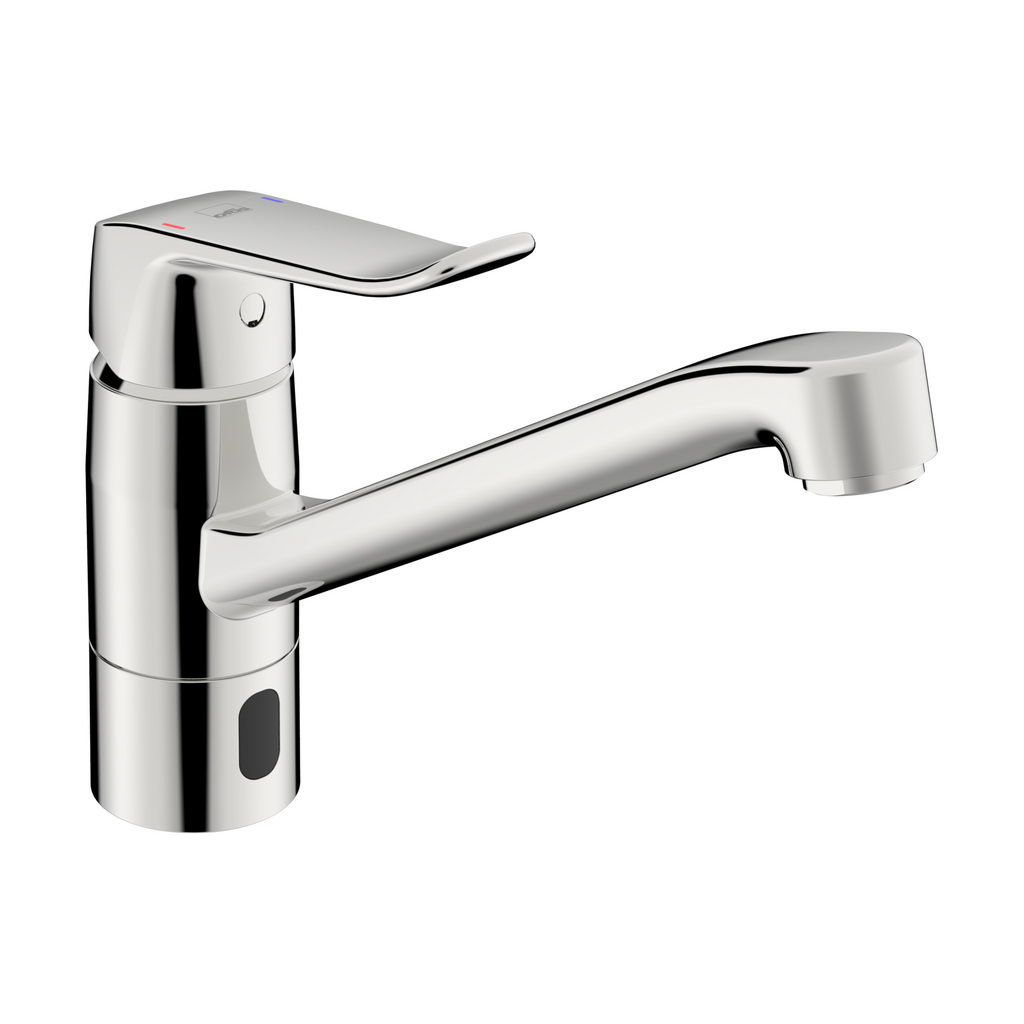

Oras Care Hybrid - Kitchen faucet, 230/9 V, Bluetooth (5730FTZ)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Electronic parts
Advanced PSD sensor, Solenoid valve, Power supply
• Lever/Handle
Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
Inner body made of DZR brass, 3S-installation system for safe and simple mounting
• Spout
Swivel spout, Swivel range limiting option, Profile construction
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (80° / 40°)

Software settings

• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
10 s(1 - 1800 s)

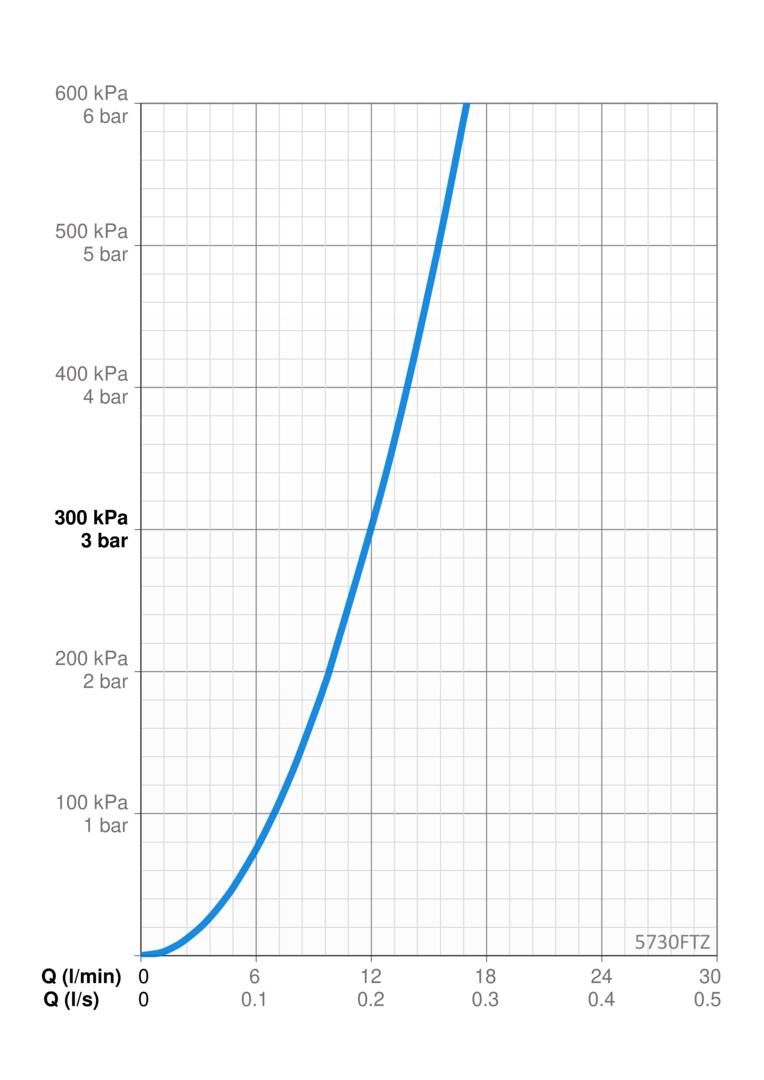

Flow attributes

• Flow-rate at 300 kPa
0.2 l/s
• Pressure loss with flow (0.2 l/s)
305 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• DN-size (nominal dimension)
DN6
• Hot water supply
max. +70°C
• Material
Brass
• Projection
214 mm
• Working pressure
50 - 1000 kPa

Electronics

• Bluetooth version
5.x (D060576)
• Electrical Connection
230 / 9 V

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 817, EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55 / transformer IP 20

Approvals and Declarations

• STF
EUFI29-23004174-TH
• KIWA SE
1888

Sustainability

• EPD module A1 (kg CO2 eq.)
14,93
• EPD module A1-A3 (kg CO2 eq.)
24,42
• EPD module A2 (kg CO2 eq.)
0,69
• EPD module A3 (kg CO2 eq.)
8,78
• EPD module A4 (kg CO2 eq.)
0,66
• EPD module B7 (kg CO2 eq.)
2364,00
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,63
• EPD module D (kg CO2 eq.)
-11,84
