Oras Clinica Safety - Washbasin faucet, 6 V, Bluetooth

Oras Clinica Safety - Washbasin faucet, 6 V, Bluetooth

€626,84
Sale price  €626,84 Regular price
Technical Data

Features

• Connection
Direct connection
• Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
• Lever/Handle
Temperature control handle
• Mechanical parts
Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Advanced features
Inner body made of DZR brass, Waterways without nickel coating, Thermal disinfection without cartridge readjustment, Software settings adjustable via App
• Color
Chrome
• Temperature
The housing of the fittings conducts minimal heat

Software settings

• Afterflow period
2 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

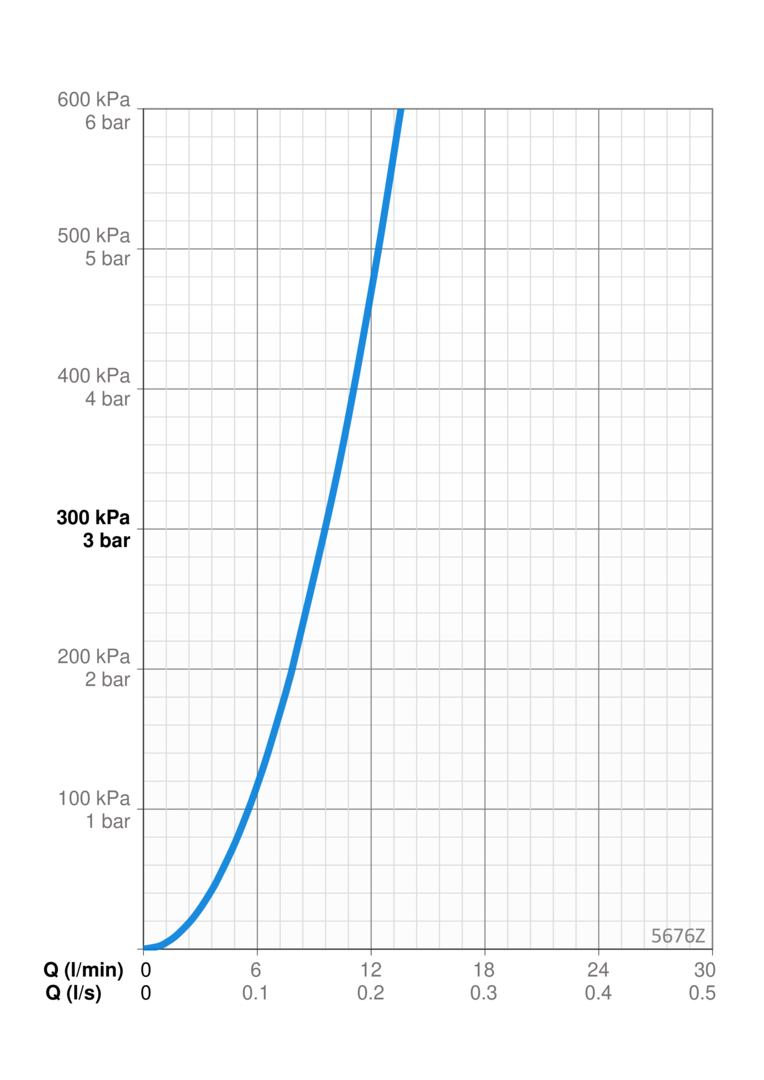

Flow attributes

• Flow-rate at 300 kPa
0.16 l/s

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/4
• Hot water supply
max. +70°C

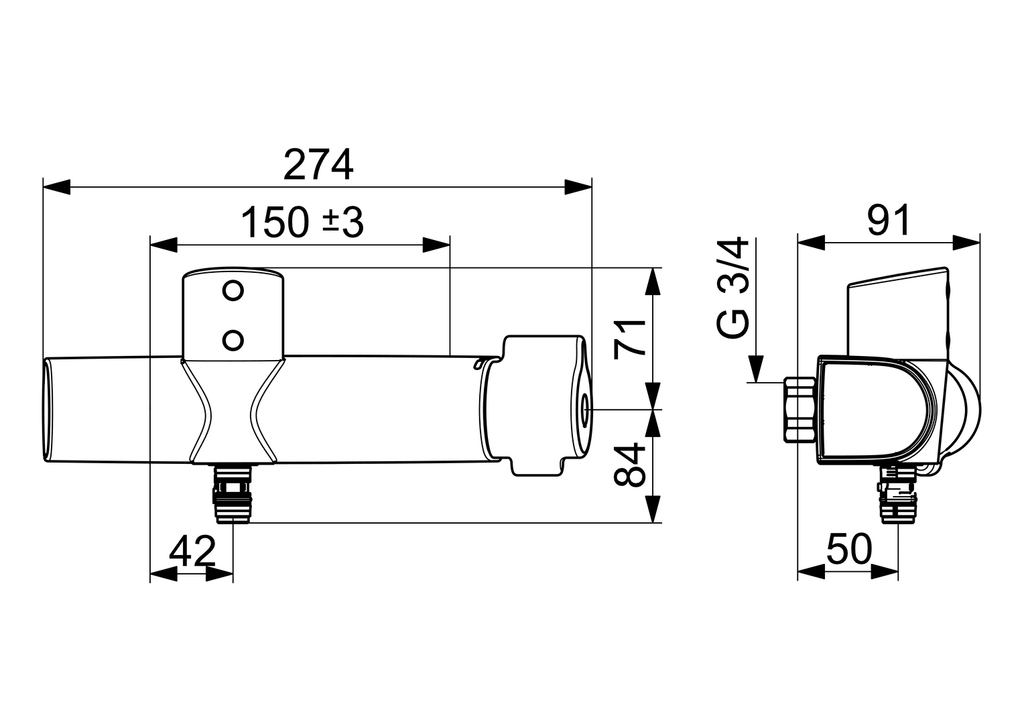

• Installation width
150 ± 3 mm
• Material
Brass
• Working pressure
100 - 1000 kPa

Electronics

• Battery
Lithium 2CR5 6 V
• Bluetooth version
4.x (D034445)

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 1111 , EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55

Approvals and Declarations

• UN38.3
UN38-3 Maxell 2CR5

Sustainability

• EPD module A1 (kg CO2 eq.)
11,89
• EPD module A1-A3 (kg CO2 eq.)
13,12
• EPD module A2 (kg CO2 eq.)
0,06
• EPD module A3 (kg CO2 eq.)
0,62
• EPD module A4 (kg CO2 eq.)
0,53
• EPD module B7 (kg CO2 eq.)
688,00
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,35
• EPD module D (kg CO2 eq.)
-9,50

Spare Parts
Oras Clinica Safety - Washbasin faucet, 6 V, Bluetooth

01 Battery casing / 199438V

02 Sensor holder (Chrome) / 1006102V

03 Update kit / 1017251V

04 Membrane for solenoid valve / 1006500V

05 Combiner / 602438/2

06 Filter sealing, G3/4, DN20 / 178375V

07 Cover flange (Chrome) / 1006473V

08 Thermostatic cartridge / 178780V

09 Temperature control handle (Chrome) / 1006058V

10 Sealing kit for spout / 602707V

11 Spout overturning stopper, 60°/0° / 159667V

12 Limiter, 120° / 602499V

13 Spout, L=100 (Chrome) / 290016

14 Spout, L=200 (Chrome) / 290017

15 Aerator, M22x1 STD PL HC A Laminar (Chrome) / 1003610V
