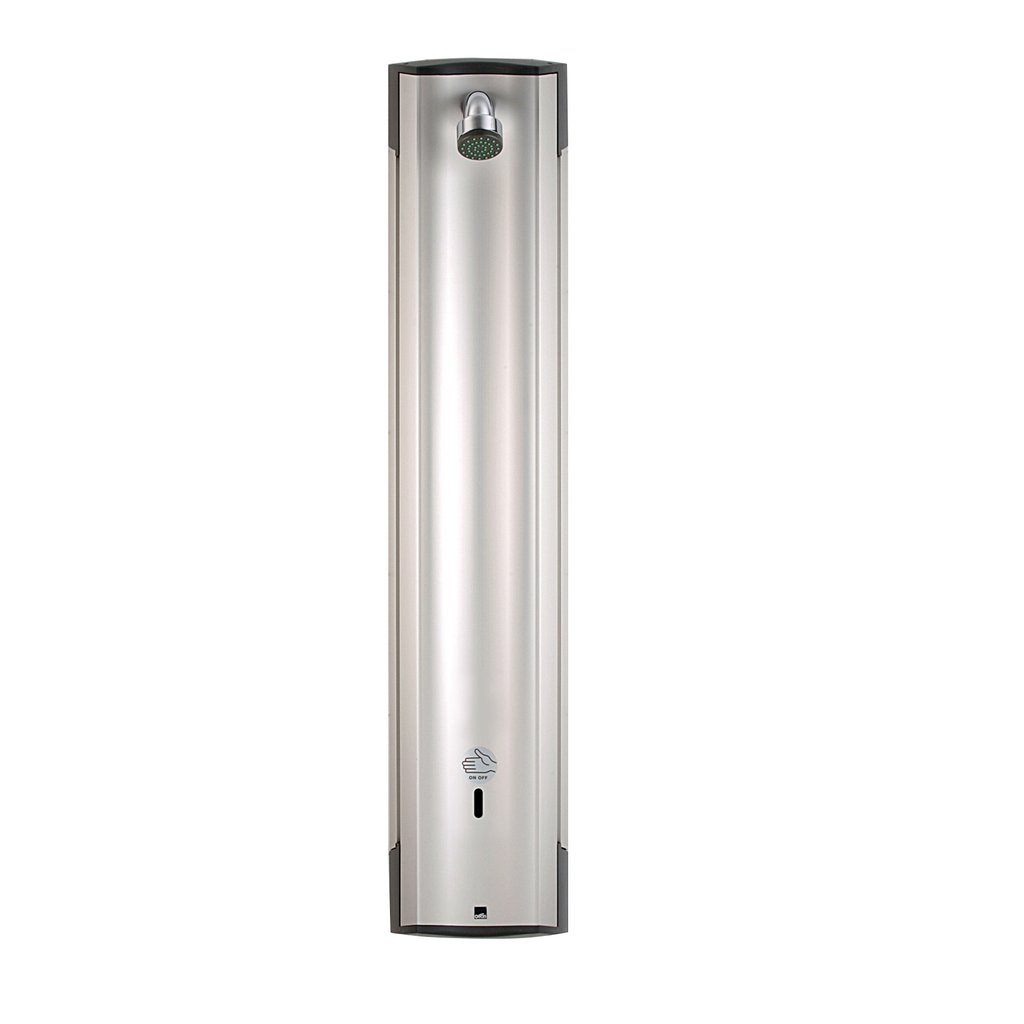

Name: Oras Electra - Shower panel, 6 V (6661F)
Brand: Finland Rocks
SKU: 6661F
Price: 923.57 EUR
Availability: InStock

Oras Electra - Shower panel, 6 V (6661F)

€923,57

Oras Electra - Shower panel, 6 V (6661F)

€923,57

Touchless shower panel for pre-mixed water. Battery-operated 6 V. The shower is switched on by placing a hand in front of the sensor within the recognition range. Water will flow for as long as the person is standing under the shower. When the user exits the recognition range the water flow will stop automatically. The shower panel is equipped with a litter filter and a flow limiter.

The following accessories are sold separately: soap holder (Oras No. 199880)

Features

• Connection
One inlet for cold or premixed water
• Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
• Mechanical parts
Litter filter(s)
• Advanced features
Software settings adjustable via magnetic key
• Color
Aluminium/Chrome
• Opening range
0-5 cm

Software settings

• Afterflow period
5 s
• Max. flow period
5 min

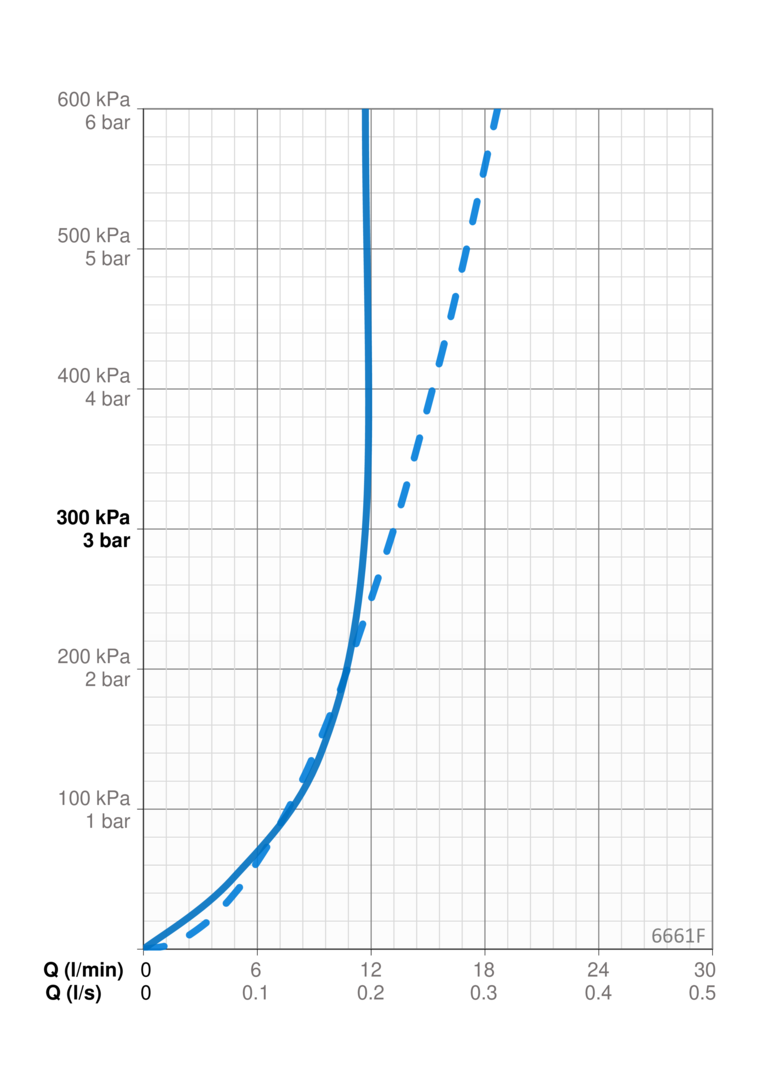

Flow attributes

• Flow-rate at 300 kPa
0.22 l/s
• Flow-rate at 300 kPa (with flow controller)
0.195 l/s
• Pressure loss with flow (0.2 l/s)
250 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +70°C

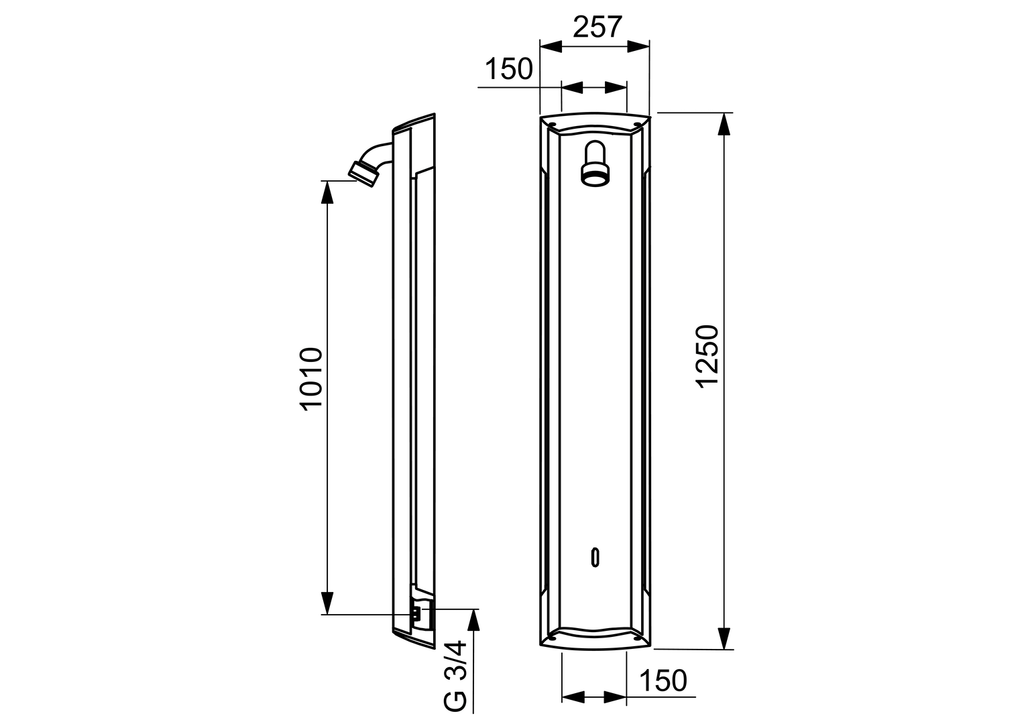

• Installation width
150 mm
• Material
Aluminium
• Working pressure
100 - 1000 kPa

Electronics

• Battery
Lithium 2CR5 6 V

Regulations

• EU Directives
EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55

Approvals and Declarations

• STF
EUFI29-22000144-TH7
• UN38.3
UN38-3 Maxell 2CR5

Sustainability

• EPD module A1 (kg CO2 eq.)
29,46
• EPD module A1-A3 (kg CO2 eq.)
39,70
• EPD module A2 (kg CO2 eq.)
2,57
• EPD module A3 (kg CO2 eq.)
8,86
• EPD module A4 (kg CO2 eq.)
0,30
• EPD module B7 (kg CO2 eq.)
1017,43
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,05
• EPD module C4 (kg CO2 eq.)
0,00
• EPD module D (kg CO2 eq.)
-0,32
