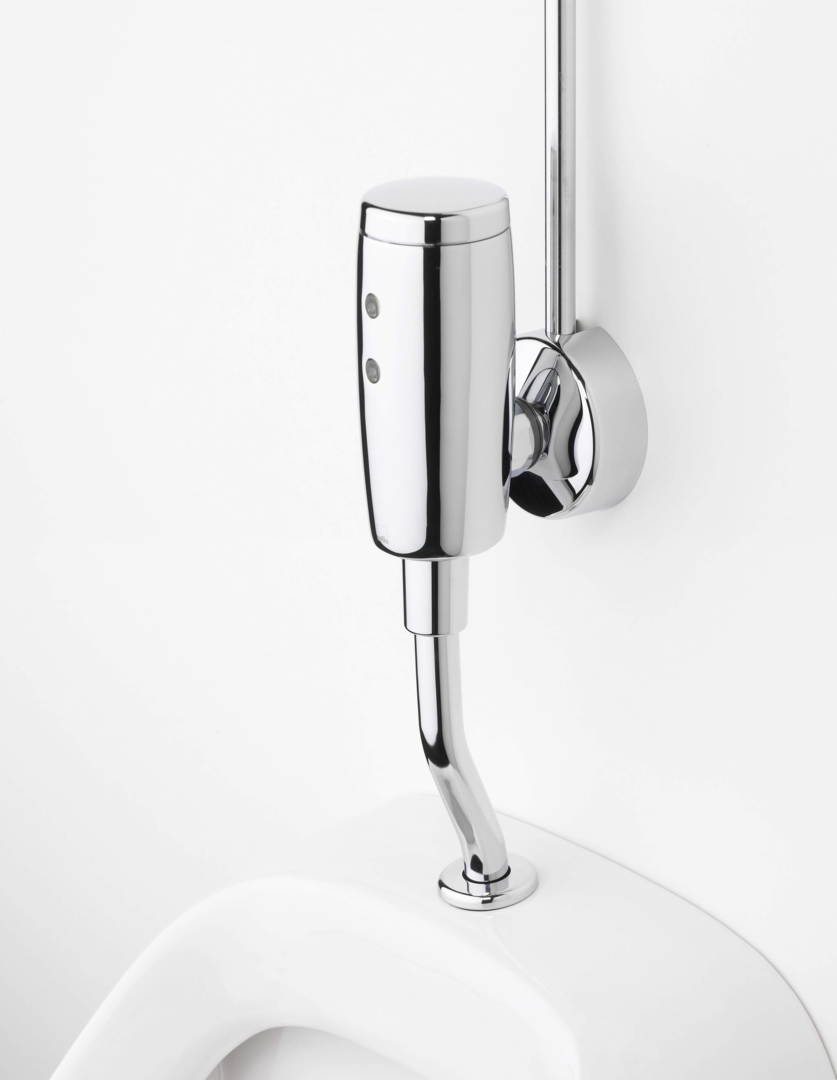

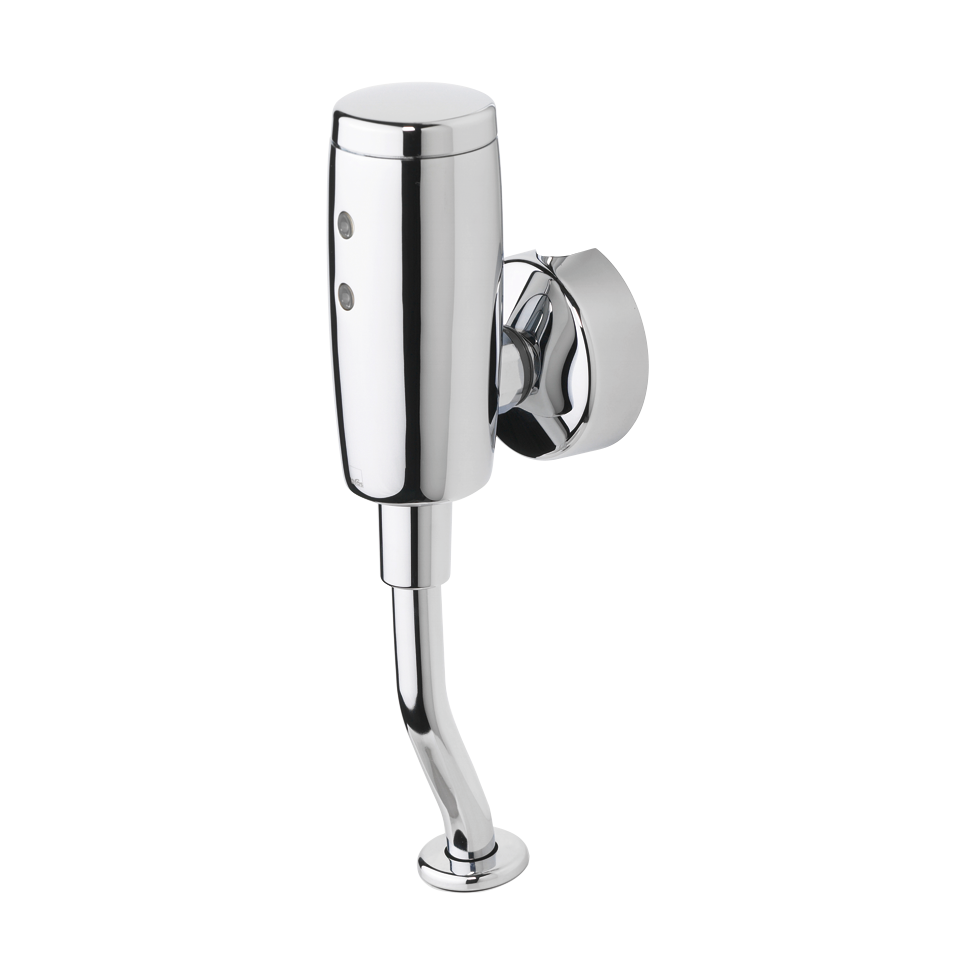

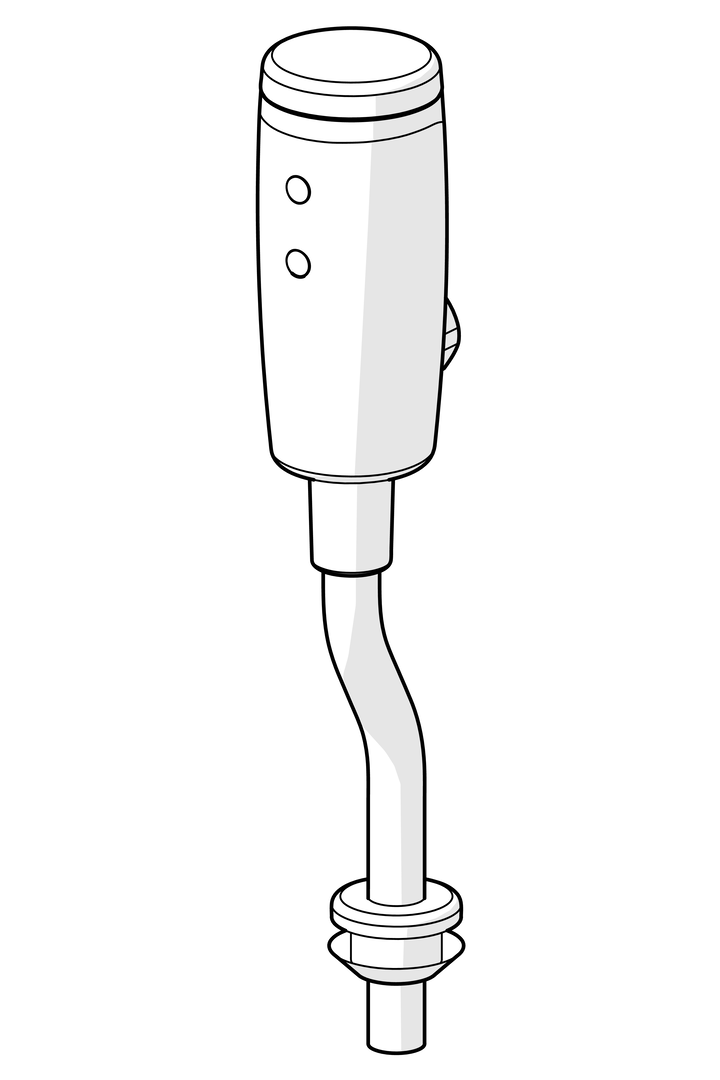

Oras Electra - Urinal flusher, 6 V, Bluetooth (6568Z)

Features

• Connection
Direct connection, Internal thread
• Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
• Mechanical parts
Litter filter(s)
• Advanced features
Software settings adjustable via App
• Color
Chrome

Software settings

• Afterflush period
6 s (1-20 s)
• Automatic flush
24 h (off/1-120 h)
• Automatic flush period
6 s (1-120 s)
• Pre-flush period
2 s (OFF / 1-10 s)

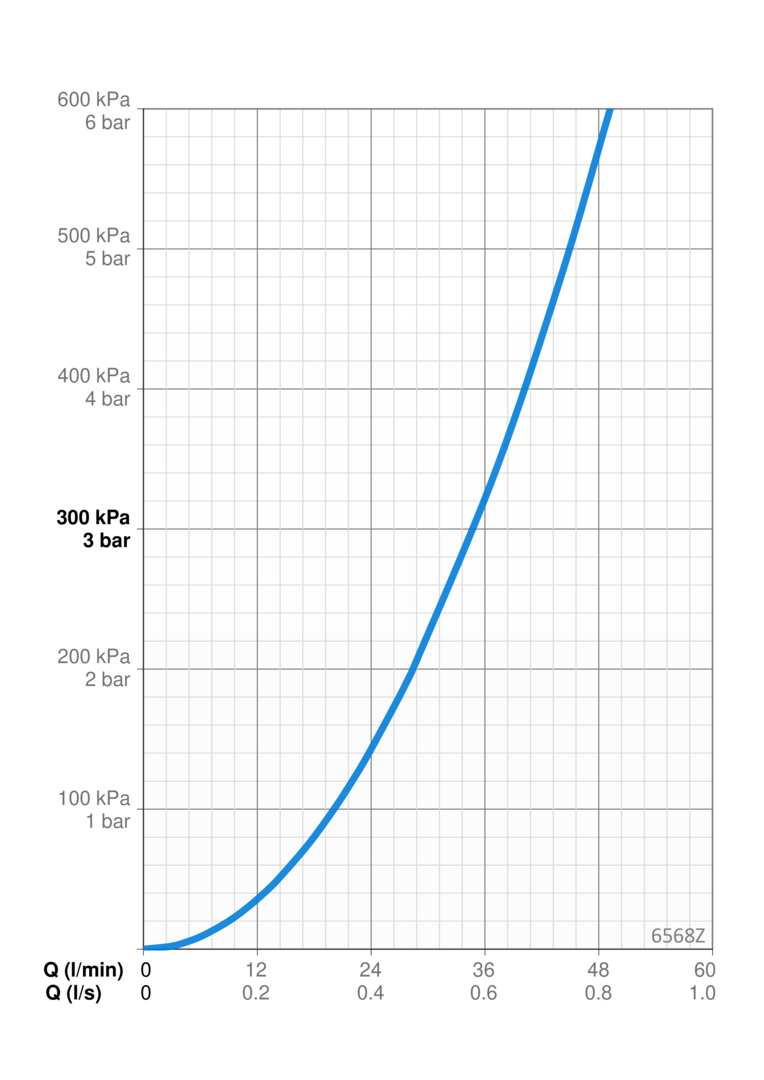

Flow attributes

• Flow-rate at 300 kPa
0.58 l/s
• Pressure loss with flow (0.2 l/s)
40 kPa

Technical properties

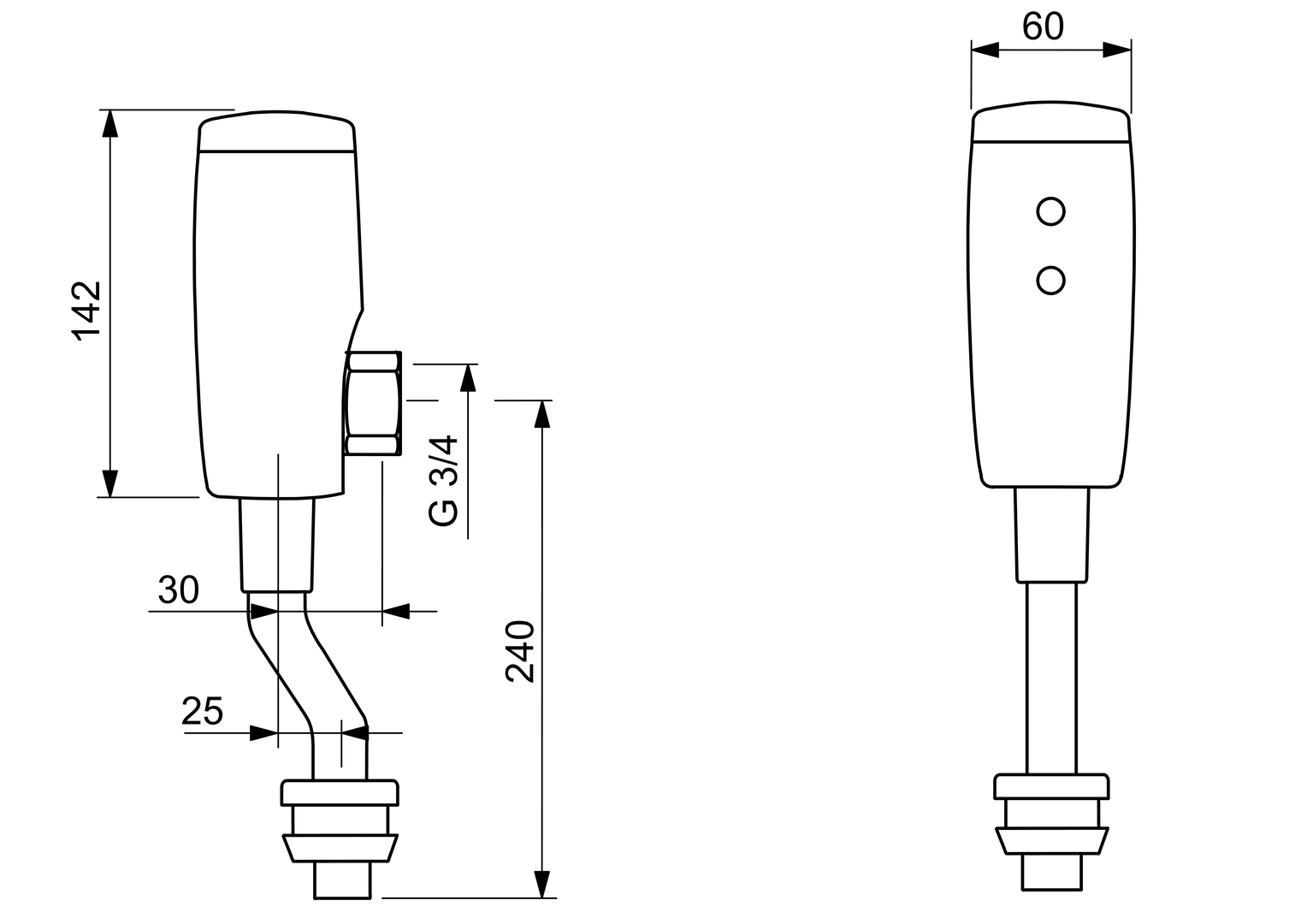

• Connection size
G3/4
• Hot water supply
max. +70°C
• Material
Brass
• Projection
81 mm
• Working pressure
50 - 1000 kPa

Electronics

• Battery
Lithium 2CR5 6 V
• Bluetooth version
4.x (D034445)

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Protection class
IP 55

Approvals and Declarations

• STF
EUFI29-22000144-TH3
• UN38.3
UN38-3 Maxell 2CR5

Sustainability

• EPD module A1 (kg CO2 eq.)
5,51
• EPD module A1-A3 (kg CO2 eq.)
9,66
• EPD module A2 (kg CO2 eq.)
0,26
• EPD module A3 (kg CO2 eq.)
3,89
• EPD module A4 (kg CO2 eq.)
0,24
• EPD module B7 (kg CO2 eq.)
19035,60
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,01
• EPD module C4 (kg CO2 eq.)
1,23
• EPD module D (kg CO2 eq.)
-5,02
