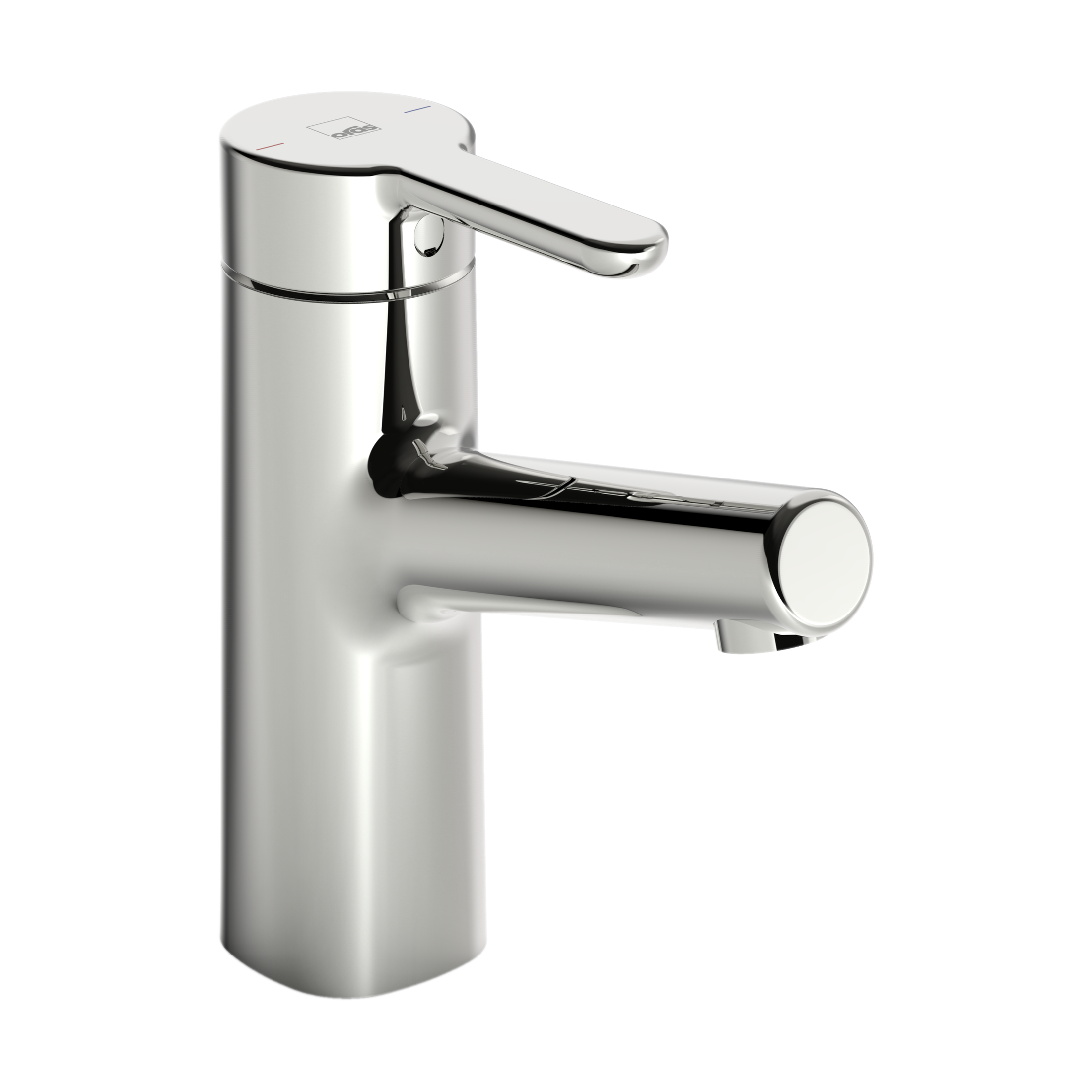

Oras Inspera - Washbasin faucet (3010F)

Features

• Aerator
PCA® - constant flow rate regardless of pressure variations, Hidden aerator
• Connection
Flexible inlet pipes
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
Inner body made of DZR brass, 3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

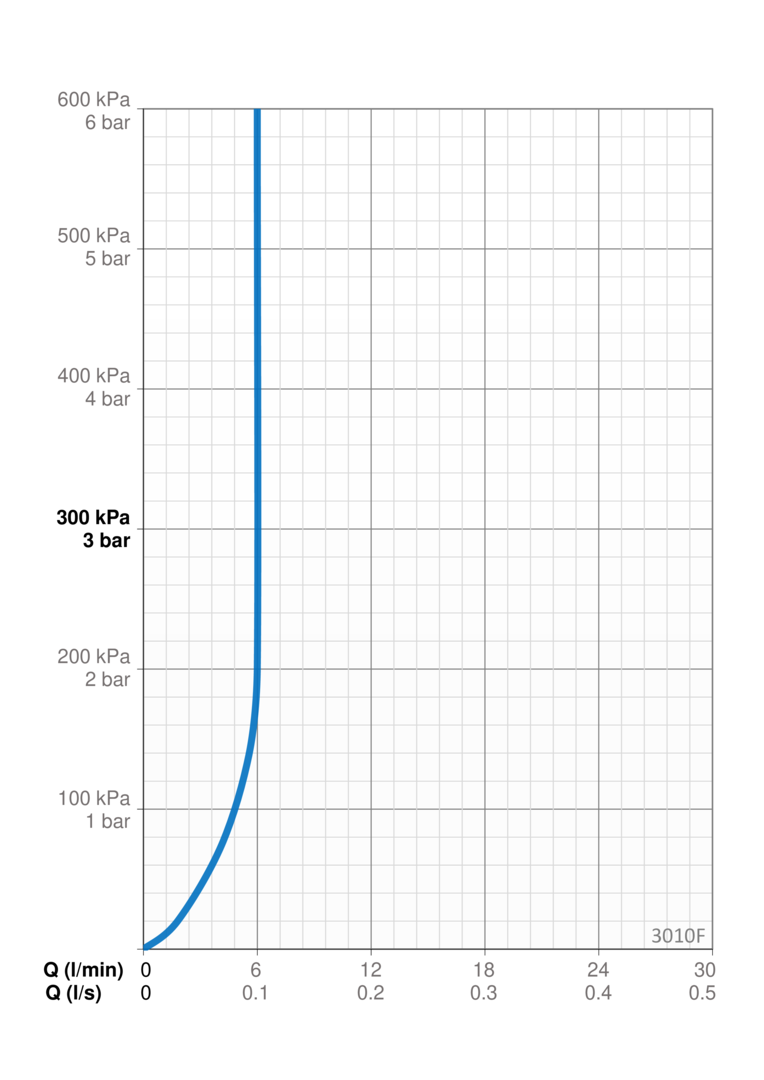

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.1 l/s
• Pressure loss with flow (0.1 l/s)
100 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

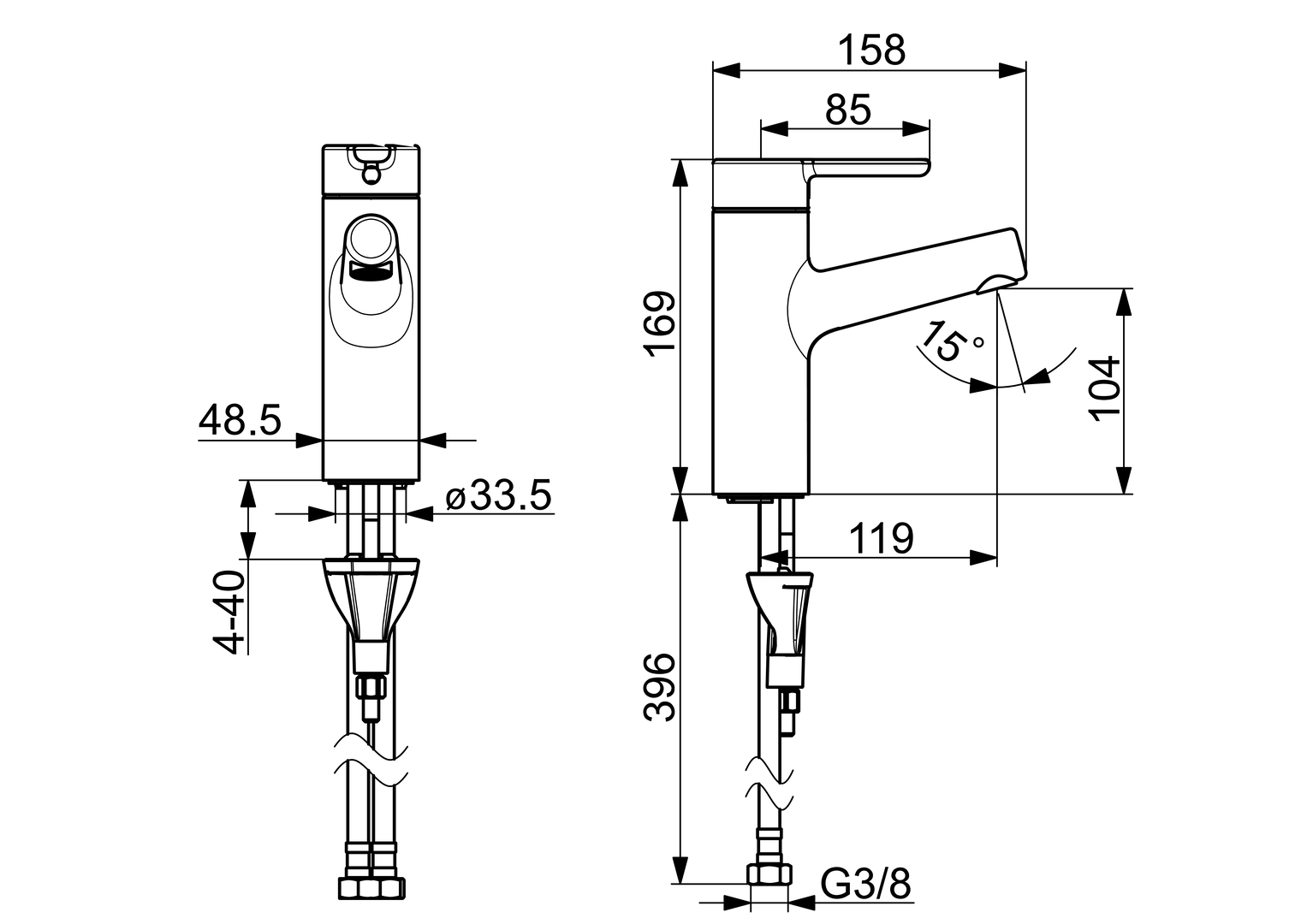

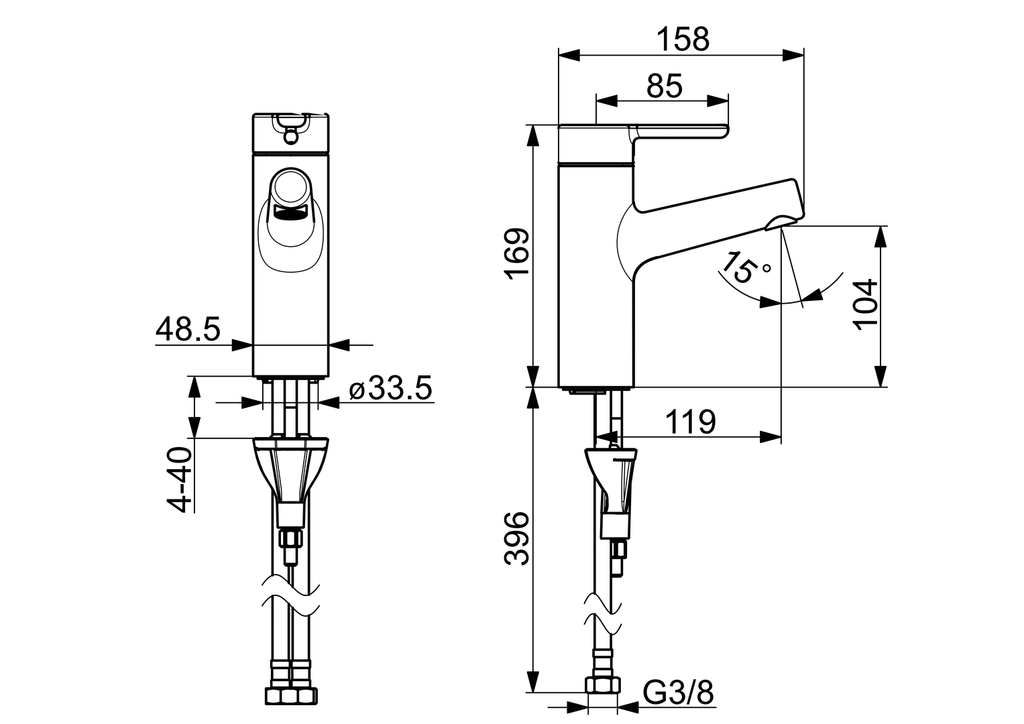

• Projection
119 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-19004498-TH1
