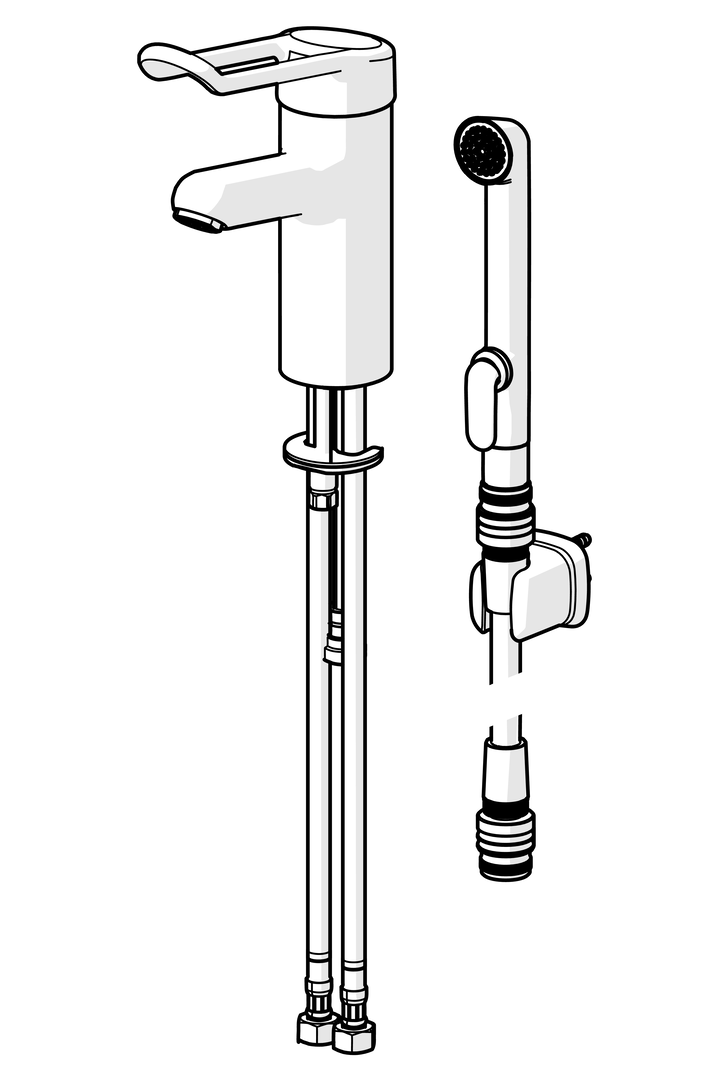

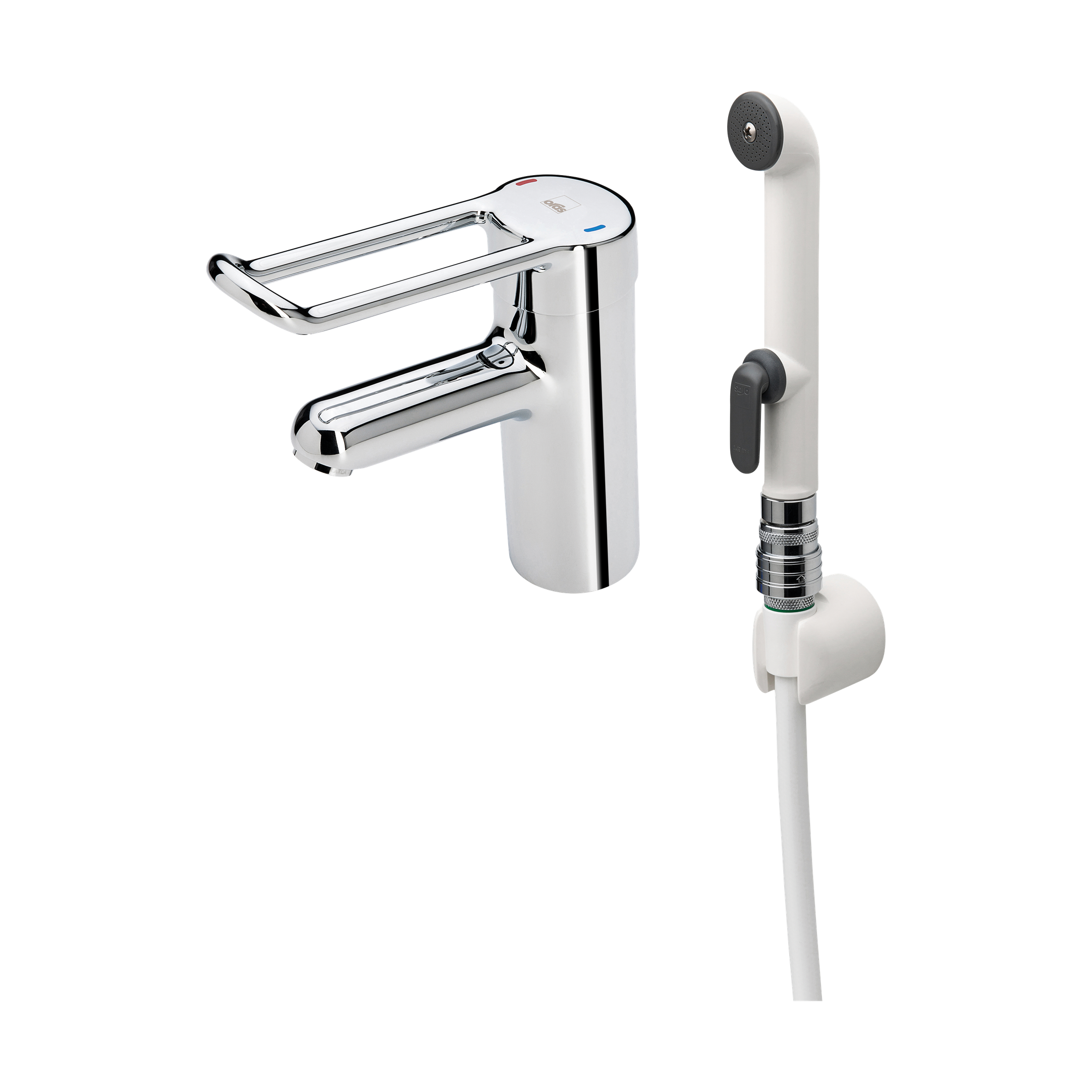

Oras Medipro Protec - Washbasin faucet (5512bf)

Features

• Aerator
Laminar stream
• Connection
Flexible inlet pipes, Special coating for hygienic premises
• Hand shower
Bidetta hand shower, Quick release coupling
• Lever/Handle
Single operating lever/handle, Loop shape, Hot/Cold symbols
• Mechanical parts
ø 48 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1500 mm)
• Advanced features
Inner body made of DZR brass, Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating, Disinfection proof (max. +95°C), Thermal disinfection proof for short durations, Rapid installation system
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

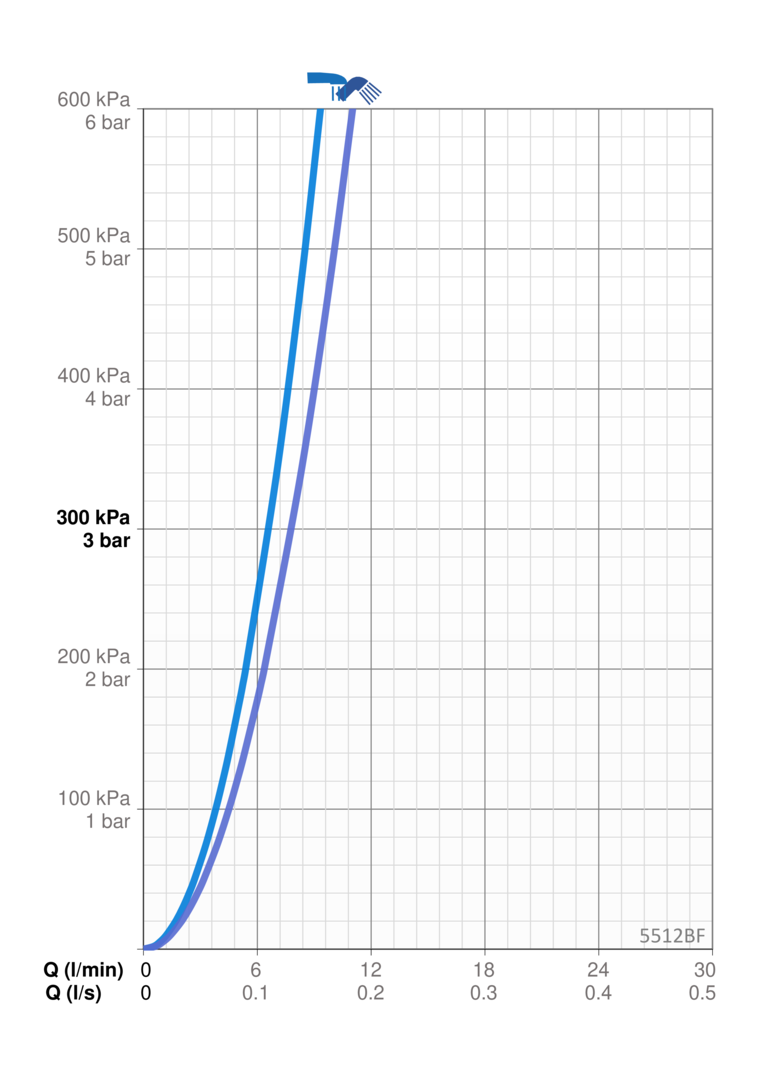

Flow attributes

• Flow-rate at 300 kPa
0.11 / 0.13 l/s
• Pressure loss with flow (0.1 l/s)
180 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/8
• DN-size (nominal dimension)
DN15
• Hot water supply
max. +70°C
• Material
Brass
• Projection
120 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005198-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
12,90
• EPD module A1-A3 (kg CO2 eq.)
14,74
• EPD module A2 (kg CO2 eq.)
0,62
• EPD module A3 (kg CO2 eq.)
1,22
• EPD module A4 (kg CO2 eq.)
0,41
• EPD module B7 (kg CO2 eq.)
2039,40
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,11
• EPD module D (kg CO2 eq.)
-10,48
