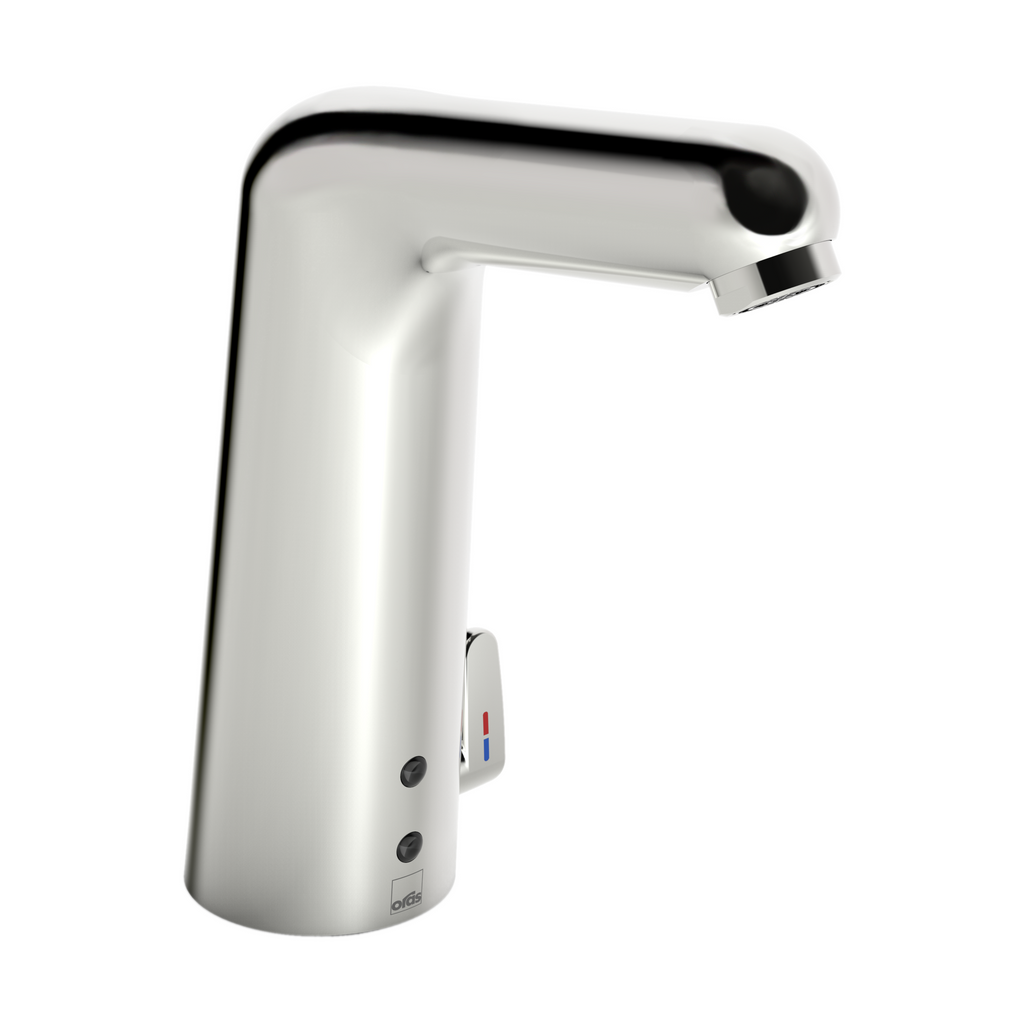

Name: Oras Medipro XL - High washbasin faucet, 9/12 V, Bluetooth
Brand: Finland Rocks
SKU: 5523F
Price: 740.42 EUR
Availability: InStock

Oras Medipro XL - High washbasin faucet, 9/12 V, Bluetooth

€740,42

Oras Medipro XL - High washbasin faucet, 9/12 V, Bluetooth

€740,42

XL touchless washbasin faucet developed especially to healthcare use with a temperature adjustment handle. Autofocus sensor with Bluetooth connection enables easy monitoring and adjustments. Laminar flow (6 l/min). The faucet is equipped with litter filters and special flexible connection hoses with integrated non-return valves.

Mains operated 9 V or 12 V. Electrical connection 9 V with a plug transformer or 12 V via a separate transformer. Power alternatives are not included to product.

Features

• Additional features
Electrical connection 12 V via a separate power supply (e.g. Oras No. 199275/199550).
• Aerator
Laminar stream
• Connection
Flexible inlet pipes, Special coating for hygienic premises
• Electronic parts
Autofocus infrared sensor, Solenoid valve
• Lever/Handle
Temperature control handle
• Mechanical parts
Non-return valve(s), Litter filter(s)
• Mounting holes
1 hole
• Advanced features
Inner body made of DZR brass, Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating, Software settings adjustable via App
• Spout
Fixed spout, Casted construction
• Color
Chrome
• Temperature
Adjustable hot water stop (included, retrofittable)

Software settings

• Afterflow period
3 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

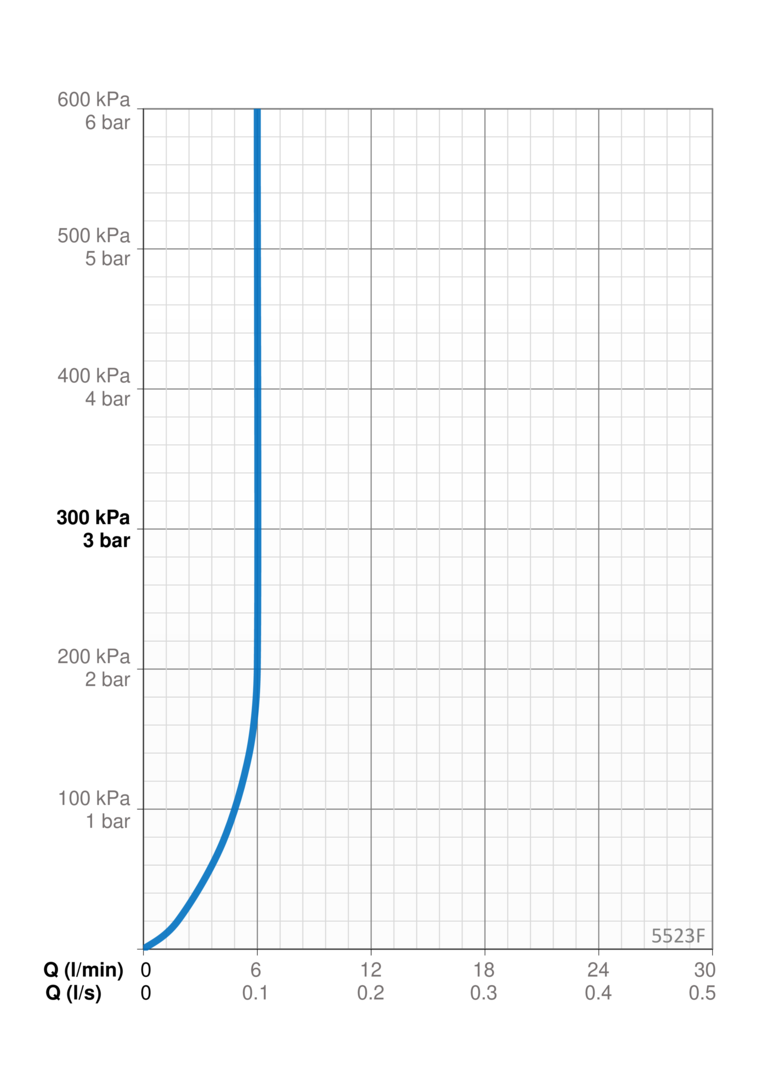

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.1 l/s
• Pressure loss with flow (0.1 l/s)
200 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

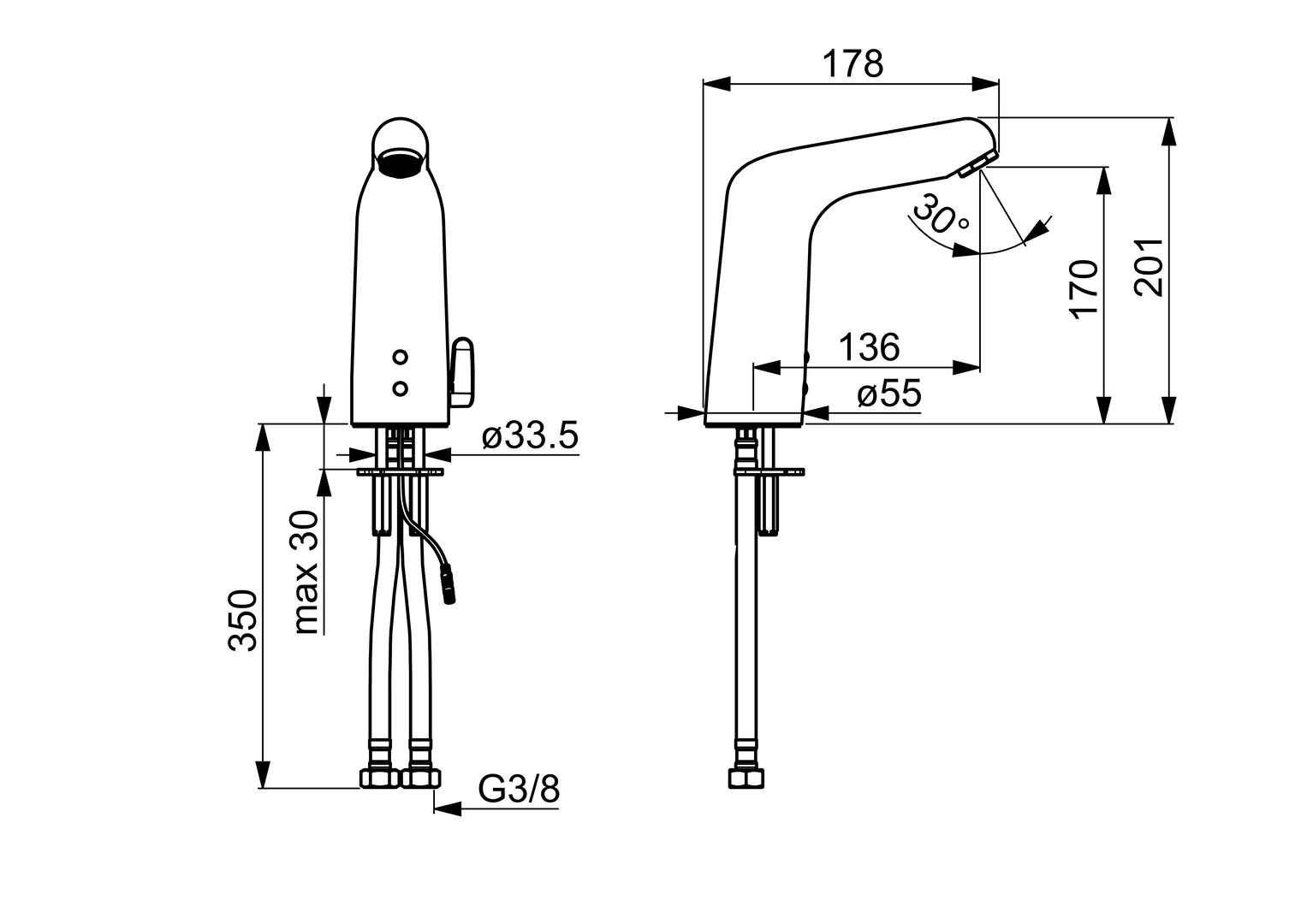

• Projection
136 mm
• Working pressure
100 - 1000 kPa

Electronics

• Bluetooth version
4.x (D034445)
• Electrical Connection
9 / 12 V

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822) Oras lab.
• Protection class
IP 55

Approvals and Declarations

• KIWA SE
1589

Sustainability

• EPD module A1 (kg CO2 eq.)
11,61
• EPD module A1-A3 (kg CO2 eq.)
12,81
• EPD module A2 (kg CO2 eq.)
0,06
• EPD module A3 (kg CO2 eq.)
0,61
• EPD module A4 (kg CO2 eq.)
0,51
• EPD module B7 (kg CO2 eq.)
430,00
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,34
• EPD module D (kg CO2 eq.)
-9,27
