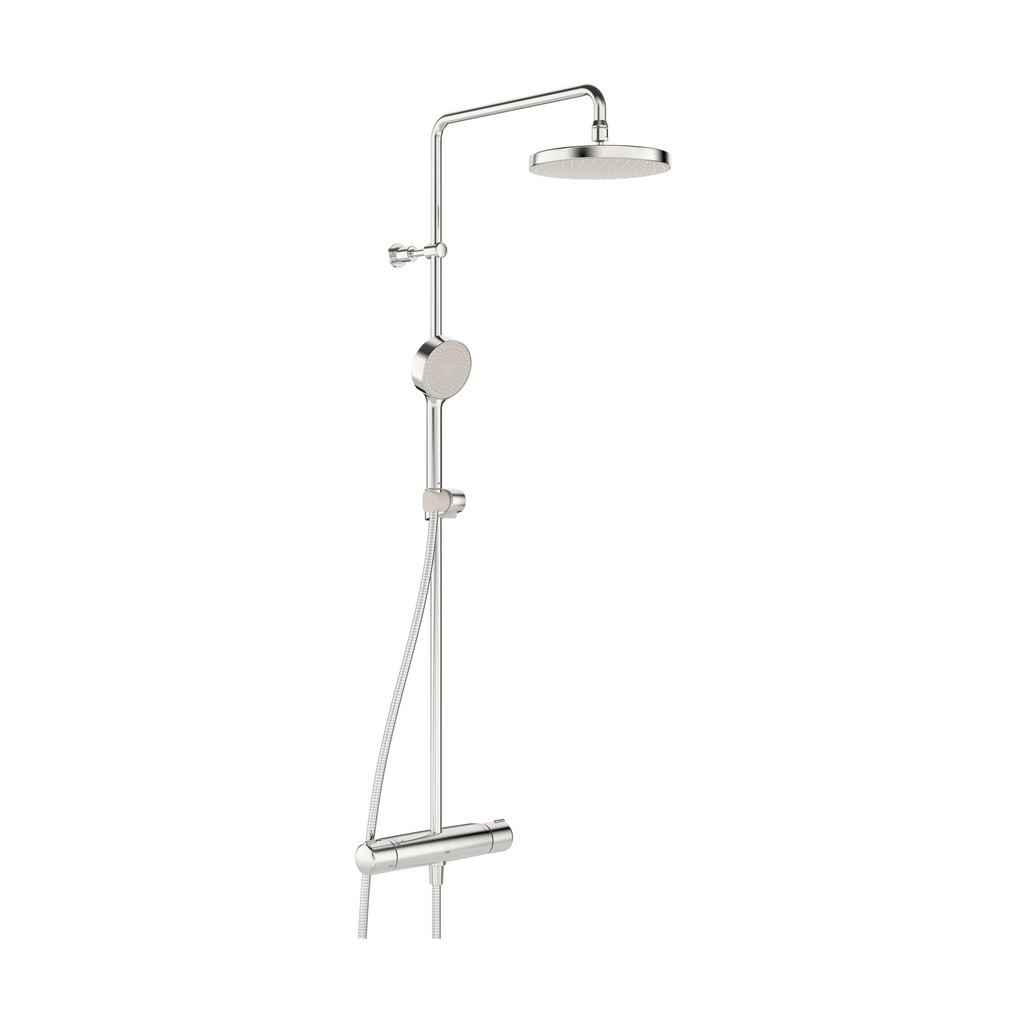

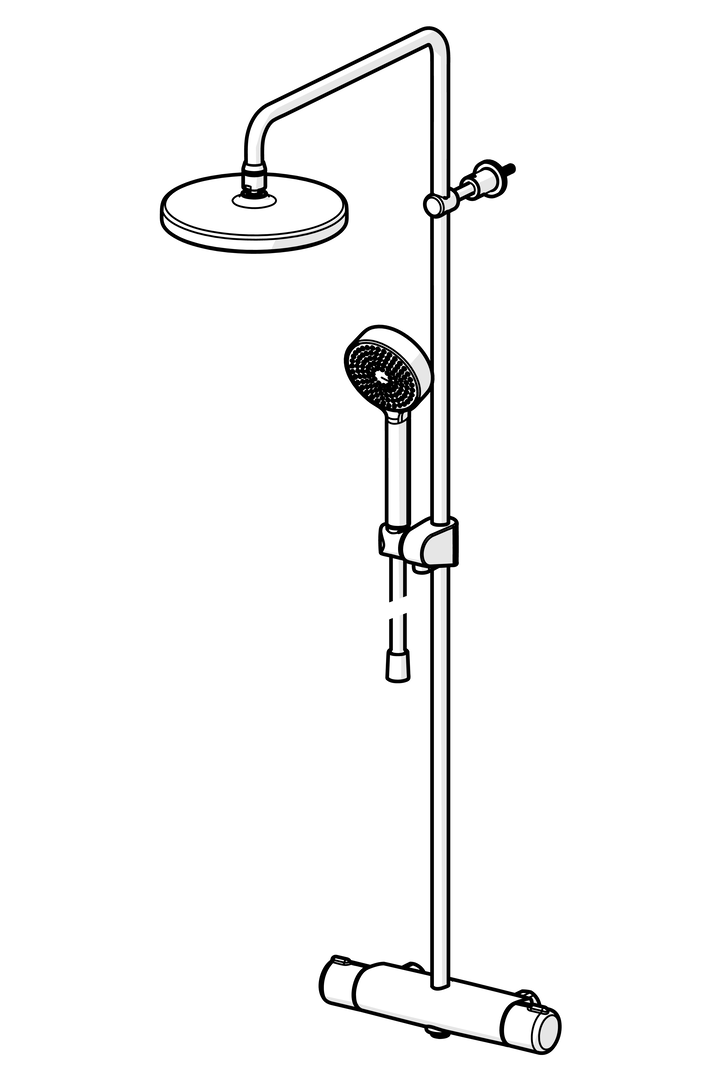

Oras Nova - Shower system (7402)

Features

• Connection
Direct connection, Internal thread
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower rail, Overhead shower, Adjustable shower rail bracket, Shower hose (1750 mm), Variable fixing points, Rotatable ball joint connection, Anti limescale technology (easy to clean)
• Shower spray
Intense - invigorating water stream
• Advanced features
Flexible length / can be shortened
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

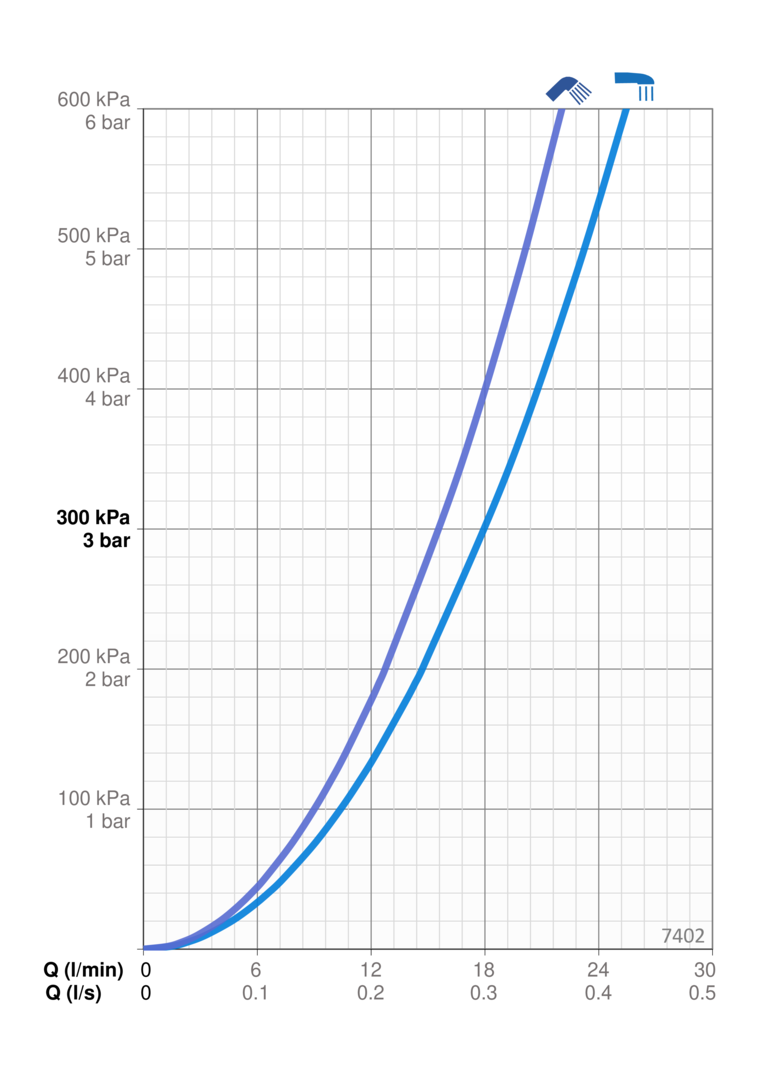

Flow attributes

• Flow-rate at 300 kPa
0.3 / 0.26 l/s
• Pressure loss with flow (0.2 l/s)
180 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• DN-size (nominal dimension)
DN15
• Hot water supply
max. +65°C

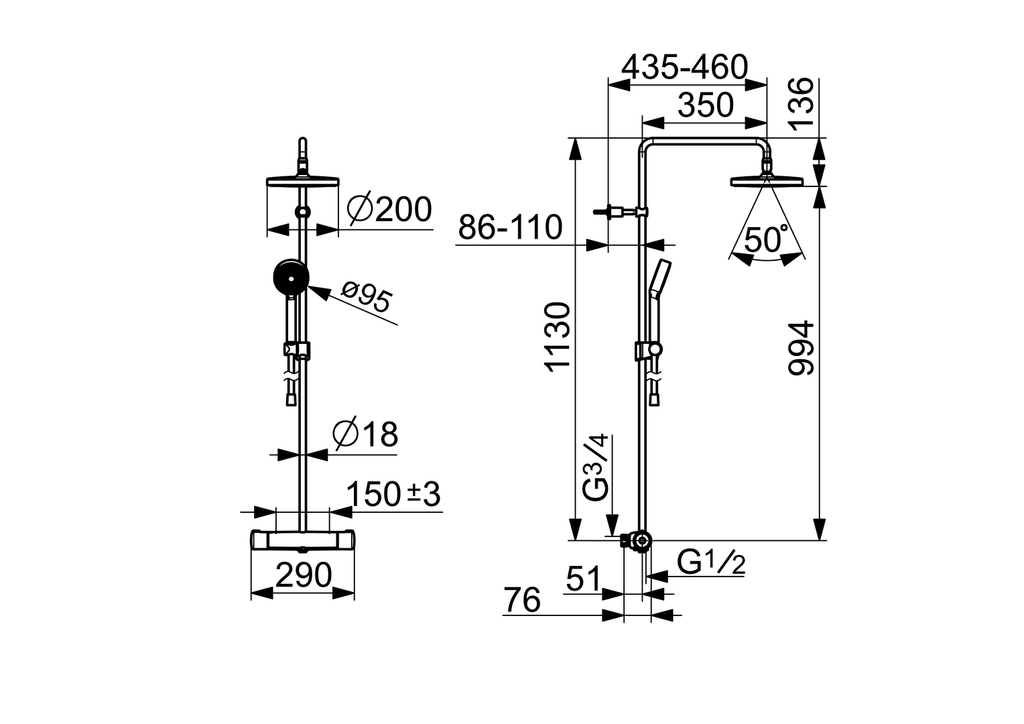

• Installation width
150 ± 3 mm
• Material
Brass
• Projection
435 - 460 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111, EN 1112, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
K13975-01
• KIWA SE
1664

Sustainability

• EPD module A1 (kg CO2 eq.)
16,86
• EPD module A1-A3 (kg CO2 eq.)
19,52
• EPD module A2 (kg CO2 eq.)
0,87
• EPD module A3 (kg CO2 eq.)
1,78
• EPD module A4 (kg CO2 eq.)
0,51
• EPD module B7 (kg CO2 eq.)
3010,80
• EPD module C2 (kg CO2 eq.)
0,04
• EPD module C3 (kg CO2 eq.)
0,04
• EPD module C4 (kg CO2 eq.)
1,07
• EPD module D (kg CO2 eq.)
-12,76
