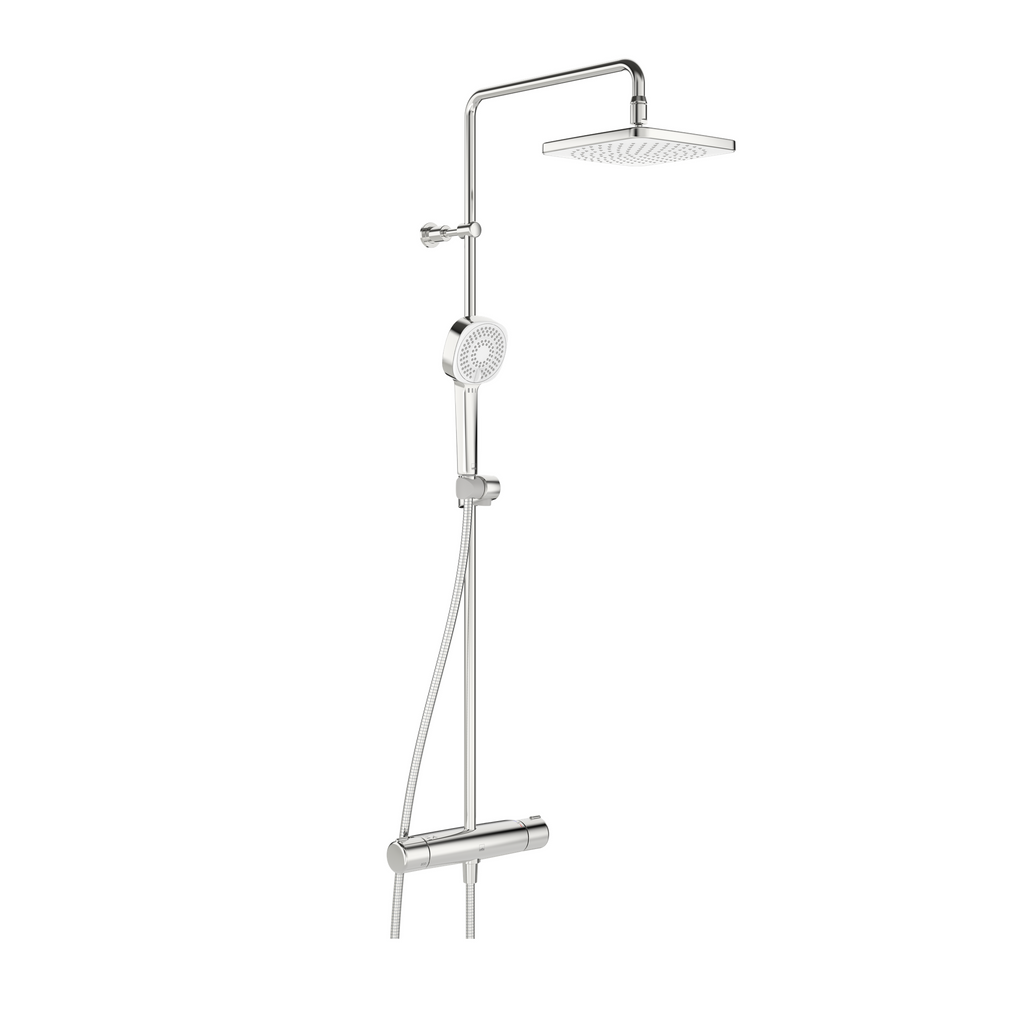

Oras Nova Style - Shower system

Features

• Connection
Direct connection, Internal thread
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow, Safety feature for water temperature
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Number of spray functions
3 spray functions

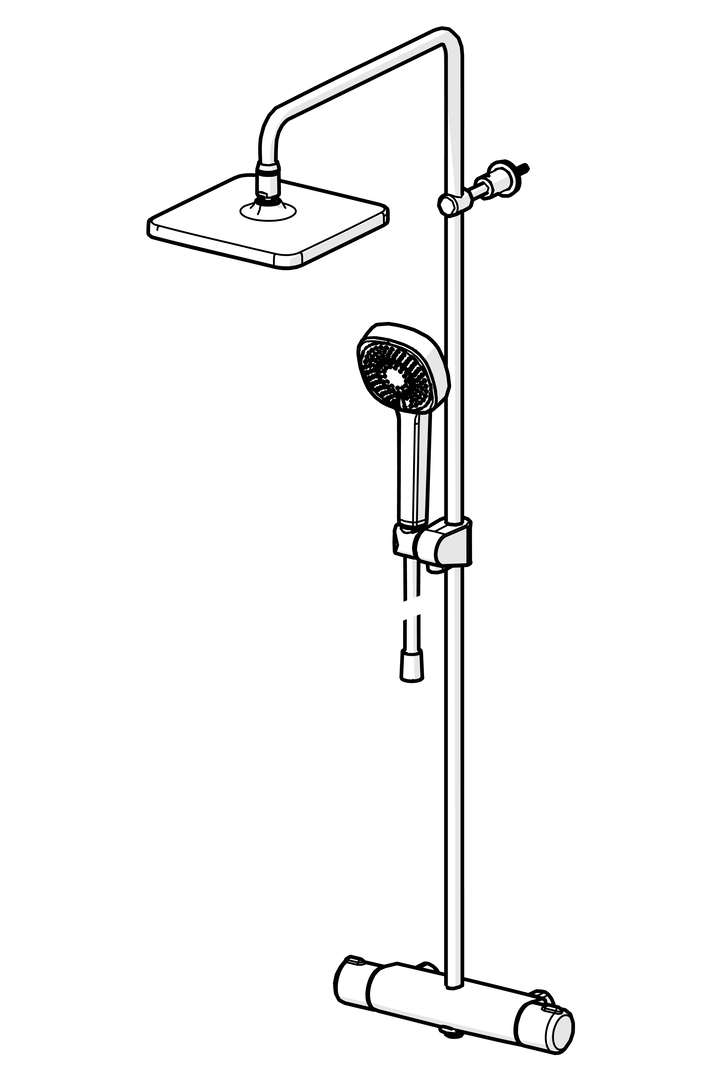

• Shower parts
Hand shower, Shower rail, Overhead shower, Adjustable shower rail bracket, Shower hose (1750 mm), Eco flow control, Variable fixing points, Rotatable ball joint connection, Anti limescale technology (easy to clean)
• Shower spray
Normal - Even and soft water stream, Refreshing - Strong water stream, activates and refreshes body, Relaxing - Soft water stream, pleasant for entire body
• Advanced features
Flexible length / can be shortened
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

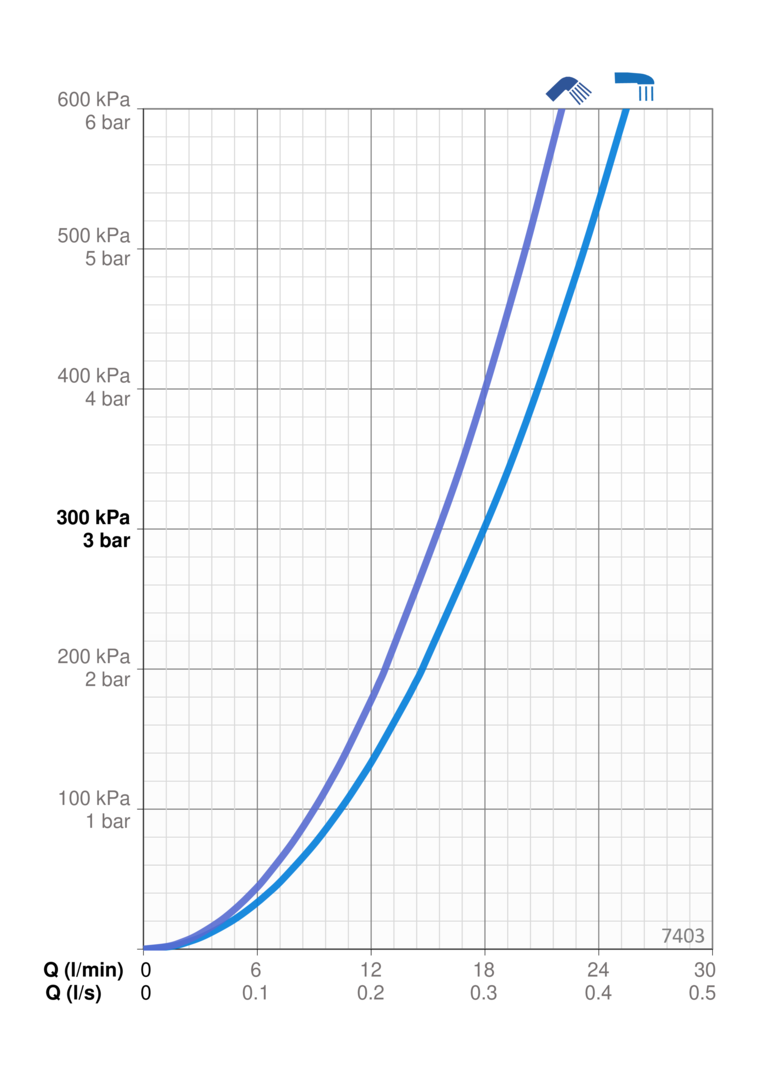

Flow attributes

• Flow-rate at 300 kPa
0.3 / 0.26 l/s
• Pressure loss with flow (0.2 l/s)
180 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +65°C

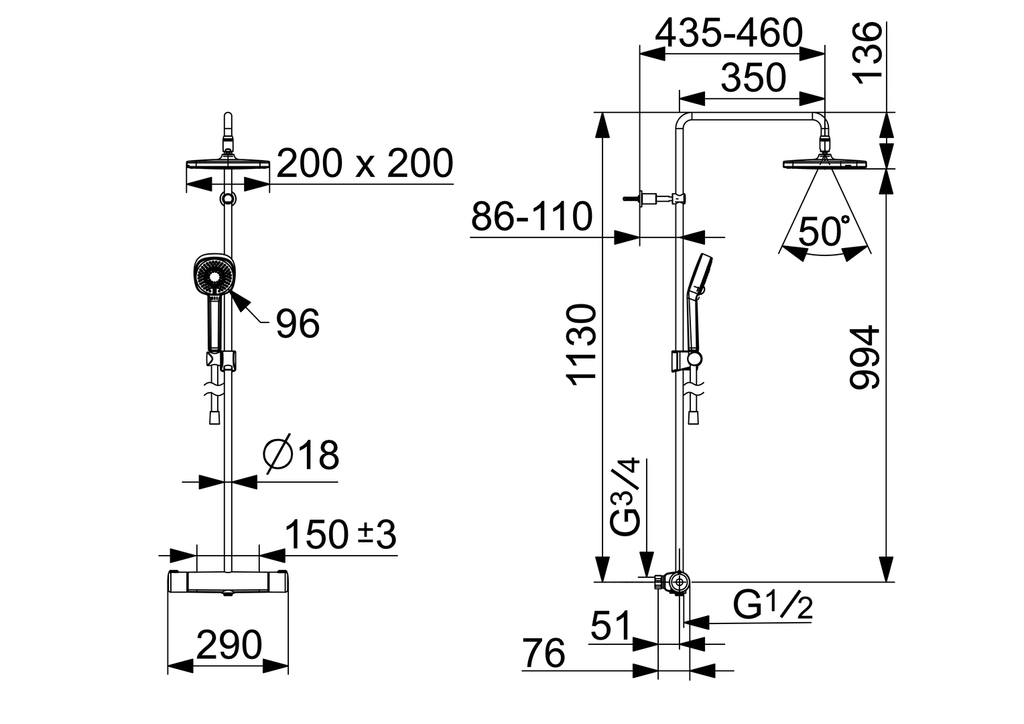

• Installation width
150 ± 3 mm
• Material
Brass
• Projection
435 - 460 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111, EN 1112, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• KIWA SE
1664

Sustainability

• EPD module A1 (kg CO2 eq.)
16,98
• EPD module A1-A3 (kg CO2 eq.)
19,66
• EPD module A2 (kg CO2 eq.)
0,88
• EPD module A3 (kg CO2 eq.)
1,79
• EPD module A4 (kg CO2 eq.)
0,52
• EPD module B7 (kg CO2 eq.)
3010,80
• EPD module C2 (kg CO2 eq.)
0,04
• EPD module C3 (kg CO2 eq.)
0,04
• EPD module C4 (kg CO2 eq.)
1,08
• EPD module D (kg CO2 eq.)
-12,85
