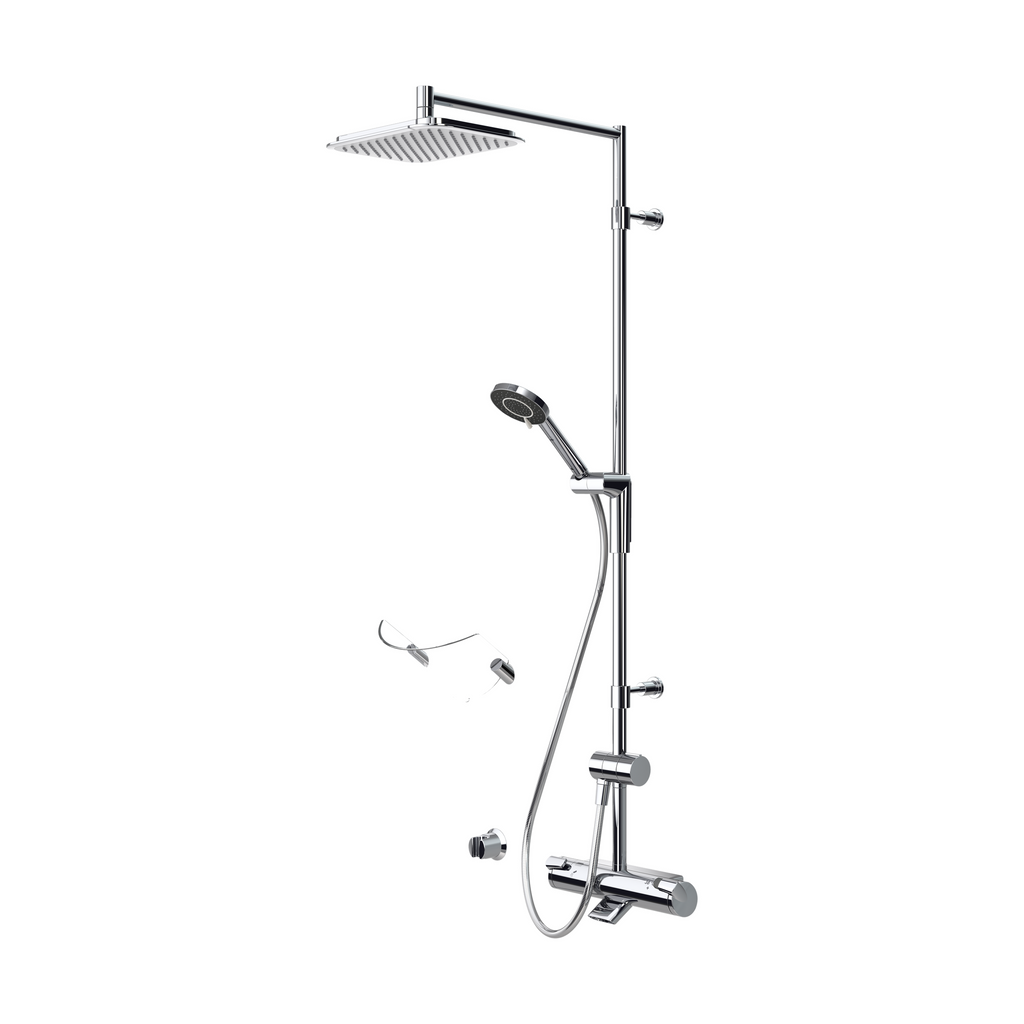

Oras Optima - Shower system (7193)

Features

• Diverter
Turn operated diverter
• Lever/Handle
Temperature control handle, Flow control handle, Easy-Grip surface, Safety feature for water temperature
• Mechanical parts
Thermostatic cartridge for automatic temperature control, Litter filter(s), Non-return valve(s)
• Number of spray functions
3 spray functions

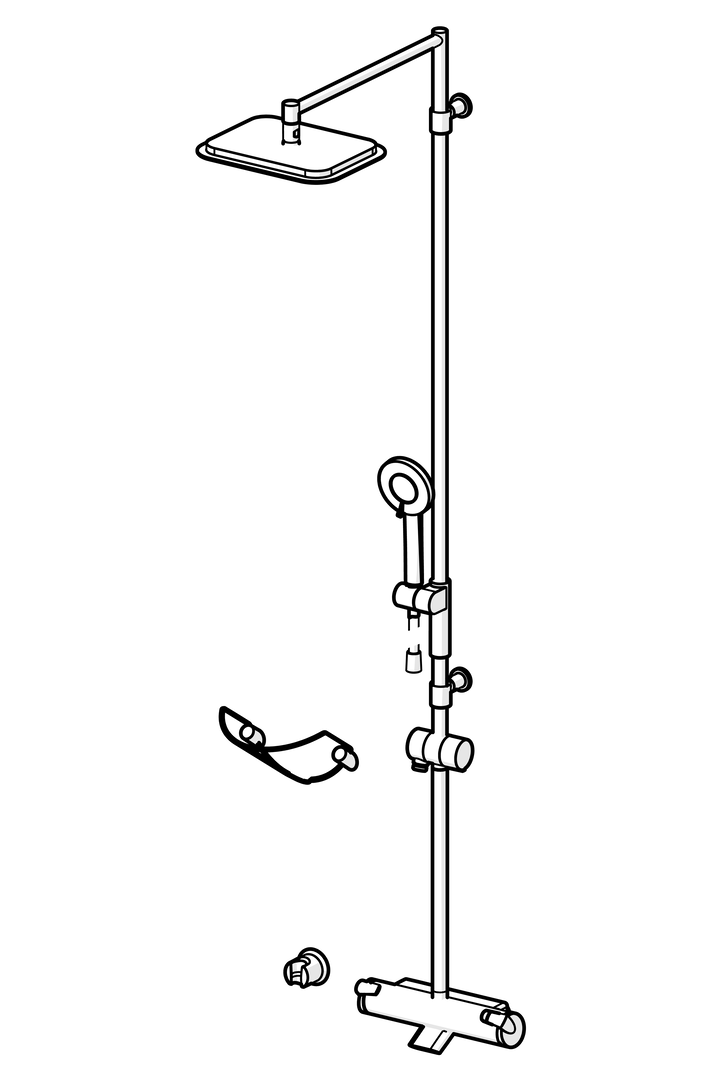

• Shower parts
Hand shower, Shower rail, Overhead shower, Adjustable shower rail bracket, Soap dish, Shower holder, Shower hose (2000 mm), Eco flow control, Rotatable ball joint connection
• Spout
Fixed spout
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

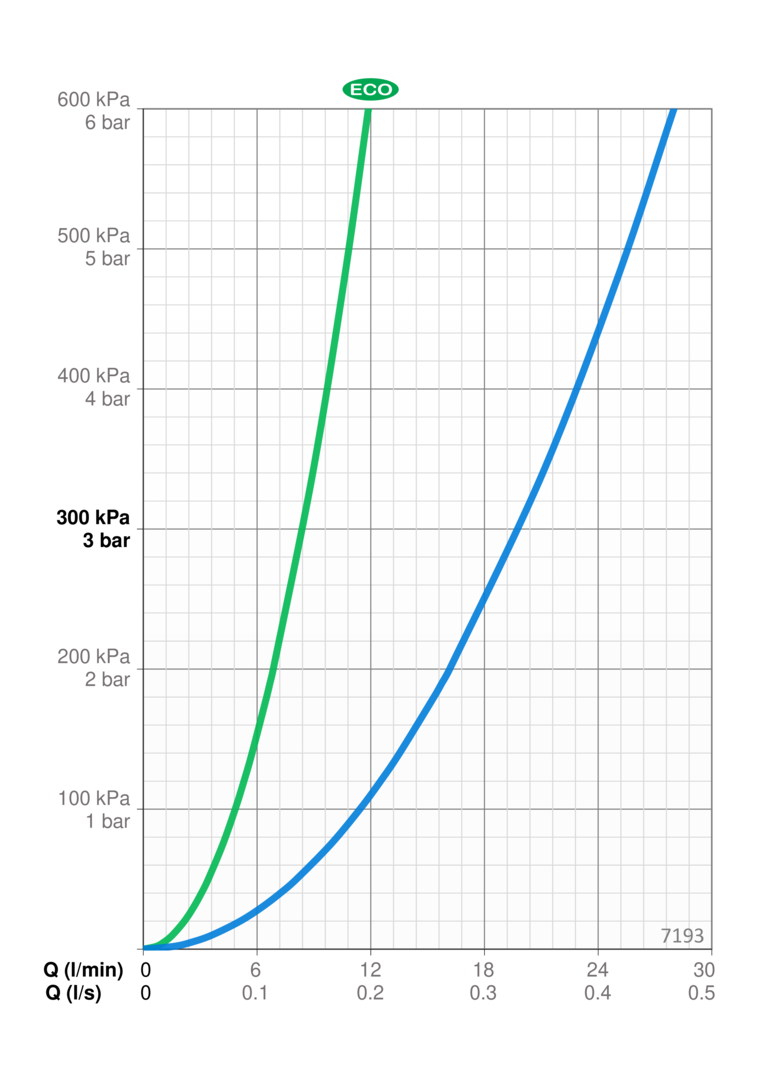

Flow attributes

• Eco-flow at 300 kPa
0.14 l/s
• Flow-rate at 300 kPa
0.33 l/s
• Pressure loss with flow (0.2 l/s)
300 kPa
• Pressure loss with flow (0.3 l/s)
250 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G1/2
• Hot water supply
max. +80°C

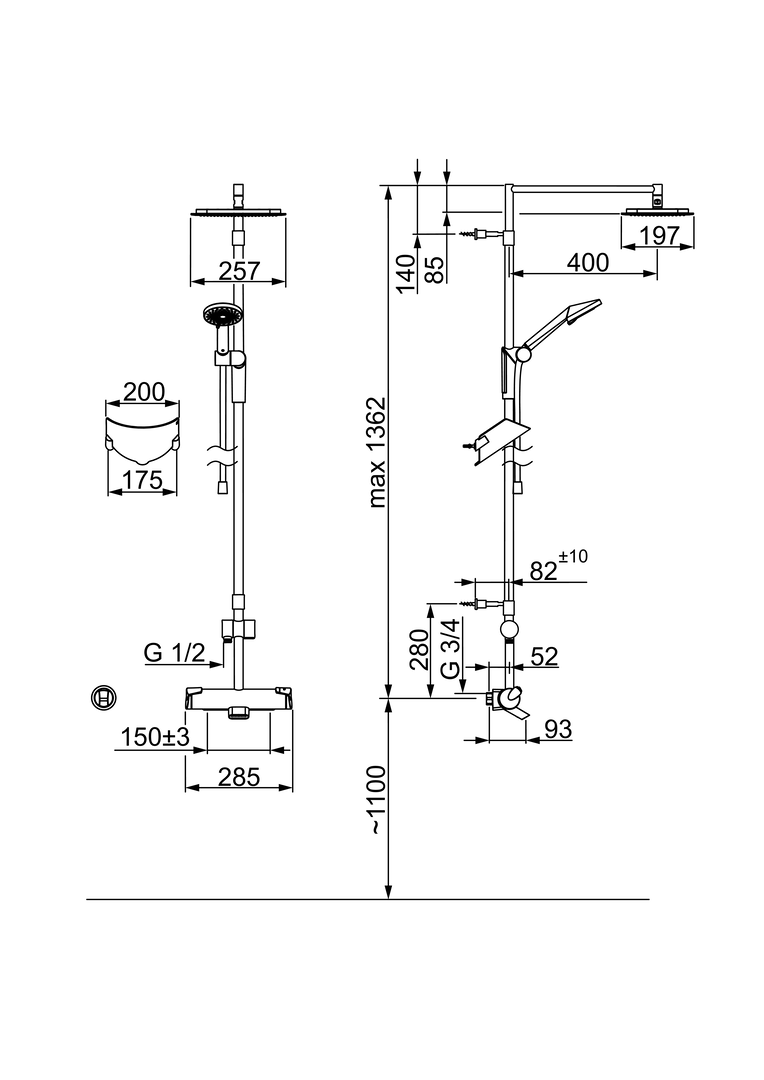

• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111, EN 1112, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20002662-TH4

Sustainability

• EPD module A1 (kg CO2 eq.)
28,28
• EPD module A1-A3 (kg CO2 eq.)
32,75
• EPD module A2 (kg CO2 eq.)
1,46
• EPD module A3 (kg CO2 eq.)
2,99
• EPD module A4 (kg CO2 eq.)
0,86
• EPD module B7 (kg CO2 eq.)
1621,20
• EPD module C2 (kg CO2 eq.)
0,06
• EPD module C3 (kg CO2 eq.)
0,06
• EPD module C4 (kg CO2 eq.)
1,79
• EPD module D (kg CO2 eq.)
-21,40
