Oras Optima Style - Shower system 7191N

Oras Optima Style - Shower system (7191N)

€754,03
Sale price  €754,03 Regular price

Designed to impress and give an elegant solution for any bathroom.

This rainshower system gives you a most comfortable and enjoyable shower experience every day. With focus on high performance while still have and eye on the aesthetics and details to secure an easy installation.

The handles are designed to be elegant while still providing a good grip for easy.

Our new developed magnectic shelf ”MagShelf” completes the design while covering the connection to the wall.

The large and flat head shower has a gentle spray that covers the whole body. Enjoy the even and strong water stream for the ultimate relaxation.

Elegant design and total enjoyment

Technical Data

Features

• Connection
Direct connection, Internal thread, Cover plate(s)
• Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Easy-Grip surface, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Number of spray functions
3 spray functions
• Shower parts
Rotatable ball joint connection, Lockable in the middle position, MagShelf. Removable shelf with magnetic attachment, Swivel overhead shower, Shower rail, Variable fixing points
• Shower spray
Normal - Even and soft water stream, Massage - Strong water stream due to rotatable spray nozzles, Rain - Even and strong water stream
• Advanced features
Flexible length / can be shortened, Anti-twist hose connector
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

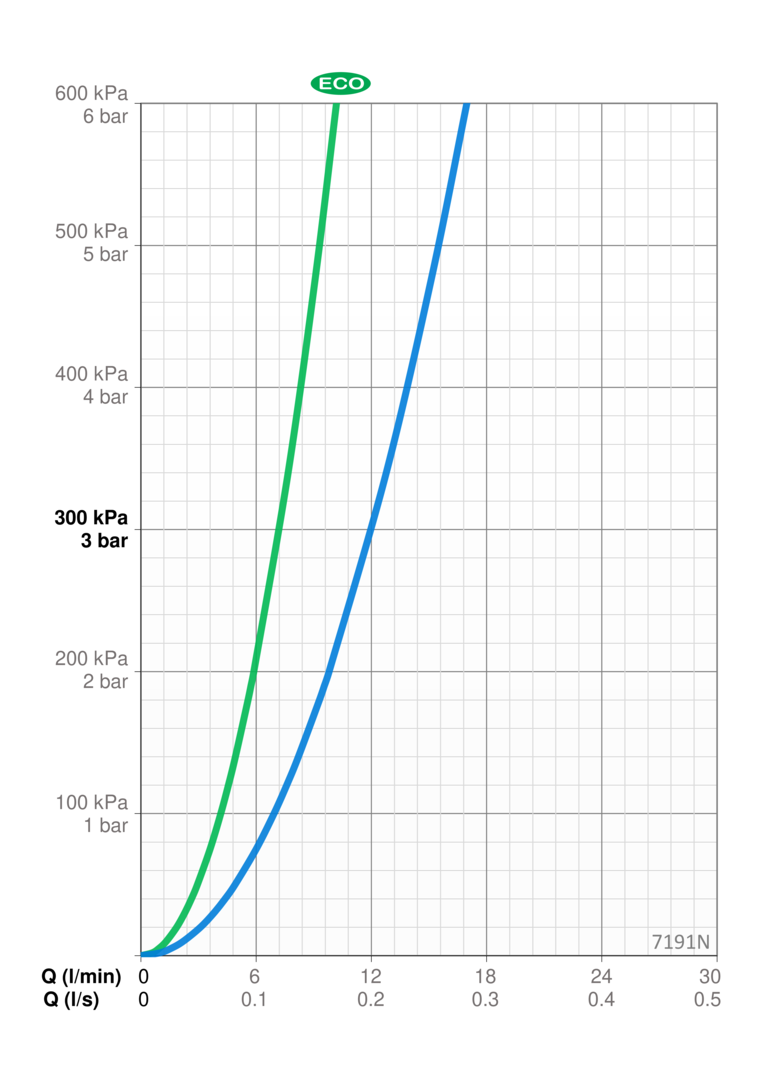

Flow attributes

• Eco-flow at 300 kPa
0.12 l/s
• Flow-rate at 300 kPa
0.2 l/s
• Pressure loss with flow (0.2 l/s)
250 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

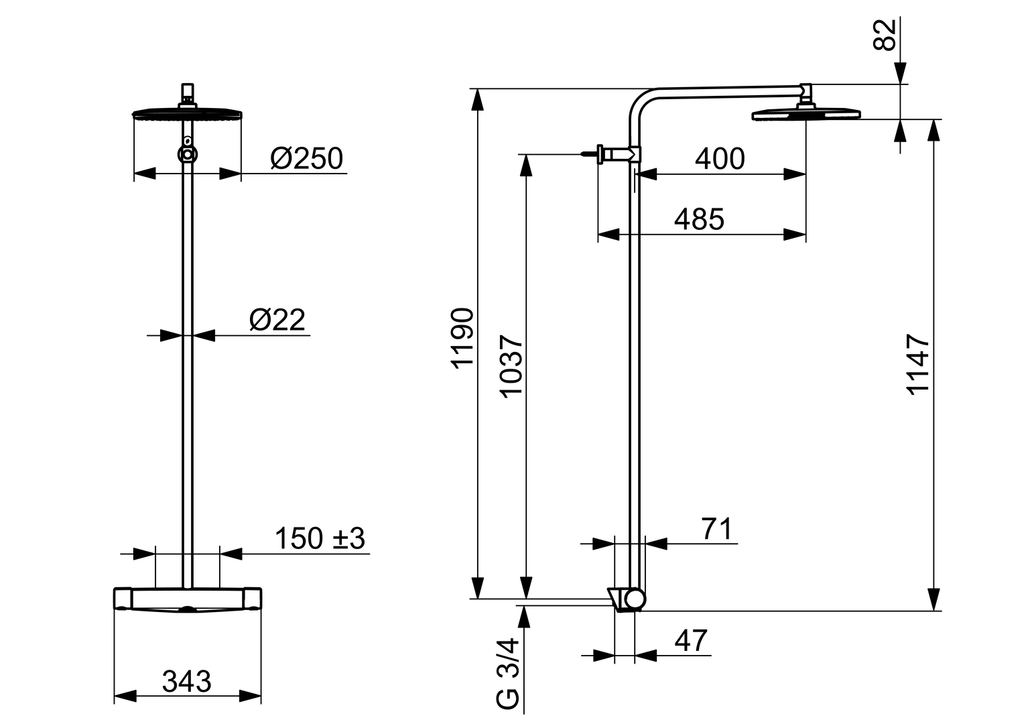

• Installation width
150 ± 3 mm
• Material
Brass
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN1111
• Noise class 0.2 l/s
I (ISO 3822)

Sustainability

• EPD module A1 (kg CO2 eq.)
20,83
• EPD module A1-A3 (kg CO2 eq.)
24,12
• EPD module A2 (kg CO2 eq.)
1,07
• EPD module A3 (kg CO2 eq.)
2,20
• EPD module A4 (kg CO2 eq.)
0,63
• EPD module B7 (kg CO2 eq.)
1389,60
• EPD module C2 (kg CO2 eq.)
0,05
• EPD module C3 (kg CO2 eq.)
0,05
• EPD module C4 (kg CO2 eq.)
1,32
• EPD module D (kg CO2 eq.)
-15,76

Spare Parts
Oras Optima Style - Shower system (7191N)

01 Wall bracket (Chrome) / 1013325V

02 Slide for shower rail, d 22 mm (Chrome) / 1012974V

03 Shelf (Chrome) / 1012484V

04 Filter sealing, G3/4, DN20 / 178375V

05 Flow control handle (Chrome) / 1006775V

06 Diverter / 198282V

07 Non-return valve, DN15 / 105311

08 Thermostatic cartridge / 178780V

09 O-ring kit / 178796V

10 Temperature control handle (Chrome) / 1006752V
