Features
• Connection
Direct connection, Internal thread, Cover plate(s)
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Easy-Grip surface, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Number of spray functions
3 spray functions
• Shower parts
Rotatable ball joint connection, Hand shower, Lockable in the middle position, MagShelf. Removable shelf with magnetic attachment, Adjustable shower rail bracket, Swivel overhead shower, Shower hose (1750 mm), Shower rail, Anti limescale technology (easy to clean), Twist guard for shower hose, Variable fixing points
• Shower spray
Normal - Even and soft water stream, Massage - Strong water stream due to rotatable spray nozzles, Rain - Even and strong water stream
• Advanced features
Flexible length / can be shortened, Anti-twist hose connector
• Spout
Detachable spout
• Color
Brushed bronze
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

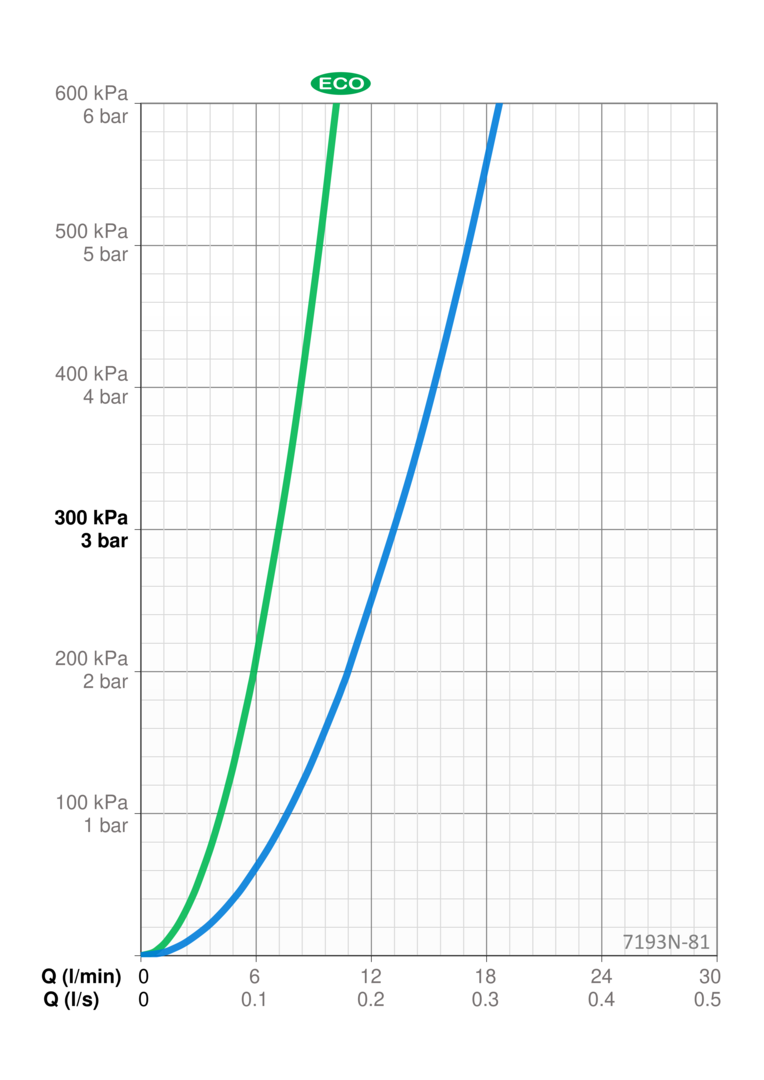

Flow attributes
• Eco-flow at 300 kPa
0.12 l/s
• Flow-rate at 300 kPa
0.22/0.22 l/s
• Pressure loss with flow (0.2 l/s)
250 kPa

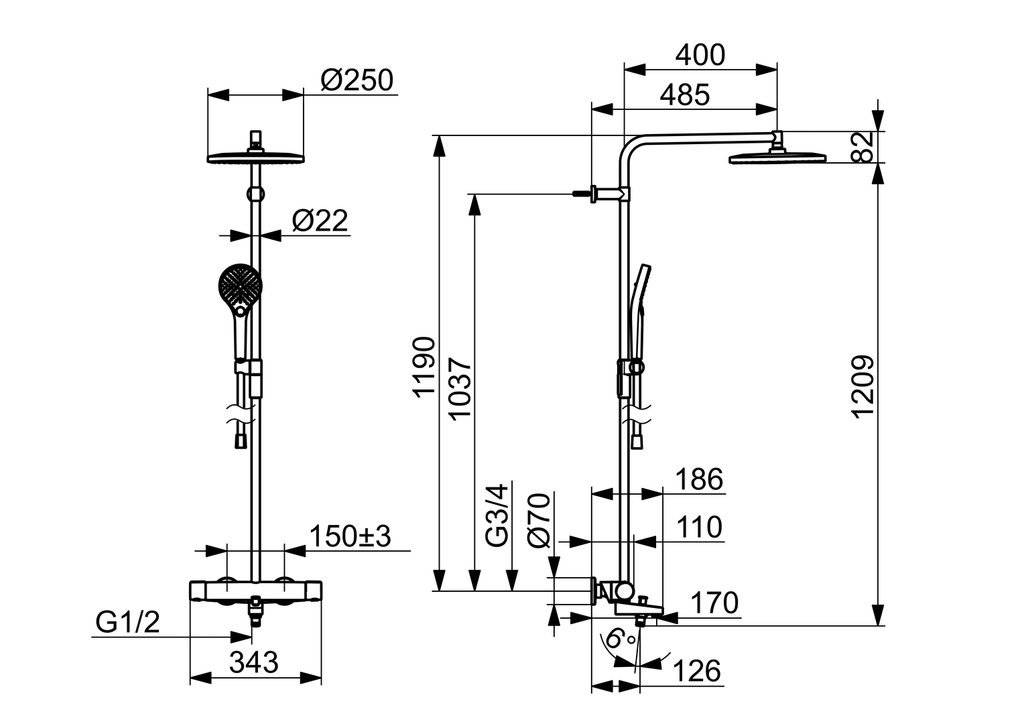

Technical properties
• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +65°C
• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Projection
131 mm
• Working pressure
100 - 1000 kPa
Regulations
• EN standard
EN1111
• Noise class 0.2 l/s
I (ISO 3822)
Sustainability
• EPD module A1 (kg CO2 eq.)
25,26
• EPD module A1-A3 (kg CO2 eq.)
29,26
• EPD module A2 (kg CO2 eq.)
1,30
• EPD module A3 (kg CO2 eq.)
2,67
• EPD module A4 (kg CO2 eq.)
0,77
• EPD module B7 (kg CO2 eq.)
1389,60
• EPD module C2 (kg CO2 eq.)
0,06
• EPD module C3 (kg CO2 eq.)
0,06
• EPD module C4 (kg CO2 eq.)
1,60
• EPD module D (kg CO2 eq.)
-19,12
