Oras Optima - Washbasin faucet (2606AF-105)

Features

• Aerator
PCA® - constant flow rate regardless of pressure variations
• Connection
Flexible inlet pipes
• Hand shower
Bidetta hand shower
• Lever/Handle
Single operating lever/handle, Pin shape, Hot/Cold symbols
• Mechanical parts
ø 30 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm)
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

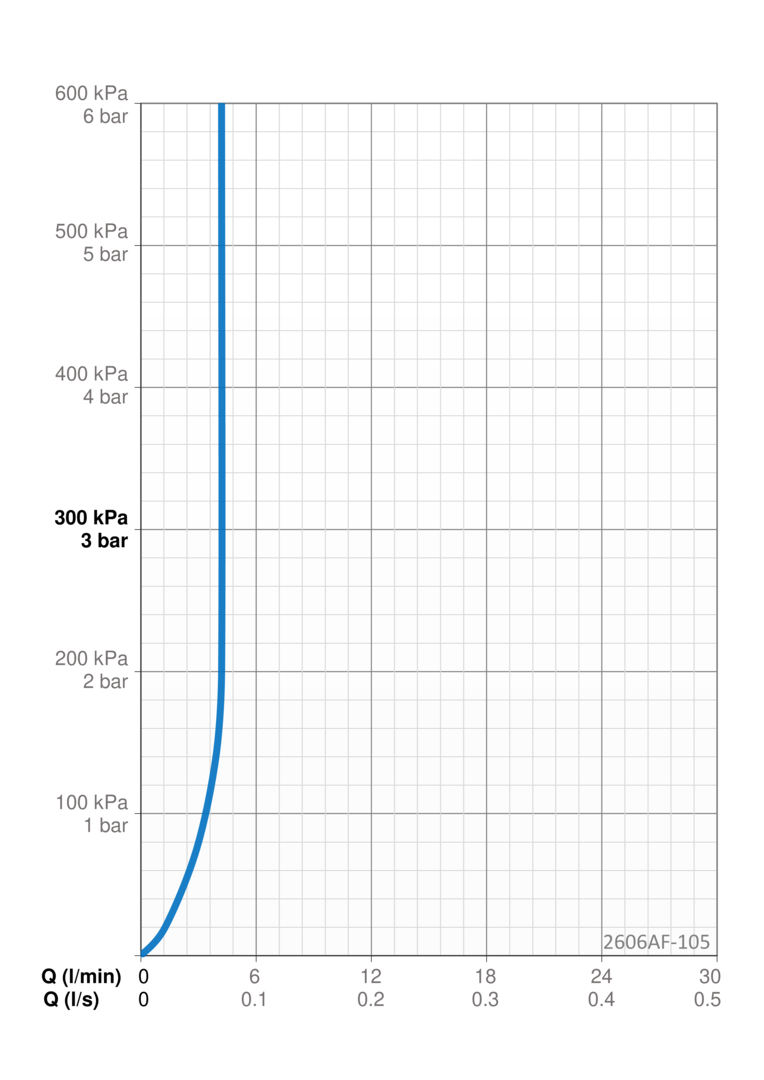

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.07 l/s

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
114 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-23002169-TH1

Sustainability

• EPD module A1 (kg CO2 eq.)
9,26
• EPD module A1-A3 (kg CO2 eq.)
10,58
• EPD module A2 (kg CO2 eq.)
0,44
• EPD module A3 (kg CO2 eq.)
0,88
• EPD module A4 (kg CO2 eq.)
0,29
• EPD module B7 (kg CO2 eq.)
1297,80
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,08
• EPD module D (kg CO2 eq.)
-7,53
