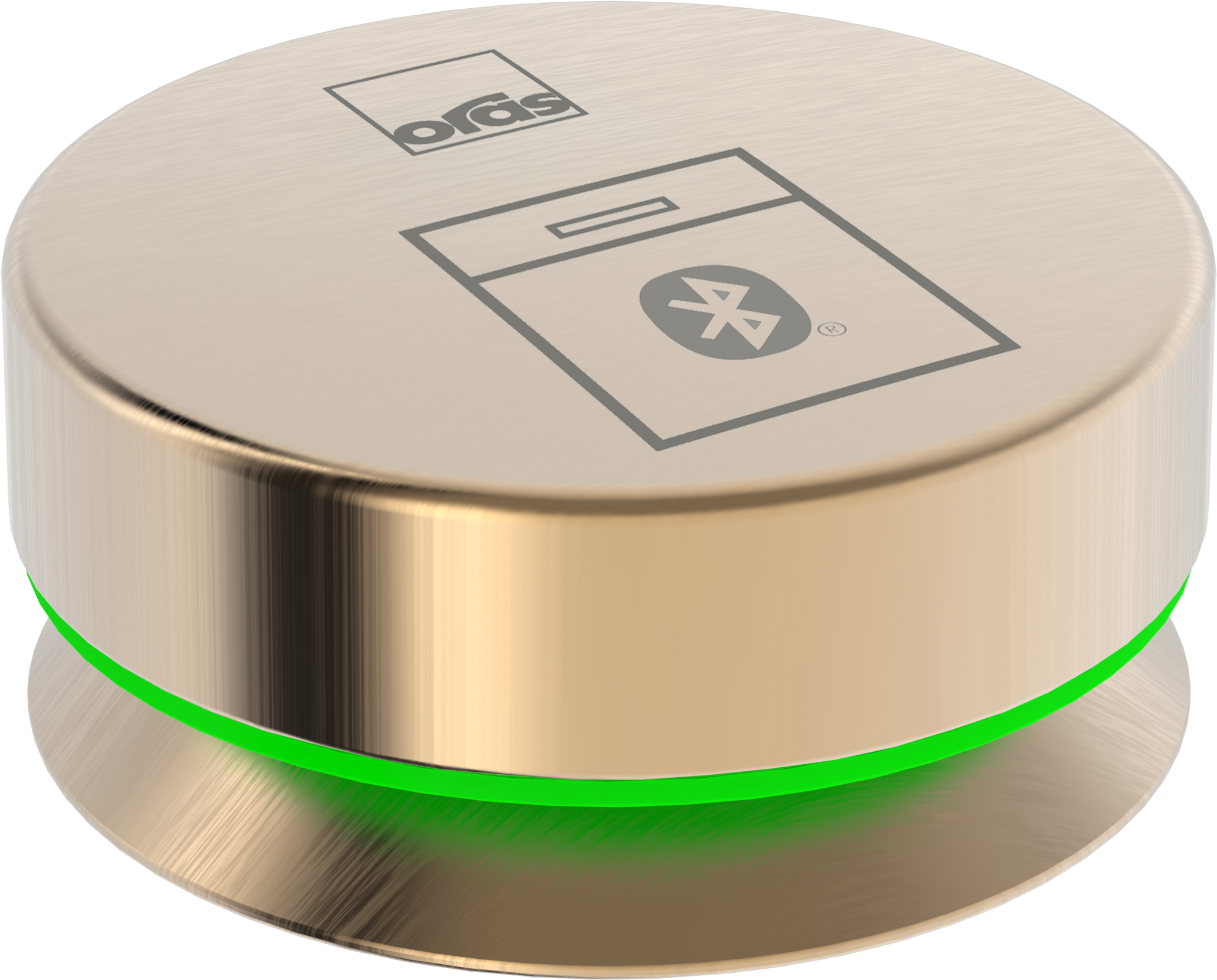

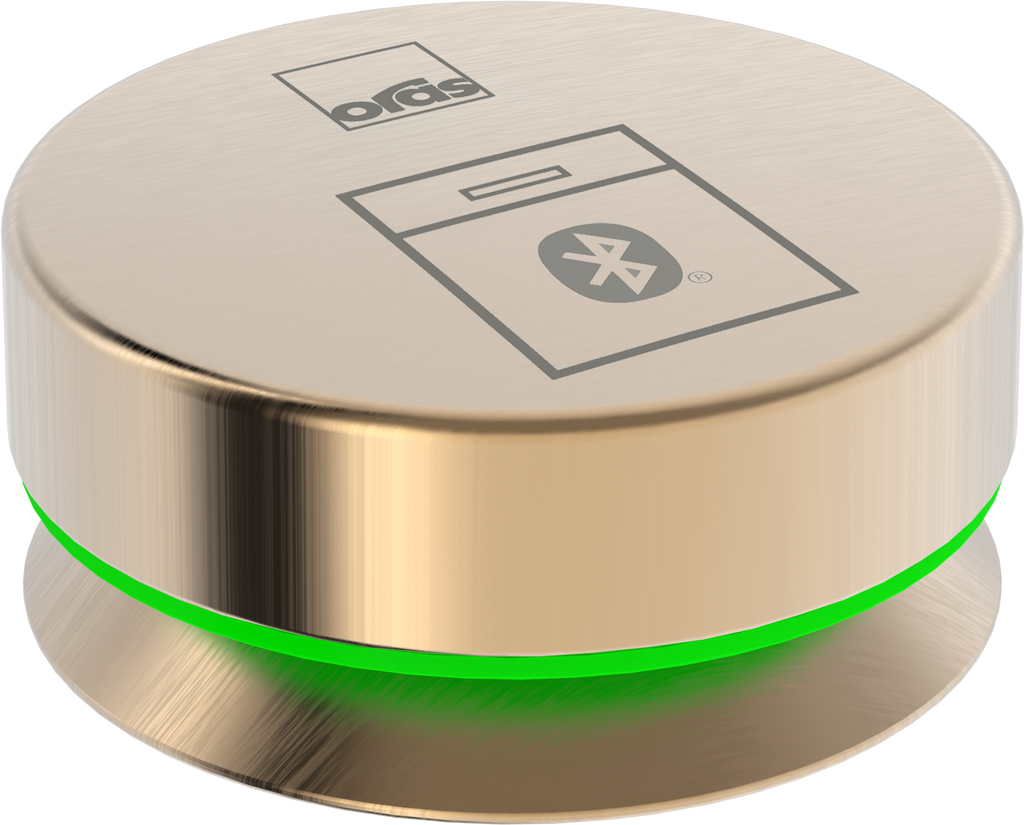

Oras - Remote valve, 3 V, Bluetooth (272100-81)

Features

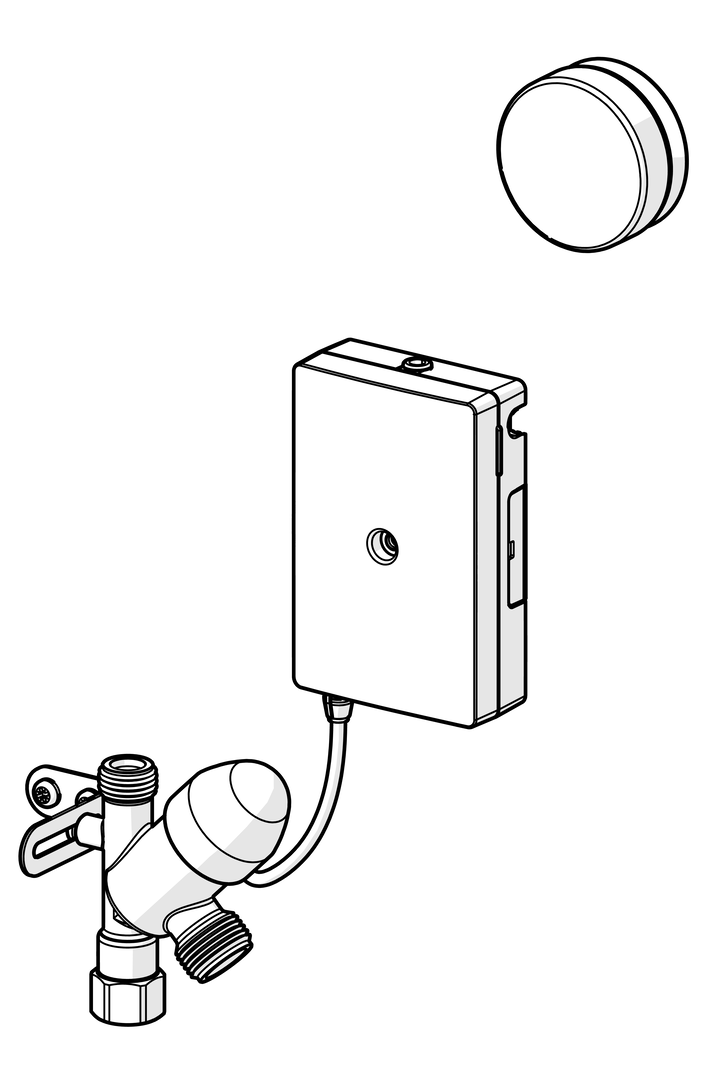

• Electronic parts
Solenoid valve, External control unit, Low battery indicator
• Color
Brushed bronze

Software settings

• Dishwasher valve open period
4 h / 12 h

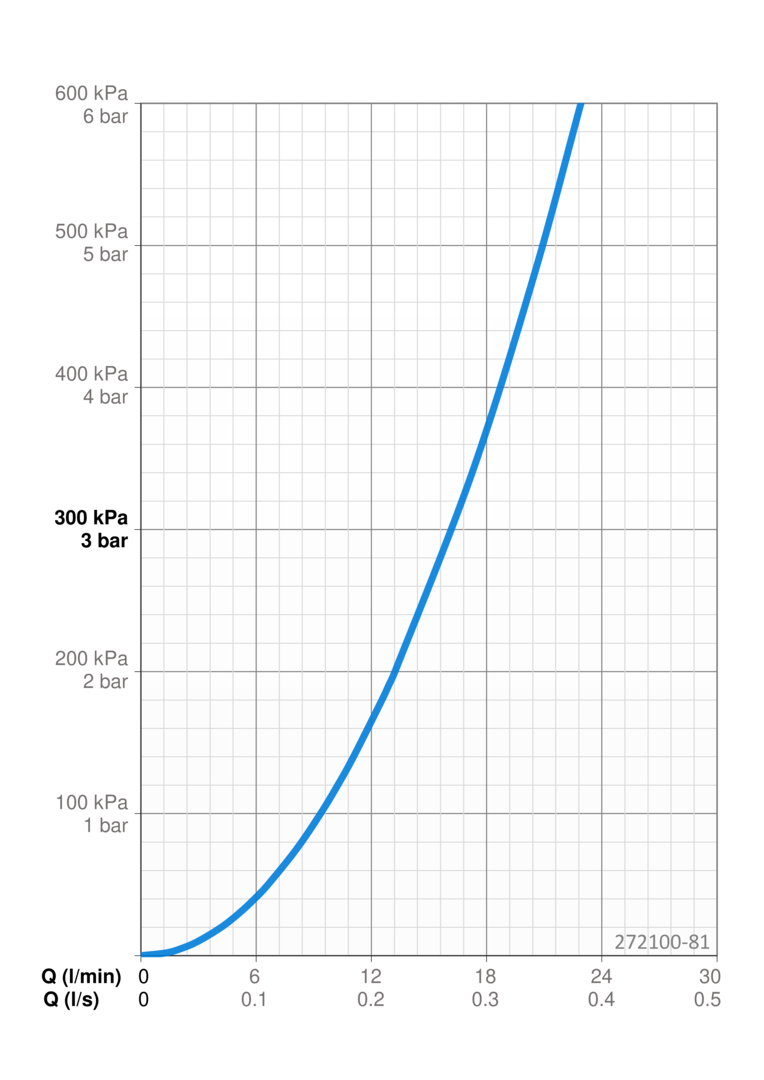

Flow attributes

• Flow-rate at 300 kPa
0.27 l/s
• Pressure loss with flow (0.2 l/s)
160 kPa

Technical properties

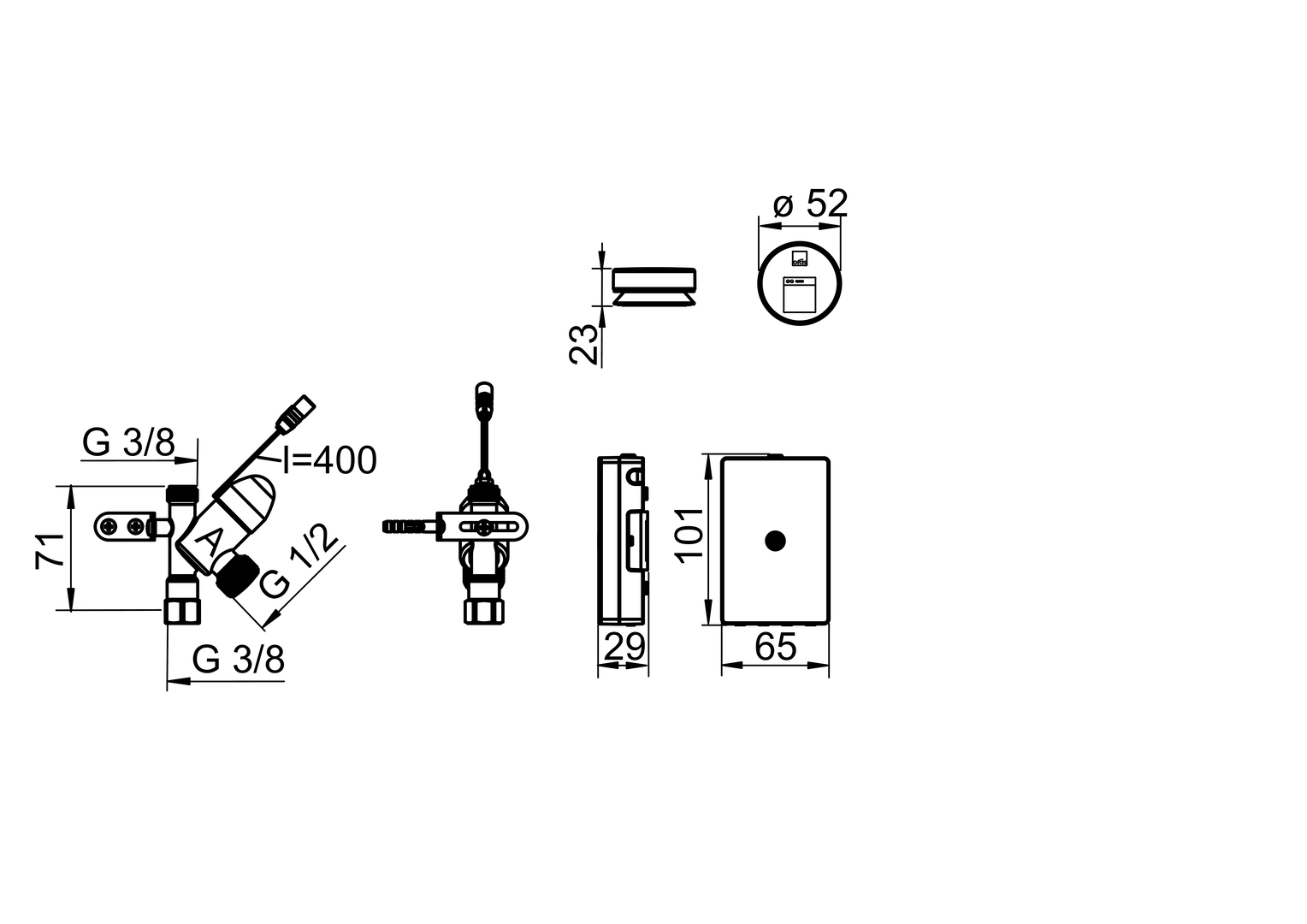

• Diameter
52 mm
• Hot water supply
max. +70°C
• Material
Composite
• Working pressure
100 - 1000 kPa

Electronics

• Battery
AA 1.5 V Lithium x 2, CR 2450 3 V
• Bluetooth version
5.x (D060577)

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 54

Approvals and Declarations

• UN38.3
UN38-3 Energizer L91

Sustainability

• EPD module A1 (kg CO2 eq.)
1,81
• EPD module A1-A3 (kg CO2 eq.)
2,00
• EPD module A2 (kg CO2 eq.)
0,11
• EPD module A3 (kg CO2 eq.)
0,06
• EPD module A4 (kg CO2 eq.)
0,11
• EPD module C2 (kg CO2 eq.)
0,00
• EPD module C3 (kg CO2 eq.)
0,41
• EPD module C4 (kg CO2 eq.)
0,02
