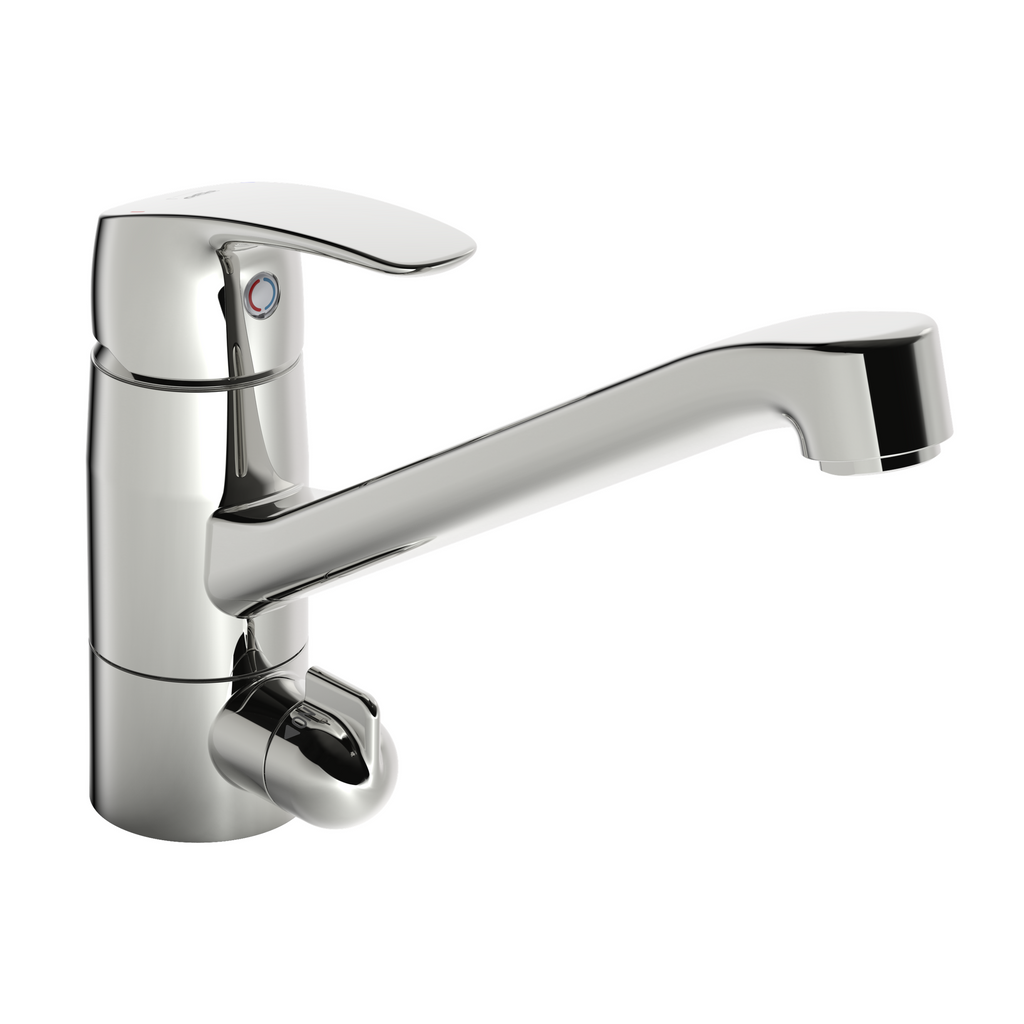

Oras Safira - Kitchen faucet with dishwasher valve (1035FS)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Dishwasher valve
Mechanic stop valve for external equipment
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
Inner body made of DZR brass, 3S-installation system for safe and simple mounting
• Spout
Swivel spout, Swivel range limiting option, Profile construction
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (40° - 80°)

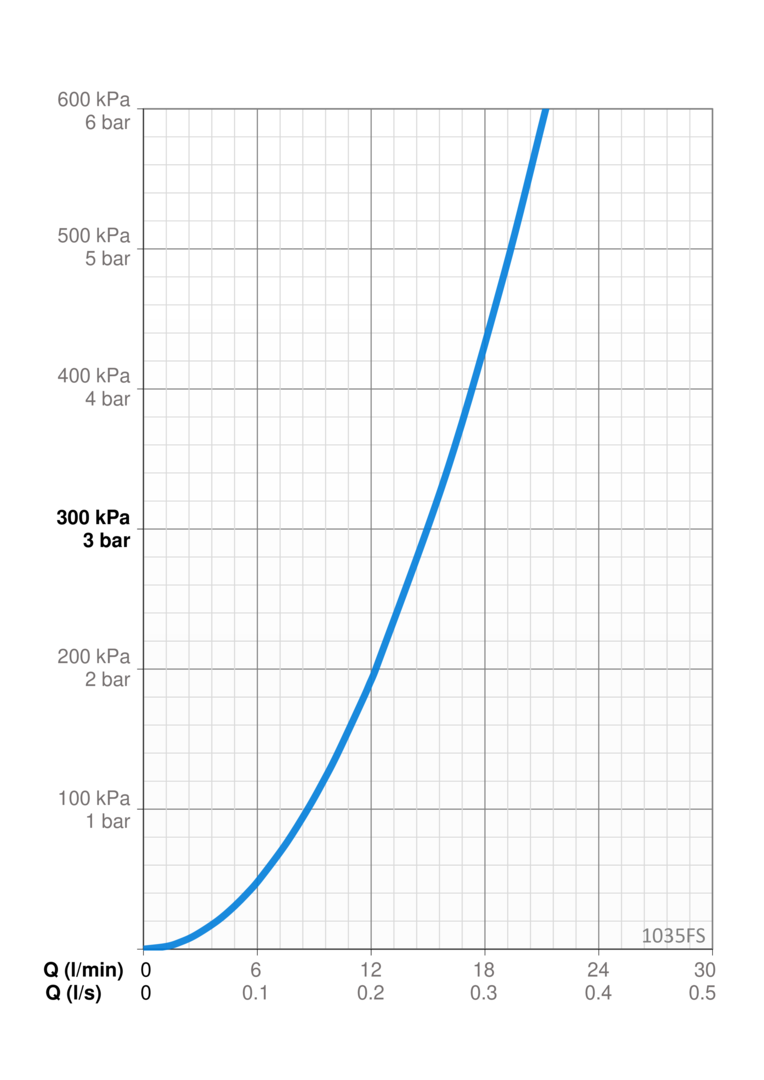

Flow attributes

• Flow-rate at 300 kPa
0.25 l/s
• Pressure loss with flow (0.2 l/s)
195 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
213 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822) Oras lab.

Approvals and Declarations

• Sintef
Sintef Nr. 0227
• STF
EUFI29-22005194-TH
• KIWA SE
1491

Sustainability

• EPD module A1 (kg CO2 eq.)
8,87
• EPD module A1-A3 (kg CO2 eq.)
13,19
• EPD module A2 (kg CO2 eq.)
0,42
• EPD module A3 (kg CO2 eq.)
3,90
• EPD module A4 (kg CO2 eq.)
0,26
• EPD module B7 (kg CO2 eq.)
5910,00
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,40
• EPD module D (kg CO2 eq.)
-7,46
