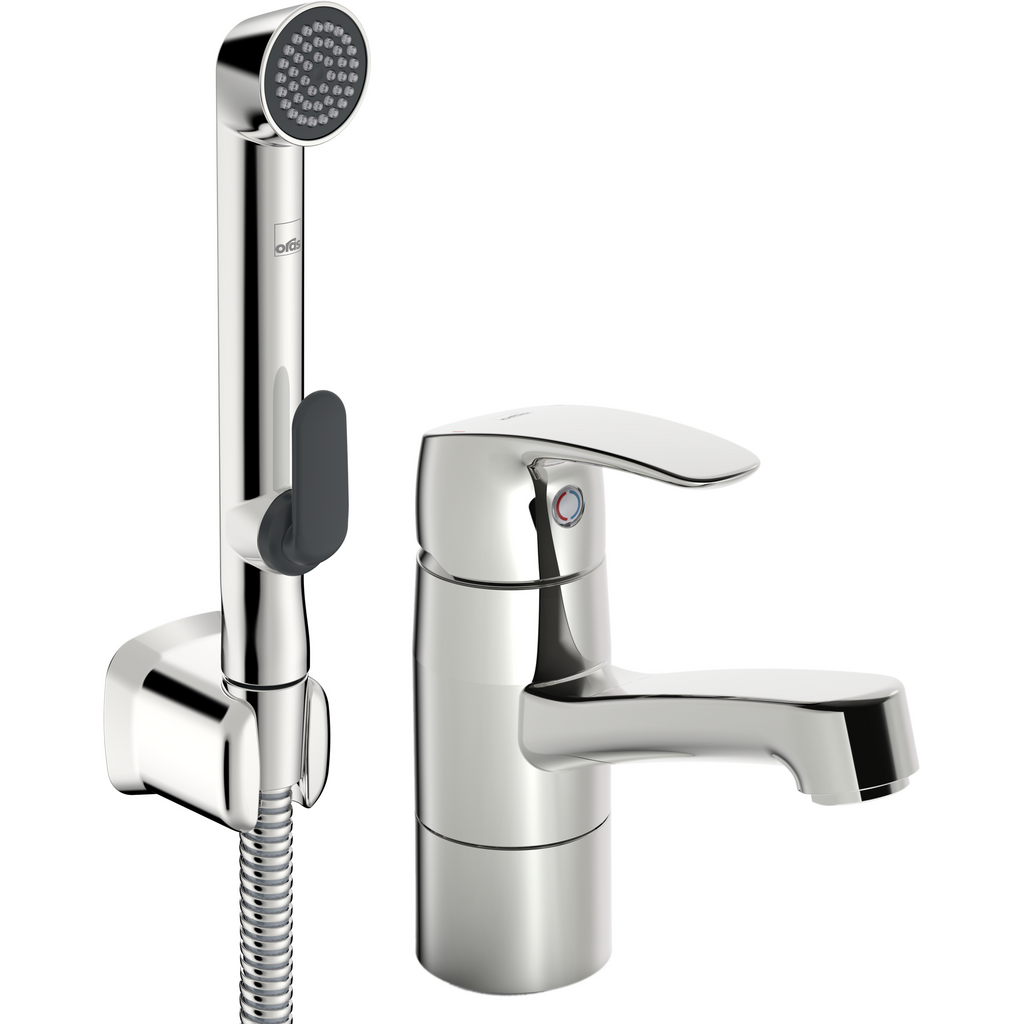

Oras Safira - Washbasin faucet 1021F

Oras Safira - Washbasin faucet (1021F)

€234,60
Sale price  €234,60 Regular price
Skip to product information
Oras Safira - Washbasin faucet 1021F

Oras Safira - Washbasin faucet (1021F)

€234,60
Sale price  €234,60 Regular price
Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Hand shower
Bidetta hand shower
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm)
• Spout
Swivel spout, Swivel range limiting option, Profile construction
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (40° - 80°)

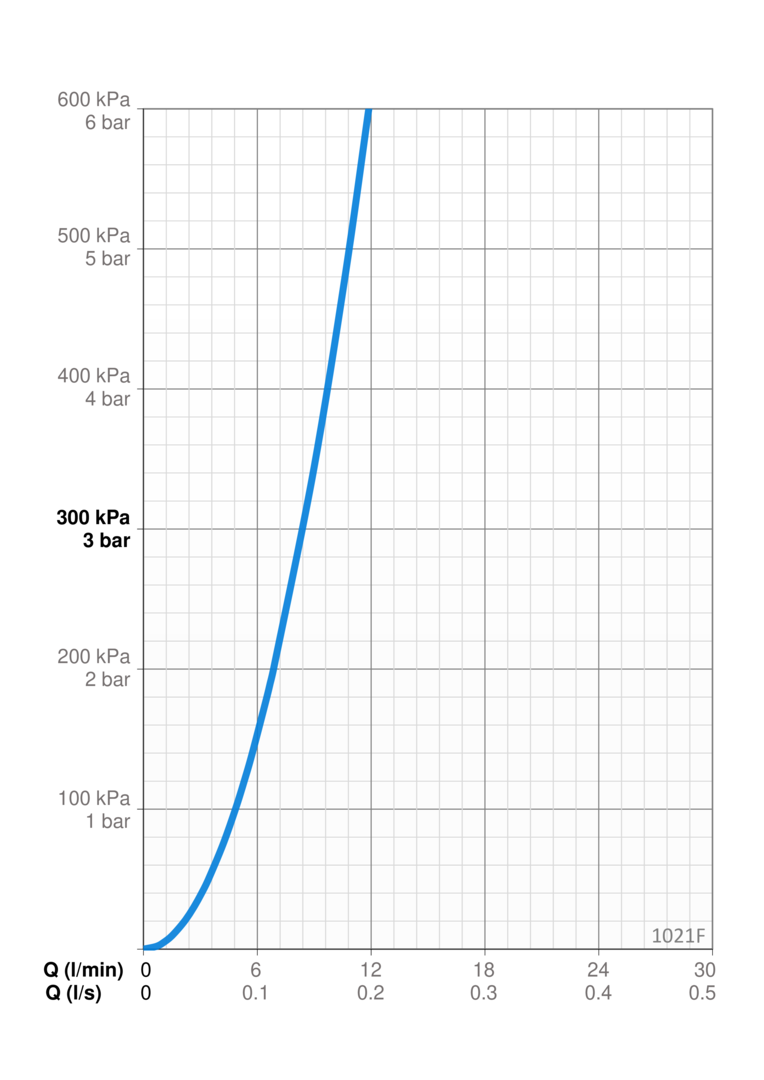

Flow attributes

• Flow-rate at 300 kPa
0.14 l/s
• Pressure loss with flow (0.1 l/s)
160 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
133 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005194-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
9,37
• EPD module A1-A3 (kg CO2 eq.)
10,71
• EPD module A2 (kg CO2 eq.)
0,45
• EPD module A3 (kg CO2 eq.)
0,89
• EPD module A4 (kg CO2 eq.)
0,30
• EPD module B7 (kg CO2 eq.)
2595,60
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,08
• EPD module D (kg CO2 eq.)
-7,62

Spare Parts
Oras Safira - Washbasin faucet (1021F)

01 Lever (Chrome) / 602502V

02 Covering cap (Chrome) / 602589V

03 Tightening nut, M42x1.5, SW 38 / 158726

04 Cartridge, Green building / 600979V

05 Cartridge / 158890

06 Spout, L=132 (Chrome) / 602520V

07 Spout overturning stopper, 120° / 1001406/10

08 Spout overturning stopper, 40°-80° / 1002207/10

09 Fixing screw, M8x1, L=130 / 1000780V

10 Fixing set / 602610V

11 Aerator, M24x1, 6 l/min (Chrome) / 199266V

12 Aerator, M24x1 STD HC A (Chrome) / 232211

13 Bearing ring / 601097/10

14 X-sealing set / 158735

15 Bearing ring / 159423/10

16 Bottom seal / 1002371V

17 Supporting plate, 100x60mm / 158825

18 Nipple / 159684
