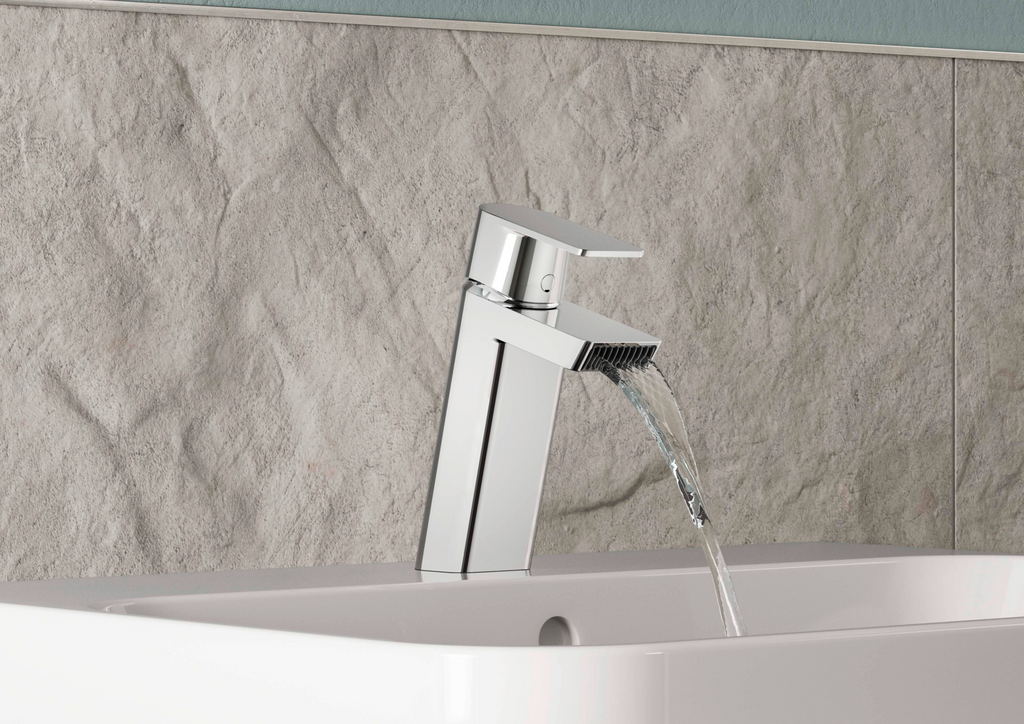

Beauty that flows from within – experience the diamond waterfall effect.

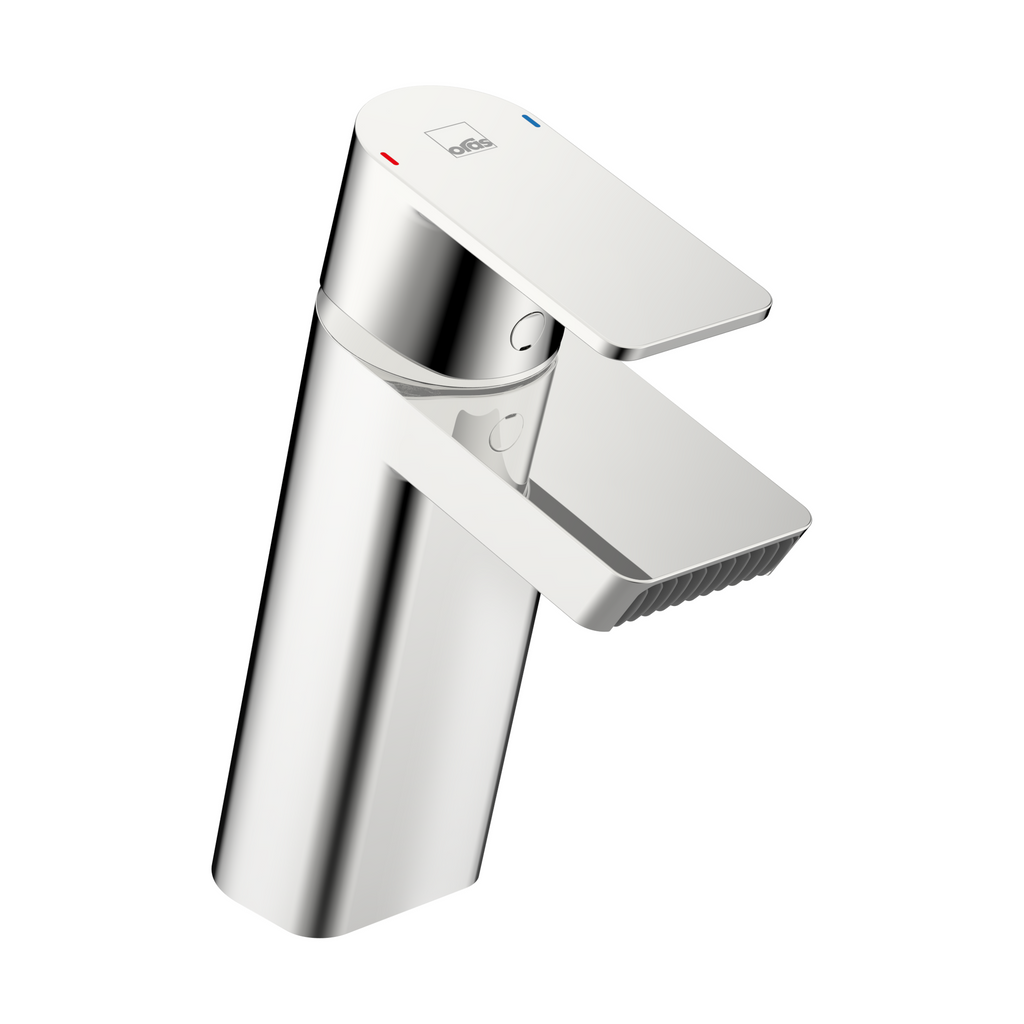

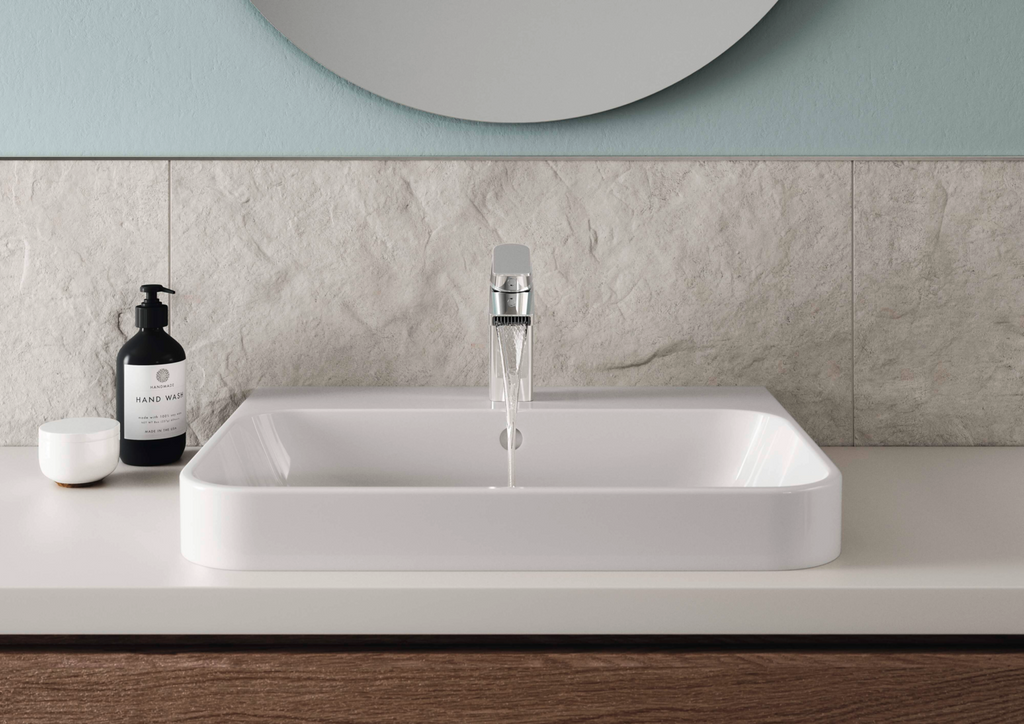

Introducing this bathroom faucets that features a unique diamond waterfall effect. The laminar stream aerator is real eye catcher that brings a touch of nature to your bathroom. The single-lever, top-operating faucet with hot and cold symbols and fixed spout make it easy to use. The inner body is made of corrosion resistant brass, ensuring durability and longevity. This deck-mounted faucet is perfect for any washbasin installation. Upgrade your bathroom with this timeless elegance for any bathroom design.

Technical Data

Features

• Additional features
diamond structured water flow
• Aerator
Laminar stream

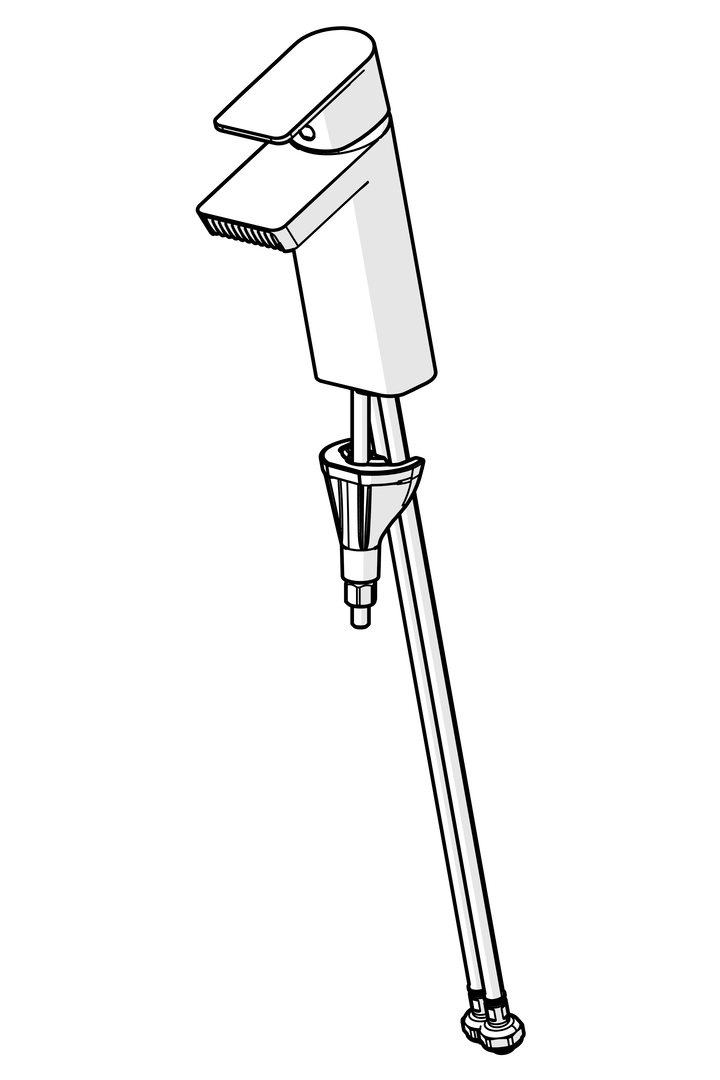

• Connection
Flexible inlet pipes
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
Inner body made of DZR brass, 3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

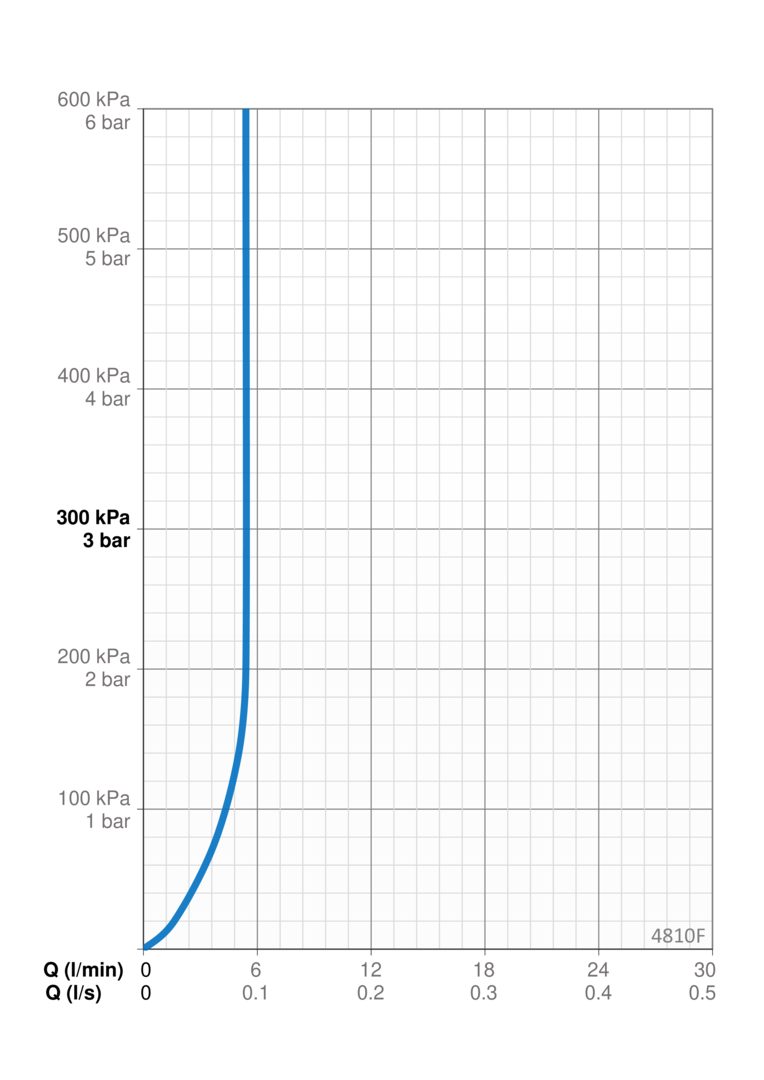

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.09 l/s
• Pressure loss with flow (0.1 l/s)
200 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

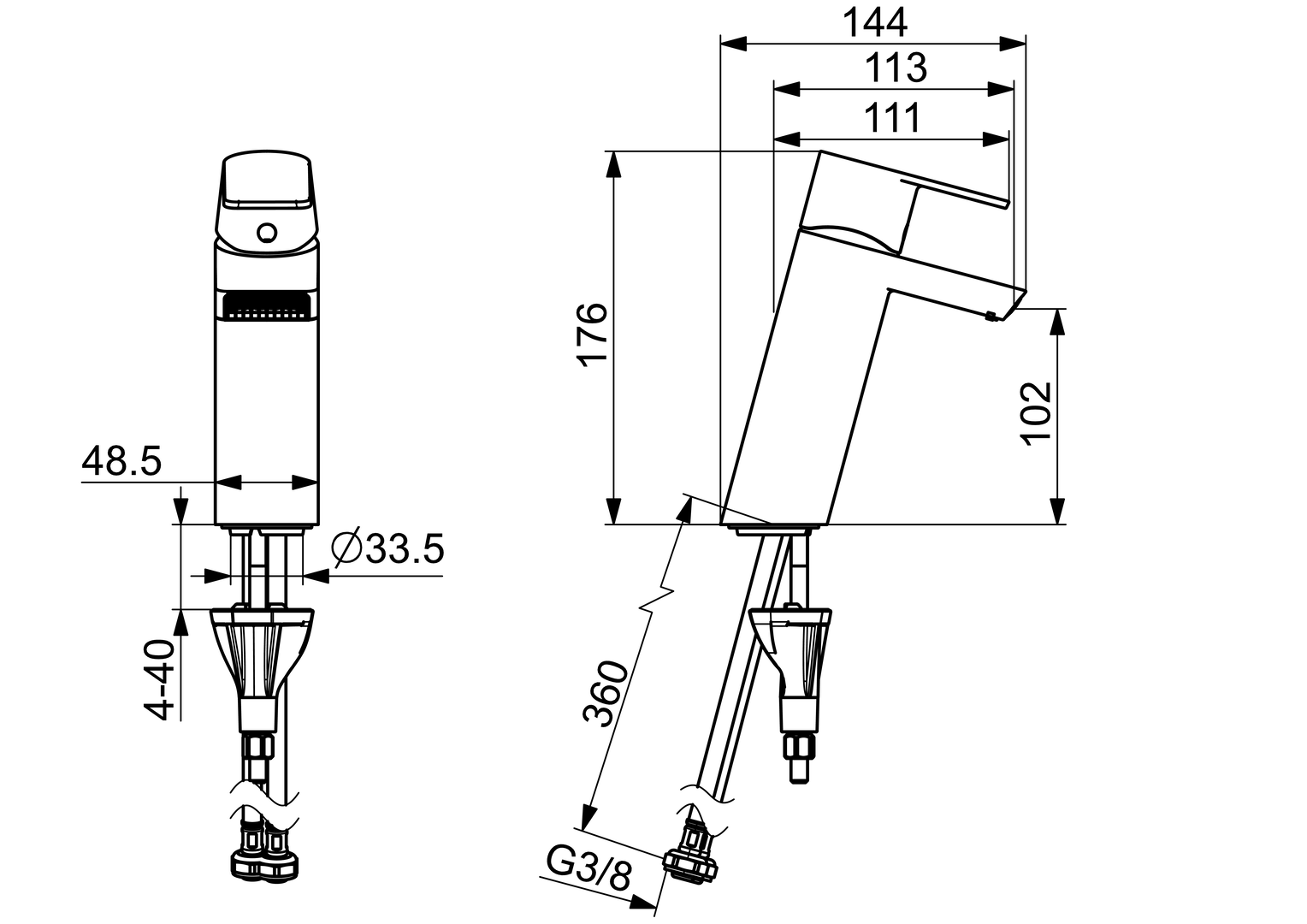

• Projection
113 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-21003824-TH
• KIWA SE
1746

Sustainability

• EPD module A1 (kg CO2 eq.)
8,98
• EPD module A1-A3 (kg CO2 eq.)
10,27
• EPD module A2 (kg CO2 eq.)
0,43
• EPD module A3 (kg CO2 eq.)
0,85
• EPD module A4 (kg CO2 eq.)
0,28
• EPD module B7 (kg CO2 eq.)
1668,60
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,08
• EPD module D (kg CO2 eq.)
-7,30

Spare Parts
Oras Stela - Washbasin faucet (4810F)

01 Lever (Chrome) / 1006282V

02 Symbol plug / 1002323V

03 Covering cap (Chrome) / 1001740V

04 Tightening nut, M42x1.5, SW 38 / 158726

05 Cartridge / 1003691V

06 Aerator / 1006714V

07 Bottom seal / 1002371V

08 Fixing screw, M8x1, L=130 / 1000780V

09 Fixing set / 602610V

10 Litter filters / 199257/2
