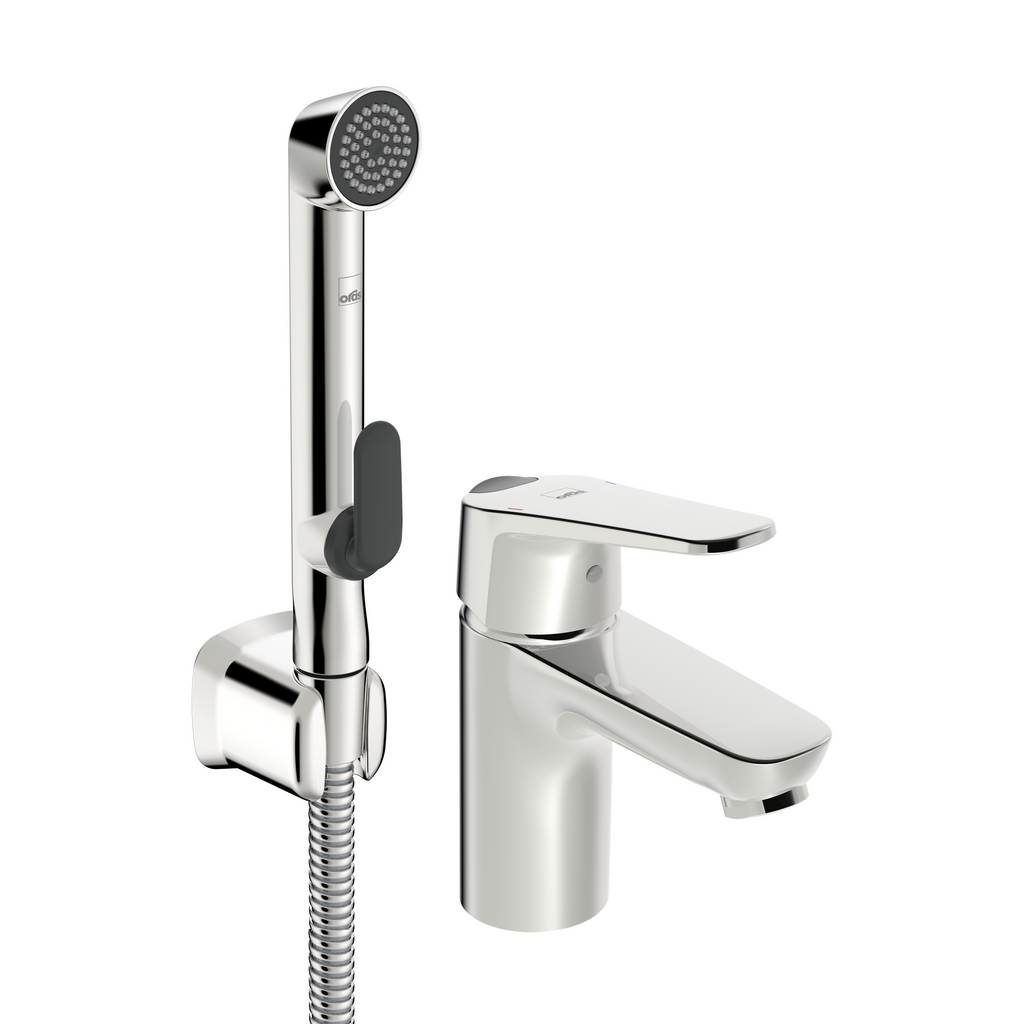

Oras Vega - Washbasin faucet (1812FG)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Hand shower
Bidetta hand shower
• Lever/Handle
Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm)
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

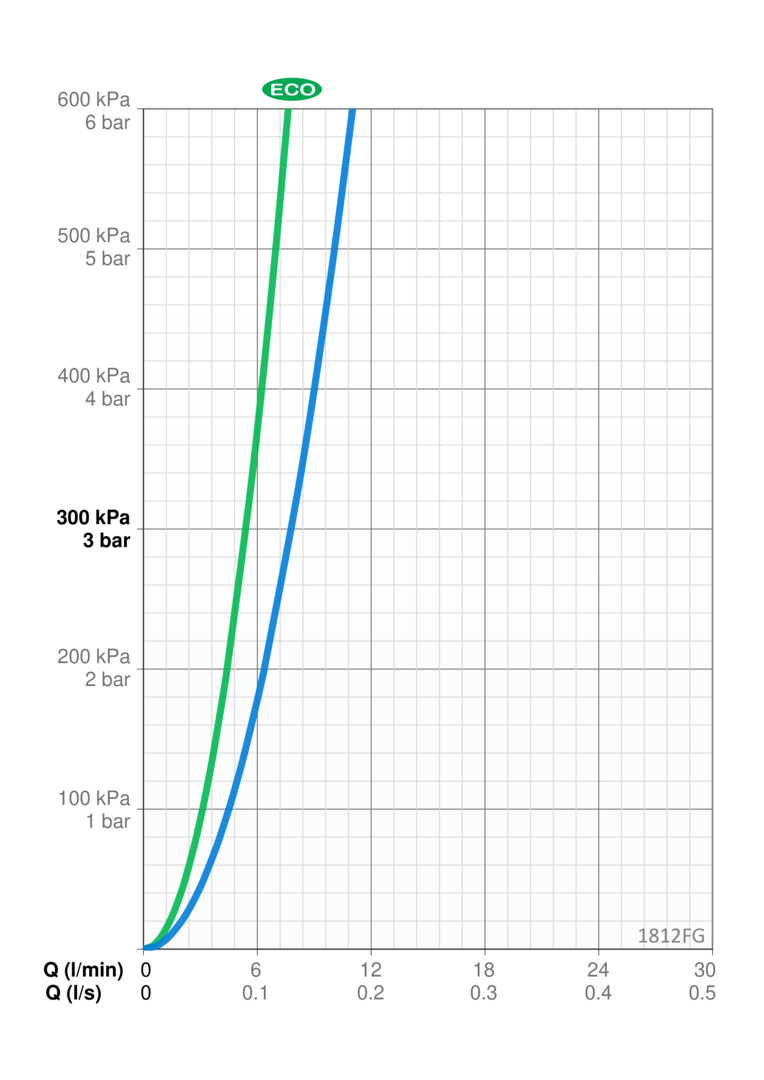

Flow attributes

• Eco-flow at 300 kPa
0.09 l/s
• Flow-rate at 300 kPa
0.13 l/s
• Pressure loss with flow (0.1 l/s)
195 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
107 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 3638
• STF
EUFI29-20000935-TH1

Sustainability

• EPD module A1 (kg CO2 eq.)
8,42
• EPD module A1-A3 (kg CO2 eq.)
9,62
• EPD module A2 (kg CO2 eq.)
0,40
• EPD module A3 (kg CO2 eq.)
0,80
• EPD module A4 (kg CO2 eq.)
0,27
• EPD module B7 (kg CO2 eq.)
1668,60
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,07
• EPD module D (kg CO2 eq.)
-6,84
