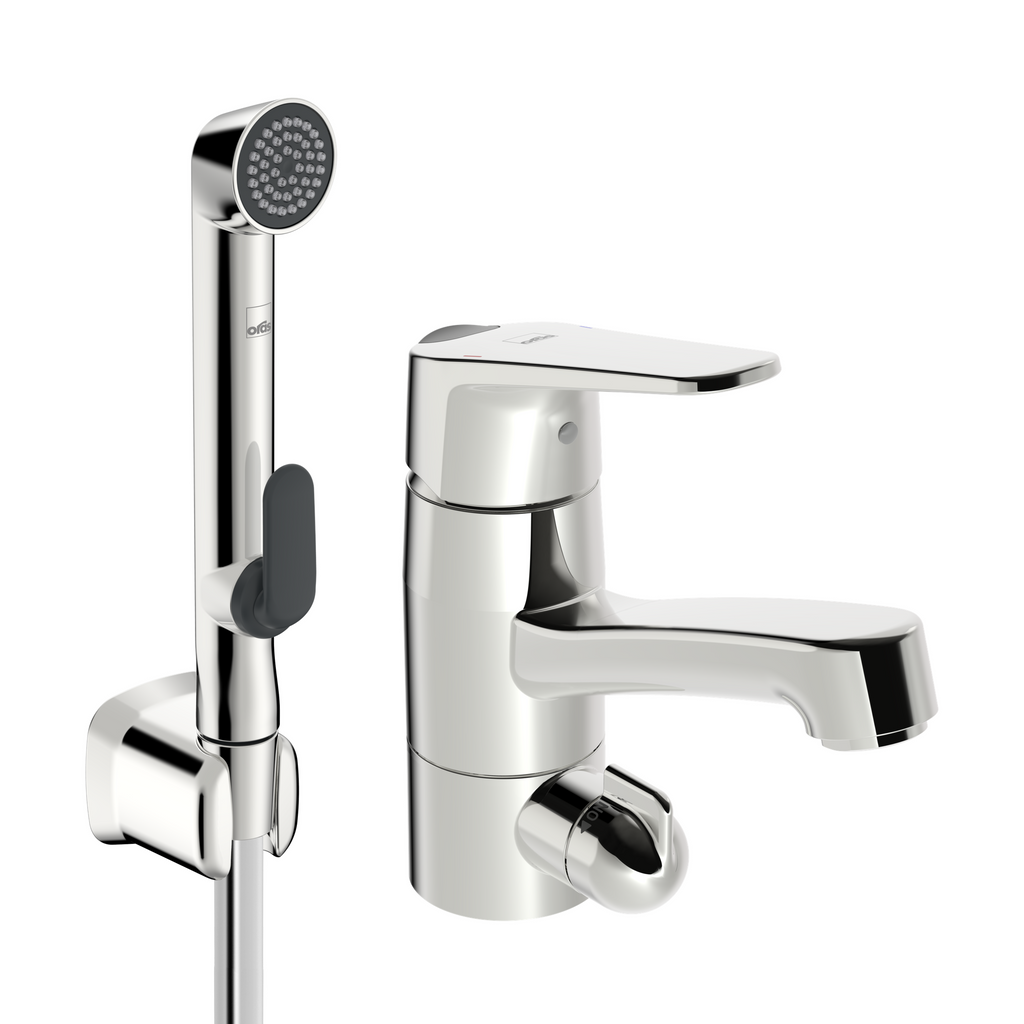

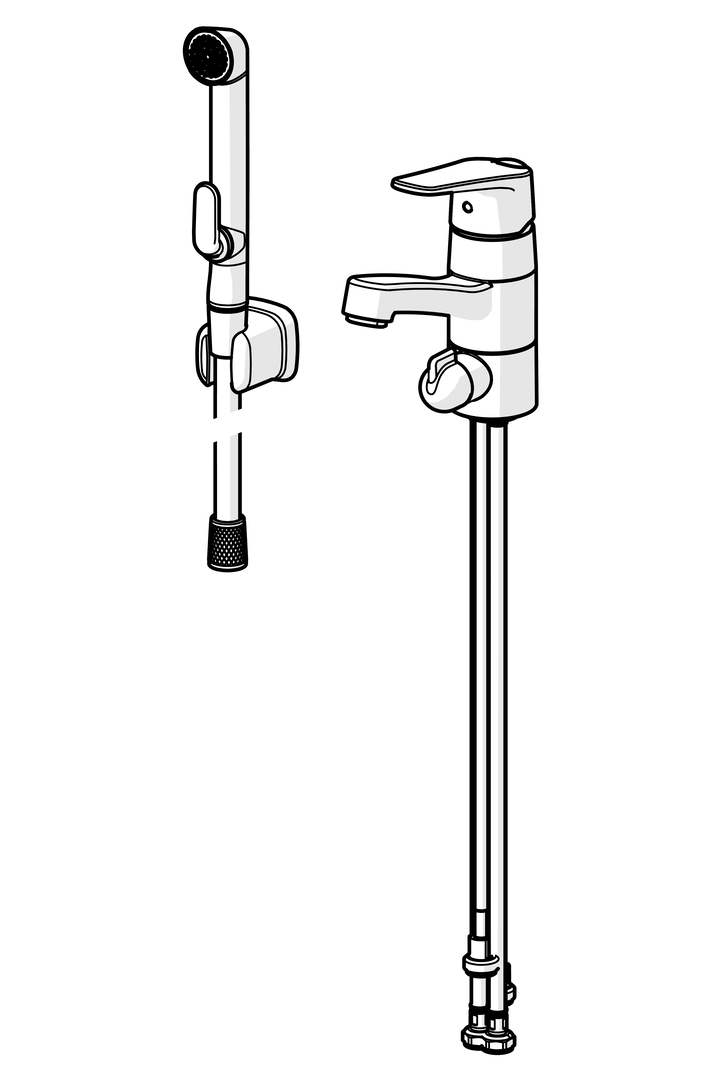

Oras Vega - Washbasin faucet with washing machine valve 1814FG

Oras Vega - Washbasin faucet with washing machine valve (1814FG)

€350,33
Sale price  €350,33 Regular price
Skip to product information
Oras Vega - Washbasin faucet with washing machine valve 1814FG

Oras Vega - Washbasin faucet with washing machine valve (1814FG)

€350,33
Sale price  €350,33 Regular price
Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Dishwasher valve
Mechanic stop valve for external equipment
• Hand shower
Bidetta hand shower
• Lever/Handle
Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm), Twist guard for shower hose
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Swivel spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (40° - 80°)

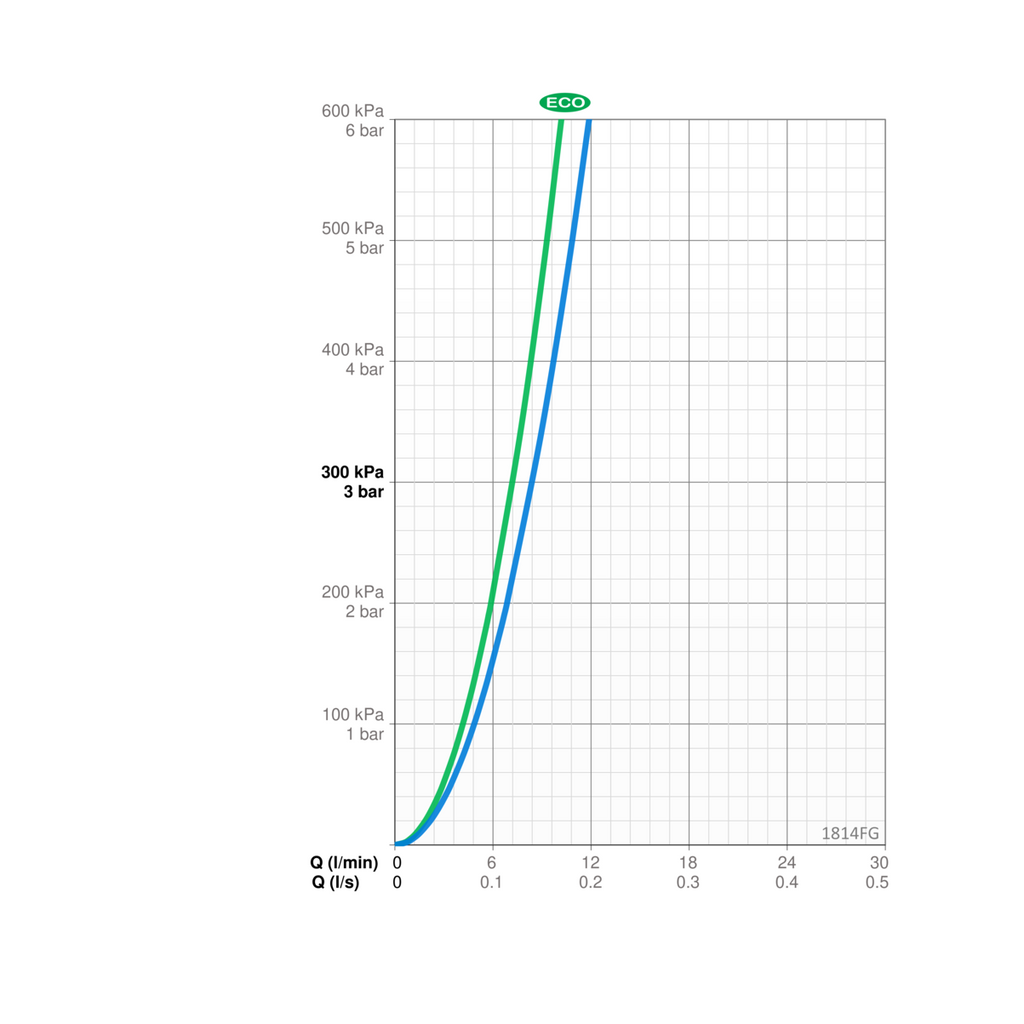

Flow attributes

• Eco-flow at 300 kPa
0.12 l/s
• Flow-rate at 300 kPa
0.14 l/s
• Pressure loss with flow (0.1 l/s)
160 kPa

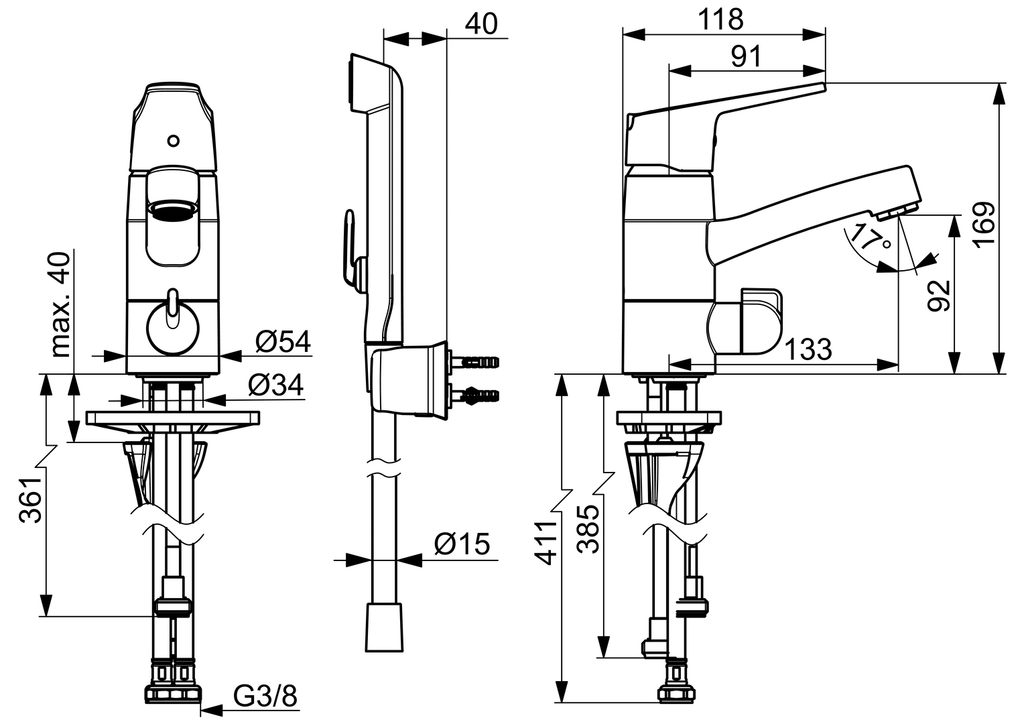

Technical properties

• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
133 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20000935-TH1

Sustainability

• EPD module A1 (kg CO2 eq.)
10,62
• EPD module A1-A3 (kg CO2 eq.)
12,13
• EPD module A2 (kg CO2 eq.)
0,51
• EPD module A3 (kg CO2 eq.)
1,00
• EPD module A4 (kg CO2 eq.)
0,34
• EPD module B7 (kg CO2 eq.)
2224,80
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,09
• EPD module D (kg CO2 eq.)
-8,63

Spare Parts
Oras Vega - Washbasin faucet with washing machine valve (1814FG)

01 Lever (Chrome) / 1000935V

02 Limiter / 1004821V

03 Covering cap (Chrome) / 602589V

04 Tightening nut, M42x1.5, SW 38 / 158726

05 Cartridge / 158890

06 Spout, L=132 (Chrome) / 602520V

07 Spout overturning stopper, 120° / 1001406/10

08 Spout overturning stopper, 40°-80° / 1002207/10

09 Fixing screw, M8x1, L=130 / 1000780V

10 Fixing set / 602610V

11 Aerator, M24x1 STD HC A (Chrome) / 232211

12 Bearing ring / 601097/10

13 X-sealing set / 158735

14 Bearing ring / 159423/10

15 Headpart, G1/2 / 602600V

16 Handle for washing machine valve (Chrome) / 1005697V

17 Bottom seal / 1002371V

18 Supporting plate, 100x60mm / 158825
