Features
• Aerator
Standard aerator
• Connection
Direct connection, Internal thread, Cover plate(s)
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Number of spray functions
3 spray functions

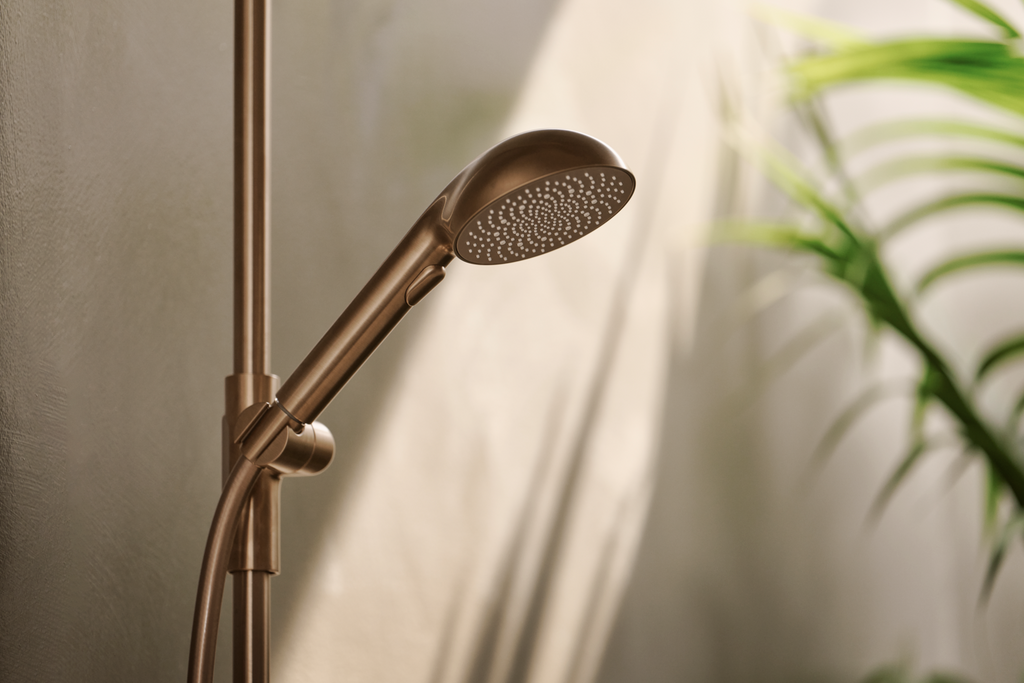

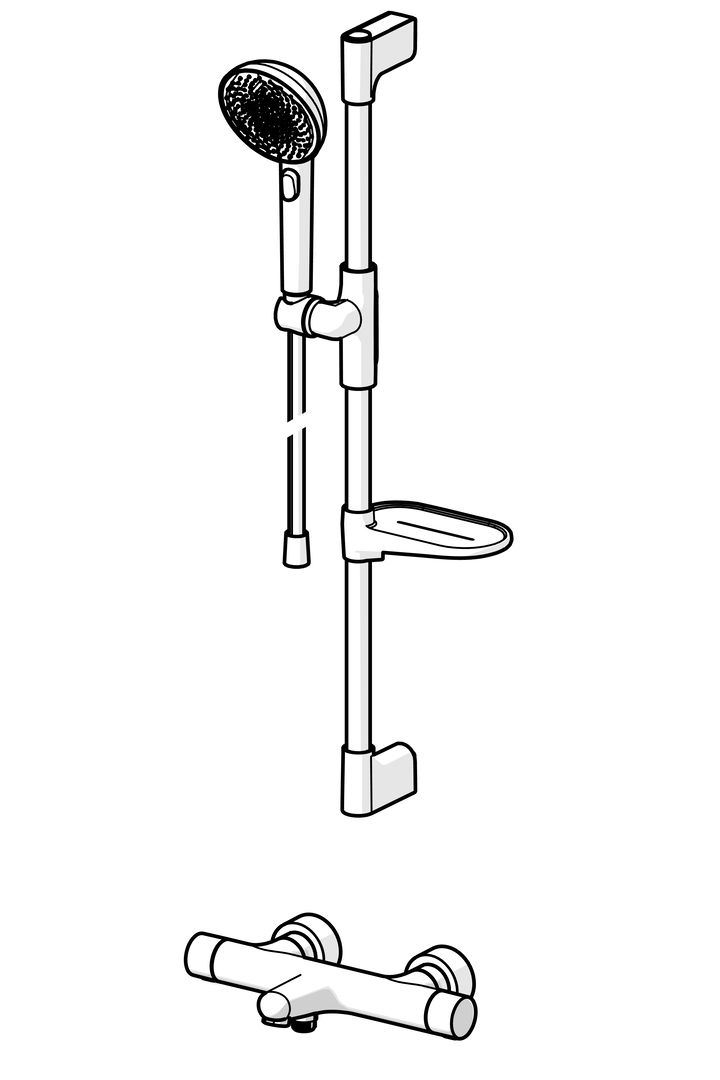

• Shower parts

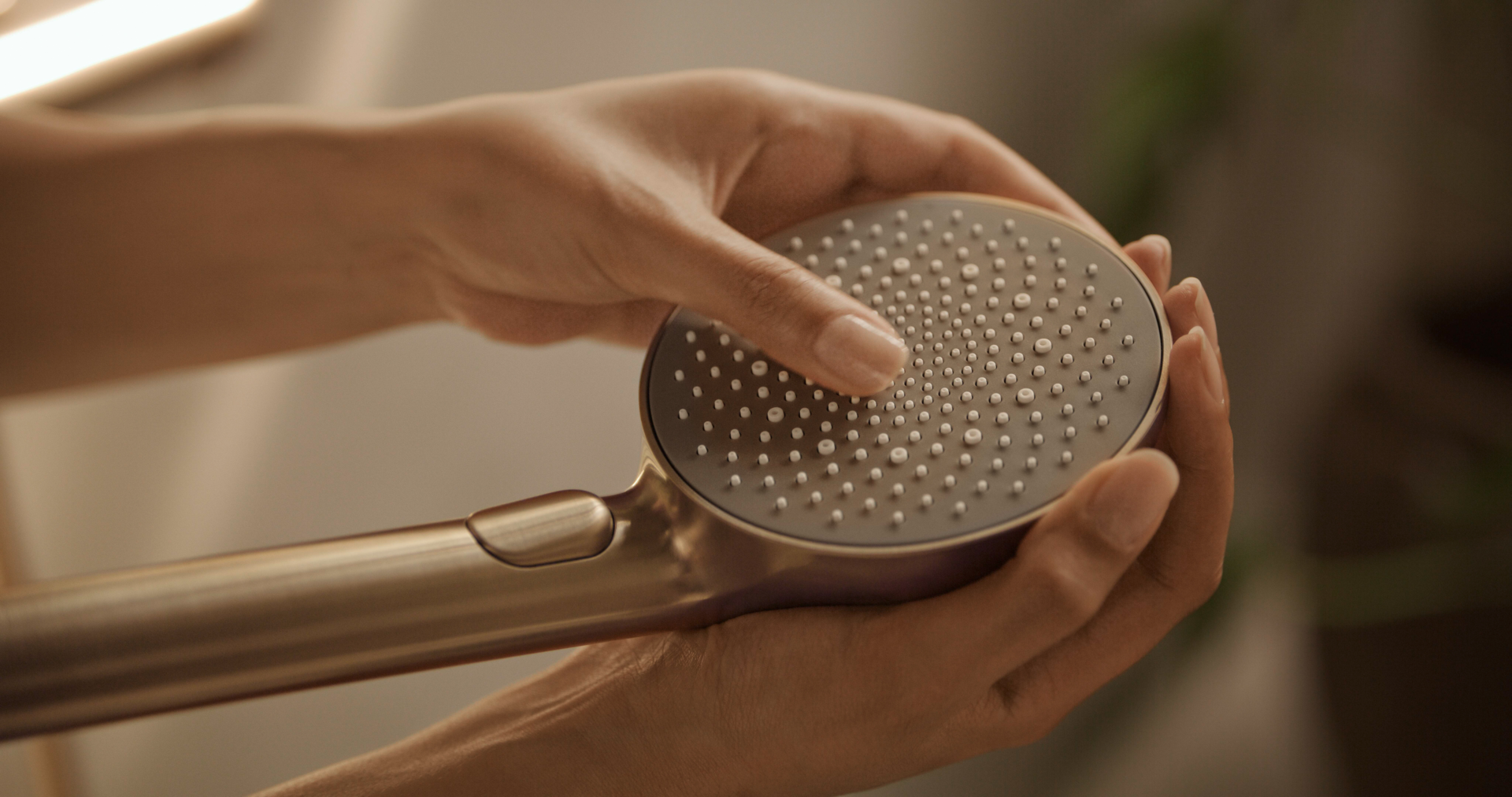

Hand shower, Shower rail, Adjustable shower rail bracket, Soap dish, Shower hose (1750 mm), Variable fixing points, Anti limescale technology (easy to clean), Twist guard for shower hose

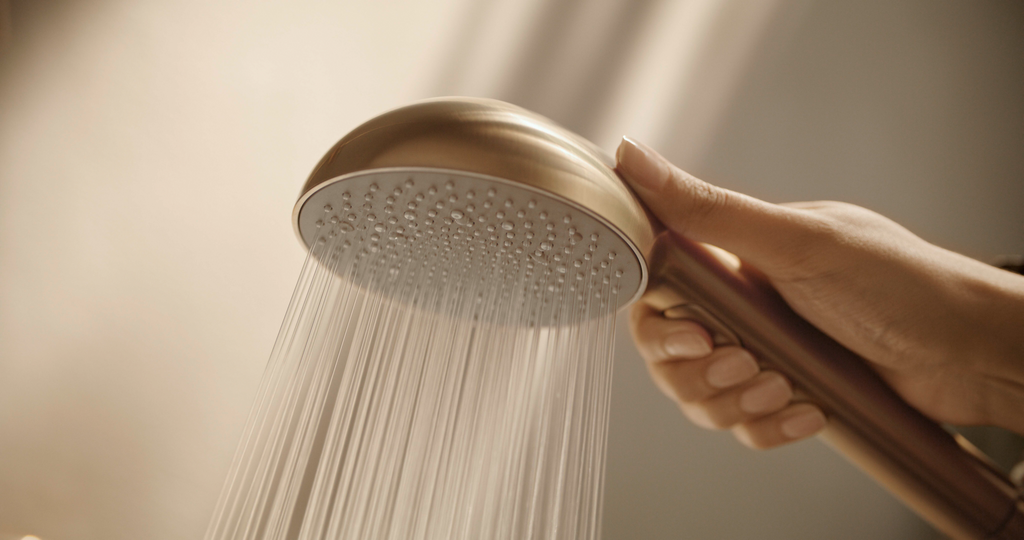

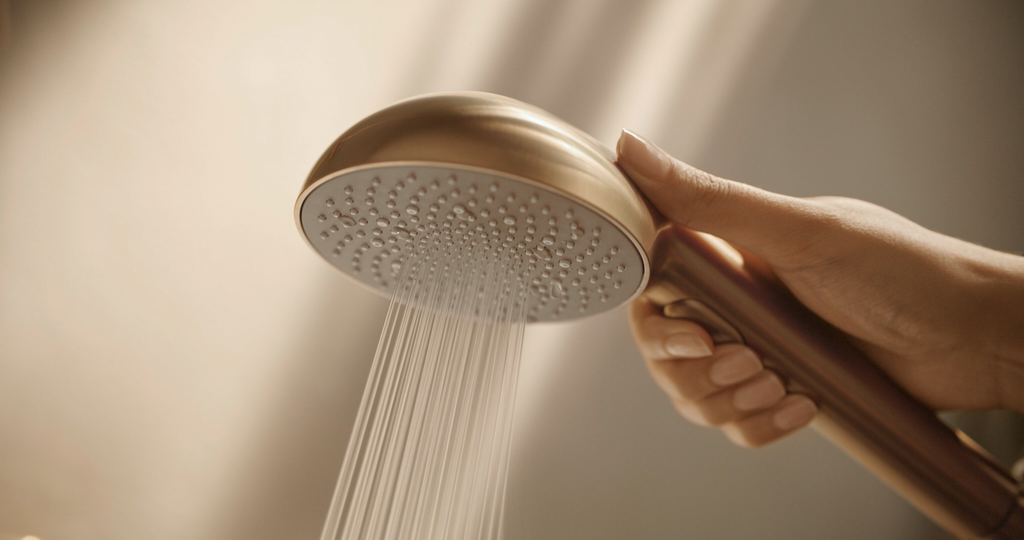

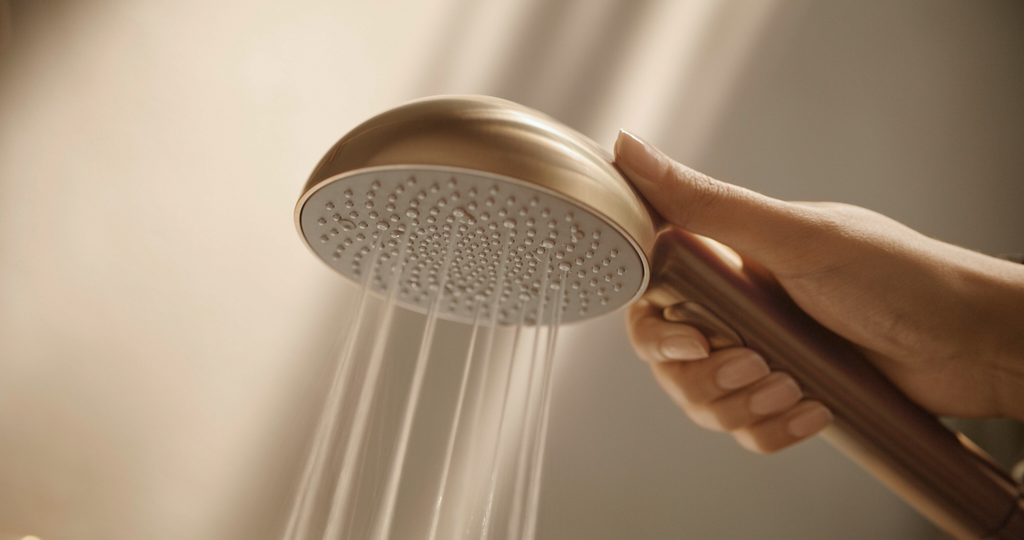

• Shower spray
Pulsating - Strong water stream for massage or body treatment, Intense - invigorating water stream, Relaxing - Soft water stream, pleasant for entire body
• Advanced features
Inner body made of DZR brass, Flexible length / can be shortened, Anti-twist hose connector
• Spout
Fixed spout
• Color
Brushed bronze
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

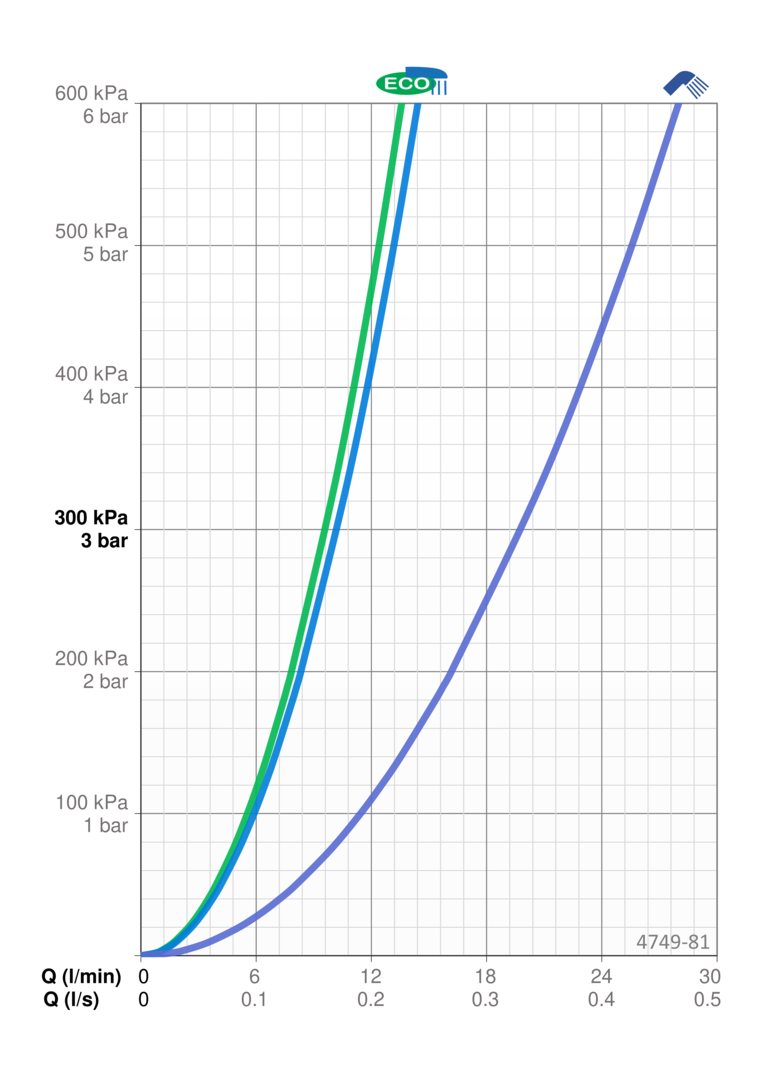

Flow attributes
• Eco-flow at 300 kPa
0.16 l/s
• Flow-rate at 300 kPa
0.17/0.33 l/s
• Pressure loss with flow (0.2 l/s)
200 kPa
• Pressure loss with flow (0.3 l/s)
255 kPa
Technical properties
• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +65°C

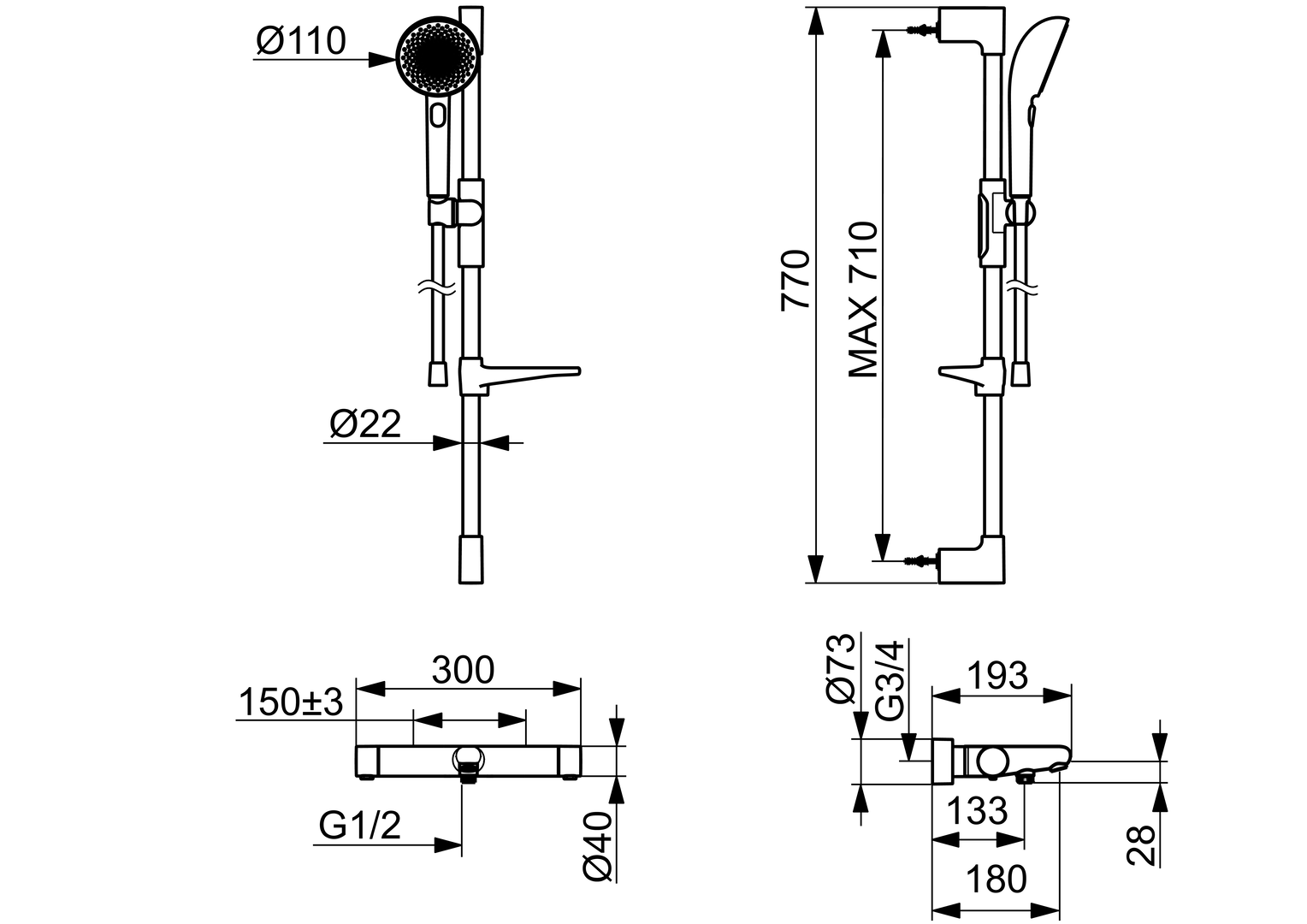

• Installation width
150 ± 3 mm
• Length / Height
770 mm
• Material
Brass/Composite
• Projection
180 mm
• Working pressure
100 - 1000 kPa
Regulations
• EN standard
EN 1111, EN 1112, EN 1113
• Noise class
I (ISO 3822)
Sustainability
• EPD module A1 (kg CO2 eq.)
13,59
• EPD module A1-A3 (kg CO2 eq.)
15,74
• EPD module A2 (kg CO2 eq.)
0,70
• EPD module A3 (kg CO2 eq.)
1,44
• EPD module A4 (kg CO2 eq.)
0,41
• EPD module B7 (kg CO2 eq.)
1852,80
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,86
• EPD module D (kg CO2 eq.)
-10,29
