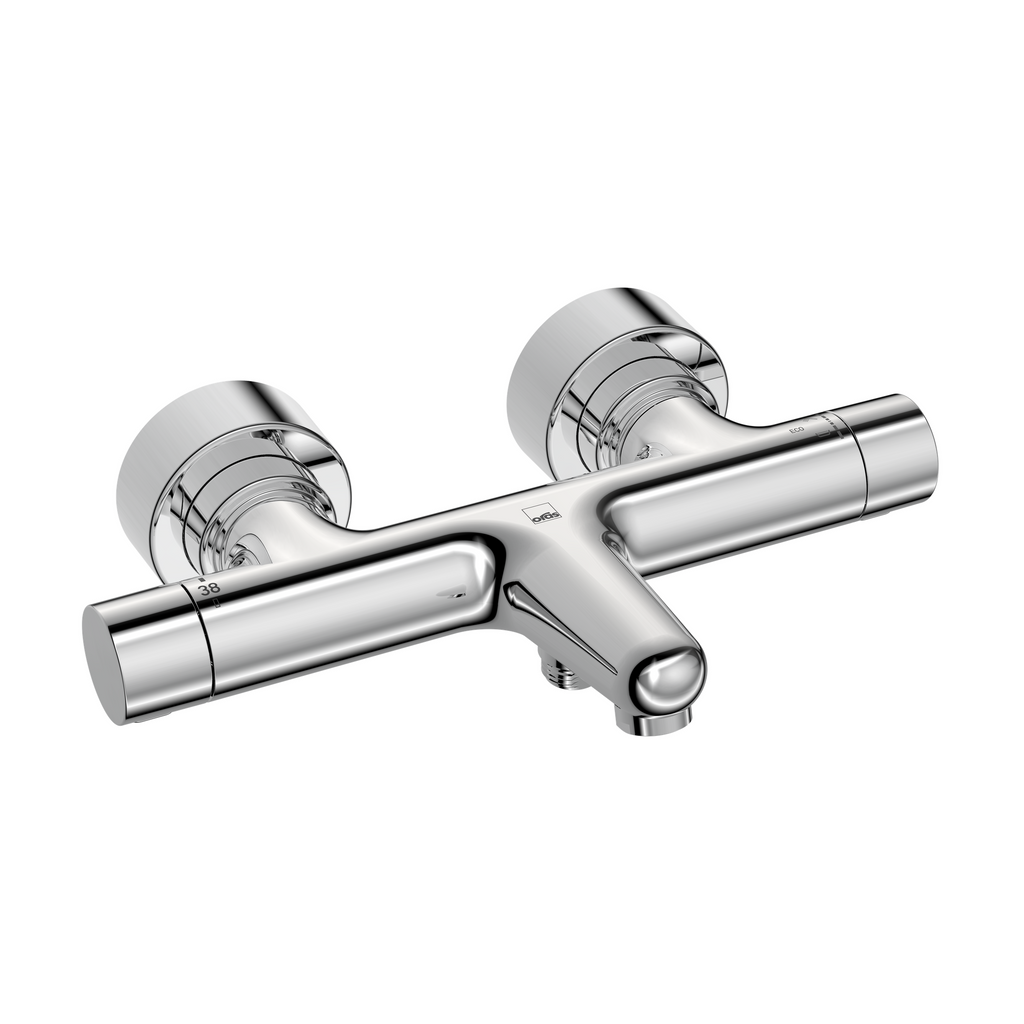

Oras Aurelia - Bath and shower faucet

Features

• Aerator
Standard aerator
• Connection
Direct connection, Internal thread, Cover plate(s)
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Advanced features
Inner body made of DZR brass
• Spout
Fixed spout
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

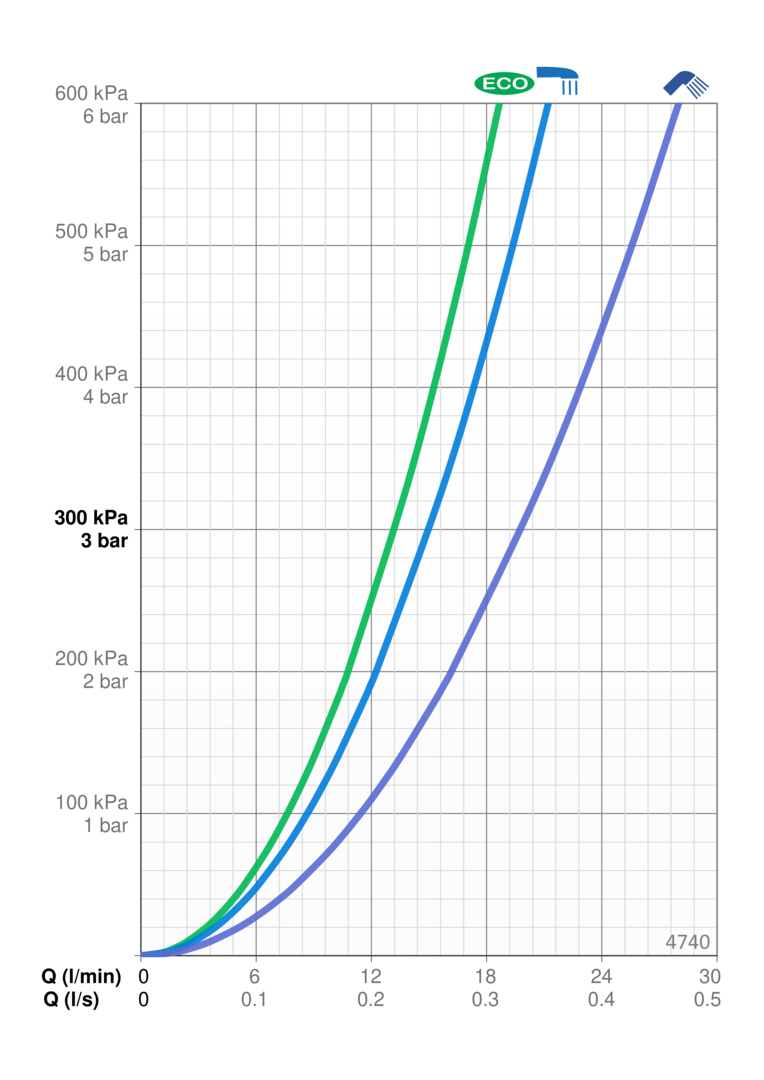

Flow attributes

• Eco-flow at 300 kPa
0.22 l/s
• Flow-rate at 300 kPa
0.25/0.33 l/s
• Pressure loss with flow (0.2 l/s)
200 kPa
• Pressure loss with flow (0.3 l/s)
255 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

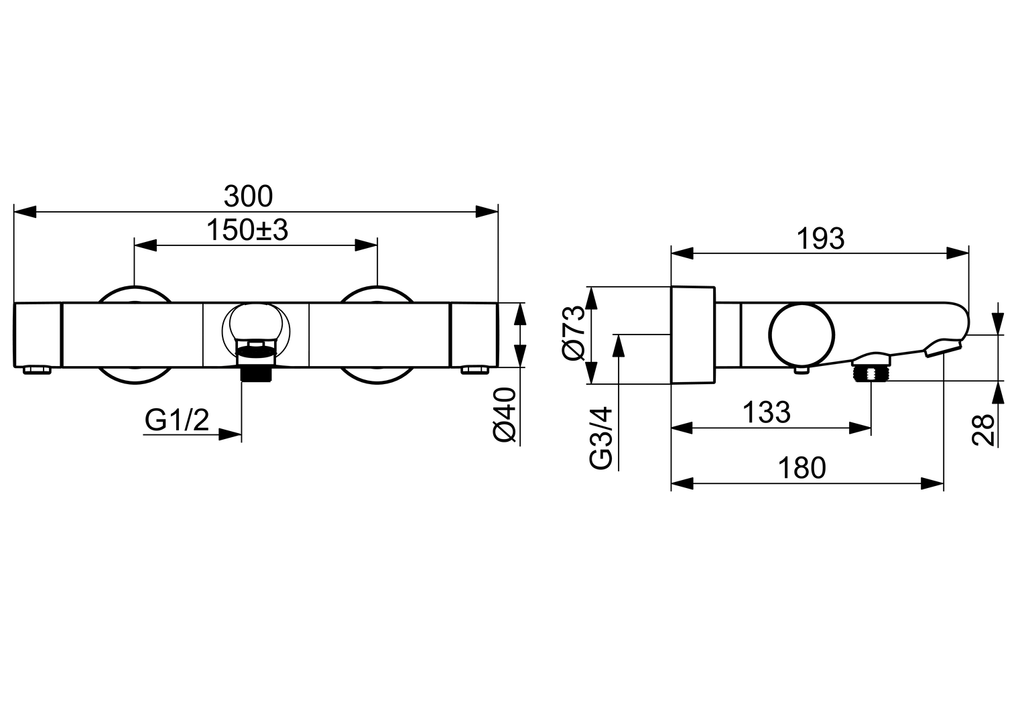

• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Projection
180 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I (ISO 3822)

Sustainability

• EPD module A1 (kg CO2 eq.)
9,90
• EPD module A1-A3 (kg CO2 eq.)
11,54
• EPD module A2 (kg CO2 eq.)
0,51
• EPD module A3 (kg CO2 eq.)
1,12
• EPD module A4 (kg CO2 eq.)
0,45
• EPD module B7 (kg CO2 eq.)
2270,40
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
1,70
• EPD module D (kg CO2 eq.)
-7,31
