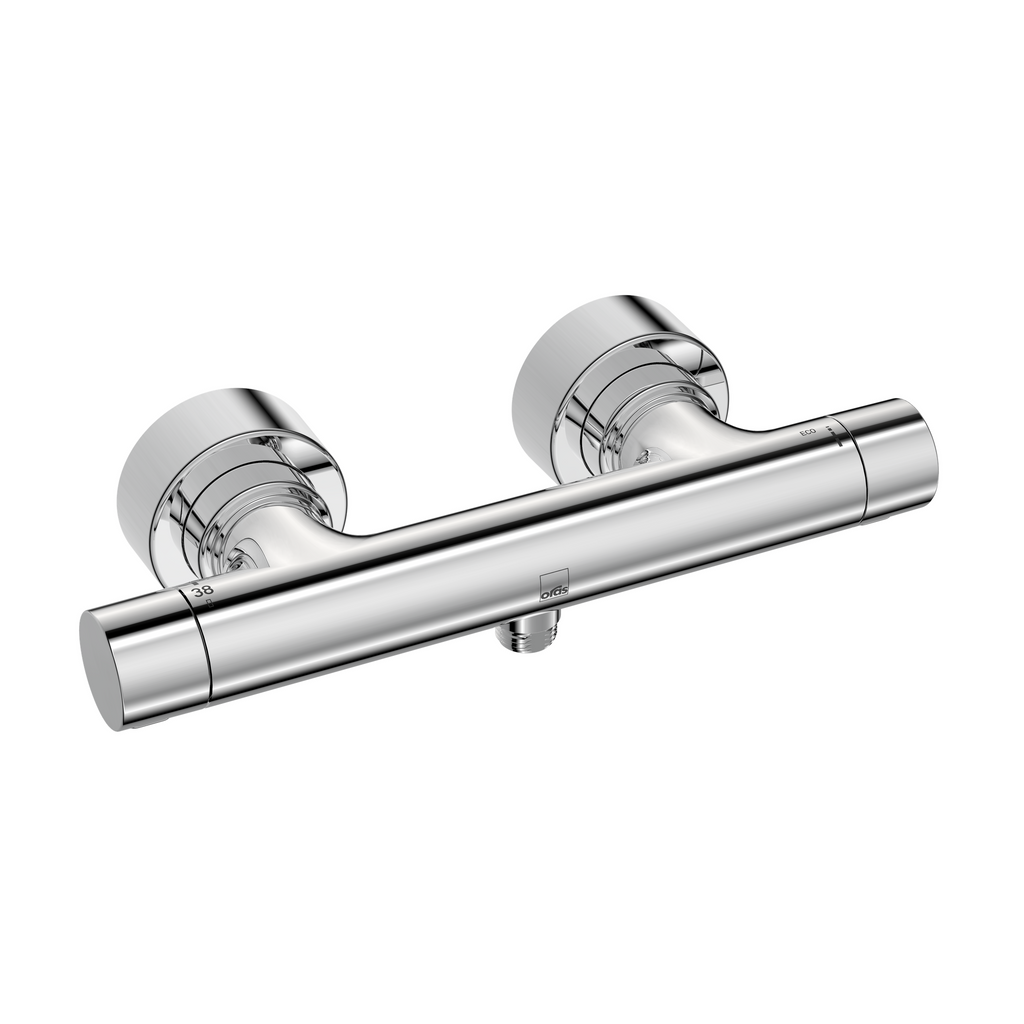

Oras Aurelia - Shower faucet

Features

• Connection
Direct connection, Internal thread, Cover plate(s)
• Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Advanced features
Inner body made of DZR brass
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

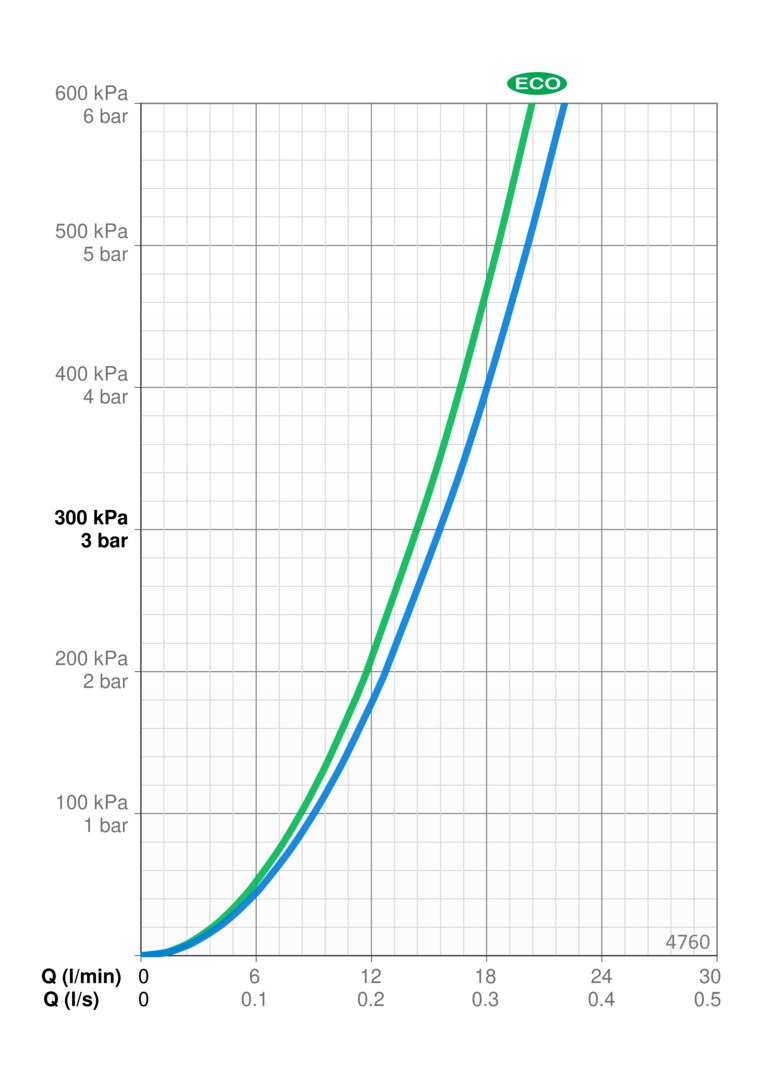

Flow attributes

• Eco-flow at 300 kPa
0.24 l/s
• Flow-rate at 300 kPa
0.26 l/s
• Pressure loss with flow (0.2 l/s)
185 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

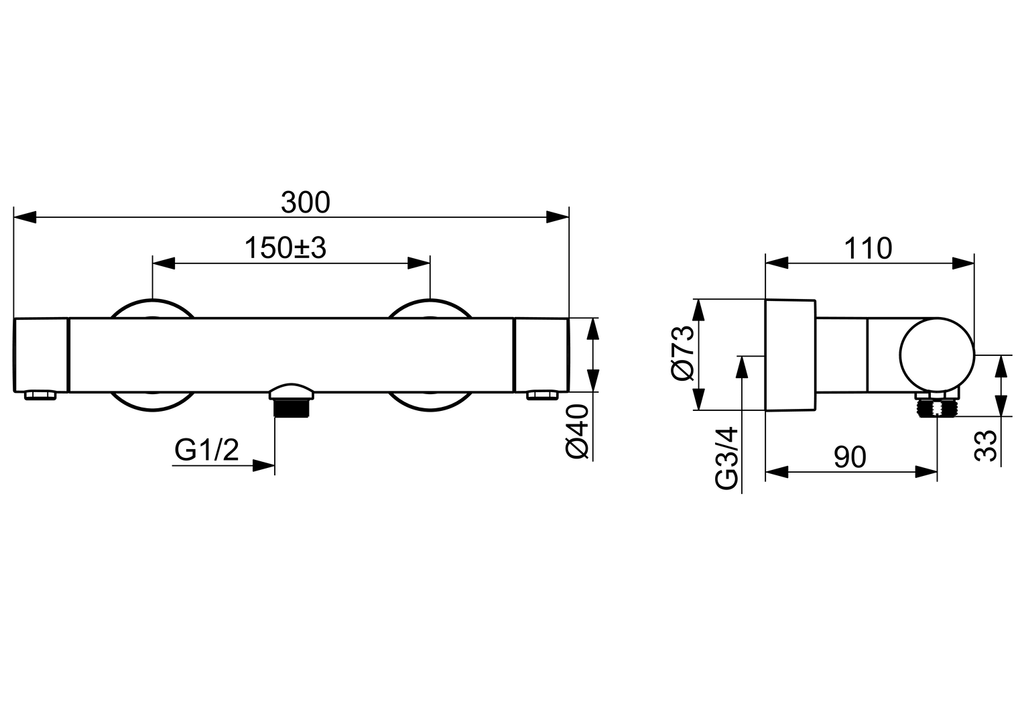

• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I (ISO 3822)

Sustainability

• EPD module A1 (kg CO2 eq.)
8,62
• EPD module A1-A3 (kg CO2 eq.)
10,06
• EPD module A2 (kg CO2 eq.)
0,45
• EPD module A3 (kg CO2 eq.)
0,98
• EPD module A4 (kg CO2 eq.)
0,39
• EPD module B7 (kg CO2 eq.)
2476,80
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
1,48
• EPD module D (kg CO2 eq.)
-6,37
