Oras Aurelia A Harmony of Simplicity and Elegance.

The design of Oras Aurelia is characterized by pure, fluid shapes—timeless in their simplicity yet subtly complex in execution. This results in a delicate dance between the straightforward and the intricate, visually capturing nature's own balance.

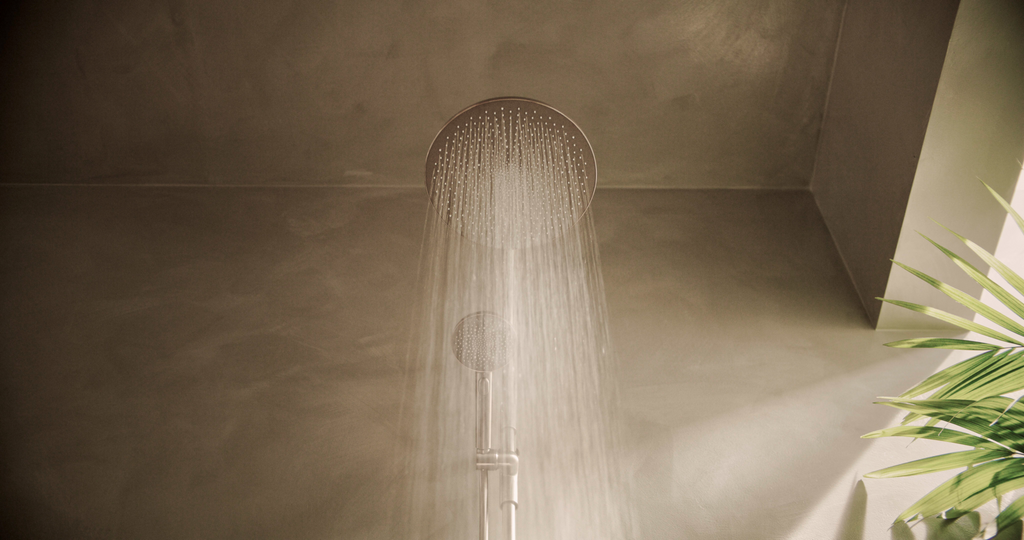

Stand beneath the cascading water to experience a symphony of sensations, as clever design ensures efficient water distribution, embracing the complete body in refreshing and rejuvenating comfort.

Elevate your daily ritual with Oras Aurelia, where every drop becomes a celebration of inherent beauty.

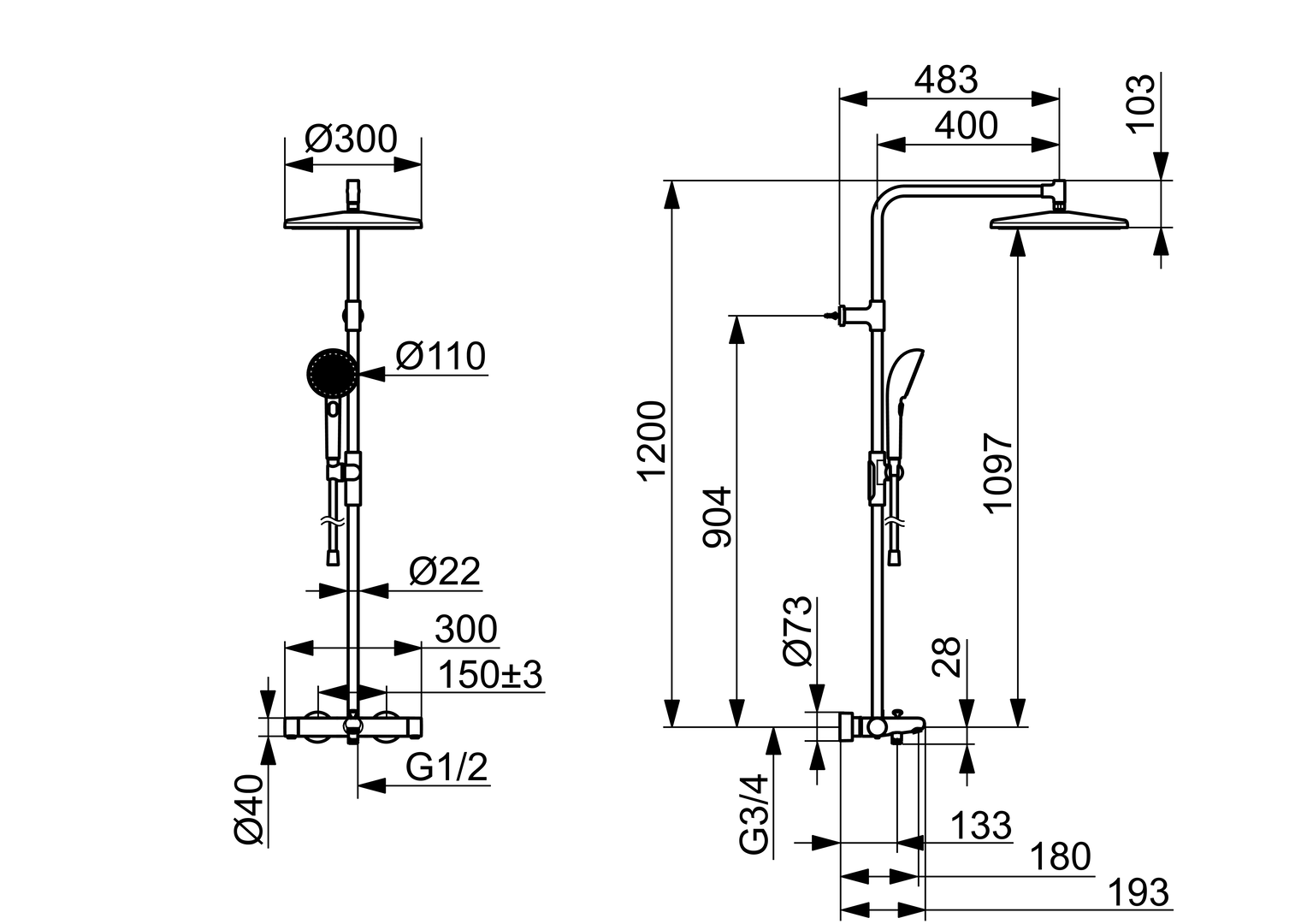

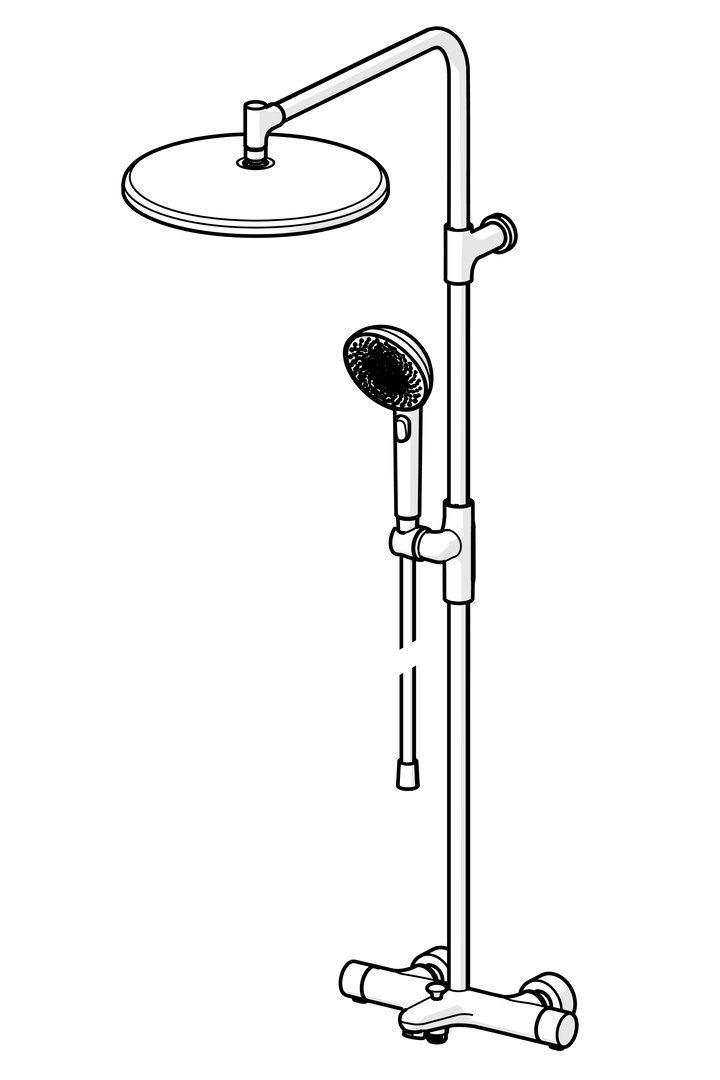

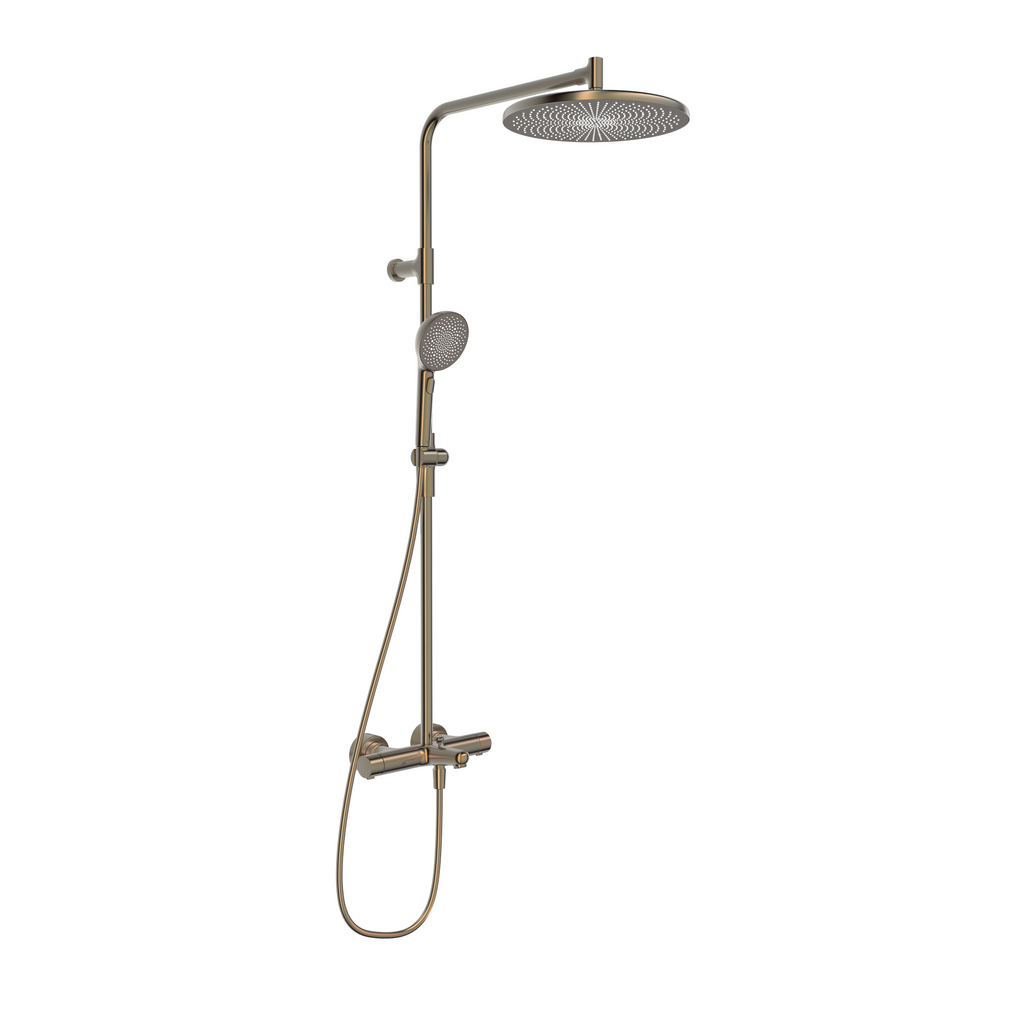

1-spray, Ø300 overhead shower

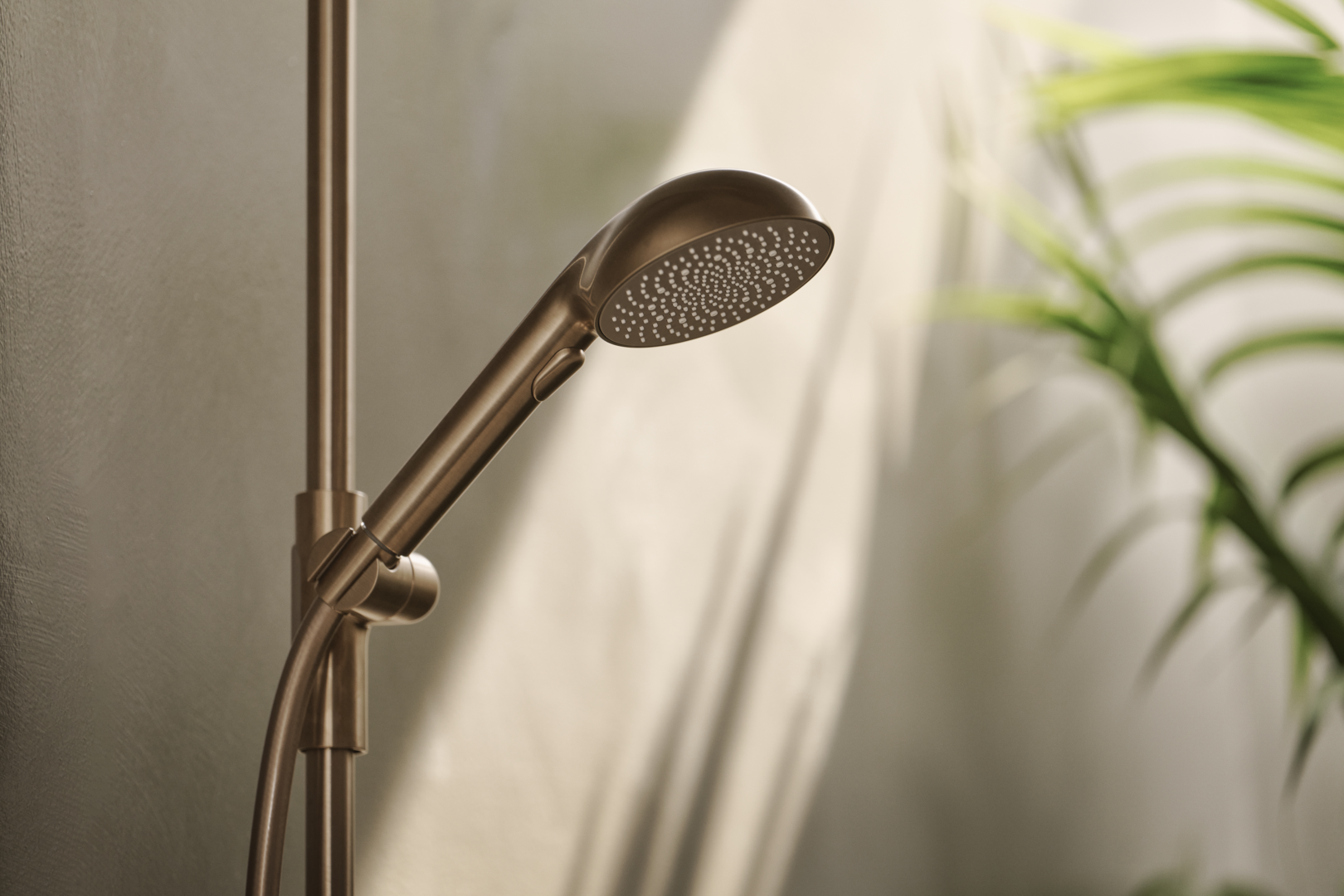

3-spray Ø110 hand shower

1750mm hose

ELEVATING YOUR MOMENTS

Technical Data

Features

• Aerator
Standard aerator
• Connection
Direct connection, Internal thread, Cover plate(s)
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Number of spray functions
3 spray functions
• Shower parts
Hand shower, Shower rail, Swivel overhead shower, Lockable in the middle position, Adjustable shower rail bracket, Shower hose (1750 mm), Variable fixing points, Rotatable ball joint connection, Anti limescale technology (easy to clean), Twist guard for shower hose
• Shower spray
Pulsating - Strong water stream for massage or body treatment, Intense - invigorating water stream, Relaxing - Soft water stream, pleasant for entire body
• Advanced features
Flexible length / can be shortened, Anti-twist hose connector
• Spout
Fixed spout
• Color
Brushed bronze
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

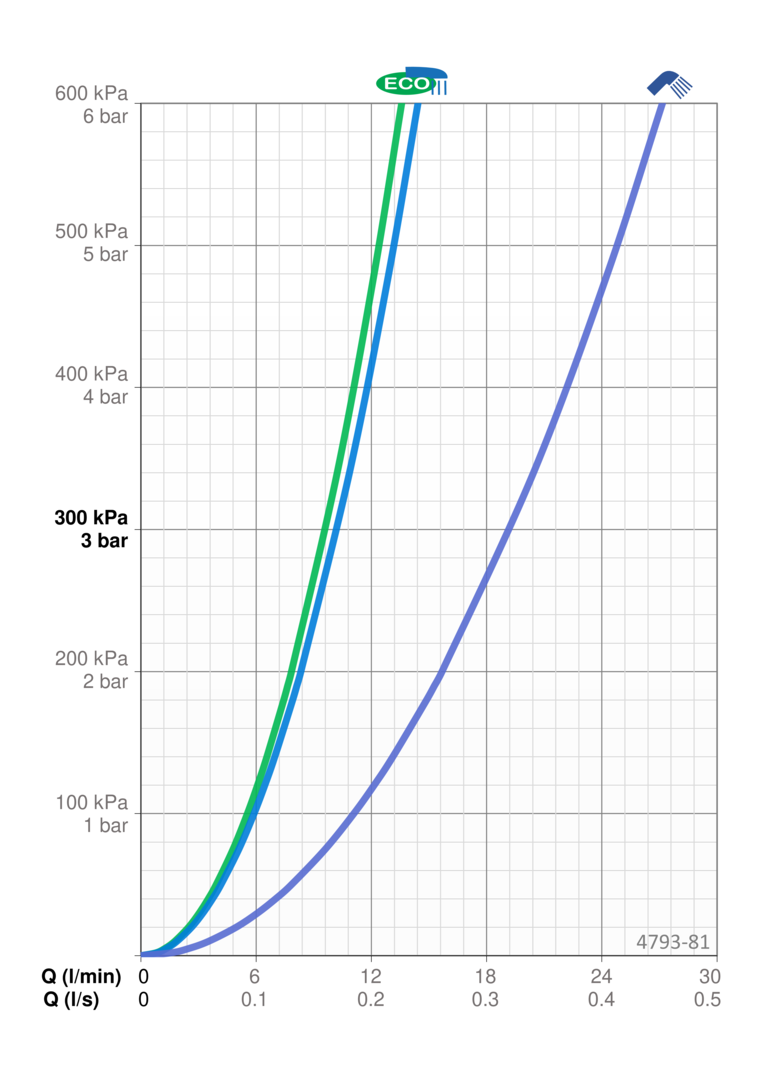

Flow attributes

• Eco-flow at 300 kPa
0.16 l/s
• Flow-rate at 300 kPa
0.17/0.32 l/s
• Pressure loss with flow (0.2 l/s)
195 kPa
• Pressure loss with flow (0.3 l/s)
270 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +65°C
• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Projection
180 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111, EN 1112, EN 1113
• Noise class
I (ISO 3822)

Sustainability

• EPD module A1 (kg CO2 eq.)
22,73
• EPD module A1-A3 (kg CO2 eq.)
26,32
• EPD module A2 (kg CO2 eq.)
1,17
• EPD module A3 (kg CO2 eq.)
2,40
• EPD module A4 (kg CO2 eq.)
0,69
• EPD module B7 (kg CO2 eq.)
1852,80
• EPD module C2 (kg CO2 eq.)
0,05
• EPD module C3 (kg CO2 eq.)
0,05
• EPD module C4 (kg CO2 eq.)
1,44
• EPD module D (kg CO2 eq.)
-17,20

Spare Parts
Oras Aurelia - Shower system (4793-81)

01 Overhead shower, d 300 mm (Matt black) / 1018483V-33

02 Overhead shower, d 300 mm (Brushed bronze) / 1018483V-81

03 Overhead shower, d 300 mm (Brushed steel) / 1018483V-80

04 Wall bracket (Brushed bronze) / 1019745V-81

05 Wall bracket (Matt black) / 1019745V-33

06 Wall bracket (Brushed steel) / 1019745V-80

07 Slide for shower rail, d 22 mm (Matt black) / 1018479V-33

08 Slide for shower rail, d 22 mm (Brushed steel) / 1018479V-80

09 Slide for shower rail, d 22 mm (Brushed bronze) / 1018479V-81

10 Temperature control handle (Matt black) / 1018476V-33

11 Temperature control handle (Brushed bronze) / 1018476V-81

12 Temperature control handle (Brushed steel) / 1018476V-80

13 Thermostatic cartridge / 178780V

14 Non-return valve, DW15/DN10K / 1018484V

15 Diverter / 198282V

16 Flow control handle (Matt black) / 1018477V-33

17 Flow control handle (Brushed bronze) / 1018477V-81

18 Flow control handle (Brushed steel) / 1018477V-80
