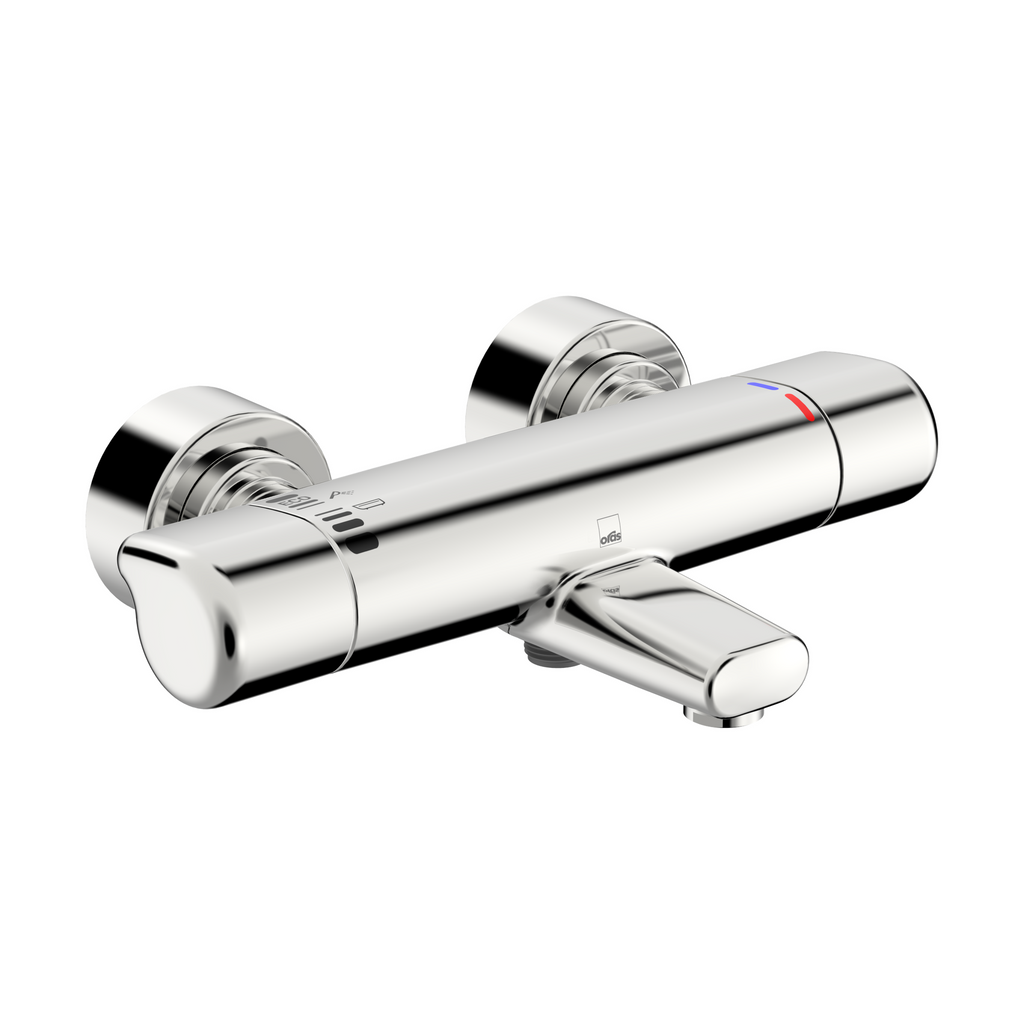

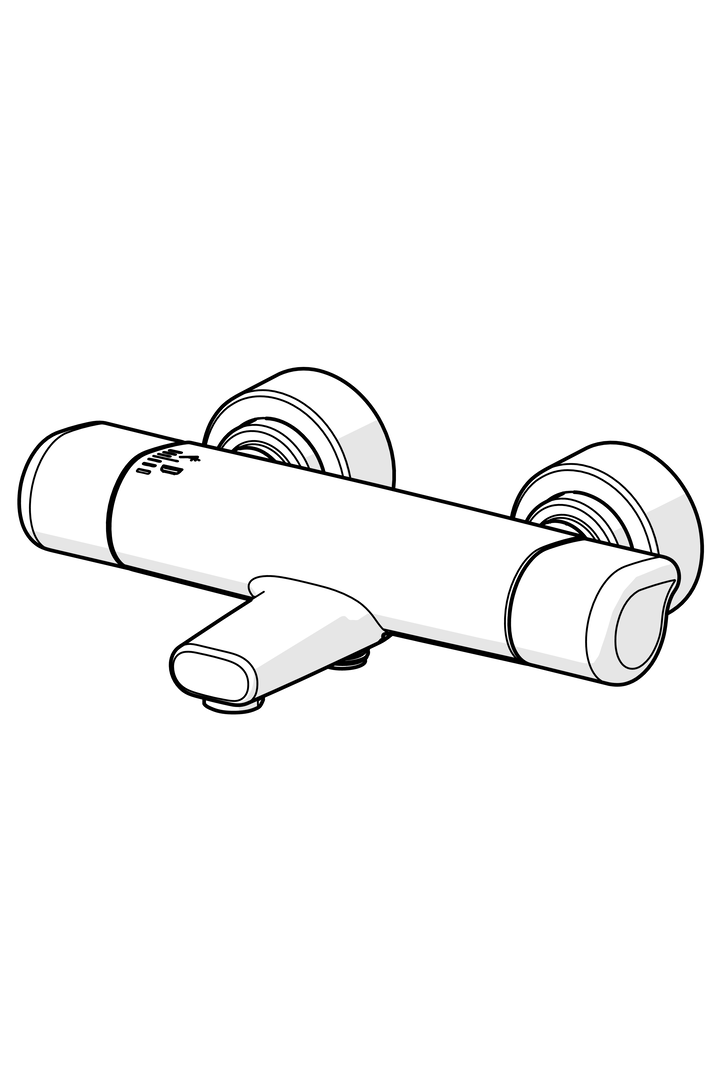

Oras Care Safety - Shower faucet with spout (5762G)

Features

• Aerator
Standard aerator
• Connection
Cover plate(s), Cover plate triple sealed
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Advanced features
Inner body made of DZR brass
• Spout
Fixed spout
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

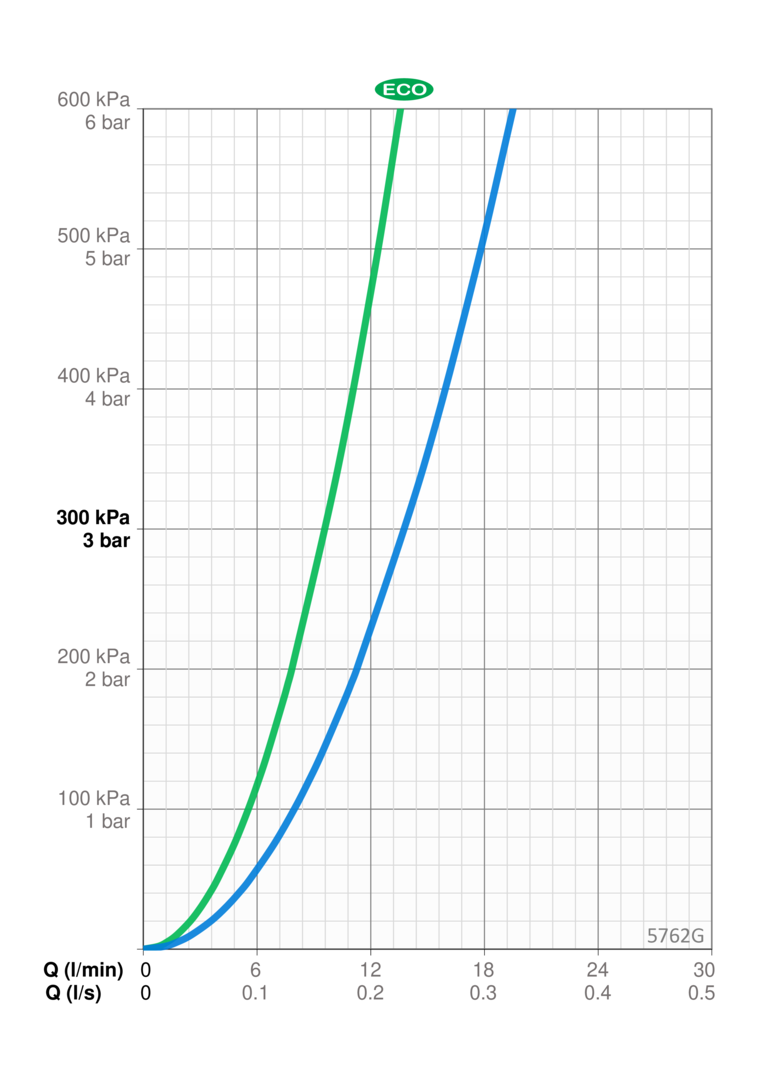

Flow attributes

• Eco-flow at 300 kPa
0.16 l/s
• Flow-rate at 300 kPa
0.23 l/s
• Pressure loss with flow (0.2 l/s)
230 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

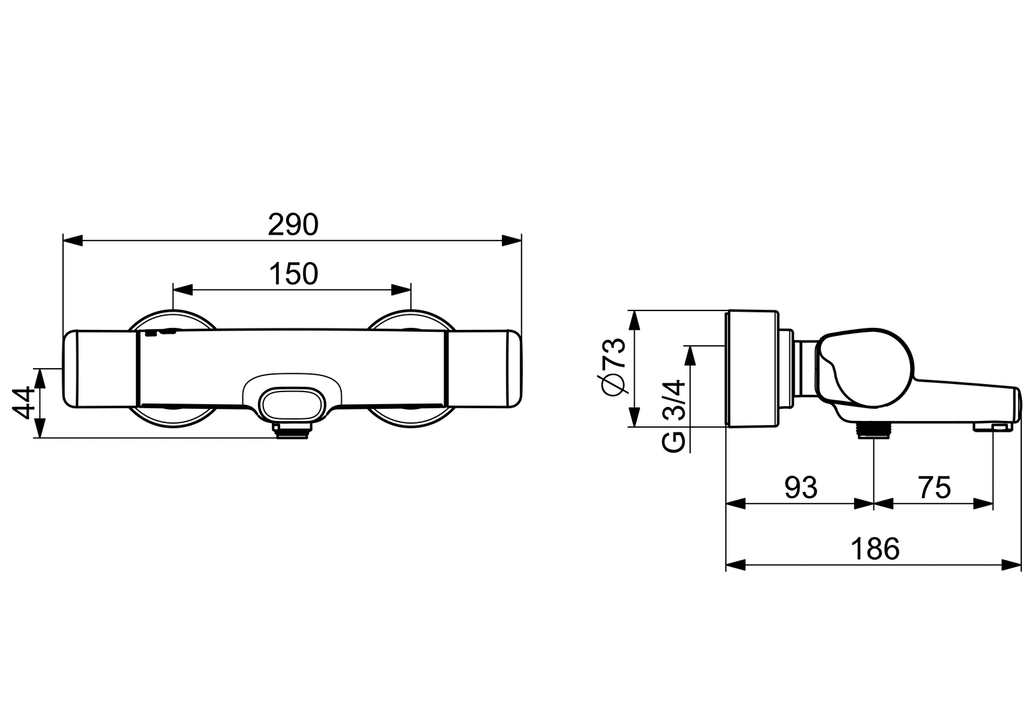

• Installation width
150 ± 3 mm
• Material
Brass
• Projection
168 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-21002857-TH
