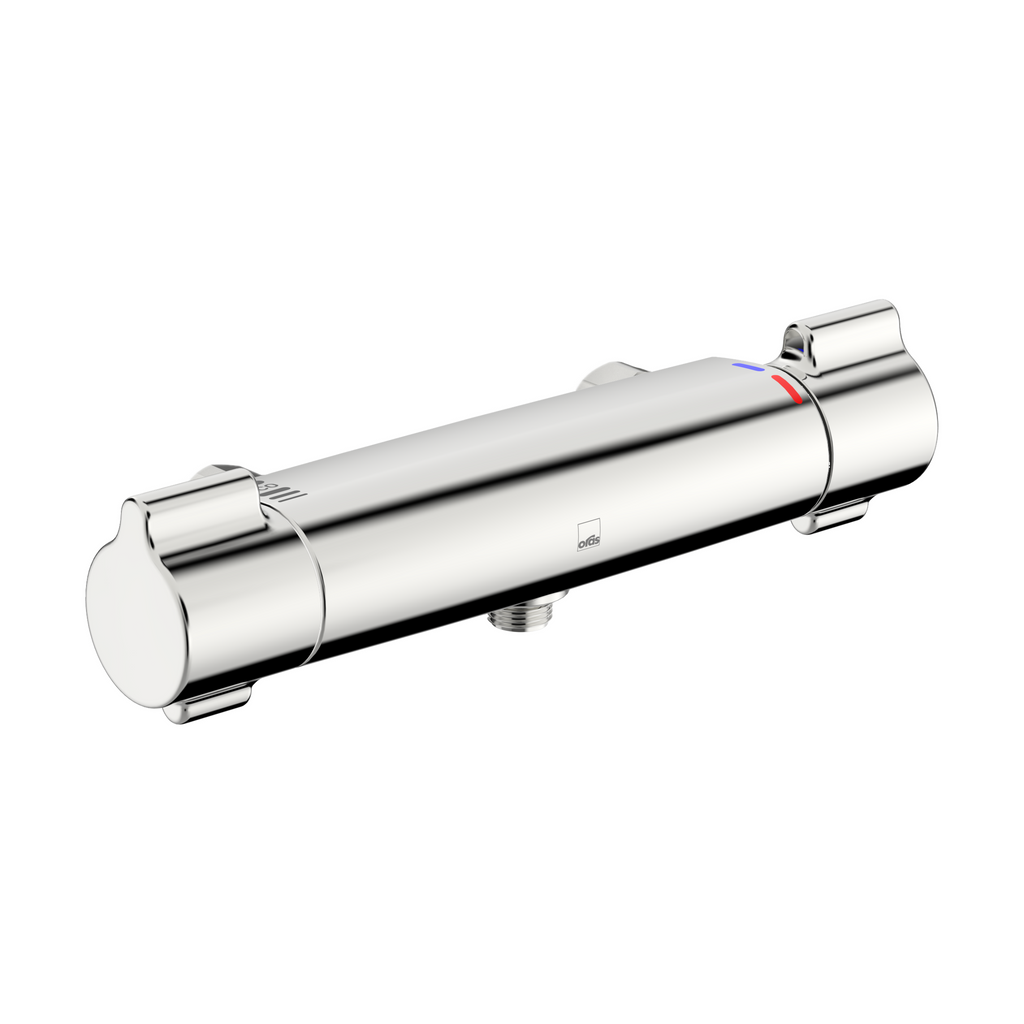

Oras Clinica Safety+ - Shower faucet

Features

• Connection
Direct connection
• Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Advanced features
Inner body made of DZR brass, Waterways without nickel coating, Thermal disinfection without cartridge readjustment
• Color
Chrome
• Temperature
The housing of the fittings conducts minimal heat

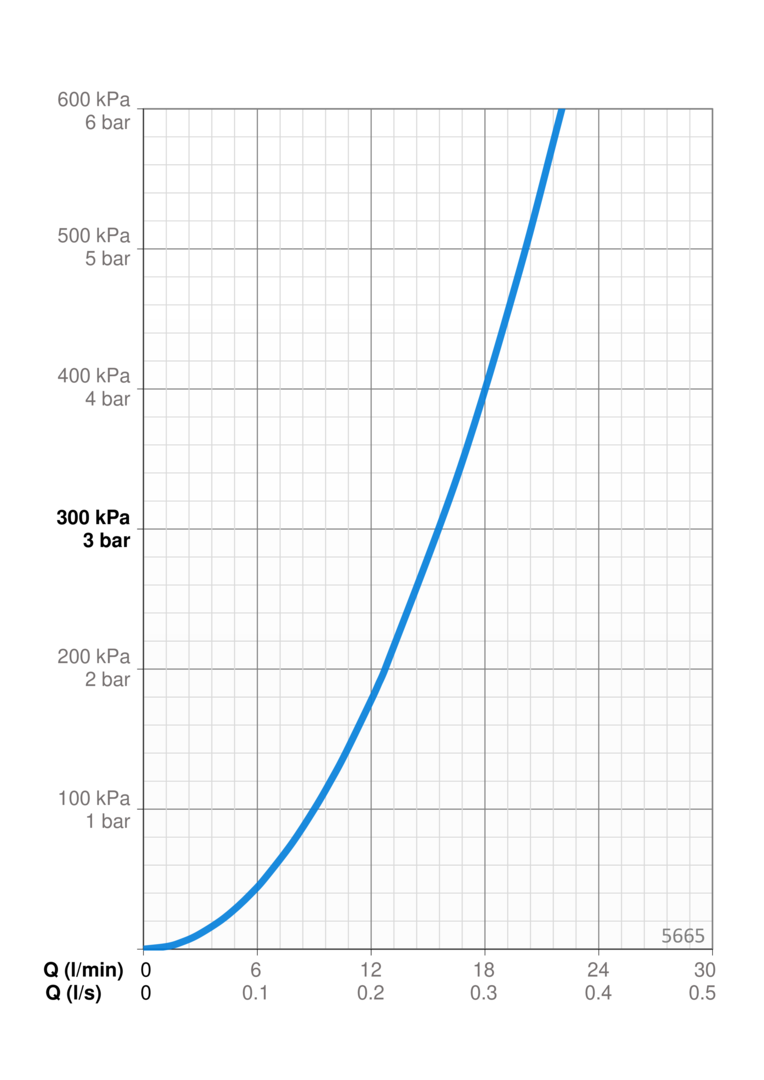

Flow attributes

• Flow-rate at 300 kPa
0.26 l/s

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

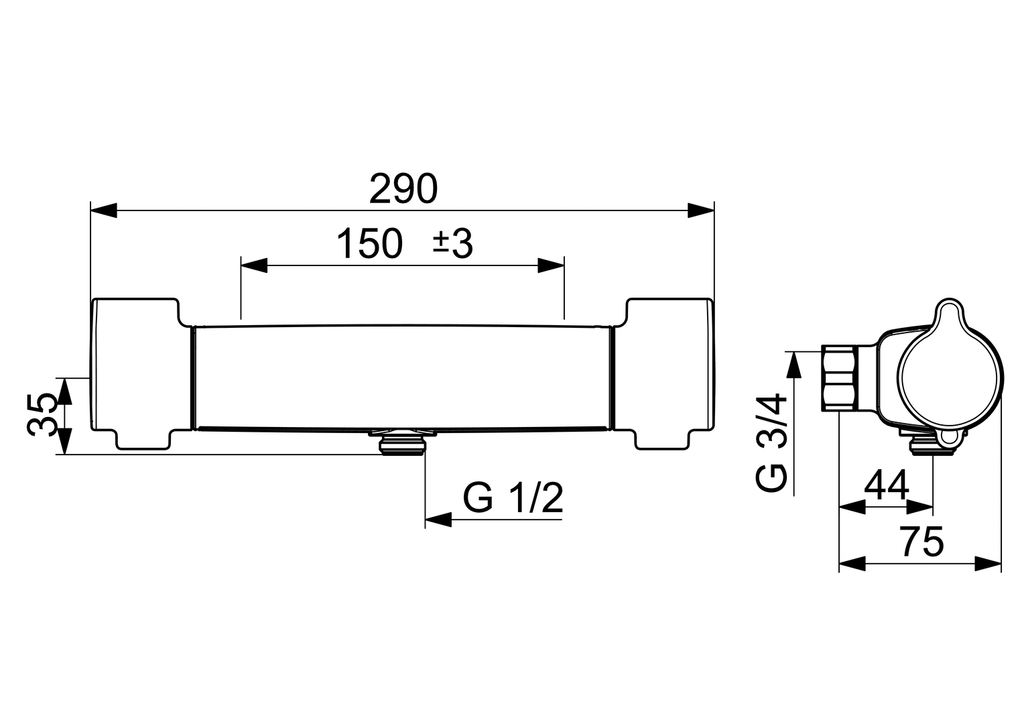

• Installation width
150 ± 3 mm
• Material
Brass
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I (ISO 3822)
• Noise class 0.2 l/s
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 4031
• STF
EUFI29-21002857-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
11,02
• EPD module A1-A3 (kg CO2 eq.)
12,86
• EPD module A2 (kg CO2 eq.)
0,57
• EPD module A3 (kg CO2 eq.)
1,25
• EPD module A4 (kg CO2 eq.)
0,50
• EPD module B7 (kg CO2 eq.)
2683,20
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
1,89
• EPD module D (kg CO2 eq.)
-8,14
