Oras - Cold water faucet (101022)

Features

• Aerator
Hidden aerator
• Connection
One inlet for cold or premixed water
• Lever/Handle
Single operating lever/handle
• Mechanical parts
Ceramic head part for flow control
• Mounting holes
1 hole
• Advanced features
Inner body made of DZR brass
• Spout
Fixed spout
• Color
Chrome

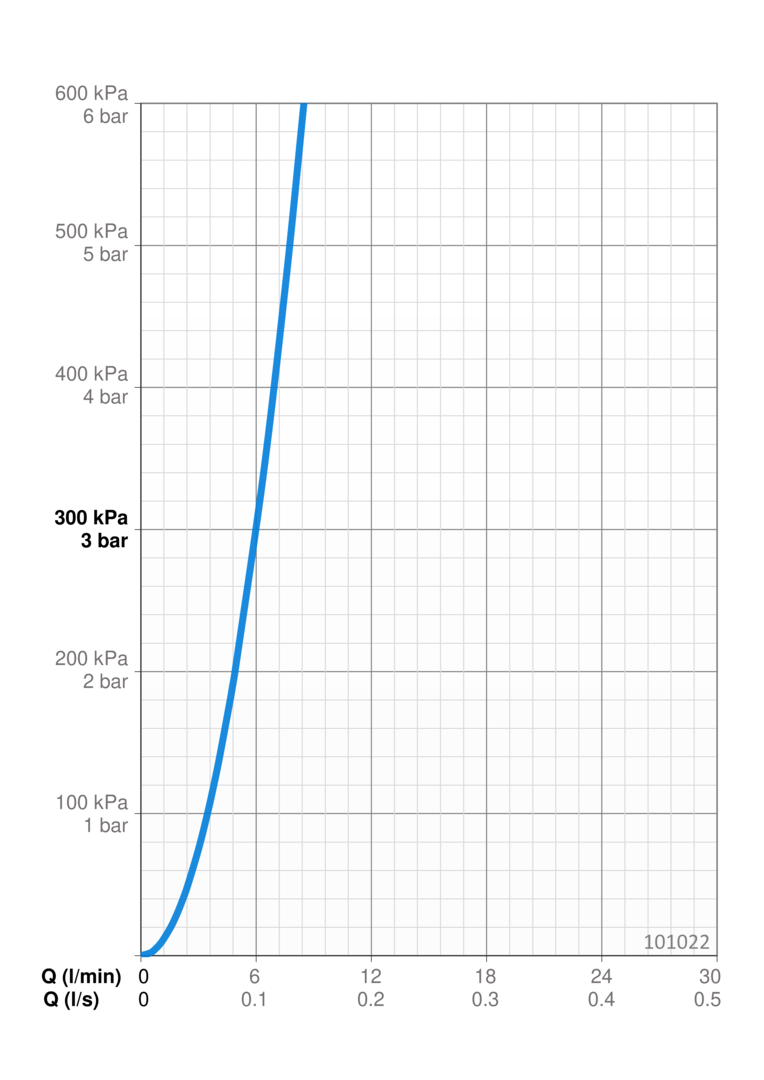

Flow attributes

• Flow-rate at 300 kPa
0.10 l/s
• Pressure loss with flow (0.1 l/s)
300 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G1/2
• DN-size (nominal dimension)
DN15
• Hot water supply
max. +80°C
• Material
Brass

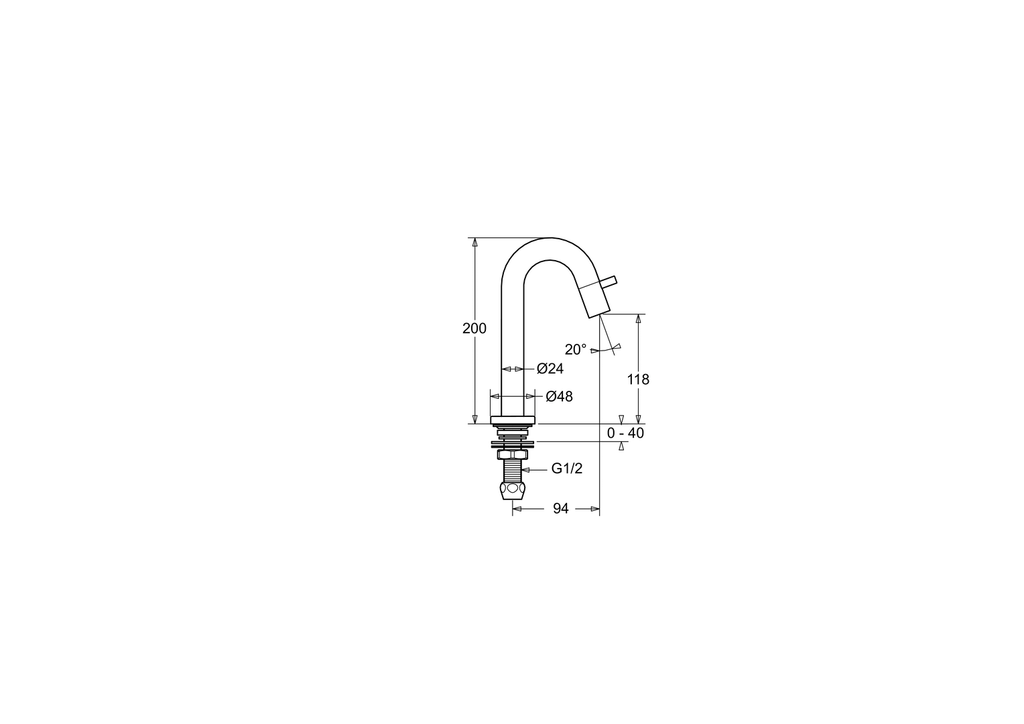

• Projection
94 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
