Name: Oras Electra Digital+ - Washbasin faucet, Bluetooth (9230BFZ)
Brand: Finland Rocks
SKU: 9230BFZ
Price: 443.02 EUR
Availability: InStock

Oras Electra Digital+ - Washbasin faucet, Bluetooth (9230BFZ)

€443,02

Oras Electra Digital+ - Washbasin faucet, Bluetooth (9230BFZ)

€443,02

Electra 92 series is giving you a whole new modern design with its rounded square body and spout. Giving you new fresh and updated design.

Design compliments the new trends of the modern bathroom with its more squared design.

Key Features

Aerator with Tilt function +/- 10 ° for more flexible installation

Newest Sensor technology for better detection and operation comfort

Bluetooth technology for easy adjustment to personalize settings

Antiscalding protection

Temperature measurement

Digital Network Service

Digital power module

Features

• Aerator
PCA® - constant flow rate regardless of pressure variations, Adjustable flow angle
• Connection
Flexible inlet pipes
• Electronic parts
Advanced PSD sensor, Light indicated function(s), Smart antiscalding protection
• Lever/Handle
Temperature control handle
• Mechanical parts
Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting, Software settings adjustable via App
• Spout
Fixed spout
• Color
Chrome
• Temperature
Adjustable hot water stop (included, retrofittable)

Software settings

• Afterflow period
3 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

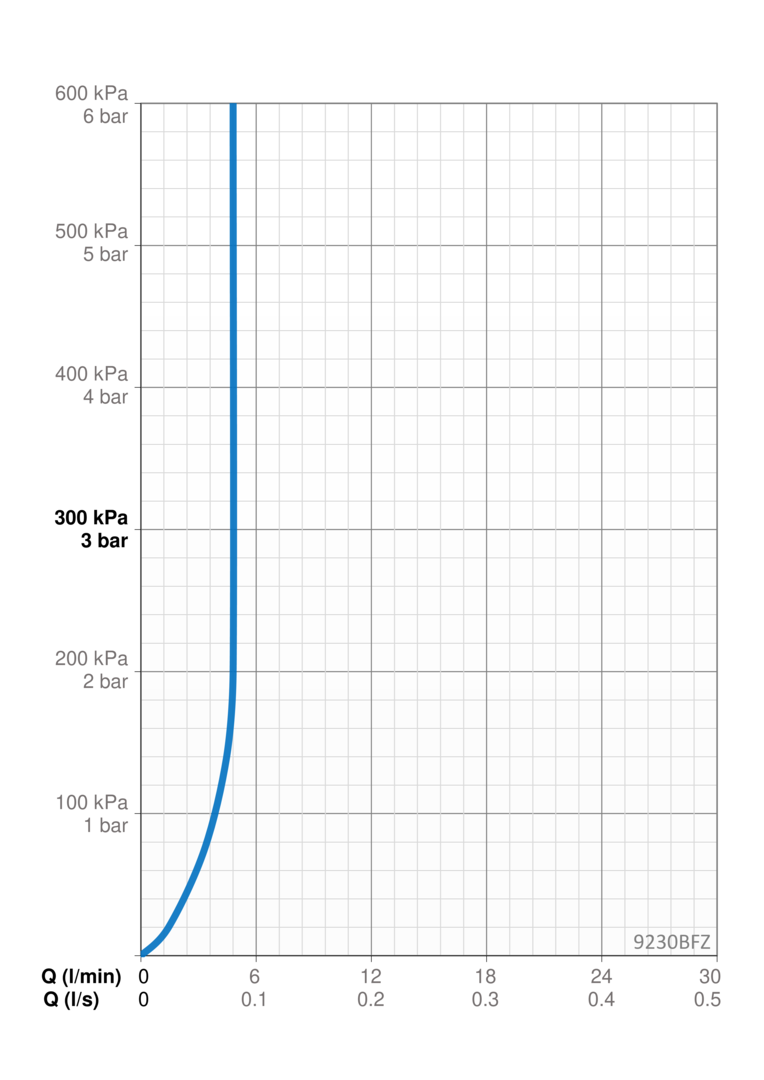

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.08 l/s
• Pressure loss with flow (0.1 l/s)
470 kPa (70% qv = 230 kPa)

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Composite
• Projection
117 mm
• Working pressure
100 - 1000 kPa

Electronics

• Battery
LS17500 A Li-SOCl2 Lithium 3.6V
• Bluetooth version
5.x (D060576)

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55

Approvals and Declarations

• STF
EUFI29-24001542-TH
• KIWA SE
1904
• UN38.3
UN38-3 Saft LS17500

Sustainability

• EPD module A1 (kg CO2 eq.)
4,10
• EPD module A1-A3 (kg CO2 eq.)
4,65
• EPD module A2 (kg CO2 eq.)
0,20
• EPD module A3 (kg CO2 eq.)
0,37
• EPD module A4 (kg CO2 eq.)
0,18
• EPD module B7 (kg CO2 eq.)
744,00
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,00
• EPD module C4 (kg CO2 eq.)
1,11
• EPD module D (kg CO2 eq.)
-0,88
