Oras Electra Digital+ - Washbasin faucet, Bluetooth 9330BFZ

Oras Electra Digital+ - Washbasin faucet, Bluetooth (9330BFZ)

€482,04
Sale price  €482,04 Regular price

Electra 93 series is giving you a whole new modern design with its rounded square body and spout giving you new fresh and updated design.

The tall design compliments the new trends of modern bathroom of more square design and shallow sinks, where the extra height gives you more comfortable usage.

Key Features

Aerator with Tilt function +/- 10 ° for more flexible installation

Newest Sensor technology for better detection and operation comfort

Bluetooth technology for easy adjustment to personalize settings

Antiscalding protection

Temperature measurement

Digital Network Service

Digital power module

Technical Data

Features

• Aerator
PCA® - constant flow rate regardless of pressure variations, Adjustable flow angle
• Connection
Flexible inlet pipes
• Electronic parts
Advanced PSD sensor, Light indicated function(s), Smart antiscalding protection
• Lever/Handle
Temperature control handle
• Mechanical parts
Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting, Software settings adjustable via App
• Spout
Fixed spout
• Color
Chrome
• Temperature
Adjustable hot water stop (included, retrofittable)

Software settings

• Afterflow period
3 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

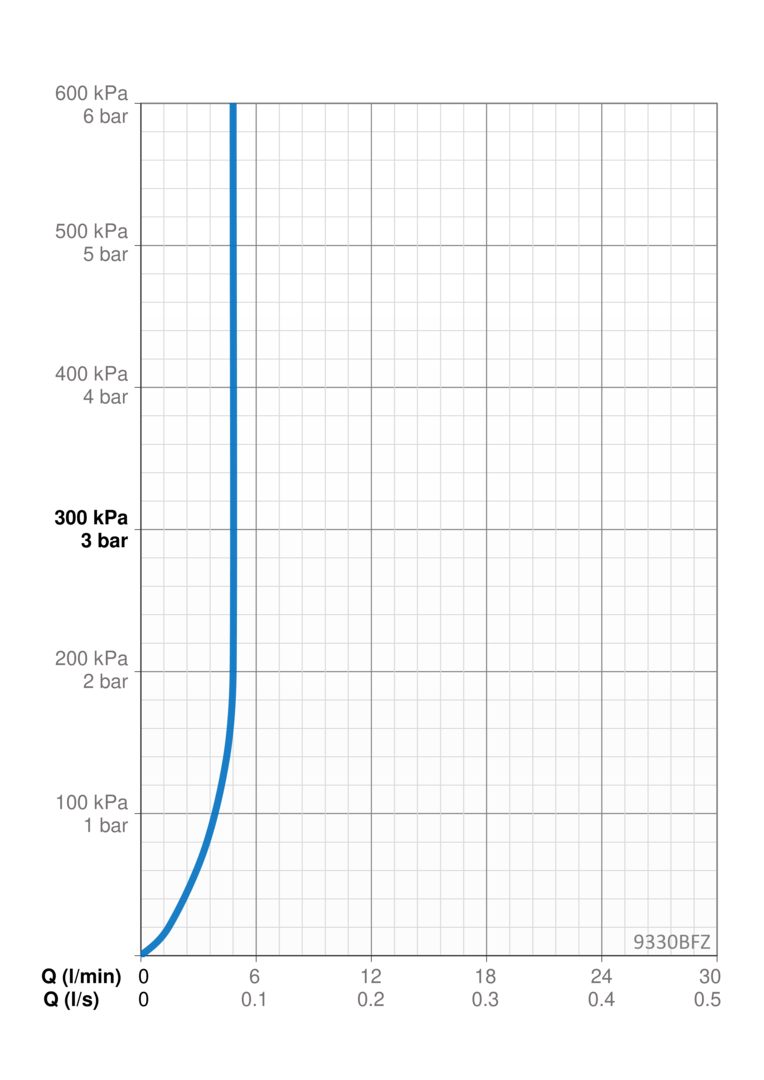

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.08 l/s
• Pressure loss with flow (0.1 l/s)
470 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Composite

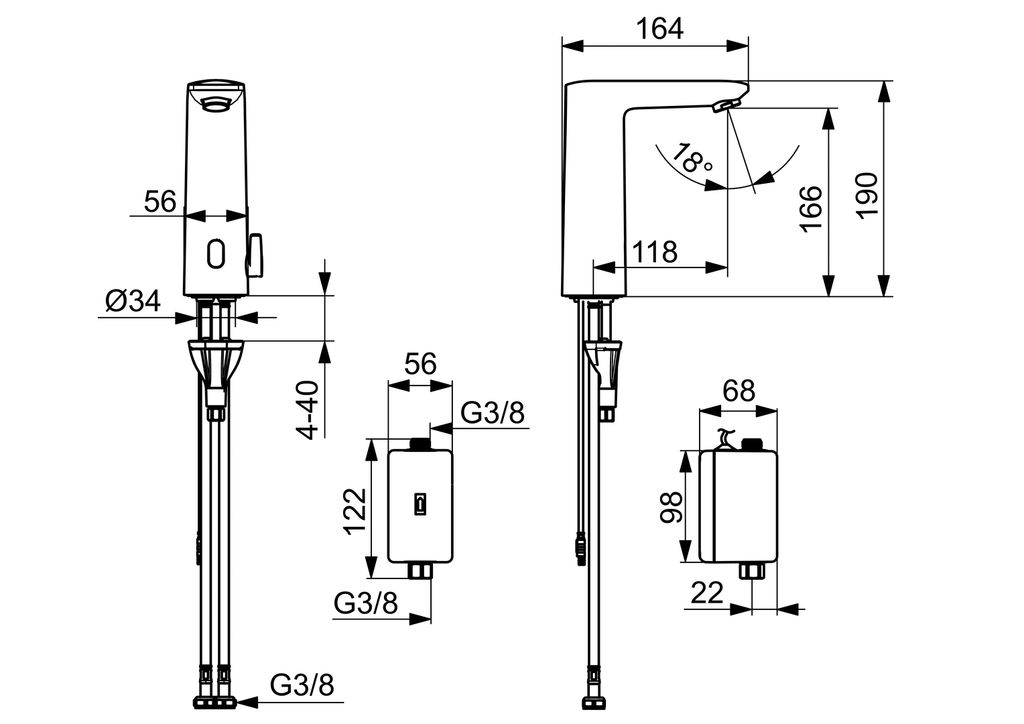

• Projection
118 mm
• Working pressure
100 - 1000 kPa

Electronics

• Battery
LS17500 A Li-SOCl2 Lithium 3.6V
• Bluetooth version
5.x (D060576)
• Electrical Connection
9 V

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55

Approvals and Declarations

• STF
EUFI29-24001542-TH
• KIWA SE
1904
• UN38.3
UN38-3 Saft LS17500

Sustainability

• EPD module A1 (kg CO2 eq.)
4,29
• EPD module A1-A3 (kg CO2 eq.)
4,87
• EPD module A2 (kg CO2 eq.)
0,21
• EPD module A3 (kg CO2 eq.)
0,38
• EPD module A4 (kg CO2 eq.)
0,19
• EPD module B7 (kg CO2 eq.)
744,00
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,00
• EPD module C4 (kg CO2 eq.)
1,16
• EPD module D (kg CO2 eq.)
-0,92

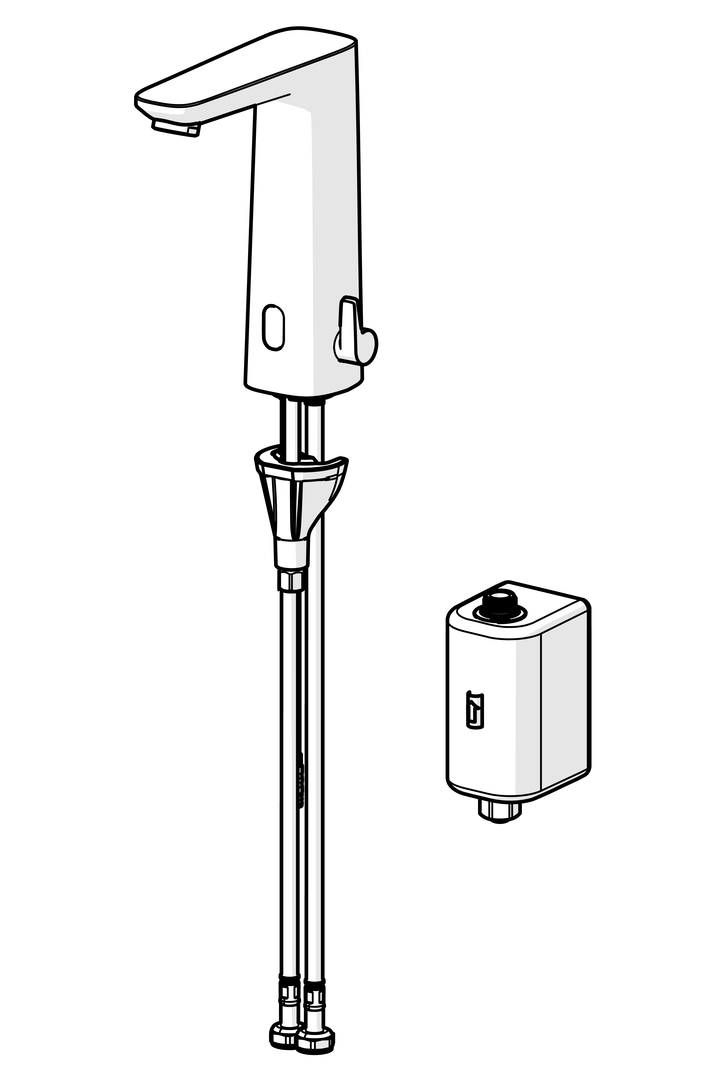

Spare Parts
Oras Electra Digital+ - Washbasin faucet, Bluetooth (9330BFZ)

01 Aerator, M24x1 HC PCA 7.0 l/min (Chrome) / 1016723V

02 Window / 1012249V

03 Pilot valve / 1008658V

04 Sensor, 3/9 V, Bluetooth / 1012464V

05 Temperature regulator / 1010630V

06 Temperature control handle (Chrome) / 1017587V

07 Fixing set / 602610V

08 Power unit (Anthracite grey) / 205200Z-18
