Name: Oras Electra - Shower panel, 12 V (6662FTW)
Brand: Finland Rocks
SKU: 6662FTW
Price: 1271.70 EUR
Availability: InStock

Oras Electra - Shower panel, 12 V (6662FTW)

€1.271,70

Oras Electra - Shower panel, 12 V (6662FTW)

€1.271,70

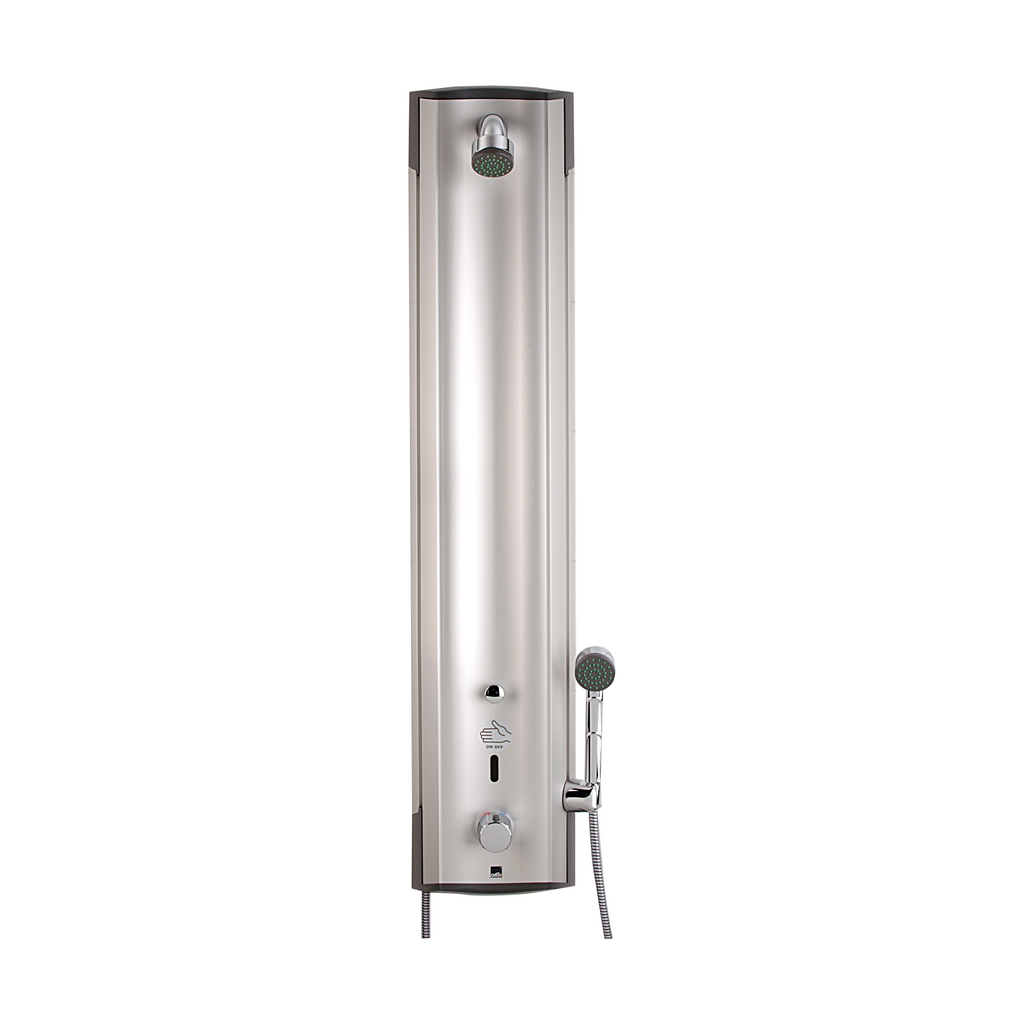

Touchless thermostatic shower panel with hand shower and a temperature adjustment handle. Electrical connection 12 V via a separate transformer Oras 199275 (max 4 shower panels to one transformer). The shower is switched on by placing a hand in front of the sensor within the recognition range. Water will flow for as long as the person is standing under the shower. When the user exits the recognition range the water flow will stop automatically. The shower panel is equipped with litter filters, non-return valves, flow limiter and 10m power cable for transformer. Parameters are changed with a magnetic key included in the package. The following accessories are sold separately: soap holder (Oras No. 199880)

Features

• Electronic parts
Autofocus infrared sensor, Solenoid valve
• Lever/Handle
Temperature control handle, Safety feature for water temperature
• Mechanical parts
Thermostatic cartridge for automatic temperature control, Litter filter(s), Non-return valve(s)
• Shower parts
Hand shower
• Advanced features
Software settings adjustable via magnetic key
• Color
Aluminium/Chrome
• Temperature
Safety stop against scalding at 38°C
• Opening range
0-5 cm

Software settings

• Afterflow period
5 s
• Max. flow period
5 min

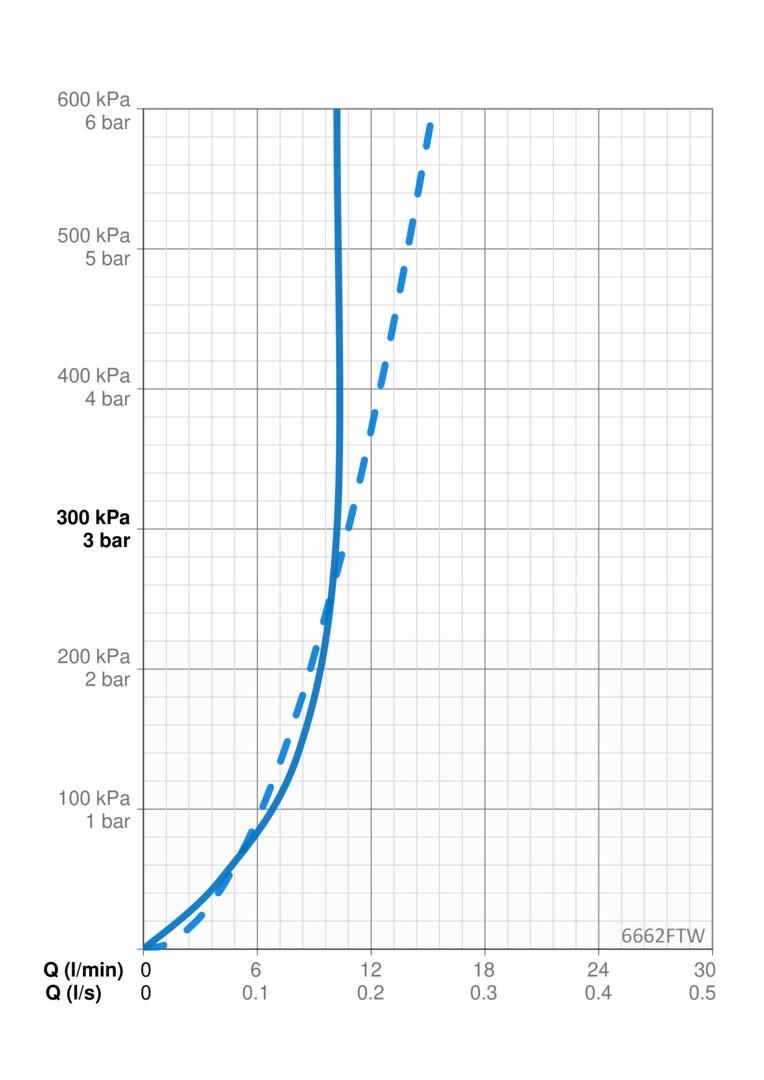

Flow attributes

• Flow-rate at 300 kPa
0.18 l/s
• Flow-rate at 300 kPa (with flow controller)
0.17 l/s
• Pressure loss with flow (0.2 l/s)
350 kPa (70% qv = 171 kPa)

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +70°C

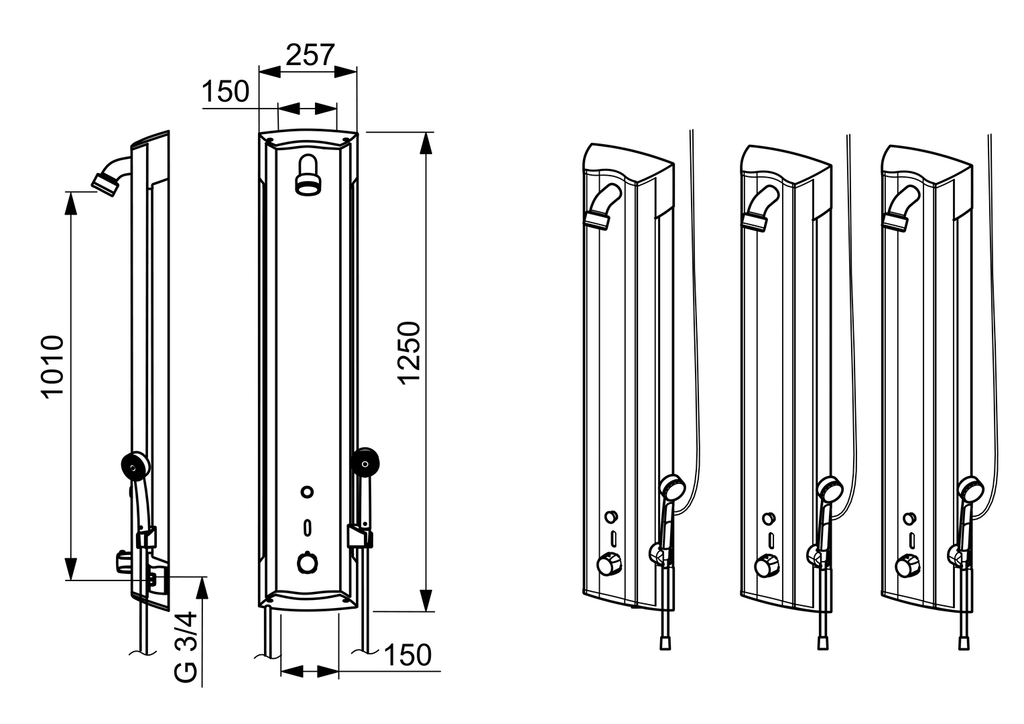

• Installation width
150 mm
• Material
Aluminium
• Working pressure
100 - 1000 kPa

Electronics

• Electrical Connection
12 V

Regulations

• EU Directives
Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 1111 , EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55

Sustainability

• EPD module A1 (kg CO2 eq.)
39,88
• EPD module A1-A3 (kg CO2 eq.)
53,74
• EPD module A2 (kg CO2 eq.)
3,49
• EPD module A3 (kg CO2 eq.)
12,00
• EPD module A4 (kg CO2 eq.)
0,40
• EPD module B7 (kg CO2 eq.)
886,99
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,06
• EPD module C4 (kg CO2 eq.)
0,00
• EPD module D (kg CO2 eq.)
-0,43
