Oras Electra - Washbasin faucet, 24/48 V, Bluetooth 6100Z

Oras Electra - Washbasin faucet, 24/48 V, Bluetooth (6100Z)

€545,48
Sale price  €545,48 Regular price
Skip to product information
Oras Electra - Washbasin faucet, 24/48 V, Bluetooth 6100Z

Oras Electra - Washbasin faucet, 24/48 V, Bluetooth (6100Z)

€545,48
Sale price  €545,48 Regular price

Touchless Bluetooth washbasin faucet for pre-mixed water.

Electrical connection 24/48 V.

Recognition range can be adjusted at the faucet.

(Oras No. 198081/m) 3 - 6 and 9 meters photocell cables available:

Adjust settings from Bluetooth app

Auto Flush

Recognition

After flow

Max Flow time

Technical Data

Features

• Additional features
3, 6 and 9 meters photocell cables available: Oras No. 6100/3, 6100/6, 6100/9
• Aerator
Standard aerator
• Connection
One inlet for cold or premixed water
• Electronic parts
Infrared sensor, Power supply
• Mechanical parts
Litter filter(s)
• Mounting holes
1 hole
• Advanced features
Software settings adjustable via App
• Spout
Fixed spout, Casted construction
• Color
Chrome

Software settings

• Afterflow period
3 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

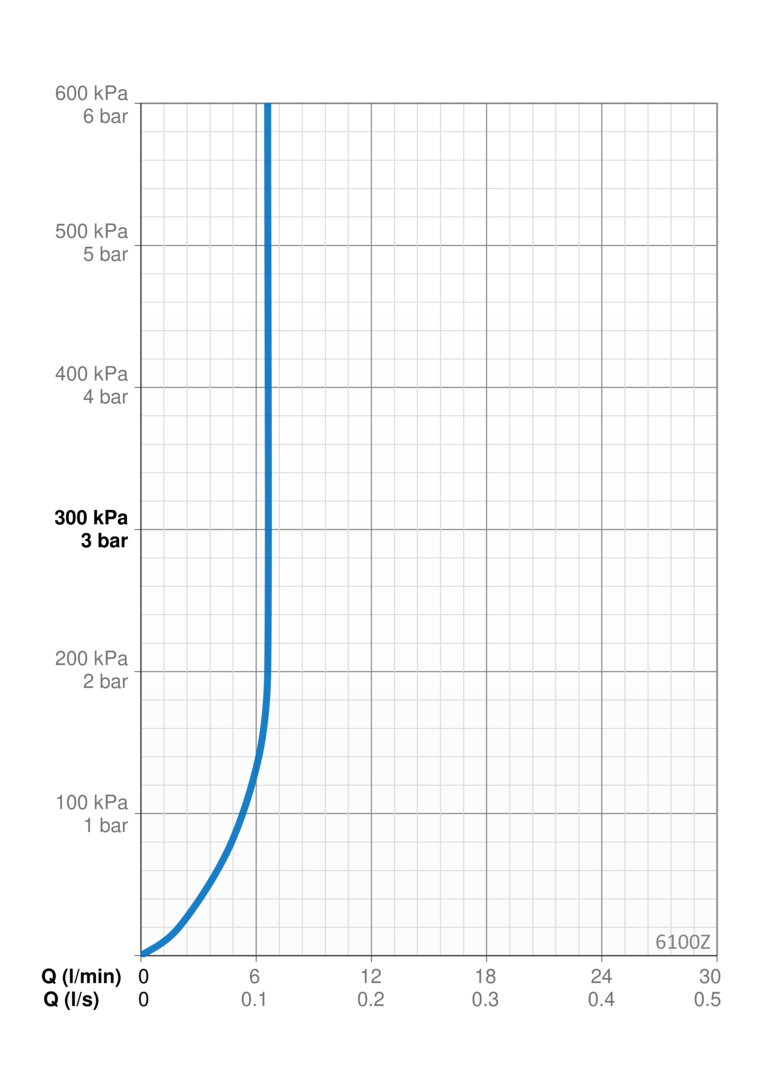

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.11 l/s
• Pressure loss with flow (0.1 l/s)
170 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
120 mm
• Working pressure
100 - 1000 kPa

Electronics

• Bluetooth version
5.x (D060577)
• Electrical Connection
24-48V

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 67

Approvals and Declarations

• STF
K14606-01
• KIWA SE
1861

Sustainability

• EPD module A1 (kg CO2 eq.)
10,59
• EPD module A1-A3 (kg CO2 eq.)
11,68
• EPD module A2 (kg CO2 eq.)
0,05
• EPD module A3 (kg CO2 eq.)
0,55
• EPD module A4 (kg CO2 eq.)
0,47
• EPD module B7 (kg CO2 eq.)
473,00
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,31
• EPD module D (kg CO2 eq.)
-8,46

Spare Parts
Oras Electra - Washbasin faucet, 24/48 V, Bluetooth (6100Z)

01 Aerator, STD M24x1 HC PCA 5.7 l/min / 1013801V

02 Spout (Chrome) / 198093

03 Photocell, 9 m / 198081/9

04 Photocell, 6 m / 198081/6

05 Photocell, 3 m / 198081/3

06 Photocell / 198081

07 Fixing plates with nuts / 158697

08 Hose coupling, G1/2xD9 / 198008V

09 Solenoid valve, 12/24/48 V / 1014683V

10 Flow limiter, 6 l/min / 198084

11 Litter filters, G1/2, DN15 / 198094/2

12 Circuit card / 1014593V

13 Control box / 1014958V
