Name: Oras Electra - Washbasin faucet, 24/48 V, Bluetooth (6105Z)
Brand: Finland Rocks
SKU: 6105Z
Price: 911.75 EUR
Availability: InStock

Oras Electra - Washbasin faucet, 24/48 V, Bluetooth (6105Z)

€911,75

Oras Electra - Washbasin faucet, 24/48 V, Bluetooth (6105Z)

€911,75

Touchless Bluetooth washbasin faucet with a mixing valve and hand shower.

Electrical connection 24/48 V.

Recognition range can be adjusted at the faucet.

The faucet is equipped with litter filters and non-return valves.

Use of the hand shower: Lift the hand shower from its holder and press the trigger. The water flow will stop when the hand shower is replaced to the holder.

Replacement cord in the legth of 3-4-5-10 meters is available for the holder of the hand shower.

(Oras No. 198081/m) 3 - 6 and 9 meters photocell cables available:

Flex pipes connection

Adjust settings from Bluetooth app

Auto Flush

Recognition

After flow

Max Flow time

Adjustment of Bidet flow time

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Electronic parts
Infrared sensor, Solenoid valve
• Hand shower
Bidetta hand shower
• Mechanical parts
Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm), Twist guard for shower hose
• Advanced features
Software settings adjustable via App
• Spout
Fixed spout, Casted construction
• Color
Chrome

Software settings

• Afterflow period
3 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

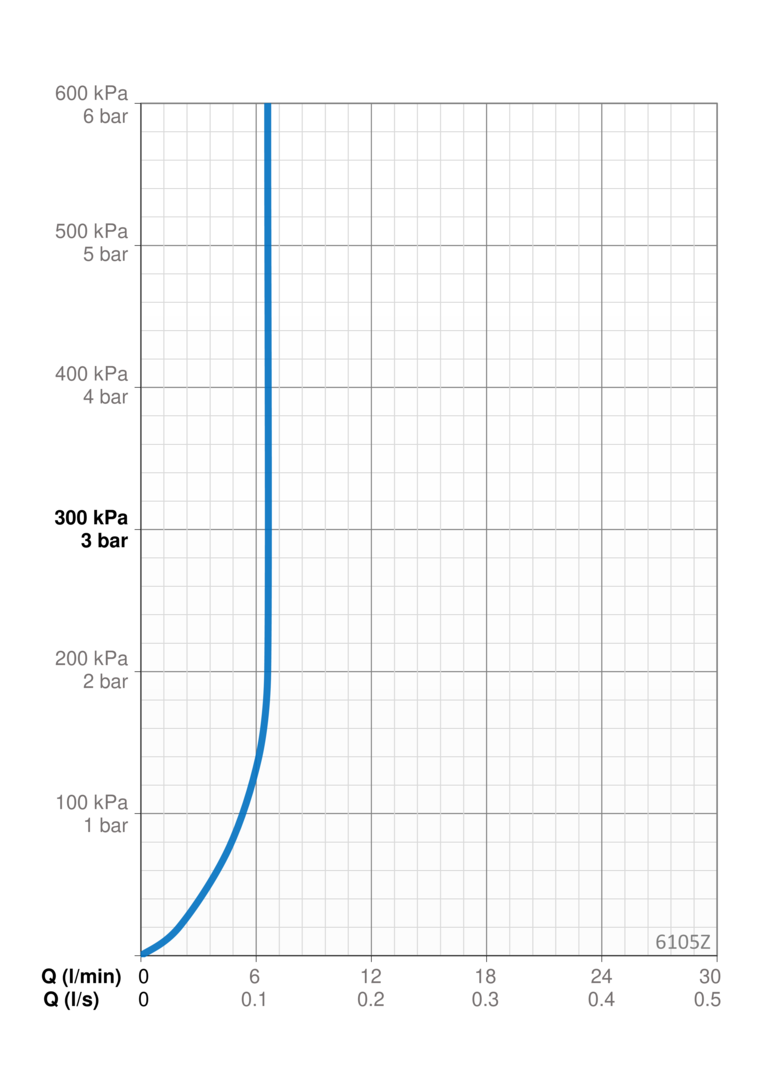

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.11 l/s
• Pressure loss with flow (0.1 l/s)
220 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
120 mm
• Working pressure
100 - 1000 kPa

Electronics

• Bluetooth version
5.x (D060577)
• Electrical Connection
24-48V

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 67

Approvals and Declarations

• STF
K14606-01
• KIWA SE
1861

Sustainability

• EPD module A1 (kg CO2 eq.)
17,19
• EPD module A1-A3 (kg CO2 eq.)
18,96
• EPD module A2 (kg CO2 eq.)
0,09
• EPD module A3 (kg CO2 eq.)
0,90
• EPD module A4 (kg CO2 eq.)
0,76
• EPD module B7 (kg CO2 eq.)
473,00
• EPD module C2 (kg CO2 eq.)
0,04
• EPD module C3 (kg CO2 eq.)
0,04
• EPD module C4 (kg CO2 eq.)
0,50
• EPD module D (kg CO2 eq.)
-13,73
