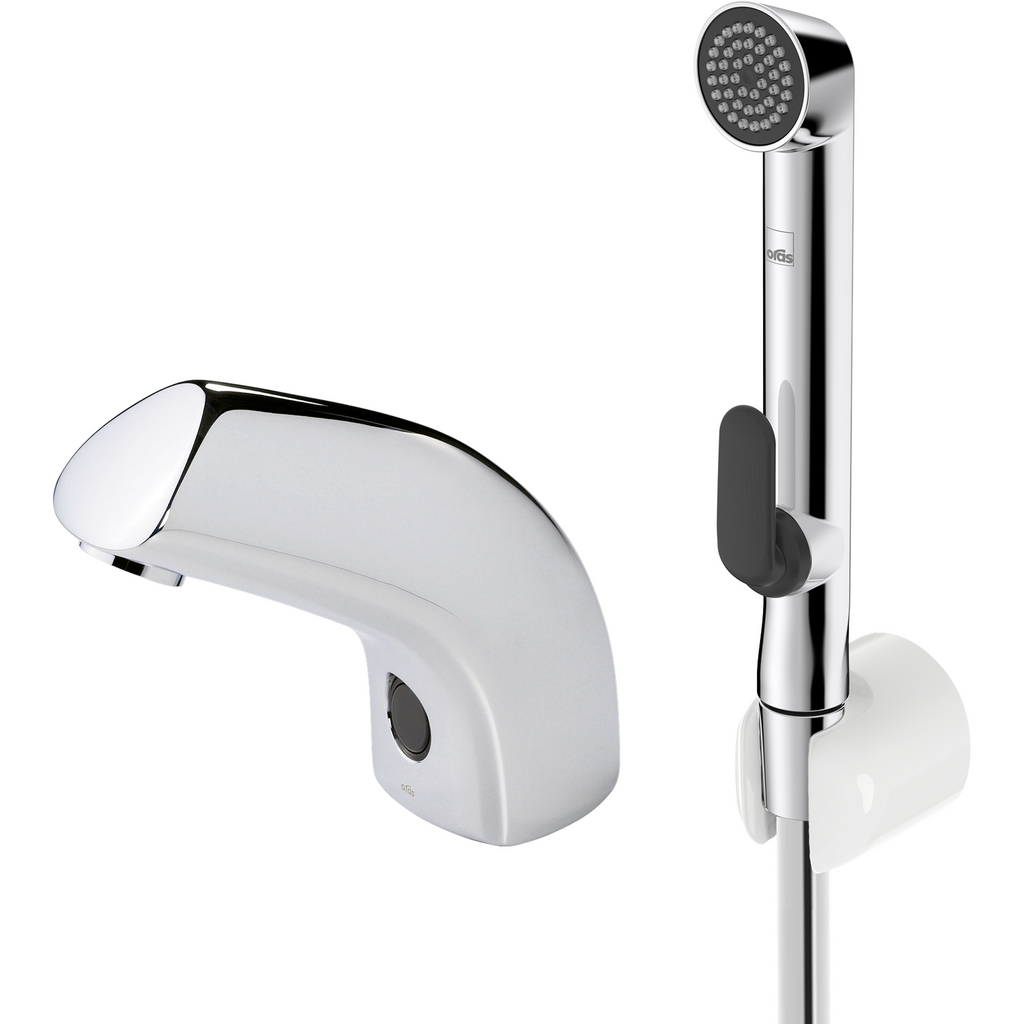

Oras Electra - Washbasin faucet, 24/48 V, non-Bluetooth (6215Q)

Features

• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Easy-Grip surface, Safety feature for water temperature
• Mechanical parts
Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Number of spray functions
3 spray functions
• Shower parts
Eco flow control, Hand shower, Adjustable shower rail bracket, Shower holder, Shower hose (1750 mm), Shower rail, Soap dish, Twist guard for shower hose
• Spout
Fixed spout
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C

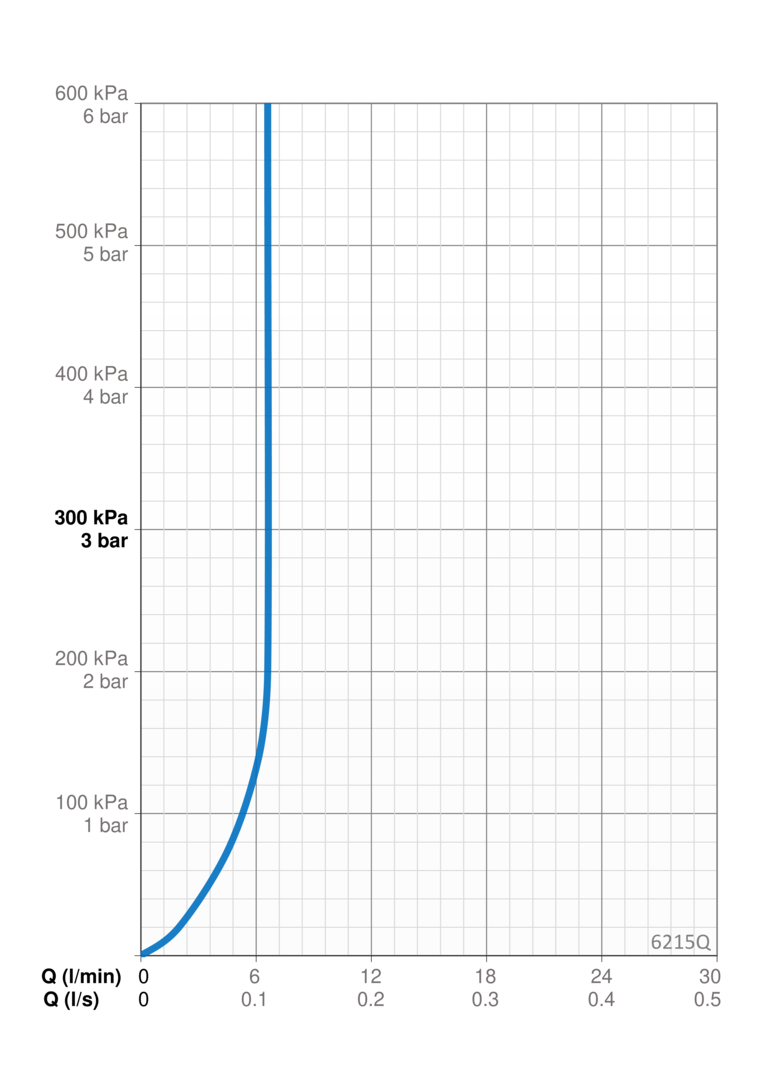

Flow attributes

• Eco-flow at 300 kPa
0.16 l/s
• Flow-rate at 300 kPa
0.3 / 0.23 l/s
• Pressure loss with flow (0.2 l/s)
230 kPa
• Pressure loss with flow (0.3 l/s)
300 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G1/2
• Hot water supply
max. +80°C

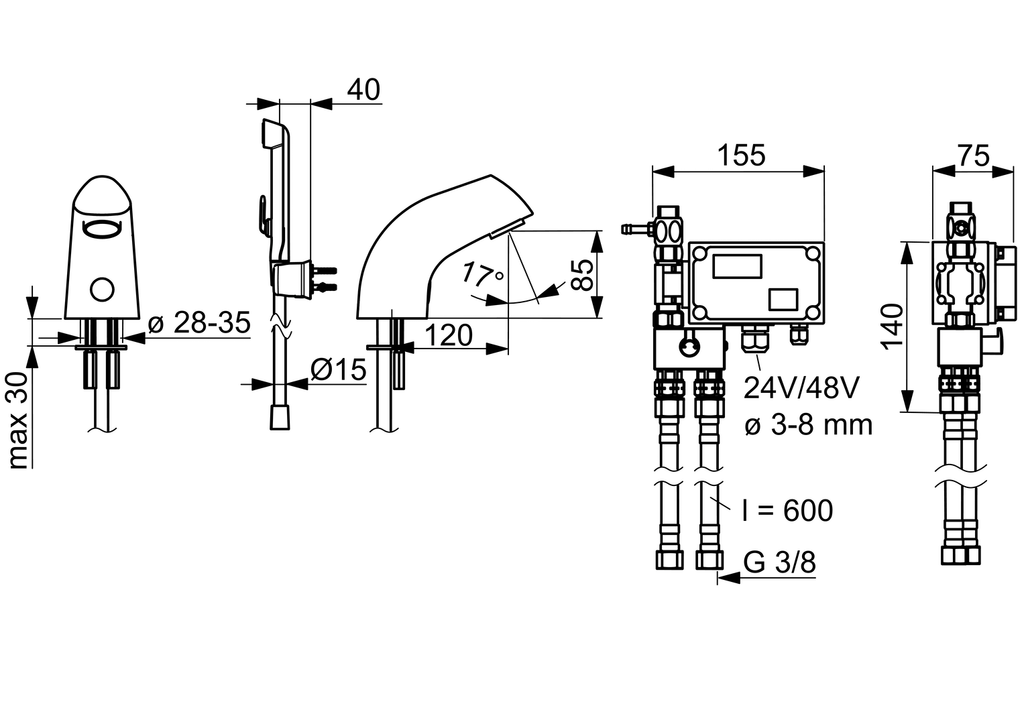

• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Projection
93 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111, EN 1112, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20002662-TH4

Sustainability

• EPD module A1 (kg CO2 eq.)
12,41
• EPD module A1-A3 (kg CO2 eq.)
14,37
• EPD module A2 (kg CO2 eq.)
0,64
• EPD module A3 (kg CO2 eq.)
1,31
• EPD module A4 (kg CO2 eq.)
0,38
• EPD module B7 (kg CO2 eq.)
1852,80
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,79
• EPD module D (kg CO2 eq.)
-9,39
