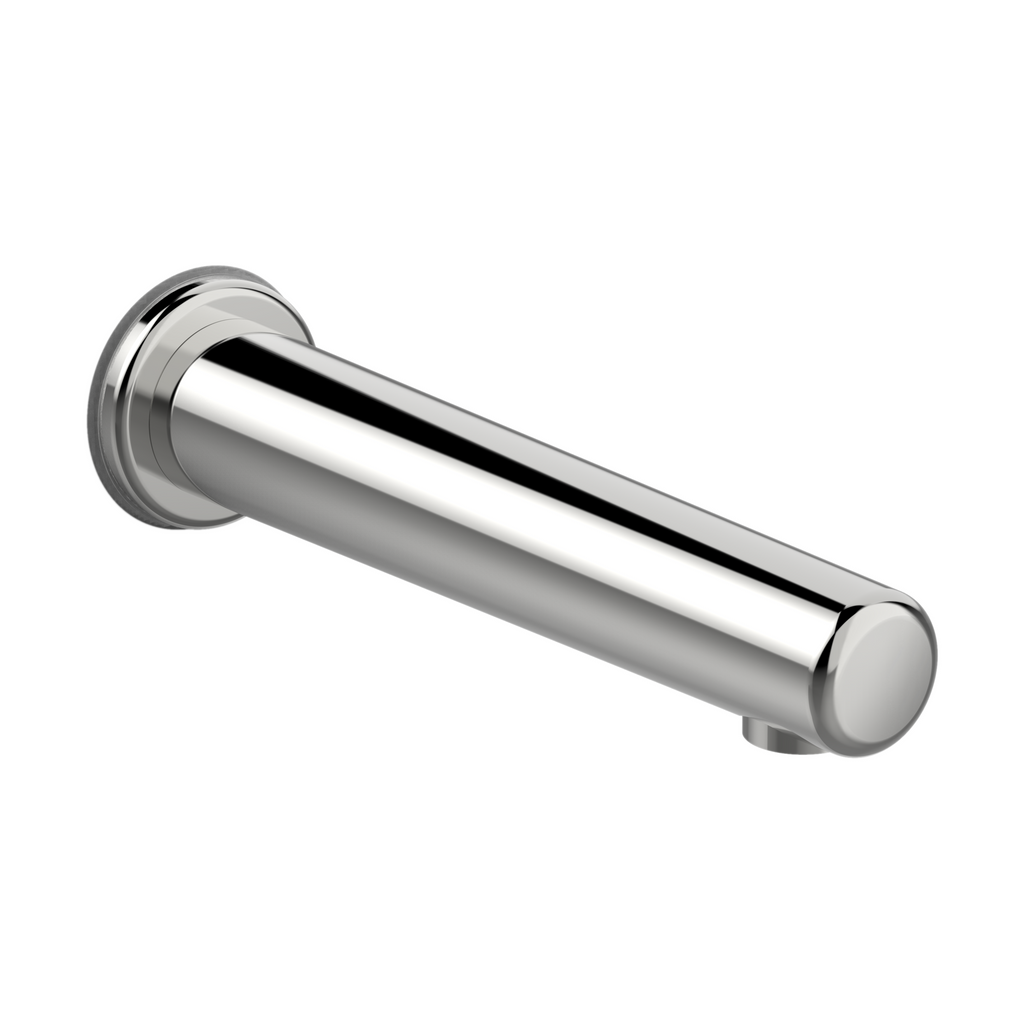

Oras Electra - Washbasin faucet, 3 V, Bluetooth (6189Z)

Features

• Aerator
PCA® - constant flow rate regardless of pressure variations, Laminar stream, Protection against burglary
• Connection
One inlet for cold or premixed water, External thread, with integrated shut-off valve(s)
• Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
• Mechanical parts
Non-return valve(s), Litter filter(s)
• Advanced features
Software settings adjustable via App
• Spout
Fixed spout, Casted construction
• Color
Chrome

Software settings

• Afterflow period
3 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

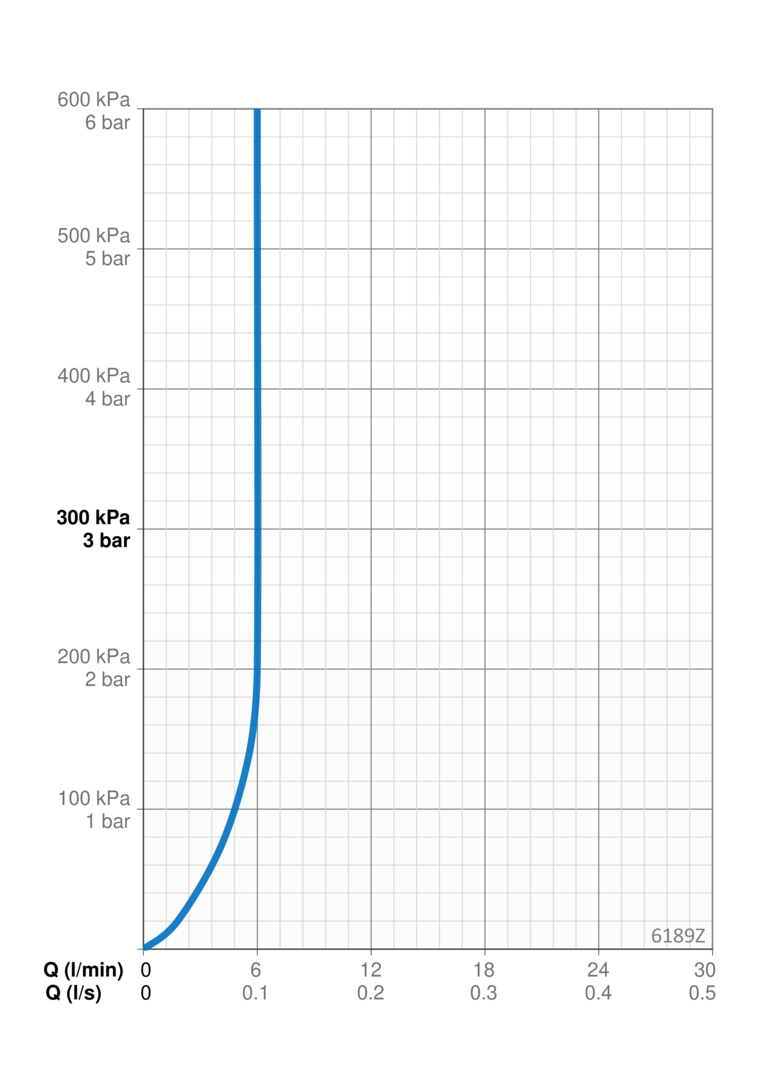

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.1 l/s
• Pressure loss with flow (0.1 l/s)
200 kPa

Technical properties

• Backflow prevention (EN1717)
AA

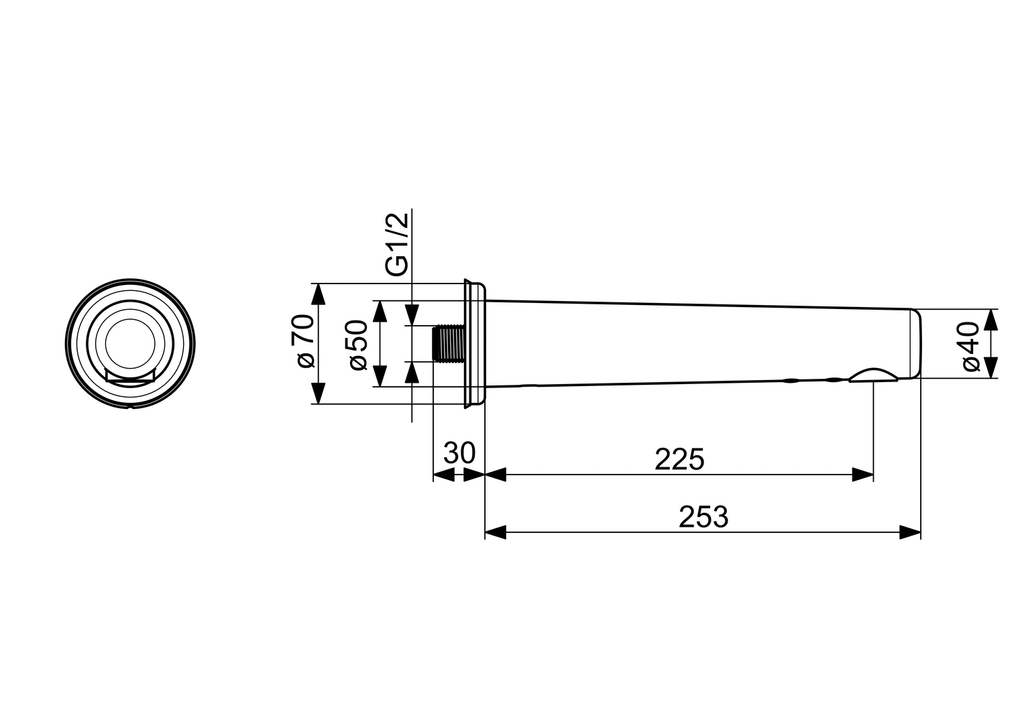

• Connection size
G1/2
• Hot water supply
max. +70°C
• Material
Brass
• Projection
225 mm
• Working pressure
100 - 1000 kPa

Electronics

• Battery
AA 1.5 V Lithium x 2
• Bluetooth version
4.x (D034445)

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822) Oras lab.
• Protection class
IP 55

Approvals and Declarations

• KIWA SE
1566
