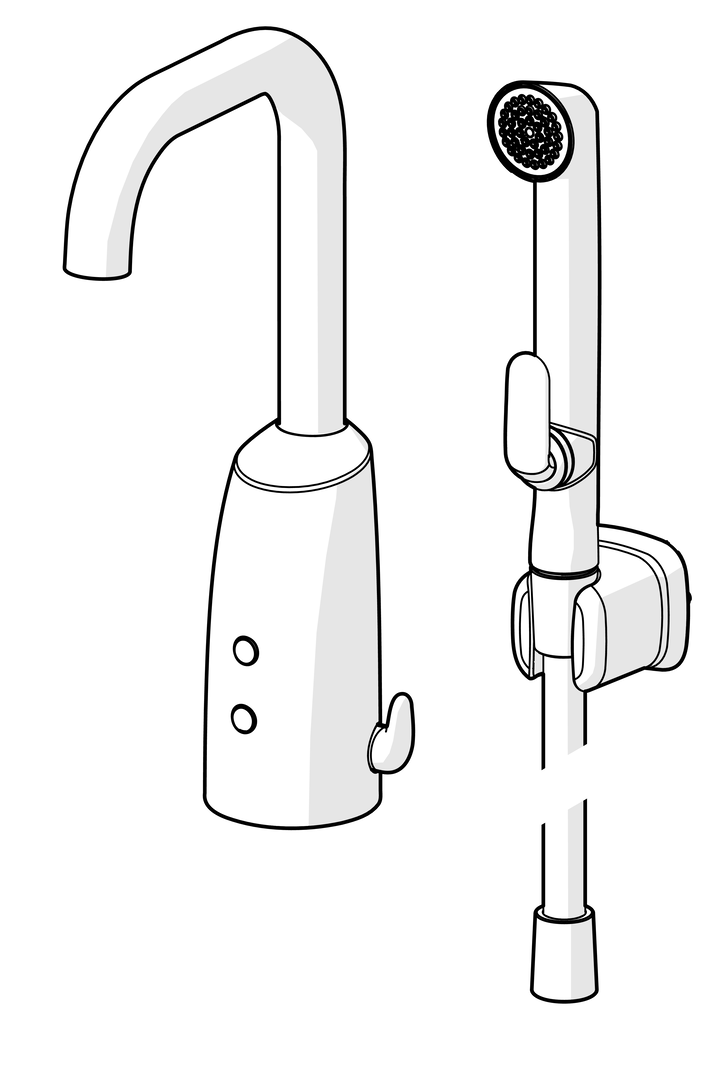

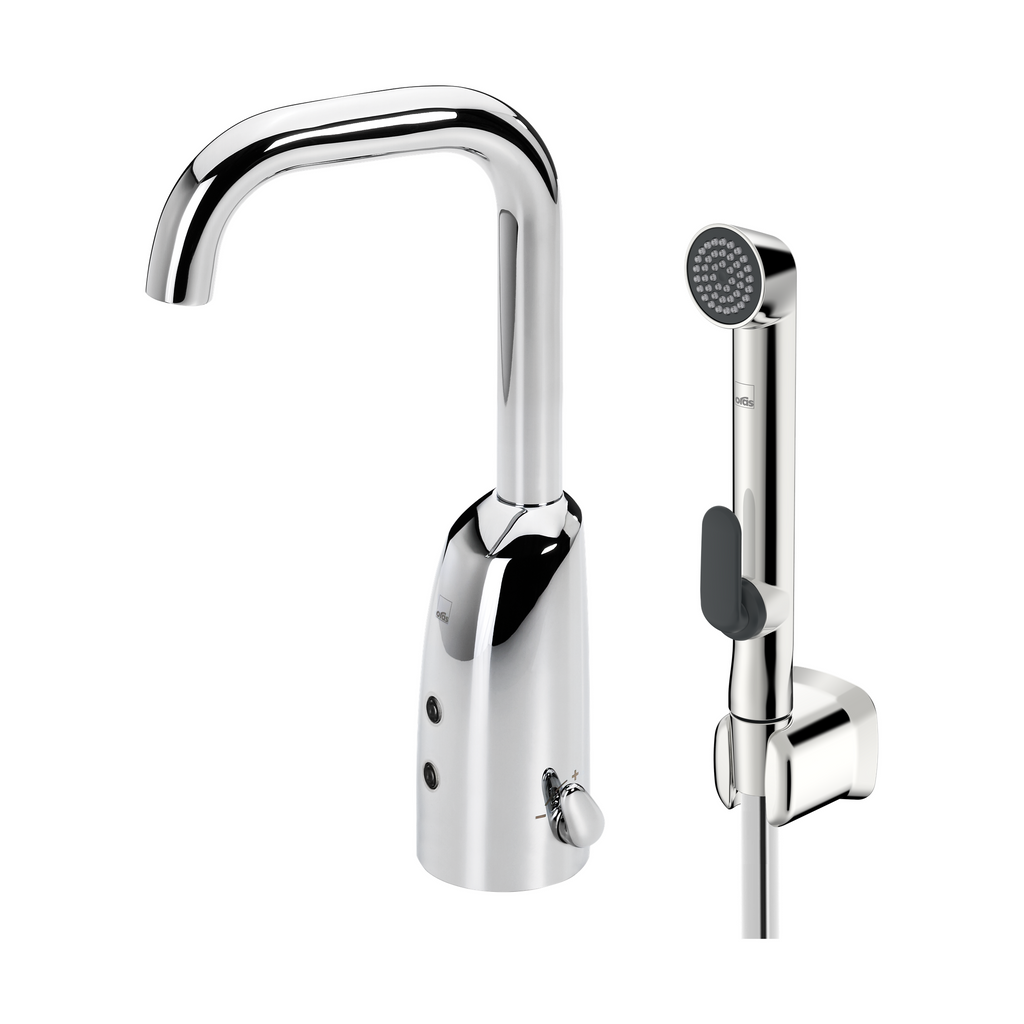

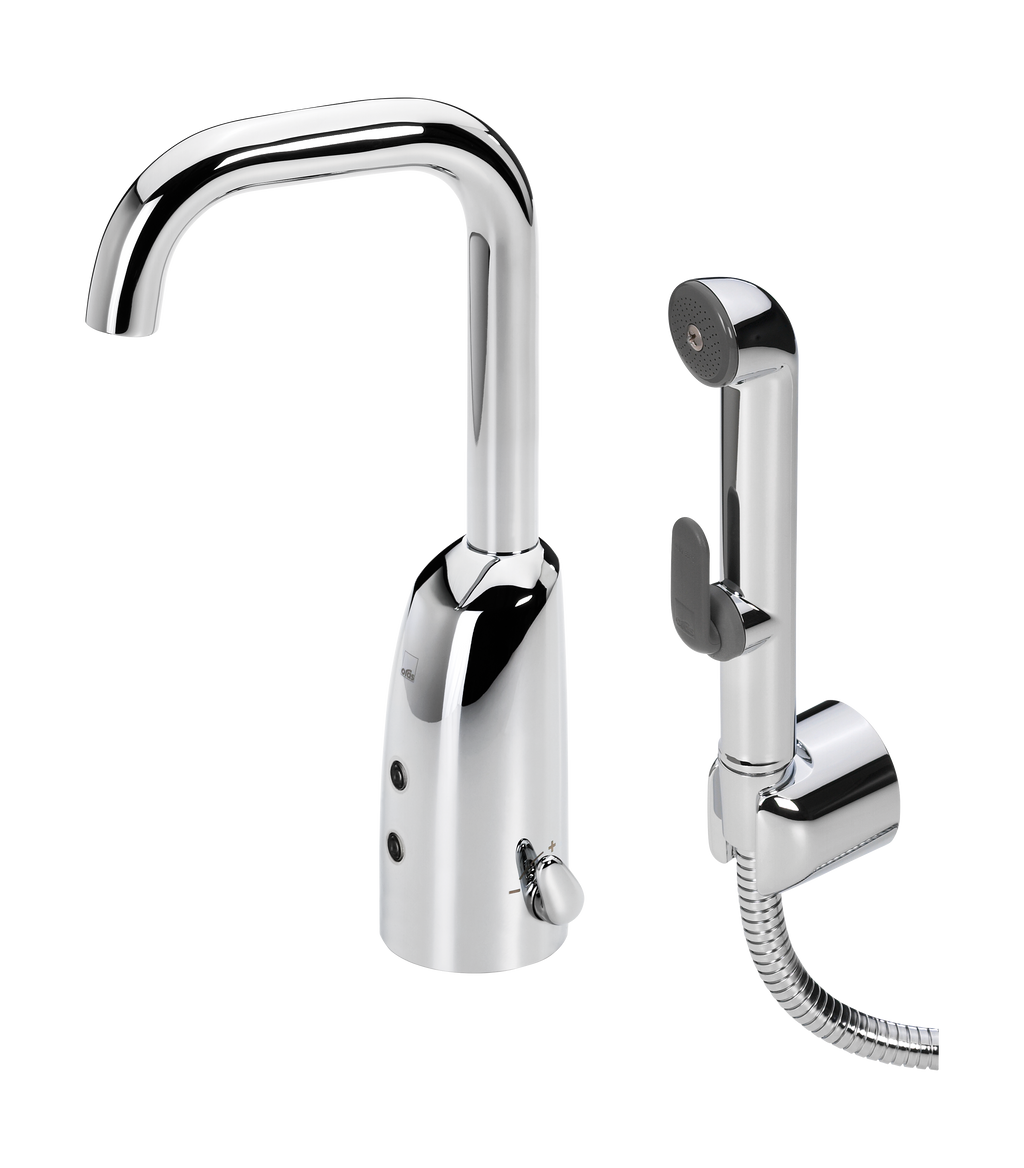

Oras Electra - Washbasin faucet, 6 V, Bluetooth (6332fz)

Features

• Aerator
Hidden aerator
• Connection
Flexible inlet pipes
• Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
• Hand shower
Bidetta hand shower
• Lever/Handle
Temperature control handle
• Mechanical parts
Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm), Twist guard for shower hose
• Advanced features
Software settings adjustable via App
• Spout
Fixed spout
• Color
Chrome
• Temperature
Adjustable hot water stop (included, retrofittable)

Software settings

• Afterflow period
3 s (1-20 s)
• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
2 min (1 - 1800 s)

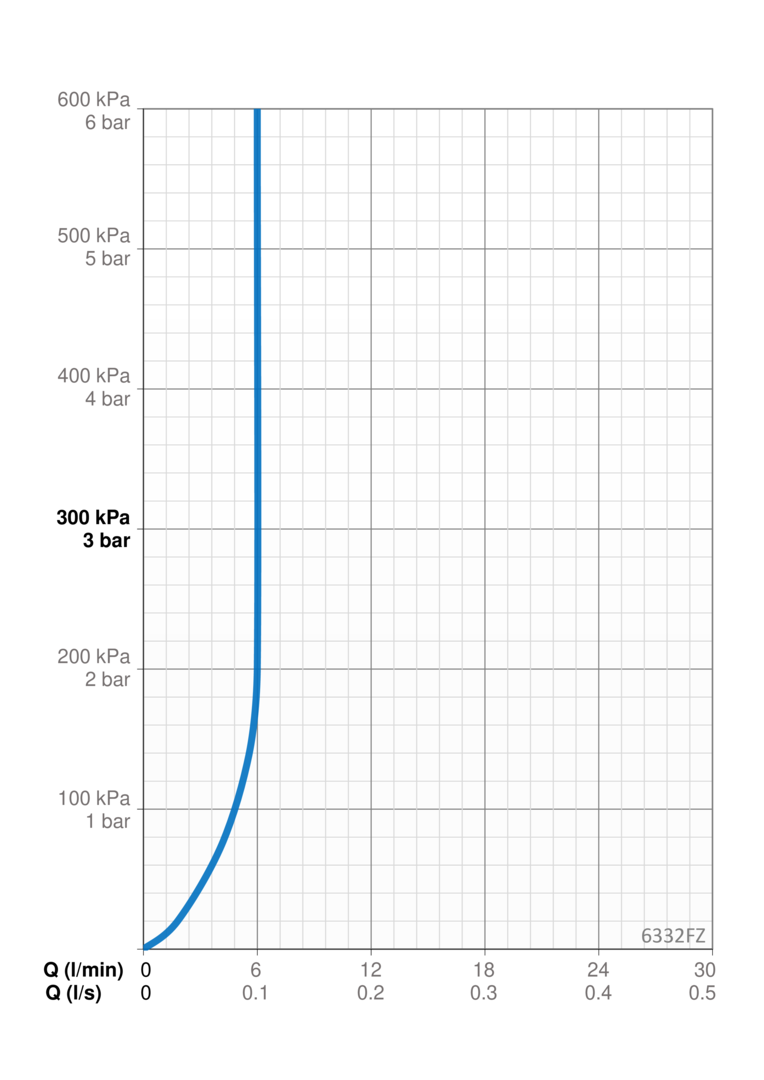

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.1 l/s
• Pressure loss with flow (0.1 l/s)
200 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

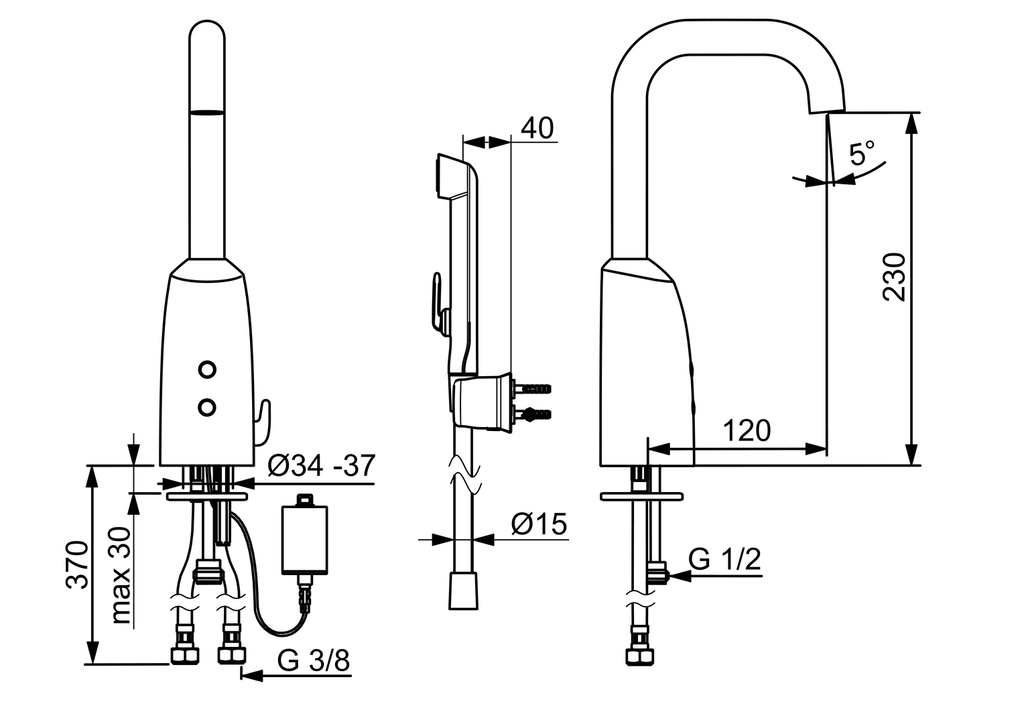

• Projection
120 mm
• Working pressure
100 - 1000 kPa

Electronics

• Battery
Lithium 2CR5 6 V
• Bluetooth version
4.x (D034445)

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 15091, EN 1113, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55

Approvals and Declarations

• STF
EUFI29-21002459-TH1
• UN38.3
UN38-3 Maxell 2CR5

Sustainability

• EPD module A1 (kg CO2 eq.)
12,85
• EPD module A1-A3 (kg CO2 eq.)
14,17
• EPD module A2 (kg CO2 eq.)
0,06
• EPD module A3 (kg CO2 eq.)
0,67
• EPD module A4 (kg CO2 eq.)
0,57
• EPD module B7 (kg CO2 eq.)
430,00
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,38
• EPD module D (kg CO2 eq.)
-10,26
