Oras Inspera Comfort - Kitchen faucet 3032F

Oras Inspera Comfort - Kitchen faucet (3032F)

€452,75
Sale price  €452,75 Regular price
Skip to product information
Oras Inspera Comfort - Kitchen faucet 3032F

Oras Inspera Comfort - Kitchen faucet (3032F)

€452,75
Sale price  €452,75 Regular price

Introducing the Oras Inspera Kitchen Faucet, a sleek and functional addition to any modern kitchen. The chrome surface treatment adds a touch of elegance to the design, while the pull-out spout with two spray functions and aerator provides versatility and convenience. The spout's swing angle is preset at 150 ° but can be limited to 60 °or 0 ° for added control. With in-built options for water temperature and maximum flow-rate, this deck-mounted faucet is perfect for any kitchen. The single-lever, side-operated handle with hot/cold symbols makes it easy to use. Upgrade your kitchen with the Oras Inspera Kitchen Faucet today.

Technical Data

Features

• Additional features
Soft- and Needle-Spray
• Connection
Flexible inlet pipes
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
2 spray functions
• Spout
Swivel spout, Pull-out model, Swivel range limiting option
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (60° / 0°)

Flow attributes

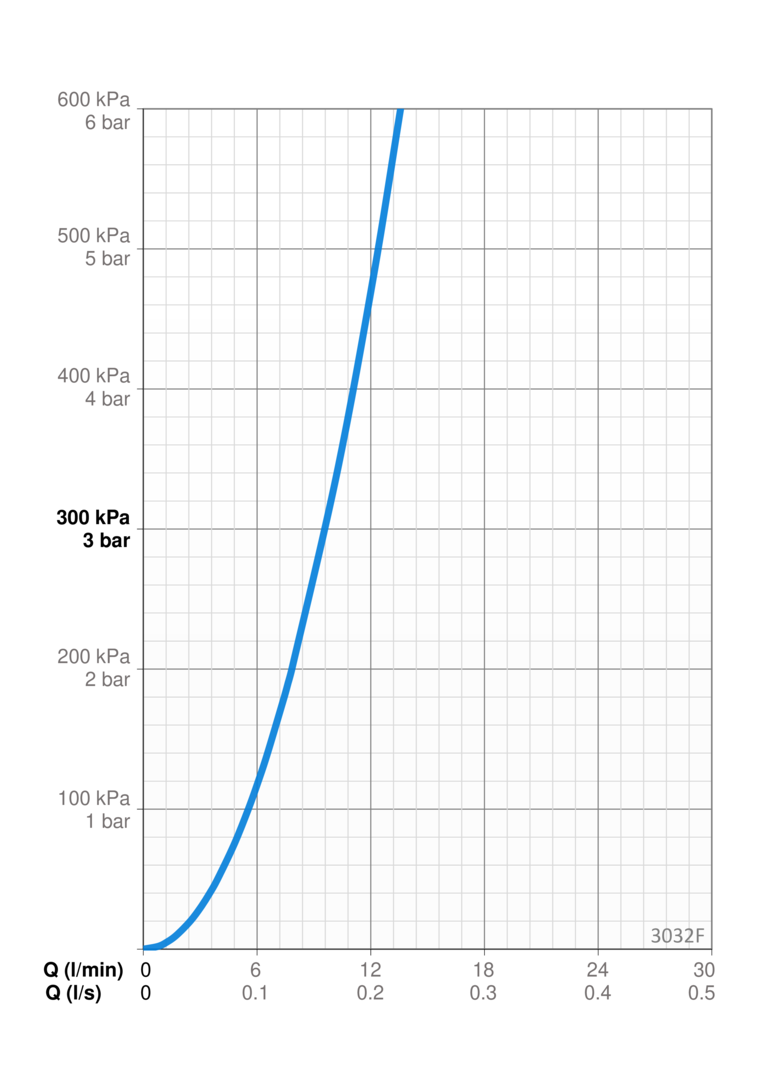

• Flow-rate at 300 kPa
0.16 l/s
• Pressure loss with flow (0.2 l/s)
490 kPa (70% qv = 240 kPa)

Technical properties

• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

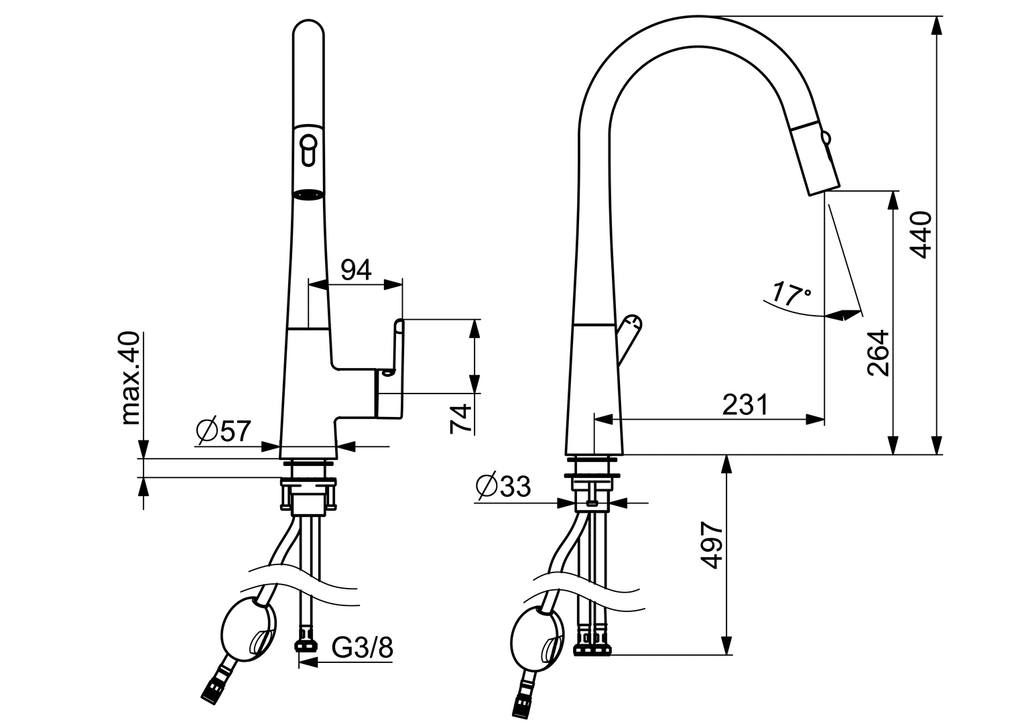

• Projection
231 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-19004498-TH1
• KIWA SE
1607

Sustainability

• EPD module A1 (kg CO2 eq.)
15,70
• EPD module A1-A3 (kg CO2 eq.)
23,34
• EPD module A2 (kg CO2 eq.)
0,75
• EPD module A3 (kg CO2 eq.)
6,90
• EPD module A4 (kg CO2 eq.)
0,47
• EPD module B7 (kg CO2 eq.)
3782,40
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,04
• EPD module C4 (kg CO2 eq.)
0,71
• EPD module D (kg CO2 eq.)
-13,19

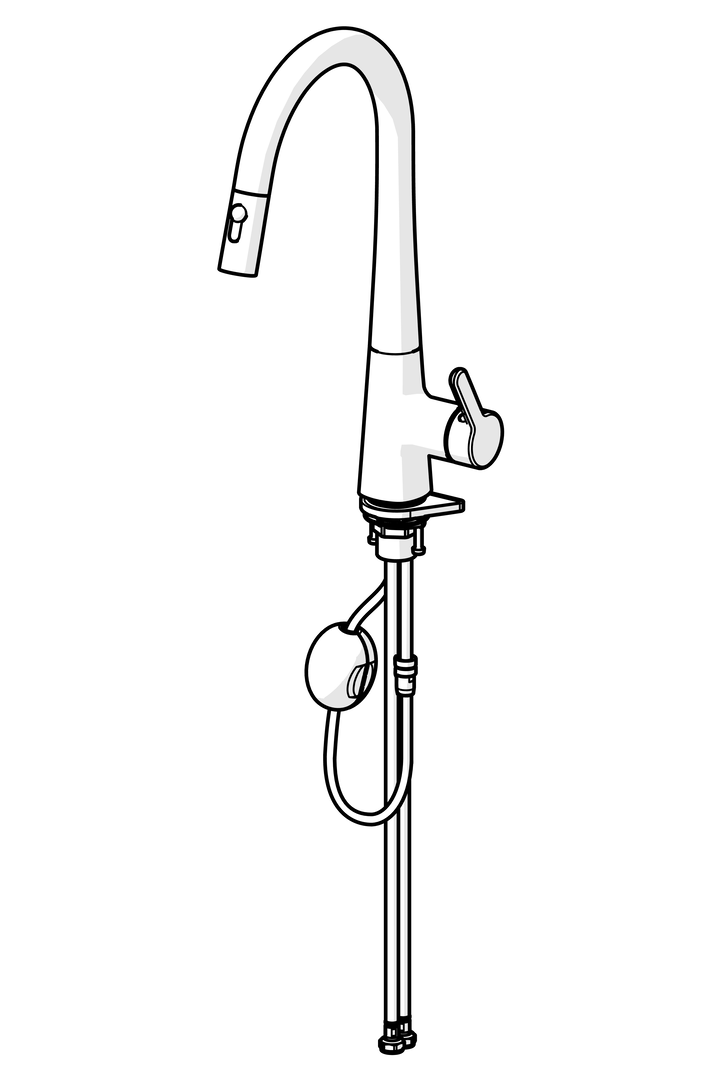

Spare Parts
Oras Inspera Comfort - Kitchen faucet (3032F)

01 Aerator / 1000972V

02 Shower head (Chrome) / 1001321V

03 Hose, L=1500, G1/2-M14x1 / 1004704V

04 Spout (Chrome) Discontinued / 1003323V

05 Spout overturning stopper, 60°/0° / 602706/2

06 Lever (Chrome) / 1003084V

07 Symbol plug Discontinued / 602069V

08 Covering cap (Chrome) / 1001740V

09 Tightening nut, M42x1.5, SW 38 / 158726

10 Cartridge / 1003691V

11 Push button, 3 V (Chrome) / 1004296V

12 Fixing set / 602629V

13 Supporting plate, 100x60mm / 158825

14 Flexible pipe, L=550, G3/8-M10x1 LH Discontinued / 1004663V
