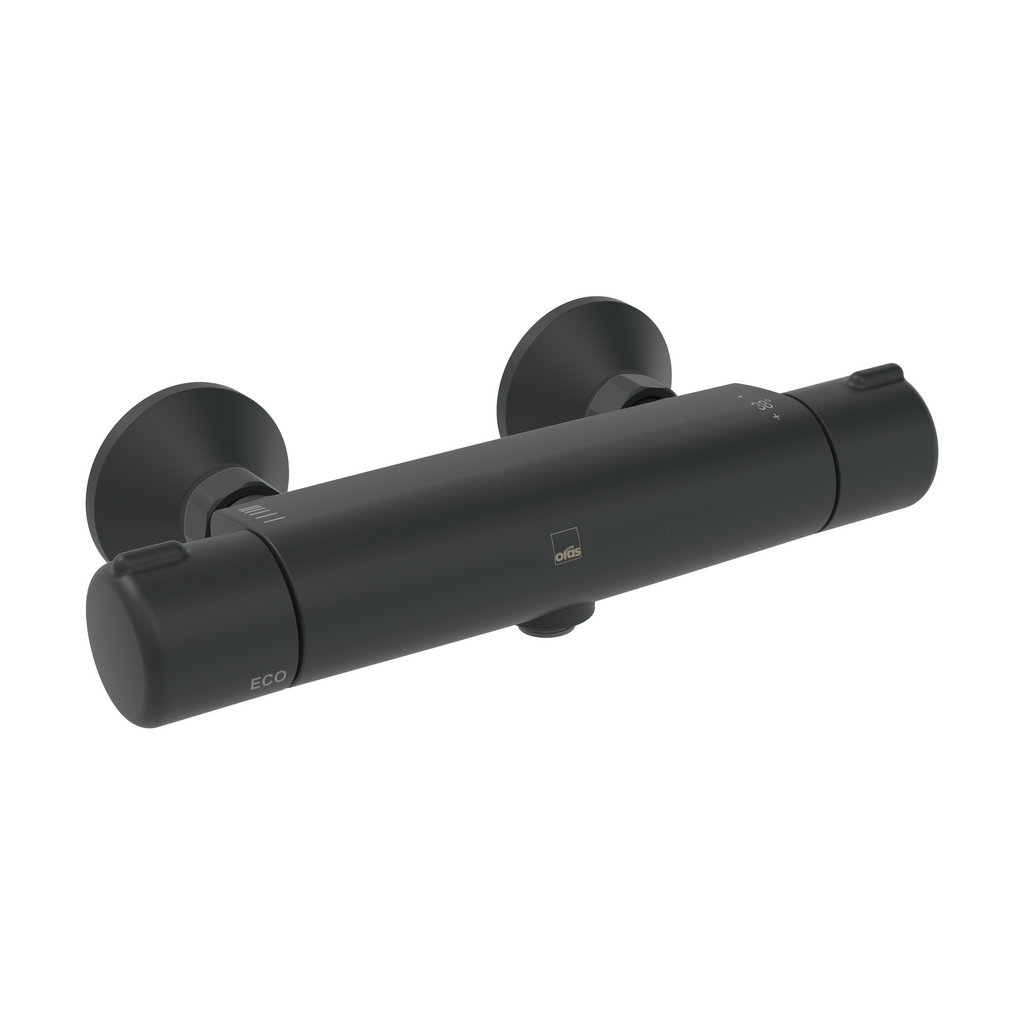

Oras Nova - Shower faucet (7460-33)

Features

• Connection
Direct connection, Internal thread, Cover plate(s)
• Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow, Safety feature for water temperature
• Mechanical parts
Thermostatic cartridge for automatic temperature control, Litter filter(s), Non-return valve(s), Ceramic head part for flow control
• Shower parts
Eco flow control
• Color
Matt black
• Temperature
Safety stop against scalding at 38°C, Temperature preset fixable

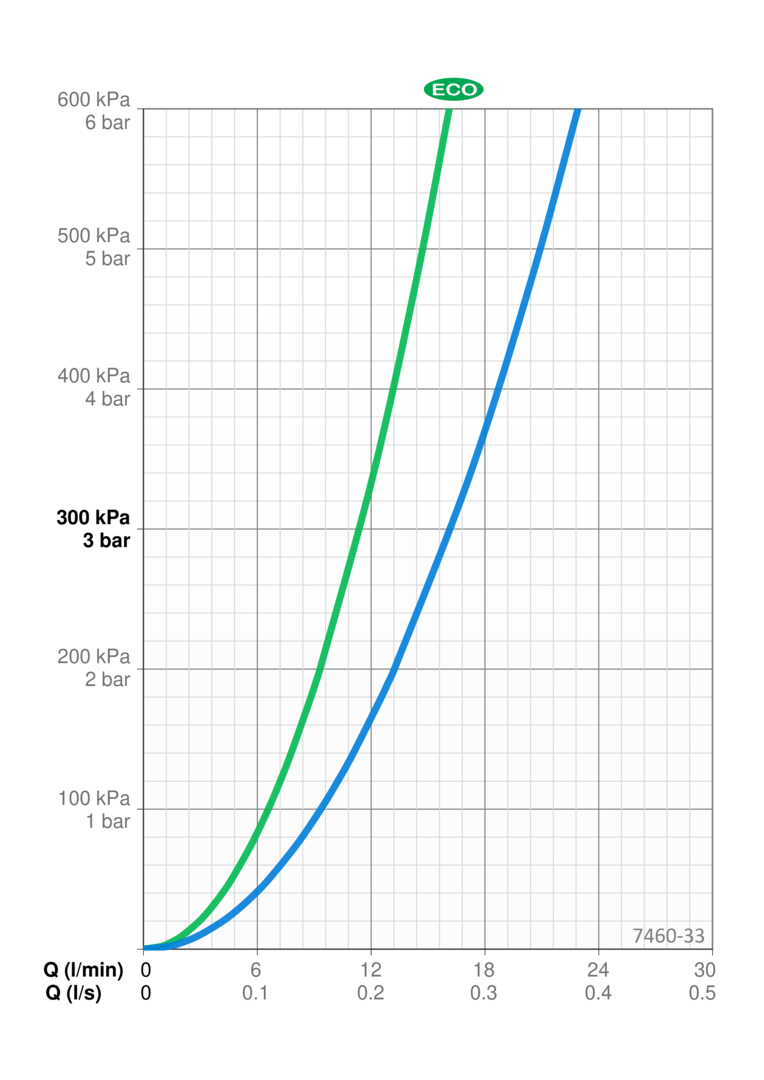

Flow attributes

• Eco-flow at 300 kPa
0.19 l/s
• Flow-rate at 300 kPa
0.27 l/s
• Pressure loss with flow (0.2 l/s)
165 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

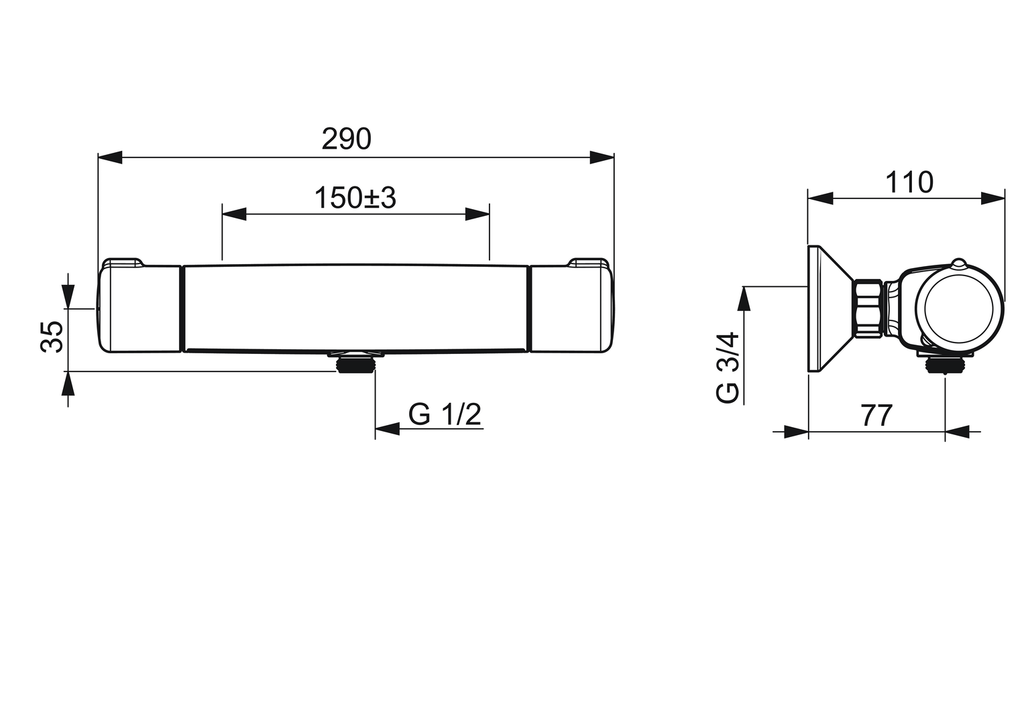

• Installation width
150 mm
• Material
Brass
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I (ISO 3822) Oras lab.

Approvals and Declarations

• STF
EUFI29-22005199-TH
• KIWA SE
1598

Sustainability

• EPD module A1 (kg CO2 eq.)
8,82
• EPD module A1-A3 (kg CO2 eq.)
10,28
• EPD module A2 (kg CO2 eq.)
0,46
• EPD module A3 (kg CO2 eq.)
1,00
• EPD module A4 (kg CO2 eq.)
0,40
• EPD module B7 (kg CO2 eq.)
1960,80
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
1,51
• EPD module D (kg CO2 eq.)
-6,51
