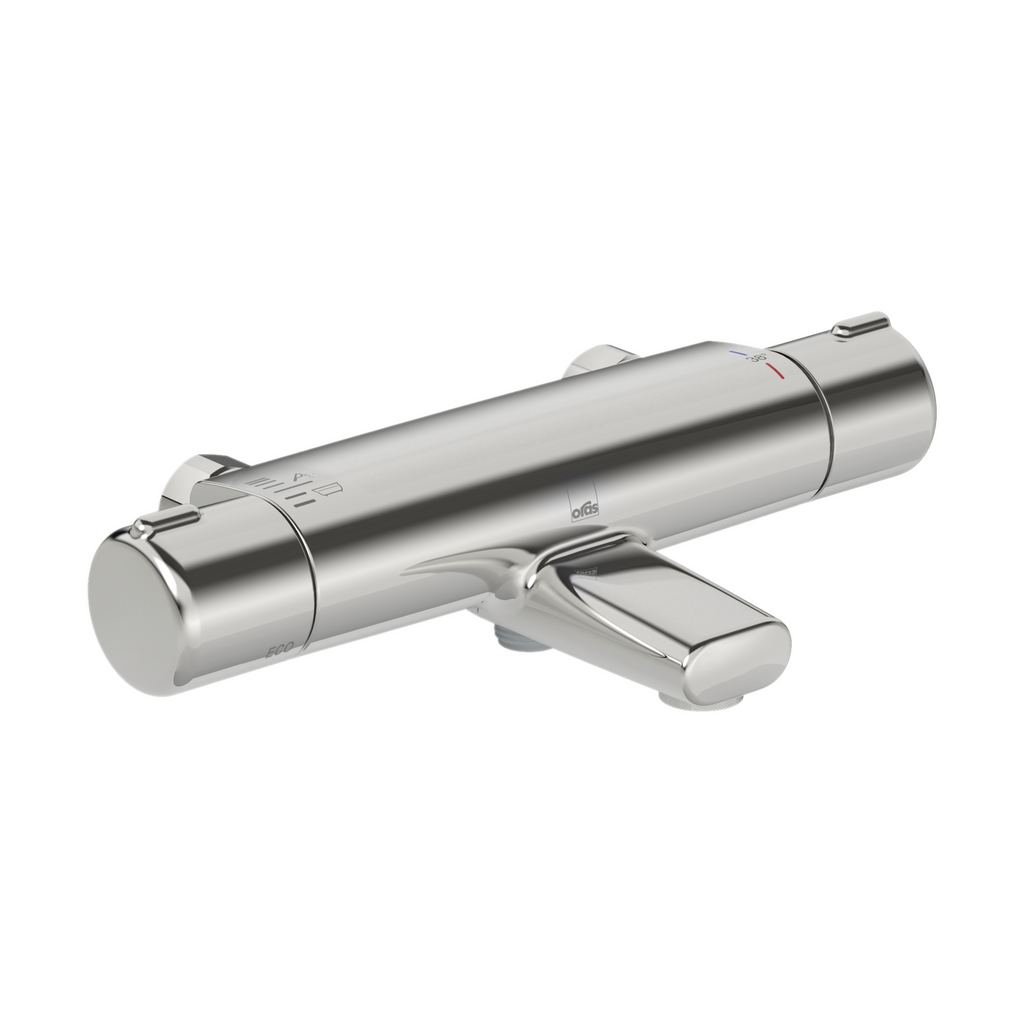

Oras Nova - Shower faucet with spout (7462G)

Features

• Aerator
Standard aerator
• Connection
Direct connection, Internal thread
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle
• Mechanical parts
Litter filter(s), Non-return valve(s), Thermostatic cartridge for automatic temperature control
• Shower parts
Eco flow control
• Spout
Fixed spout
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C

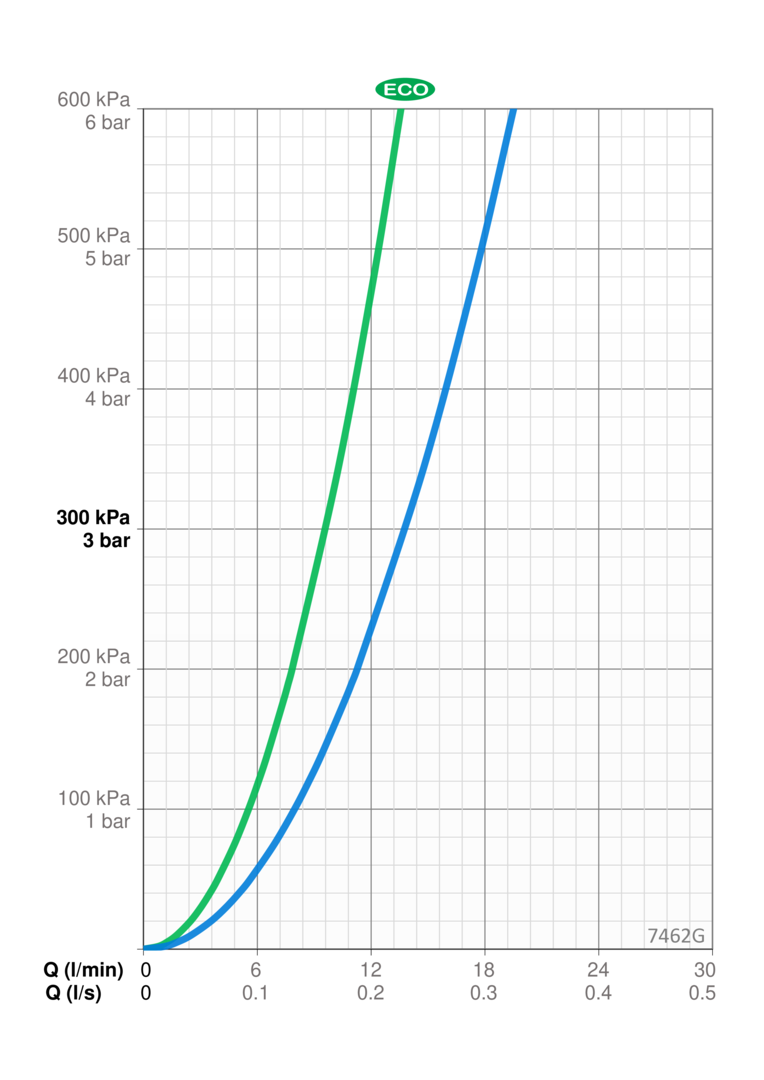

Flow attributes

• Eco-flow at 300 kPa
0.16 l/s
• Flow-rate at 300 kPa
0.23 l/s
• Pressure loss with flow (0.2 l/s)
230 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G1/2
• Hot water supply
max. +80°C

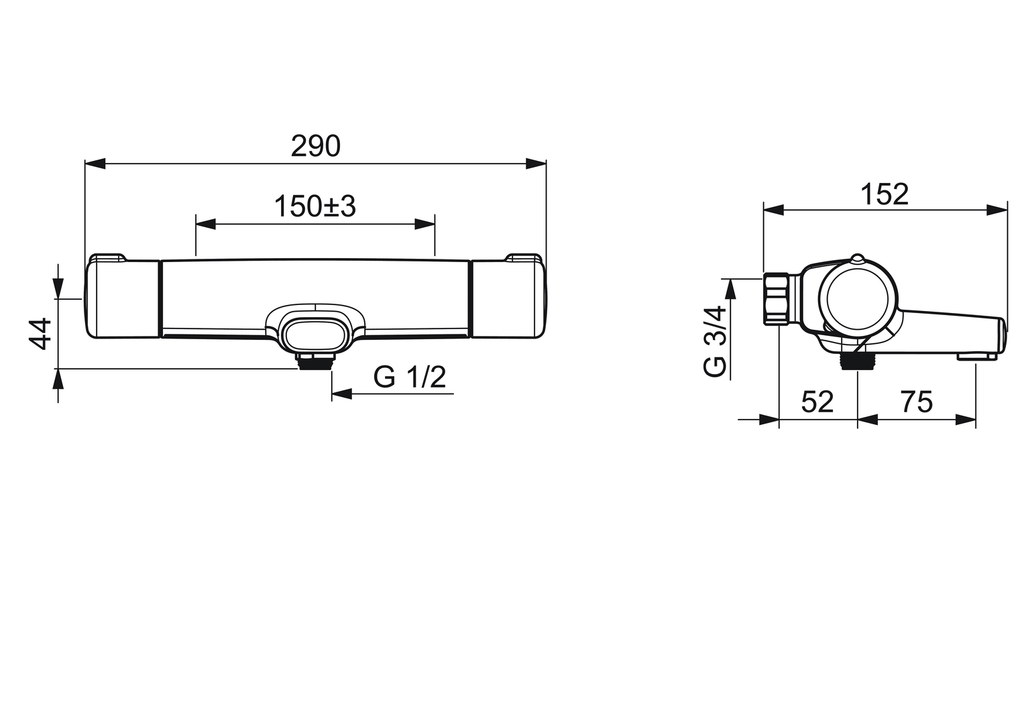

• Installation width
150 mm
• Material
Brass
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I(ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005199-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
8,40
• EPD module A1-A3 (kg CO2 eq.)
9,80
• EPD module A2 (kg CO2 eq.)
0,44
• EPD module A3 (kg CO2 eq.)
0,95
• EPD module A4 (kg CO2 eq.)
0,38
• EPD module B7 (kg CO2 eq.)
1651,20
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
1,44
• EPD module D (kg CO2 eq.)
-6,21
