Oras Optima - Bath and shower faucet

Oras Optima - Bath and shower faucet

€288,66
Sale price  €288,66 Regular price

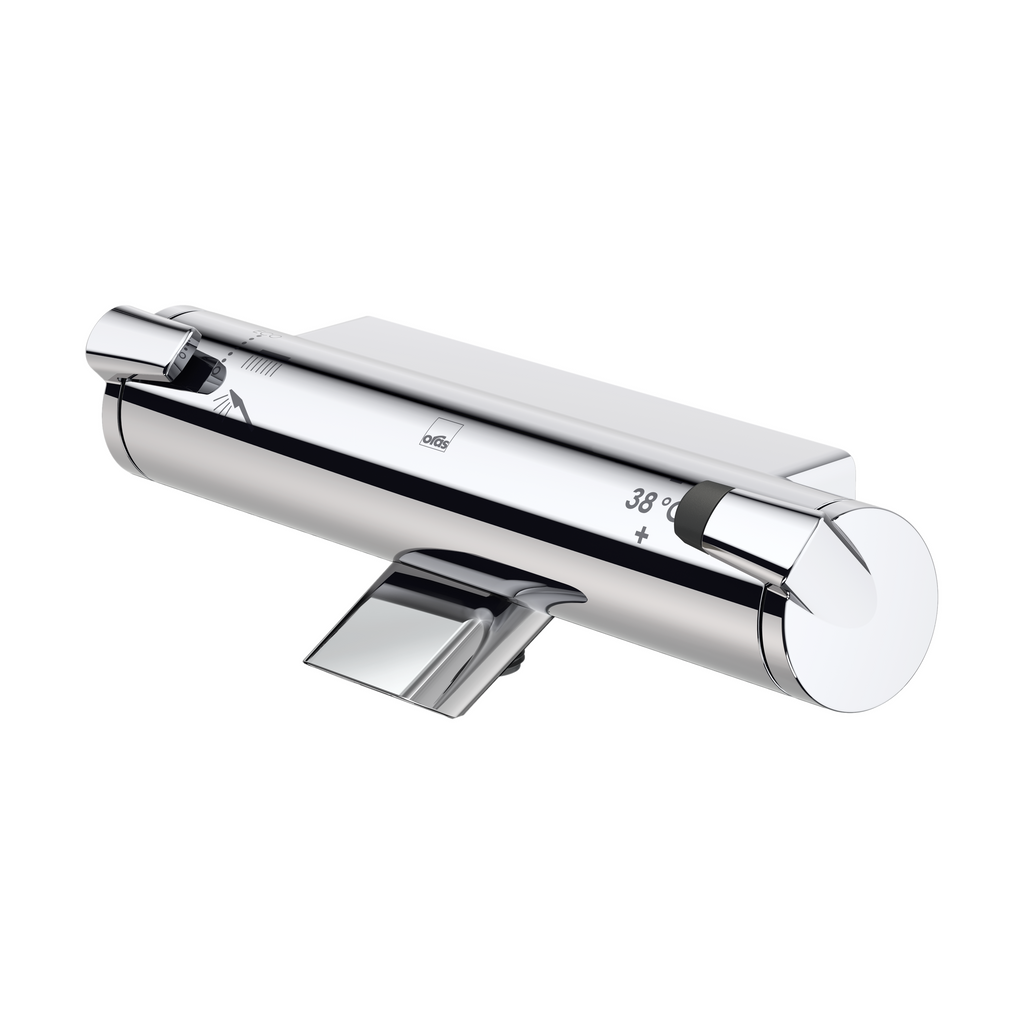

Thermostatic bath and shower faucet with easy-grip handles. Easy-to-use diverter and temperature limiter in the handle. EcoFlow control. The faucet is equipped with litter filters and non-return valves.

Technical Data

Features

• Connection
Direct connection, Internal thread
• Diverter
Turn operated diverter, Integrated into flow control handle
• Lever/Handle
Temperature control handle, Flow control handle, Easy-Grip surface, Safety feature for water temperature
• Mechanical parts
Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Shower parts
Eco flow control
• Spout
Fixed spout, Profile construction
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

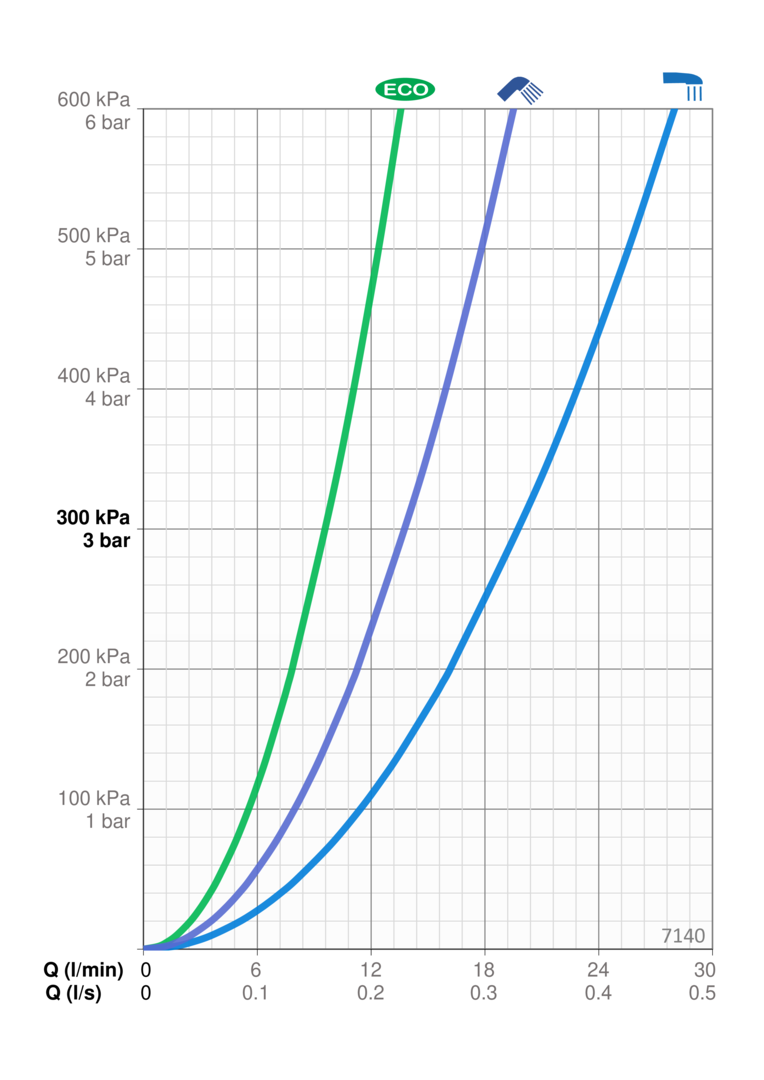

Flow attributes

• Eco-flow at 300 kPa
0.16 l/s
• Flow-rate at 300 kPa
0.33 / 0.23 l/s
• Pressure loss with flow (0.2 l/s)
230 kPa
• Pressure loss with flow (0.3 l/s)
300 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

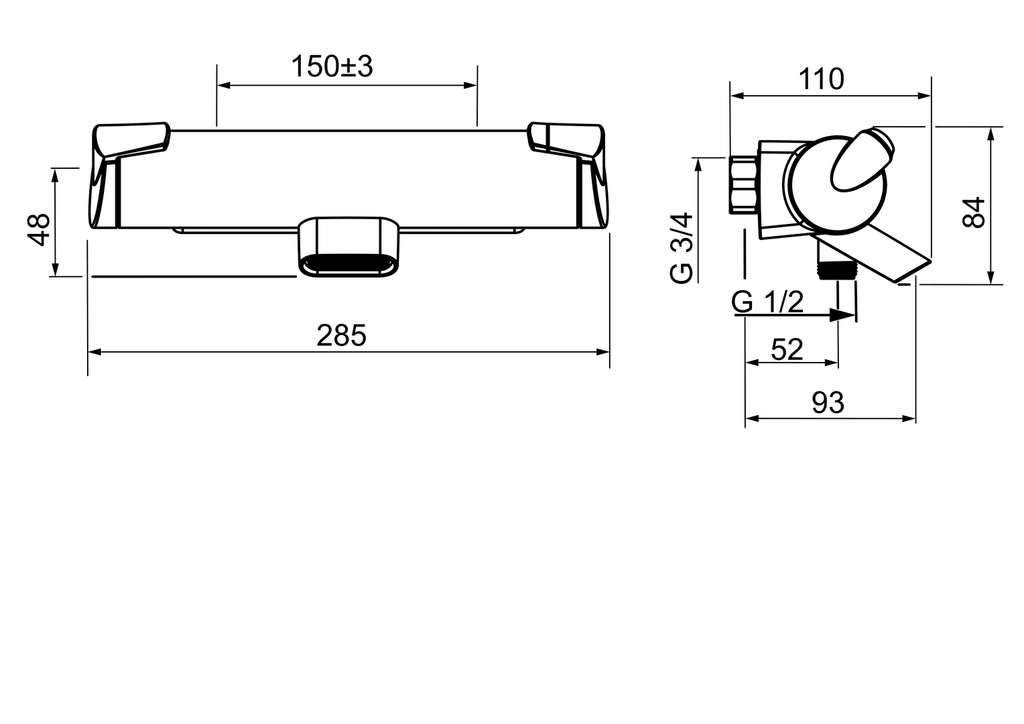

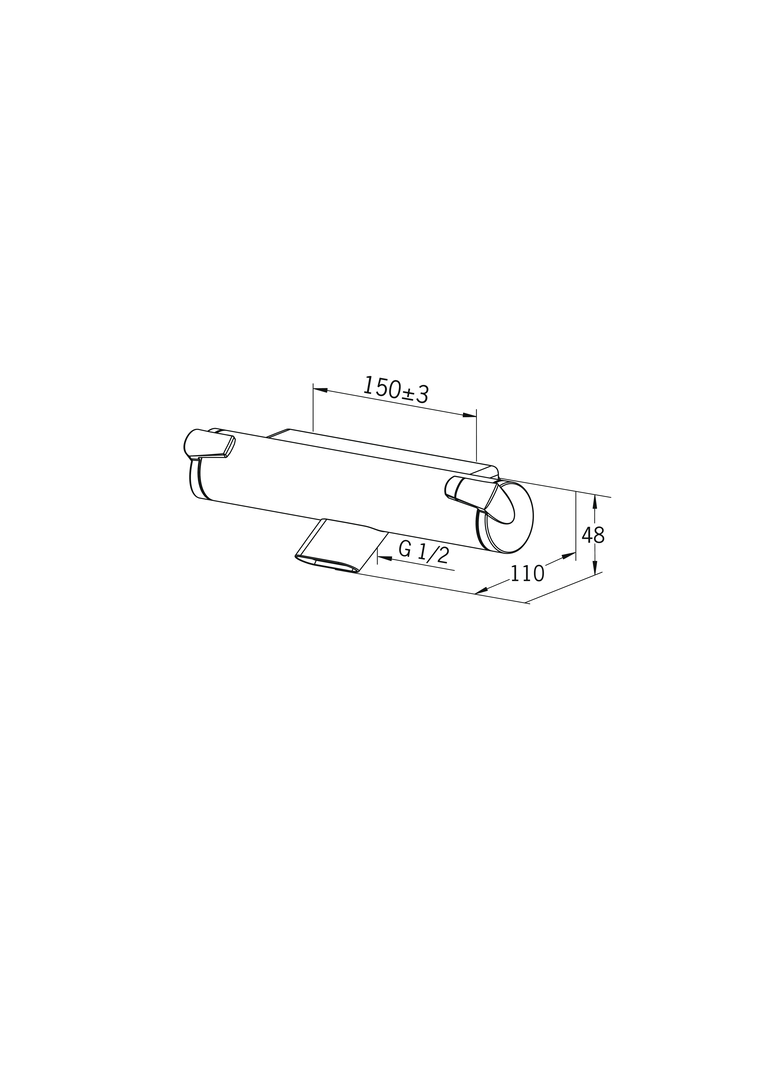

• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Projection
93 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 3085
• STF
EUFI29-20002662-TH4

Sustainability

• EPD module A1 (kg CO2 eq.)
8,96
• EPD module A1-A3 (kg CO2 eq.)
10,45
• EPD module A2 (kg CO2 eq.)
0,46
• EPD module A3 (kg CO2 eq.)
1,02
• EPD module A4 (kg CO2 eq.)
0,41
• EPD module B7 (kg CO2 eq.)
1651,20
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
1,53
• EPD module D (kg CO2 eq.)
-6,62

Spare Parts
Oras Optima - Bath and shower faucet

01 Flow control handle / 601267V

02 Diverter and cartridge / 601278V

03 Litter filters, G1/2, DN15 / 198094/2

04 Filter sealing, G3/4, DN20 / 178375V

05 Temperature control handle / 601273V

06 O-ring kit / 178796V

07 Thermostatic cartridge / 178780V

08 Nozzle / 601637V
