Name: Oras Optima Hybrid - Kitchen faucet with dishwasher valve, 230/5 V
Brand: Finland Rocks
SKU: 2727F
Price: 815.00 EUR
Availability: InStock

Oras Optima Hybrid - Kitchen faucet with dishwasher valve, 230/5 V

815,00€

Kitchen faucet with easy-grip levers for hot and cold water, touchless function, temperature display with hot water warning, high swivel spout, aerator and smart dishwasher valve. The flow-rate of hot and cold water is adjusted by separate levers. Spoutâ€™s swing angle is factory preset at 120 ° (can be limited to 60 ° or 80 °). The touchless function is turned on by taking hands within the recognition range. The water temperature for the touchless function is adjusted by turning the ring between the faucet and the spout. Touchless function can be easily switched on/off. The dishwasher valve is opened by pressing a switch with signal light, and the valve closes automatically after preset period. Dishwasher valve closes automatically after 4 or 12 hours (one push opens the valve for 4 hours, pushing for 5 seconds opens the valve for 12 hours). Electrical connection with a plug transformer 230/5 V. The faucet is equipped with litter filters.

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Dishwasher valve
Electronic stop valve for external equipment
• Electronic parts
Autofocus infrared sensor, Solenoid valve, Power supply, Light indicated function(s)
• Lever/Handle
Two operating levers/handles, Easy-Grip surface
• Mechanical parts
Ceramic head part for flow control, Mixing valve for manual temperature control, Litter filter(s)
• Mounting holes
1 hole
• Advanced features
Inner body made of DZR brass, Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating
• Spout
Swivel spout, Swivel range limiting option
• Color
Chrome
• Spout swivel range
120° (80° / 60°)

Software settings

• Afterflow period
4 s (2/4/8/10/20 s)
• Automatic flush
off (off/12/24/48/72 h)
• Automatic flush period
30 s (10/30/60/120/180 s)
• Dishwasher valve open period
4 h / 12 h
• Max. flow period
40 s (10/40/60/120/180 s)

Flow attributes

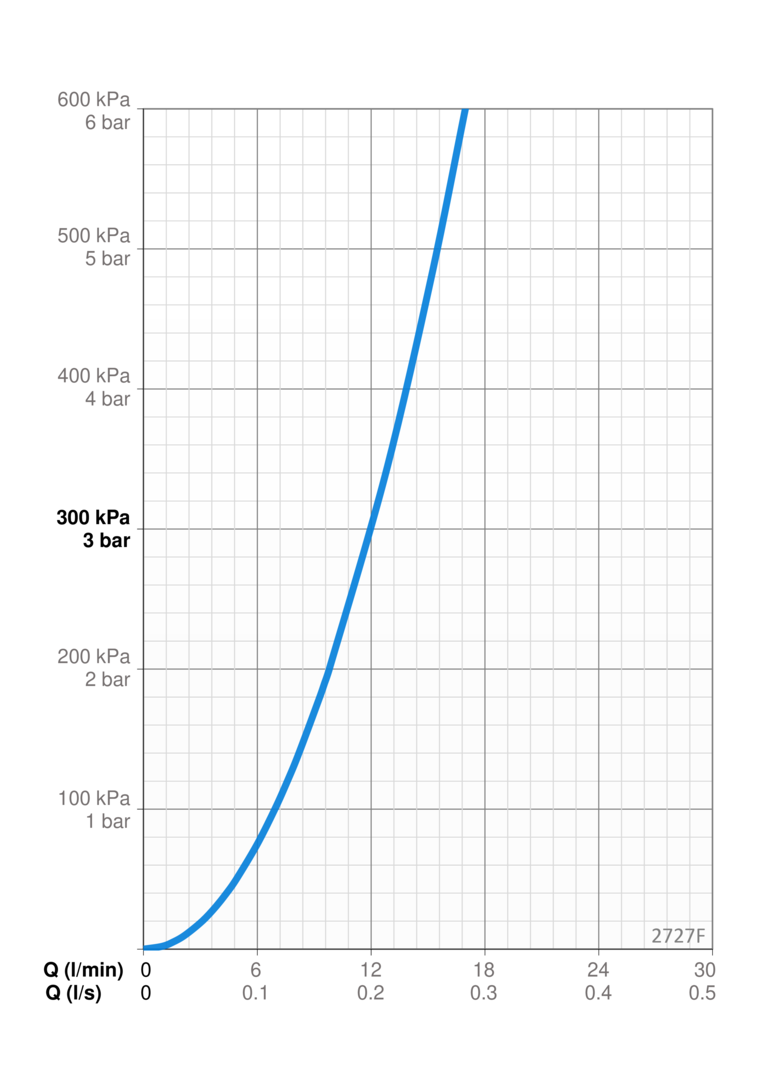

• Flow-rate at 300 kPa
0.2 l/s
• Pressure loss with flow (0.2 l/s)
290 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass/Composite
• Projection
193 mm
• Working pressure
100 - 1000 kPa

Electronics

• Electrical Connection
230 / 5 V

Regulations

• EU Directives
Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 200 , EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 54 / transformer IP 20

Approvals and Declarations

• Sintef
Sintef Nr. 3083
• STF
EUFI29-20002662-TH2
• KIWA SE
1462

Sustainability

• EPD module A1 (kg CO2 eq.)
16,79
• EPD module A1-A3 (kg CO2 eq.)
27,46
• EPD module A2 (kg CO2 eq.)
0,78
• EPD module A3 (kg CO2 eq.)
9,87
• EPD module A4 (kg CO2 eq.)
0,74
• EPD module B7 (kg CO2 eq.)
2364,00
• EPD module C2 (kg CO2 eq.)
0,03
• EPD module C3 (kg CO2 eq.)
0,04
• EPD module C4 (kg CO2 eq.)
0,70
• EPD module D (kg CO2 eq.)
-13,31
