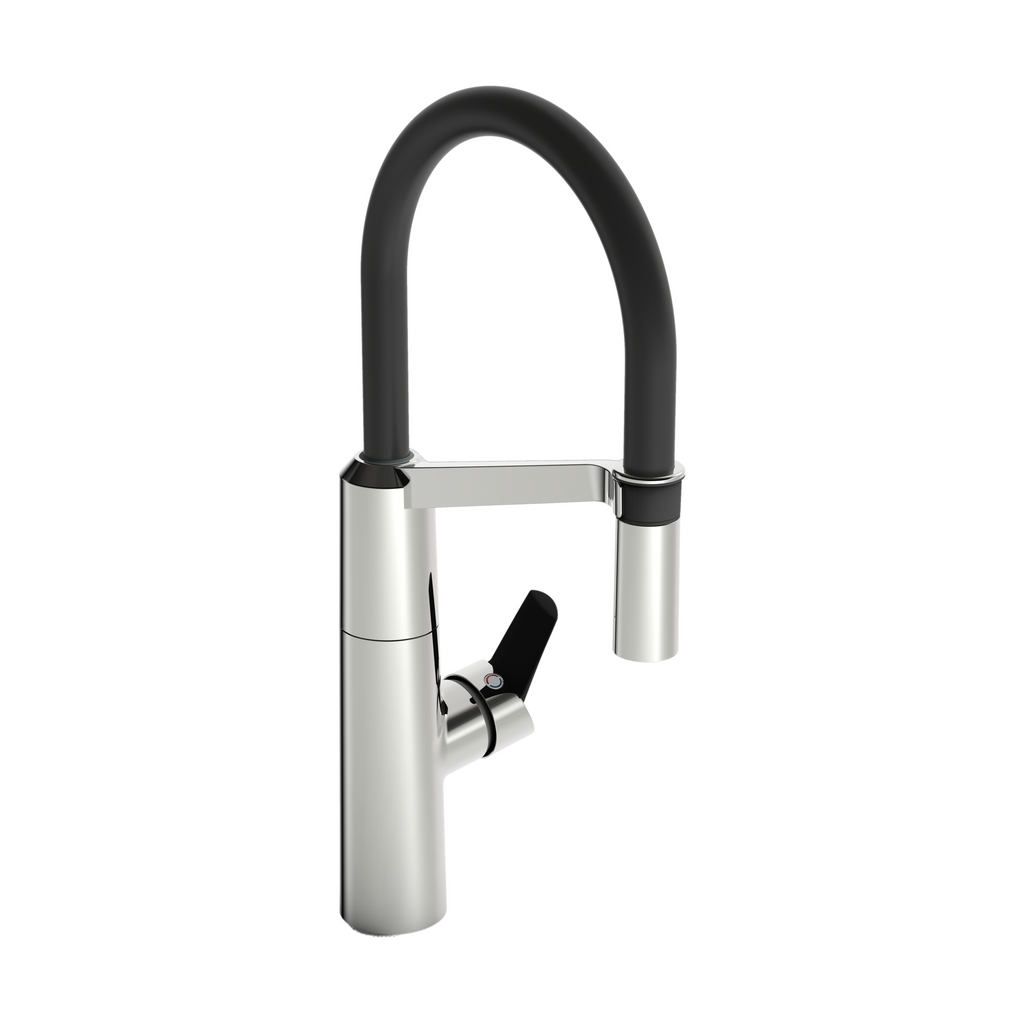

Oras Optima SemiPro - Kitchen faucet

Features

• Connection
Flexible inlet pipes
• Lever/Handle
Easy-Grip surface, Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control, Litter filter(s)
• Mounting holes
1 hole
• Number of spray functions
2 spray functions
• Shower spray
Normal - Even and soft water stream, Intense - invigorating water stream
• Advanced features
Inner body made of DZR brass, Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating
• Spout
Swivel spout, Flexible model, Swivel range limiting option
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (80° / 60°)

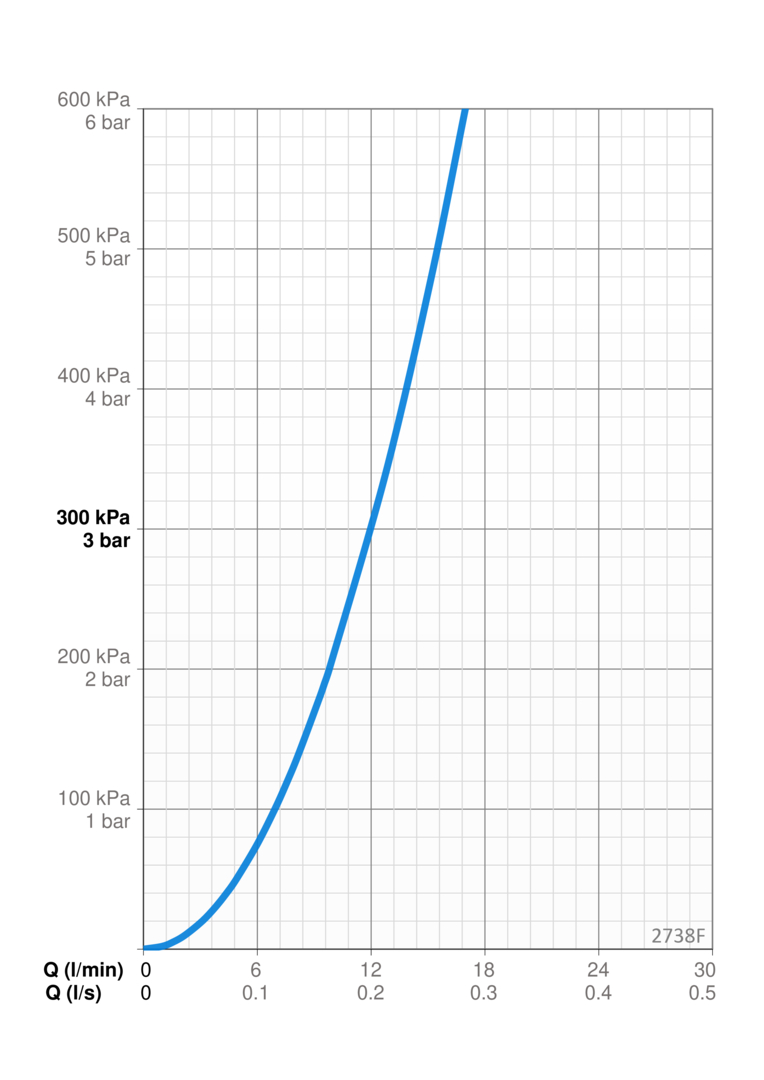

Flow attributes

• Flow-rate at 300 kPa
0.2 l/s
• Pressure loss with flow (0.2 l/s)
300 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• DN-size (nominal dimension)
DN15
• Hot water supply
max. +70°C
• Material
Brass/Composite
• Projection
200 mm
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822) Oras lab.

Approvals and Declarations

• STF
EUFI29-20002662-TH2
• KIWA SE
1607
