Oras Optima - Shower faucet

Oras Optima - Shower faucet

€231,68
Sale price  €231,68 Regular price

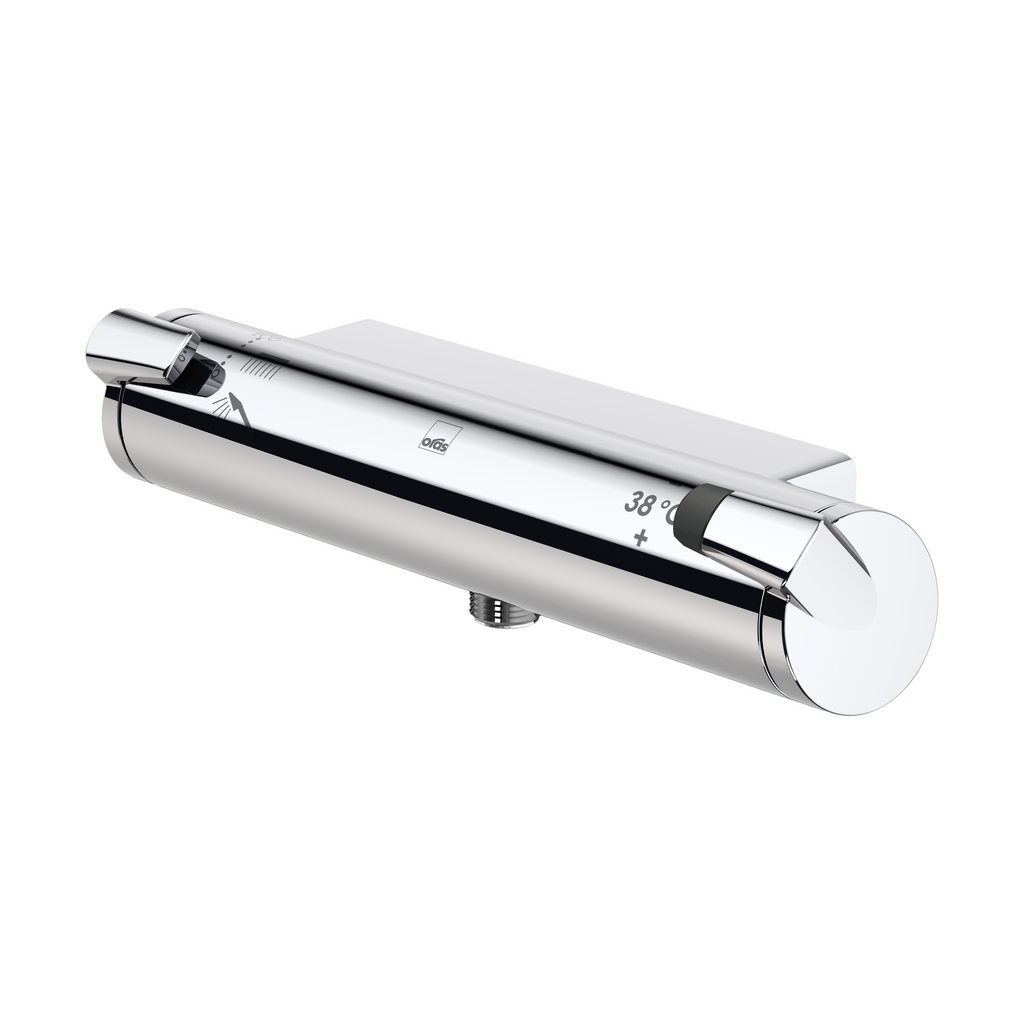

Thermostatic shower faucet with easy-grip handles. Easy-to-use temperature limiter in the handle. EcoFlow control. The faucet is equipped with litter filters and non-return valves.

Technical Data

Features

• Connection
Direct connection, Internal thread
• Lever/Handle
Temperature control handle, Flow control handle, Easy-Grip surface, Safety feature for water temperature
• Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
• Shower parts
Eco flow control
• Color
Chrome
• Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

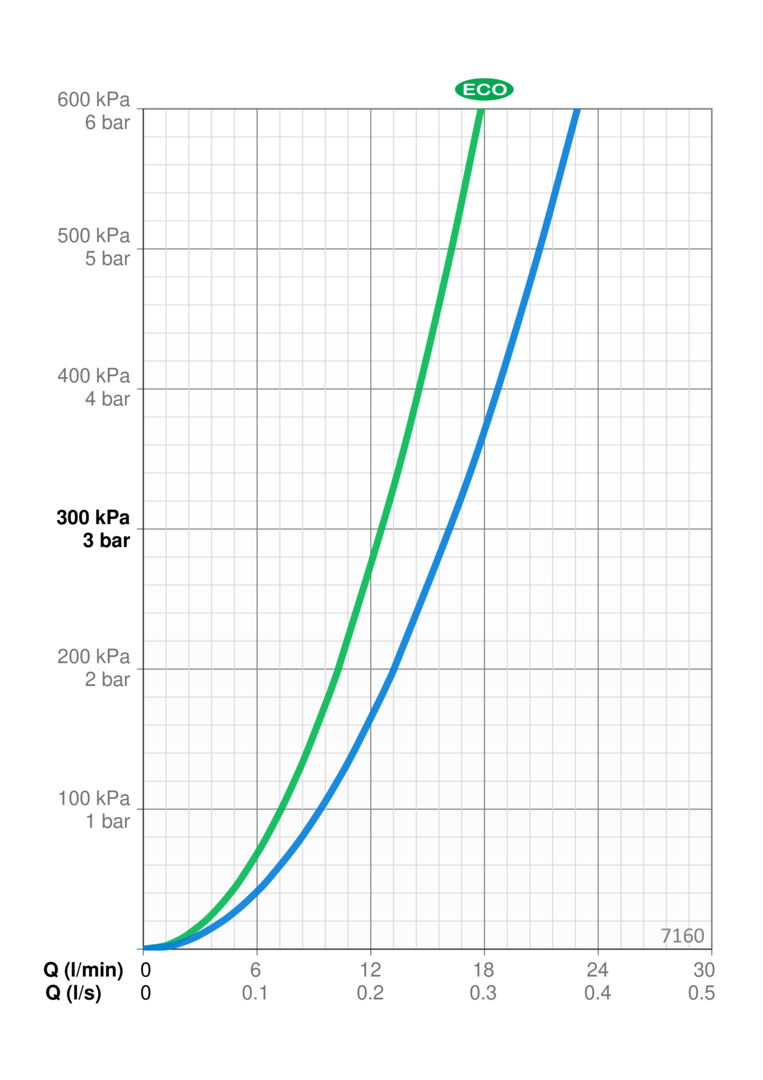

Flow attributes

• Eco-flow at 300 kPa
0.21 l/s
• Flow-rate at 300 kPa
0.27 l/s
• Pressure loss with flow (0.2 l/s)
160 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

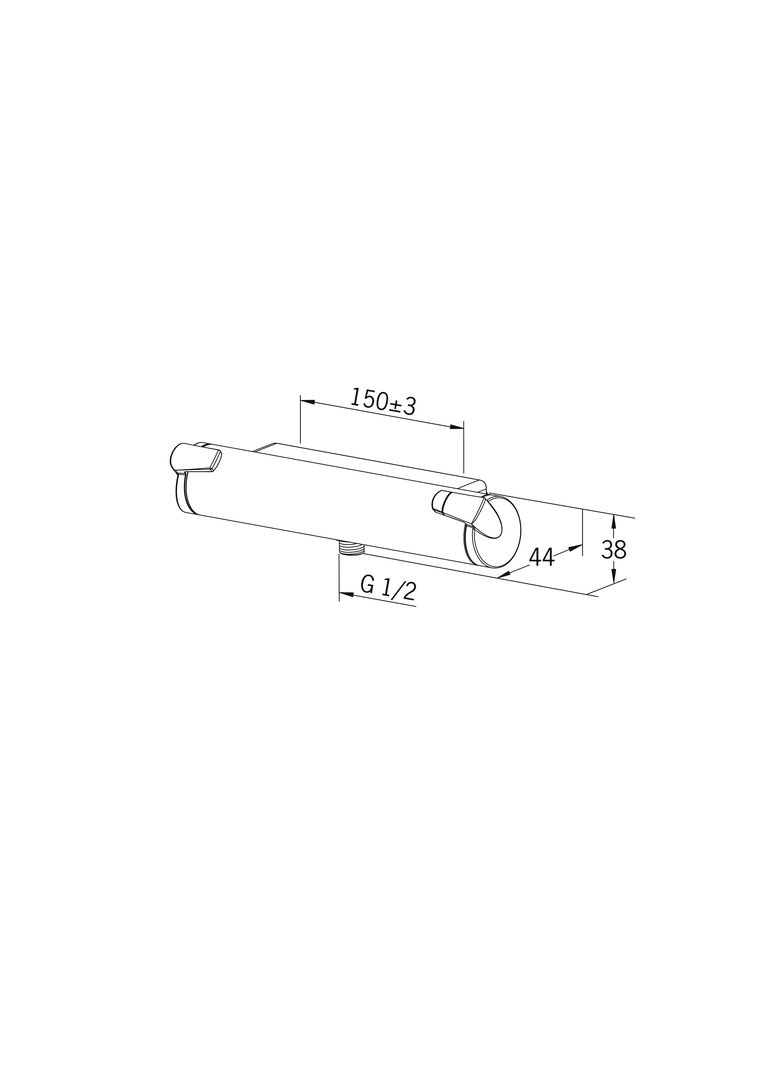

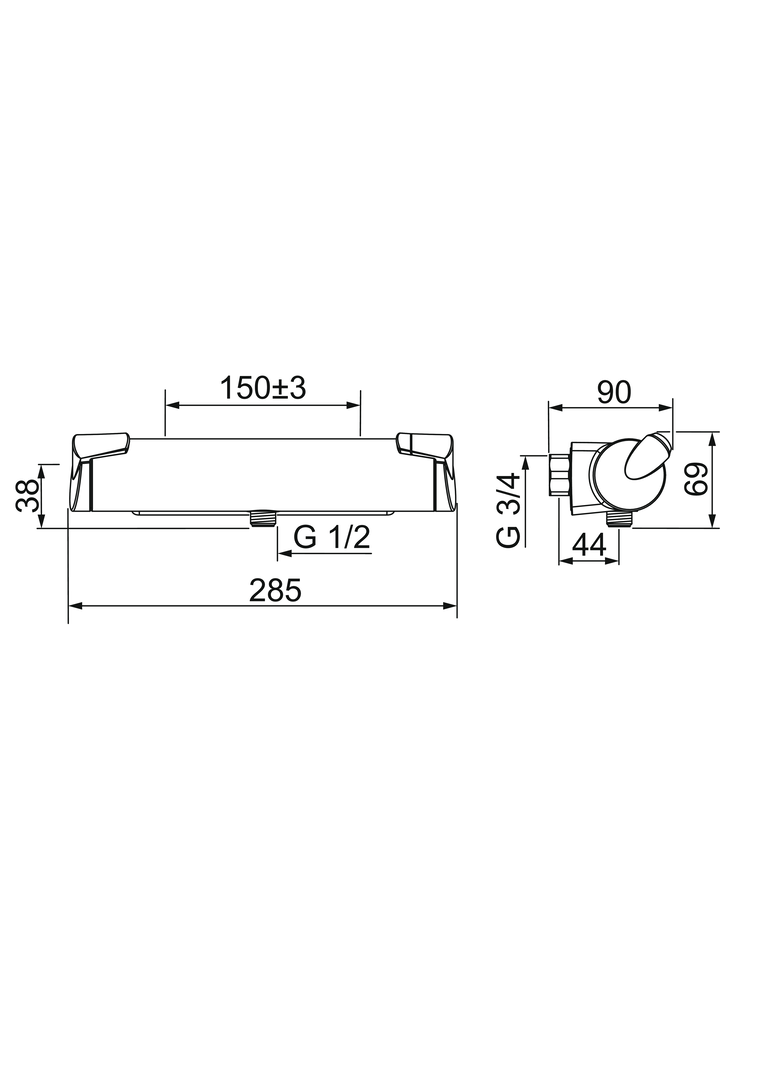

• Installation width
150 ± 3 mm
• Material
Brass/Composite
• Working pressure
100 - 1000 kPa

Regulations

• EN standard
EN 1111
• Noise class
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 3085
• STF
EUFI29-20002662-TH4

Sustainability

• EPD module A1 (kg CO2 eq.)
10,97
• EPD module A1-A3 (kg CO2 eq.)
12,80
• EPD module A2 (kg CO2 eq.)
0,57
• EPD module A3 (kg CO2 eq.)
1,24
• EPD module A4 (kg CO2 eq.)
0,50
• EPD module B7 (kg CO2 eq.)
2167,20
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
1,88
• EPD module D (kg CO2 eq.)
-8,11

Spare Parts
Oras Optima - Shower faucet

01 Flow control handle / 601268V

02 Headpart / 109898

03 Litter filters, G1/2, DN15 / 198094/2

04 Filter sealing, G3/4, DN20 / 178375V

05 Temperature control handle / 601273V

06 Thermostatic cartridge / 178780V

07 Nipple for spout, G1/2 (Chrome) / 178787

08 Nipple, G3/4 / 178785V
