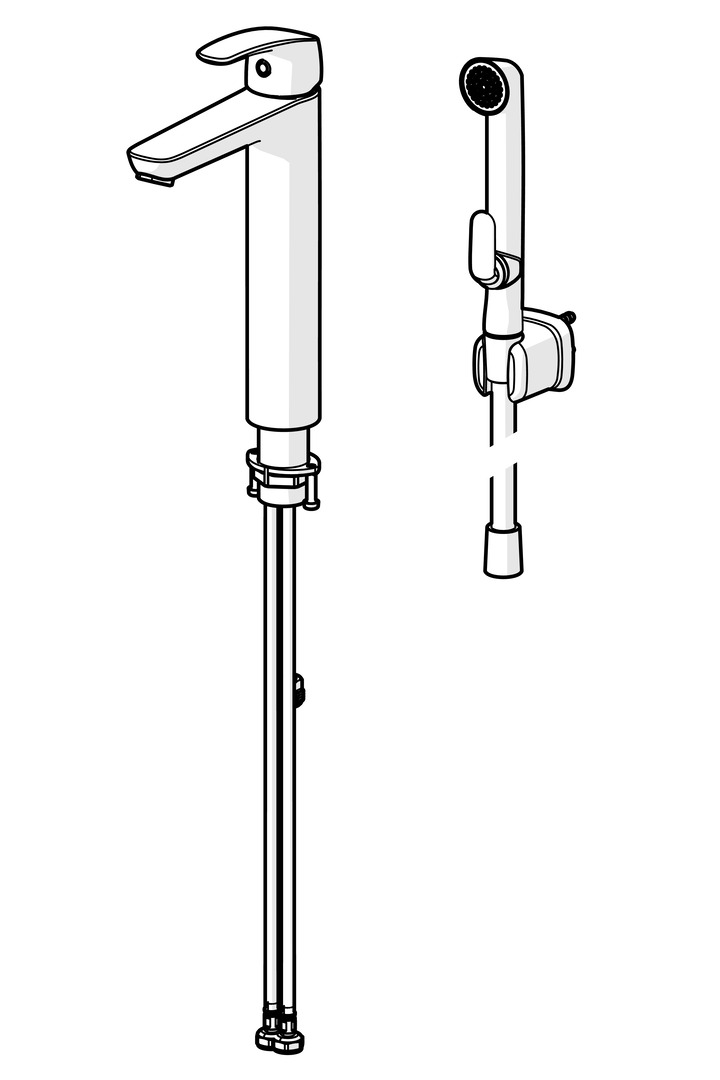

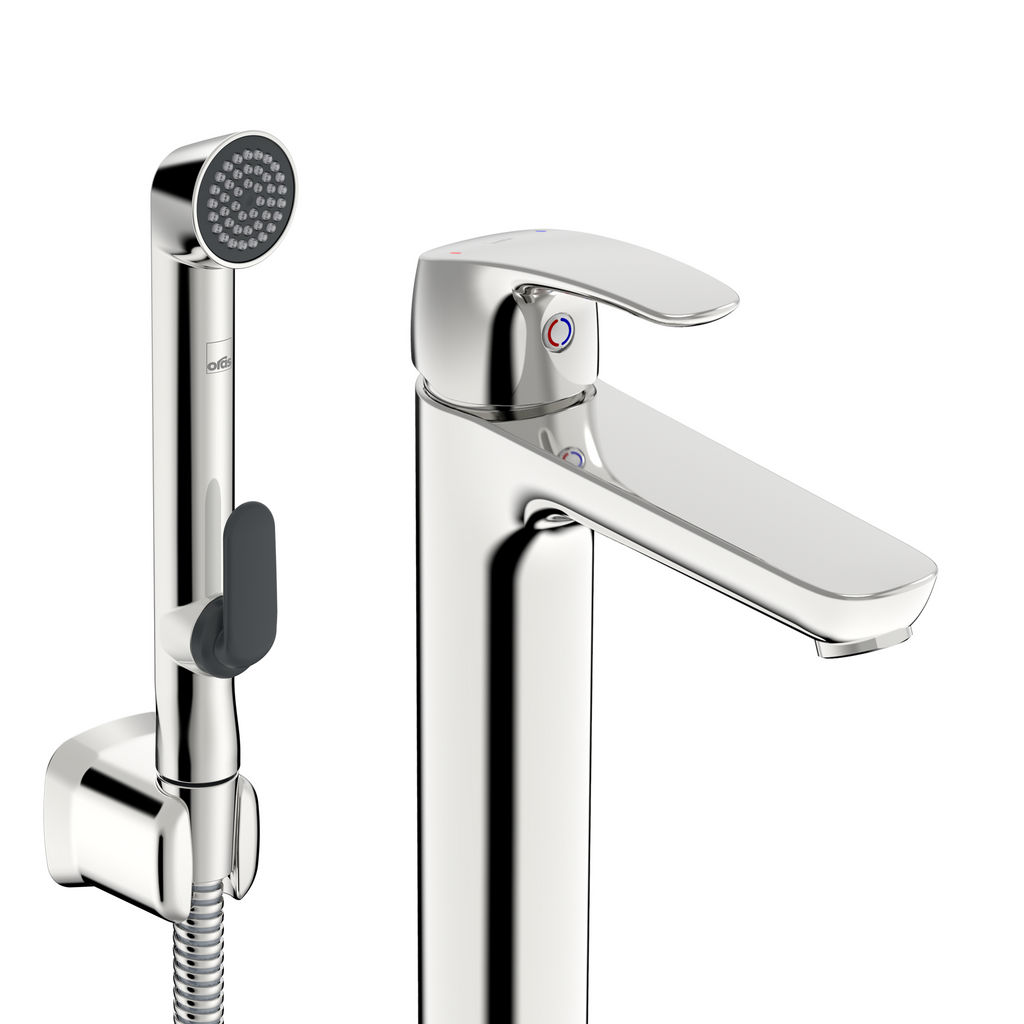

Oras Safira - High washbasin faucet (1002F)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Hand shower
Bidetta hand shower
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm)
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

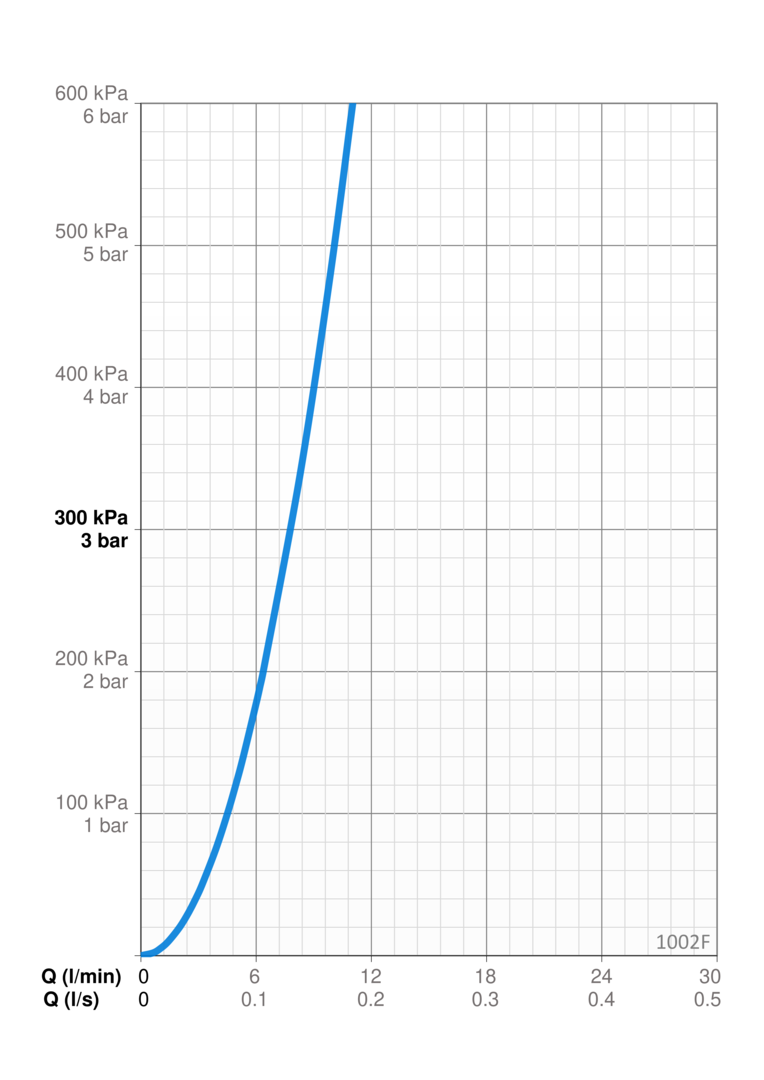

Flow attributes

• Flow-rate at 300 kPa
0.13 l/s
• Pressure loss with flow (0.1 l/s)
180 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/4
• Hot water supply
max. +70°C
• Material
Brass
• Projection
150 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005194-TH
• KIWA SE
1490

Sustainability

• EPD module A1 (kg CO2 eq.)
10,91
• EPD module A1-A3 (kg CO2 eq.)
12,47
• EPD module A2 (kg CO2 eq.)
0,52
• EPD module A3 (kg CO2 eq.)
1,03
• EPD module A4 (kg CO2 eq.)
0,35
• EPD module B7 (kg CO2 eq.)
2410,20
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,10
• EPD module D (kg CO2 eq.)
-8,87
