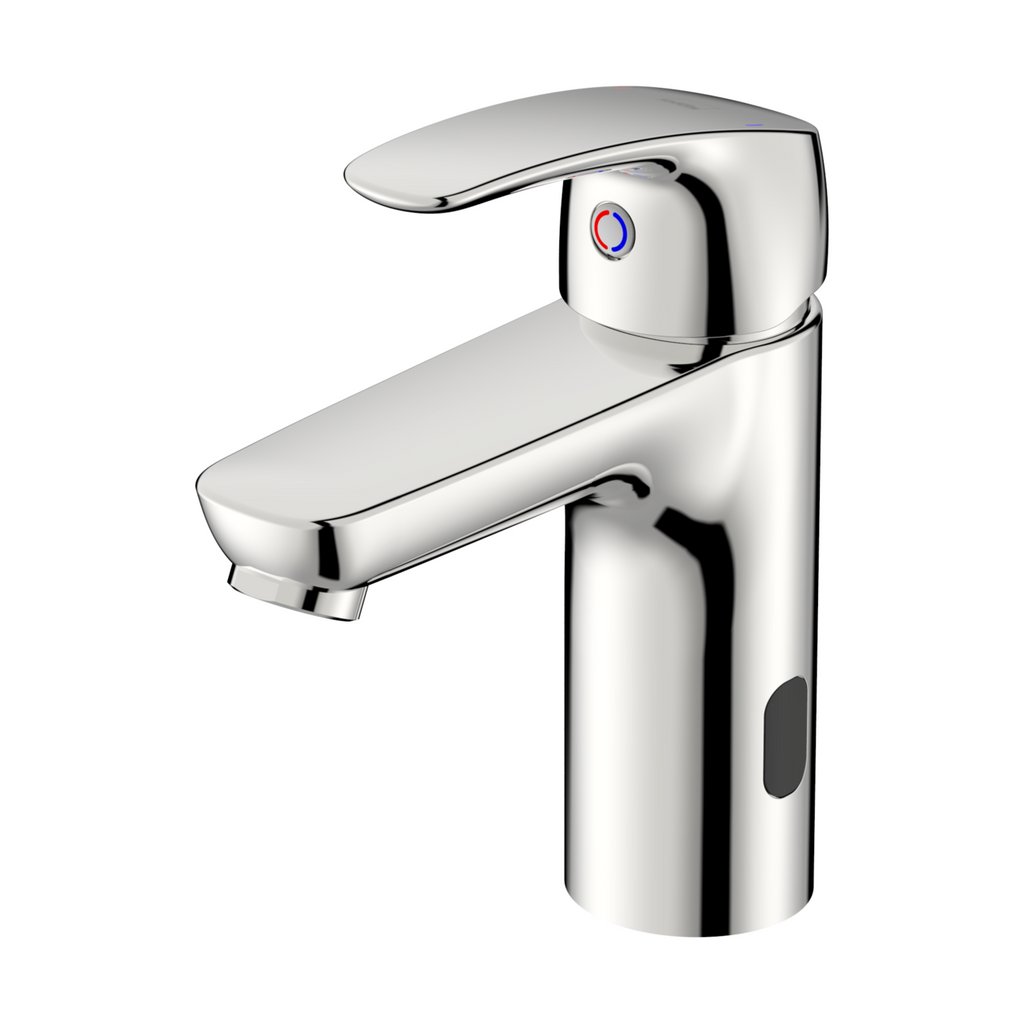

Oras Safira Hybrid - Washbasin faucet, 3 V, Bluetooth 1011FZ

Oras Safira Hybrid - Washbasin faucet, 3 V, Bluetooth (1011FZ)

€499,86
Sale price  €499,86 Regular price
Skip to product information
Oras Safira Hybrid - Washbasin faucet, 3 V, Bluetooth 1011FZ

Oras Safira Hybrid - Washbasin faucet, 3 V, Bluetooth (1011FZ)

€499,86
Sale price  €499,86 Regular price
Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Electronic parts
Advanced PSD sensor, Solenoid valve, Low battery indicator
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Advanced features
Inner body made of DZR brass, 3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

Software settings

• Automatic flush
off (off/1-120 h)
• Automatic flush period
30 s (1-1800 s)
• Max. flow period
10 s (1 - 1800 s)

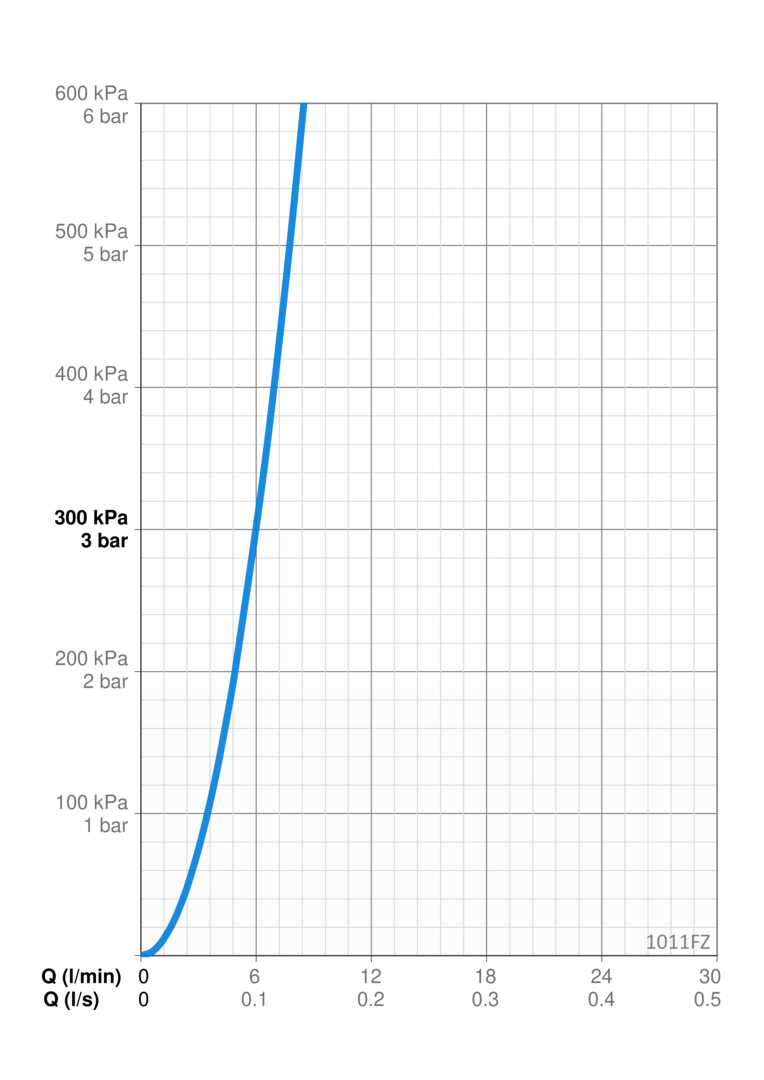

Flow attributes

• Flow-rate at 300 kPa
0.1 l/s
• Pressure loss with flow (0.1 l/s)
285 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/8
• DN-size (nominal dimension)
DN6
• Hot water supply
max. +70°C
• Material
Brass
• Projection
115 mm
• Working pressure
50 - 1000 kPa

Electronics

• Battery
AA 1.5 V Lithium x 2
• Bluetooth version
5.x (D060576)
• Electrical Connection
9 V

Regulations

• EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
• EN standard
EN 817, EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class
I (ISO 3822)
• Protection class
IP 55

Approvals and Declarations

• STF
EUFI29-23004174-TH
• KIWA SE
1887

Sustainability

• EPD module A1 (kg CO2 eq.)
11,29
• EPD module A1-A3 (kg CO2 eq.)
12,30
• EPD module A2 (kg CO2 eq.)
0,55
• EPD module A3 (kg CO2 eq.)
0,45
• EPD module A4 (kg CO2 eq.)
0,34
• EPD module B7 (kg CO2 eq.)
930,00
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,44
• EPD module D (kg CO2 eq.)
-8,30

Spare Parts
Oras Safira Hybrid - Washbasin faucet, 3 V, Bluetooth (1011FZ)

01 Lever (Chrome) / 602502V

02 Covering cap (Chrome) / 1000664V

03 Tightening nut, M42x1.5, SW 38 / 158726

04 Cartridge / 158890

05 Aerator, M24x1, 6 l/min (Chrome) / 199266V

06 Window / 1014281V

07 Sensor, 3/9 V, Bluetooth / 1014212V

08 Bottom seal / 1002371V

09 Fixing set / 602610V

10 Pilot valve, 3 V / 601884V-F

11 Thermostatic cartridge / 178780V

12 Temperature control handle (Chrome) / 602062V

13 Battery, (2x) 1.5 V AA Lithium / 600599V
