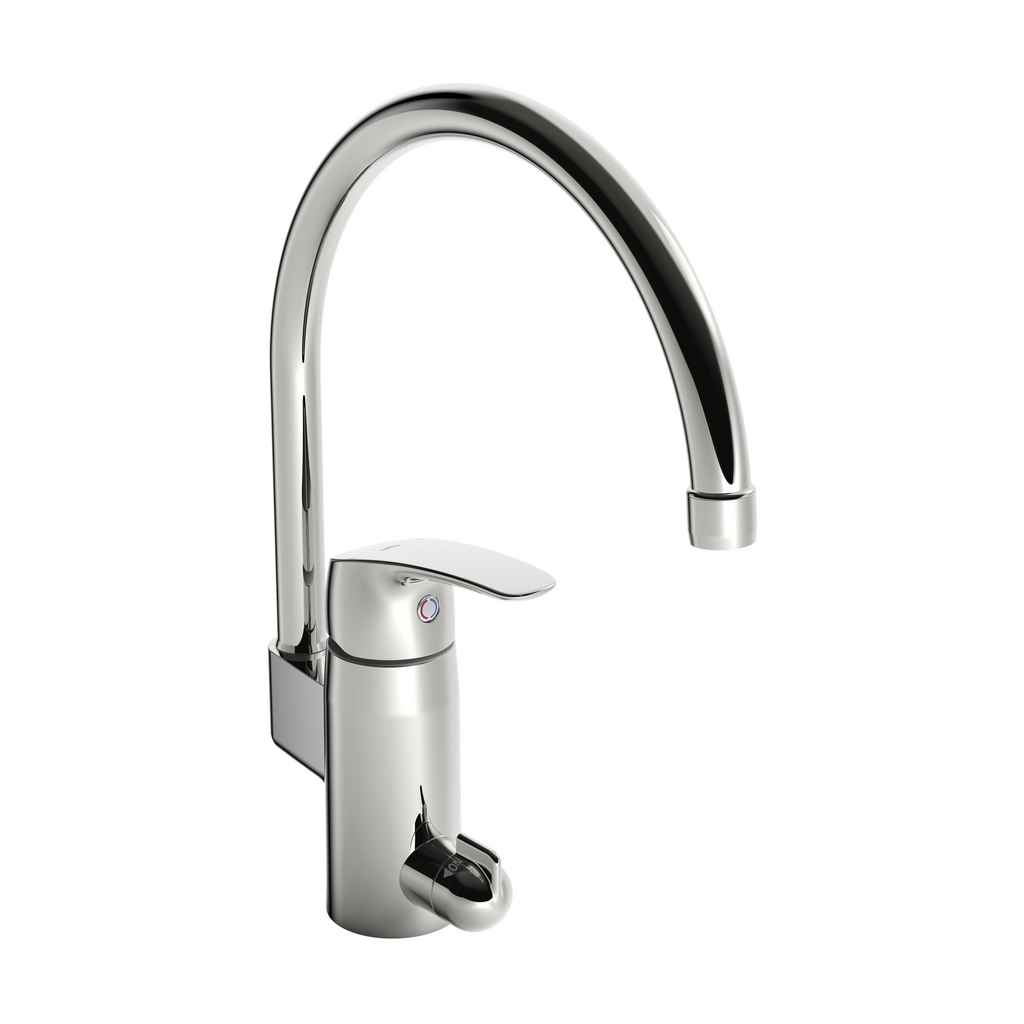

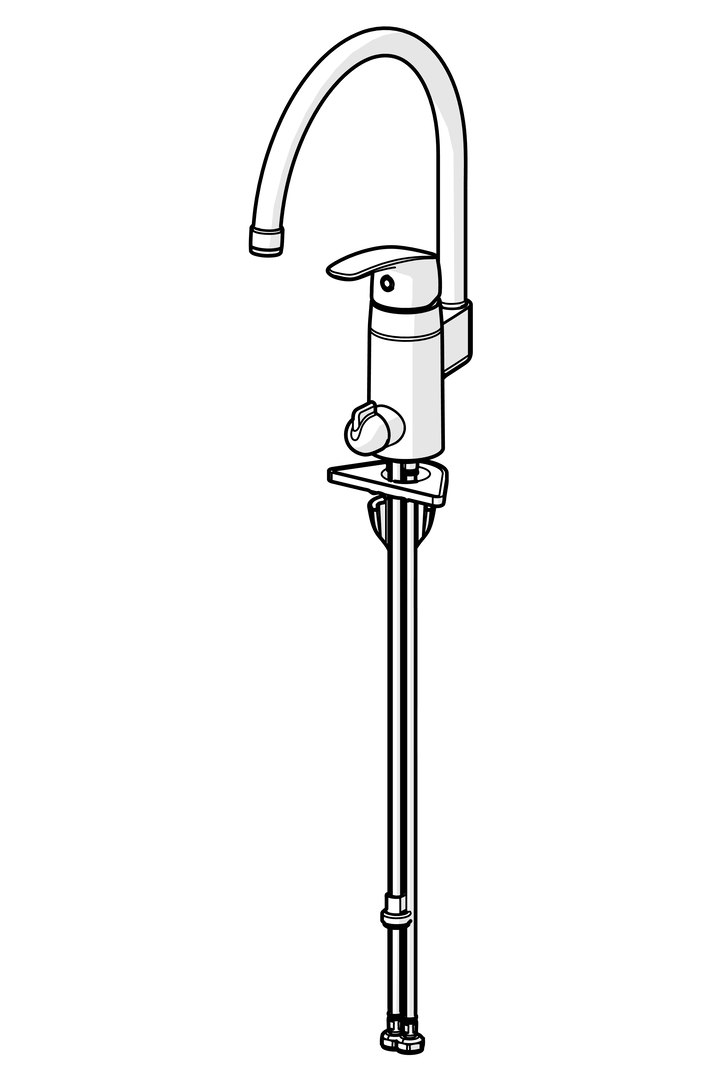

Oras Safira - Kitchen faucet with dishwasher valve (1039F-104)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Dishwasher valve
Mechanic stop valve for external equipment
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Swivel spout, Swivel range limiting option
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (60° / 0°)

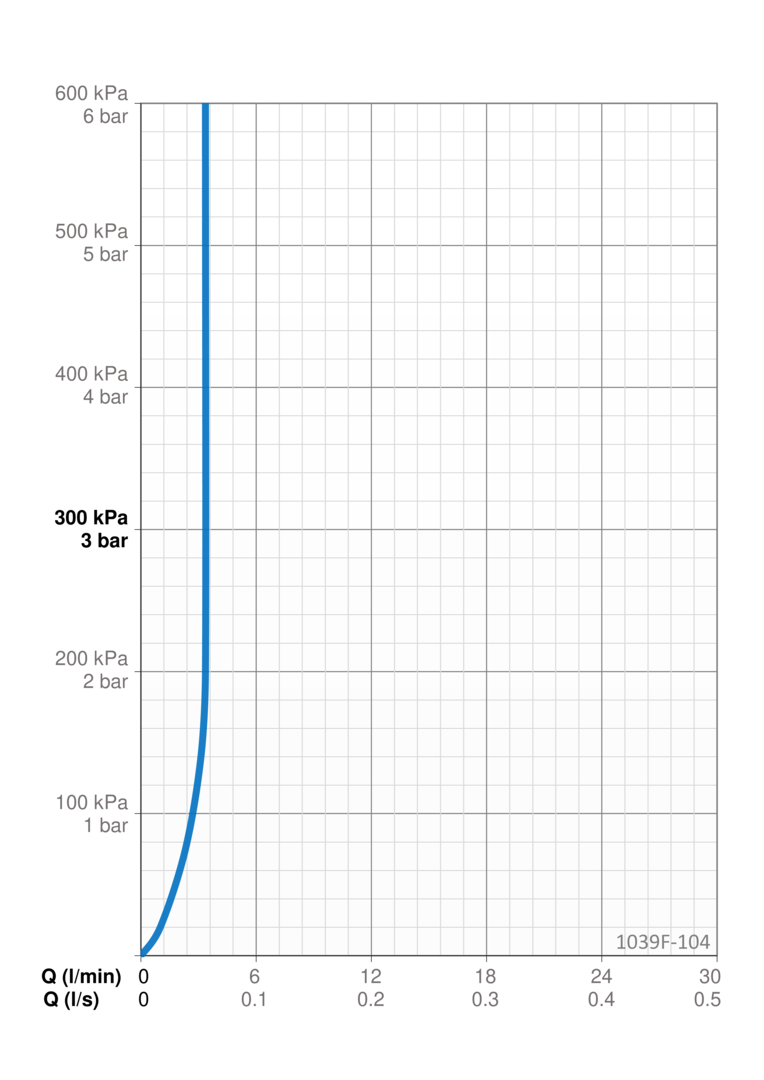

Flow attributes

• Flow-rate at 300 kPa (with flow controller)
0.056 l/s

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• DN-size (nominal dimension)
DN8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
178 mm
• Working pressure
50-1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005194-TH
• KIWA SE
1491

Sustainability

• EPD module A1 (kg CO2 eq.)
8,65
• EPD module A1-A3 (kg CO2 eq.)
12,86
• EPD module A2 (kg CO2 eq.)
0,41
• EPD module A3 (kg CO2 eq.)
3,80
• EPD module A4 (kg CO2 eq.)
0,26
• EPD module B7 (kg CO2 eq.)
1323,84
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,39
• EPD module D (kg CO2 eq.)
-7,27
