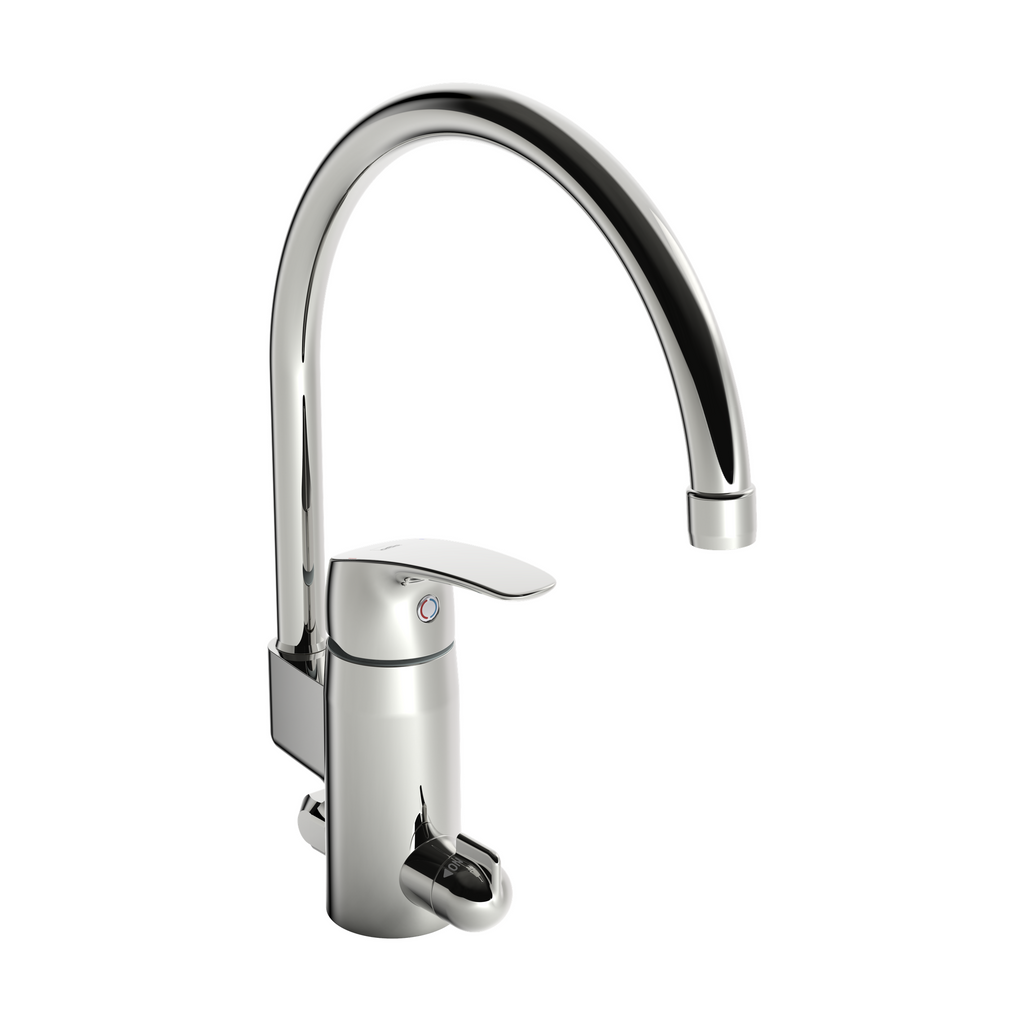

Oras Safira - Kitchen faucet with dishwasher valve 1057F

Oras Safira - Kitchen faucet with dishwasher valve (1057F)

€358,67
Sale price  €358,67 Regular price
Skip to product information
Oras Safira - Kitchen faucet with dishwasher valve 1057F

Oras Safira - Kitchen faucet with dishwasher valve (1057F)

€358,67
Sale price  €358,67 Regular price

Kitchen faucet with high spout and dishwasher valve with ceramic cartridge 90 ° rotation for ON/OFF. Extra outlet G1/2. Dishwasher connection floor or table dishwasher. Spout’s swing angle is factory preset at 120 ° (can be limited to 0 °or 60 °). F = with flexible pipes

Technical Data

Features

• Connection
Flexible inlet pipes
• Dishwasher valve
Mechanic stop valve for external equipment
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Swivel spout, Swivel range limiting option
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (60° / 0°)

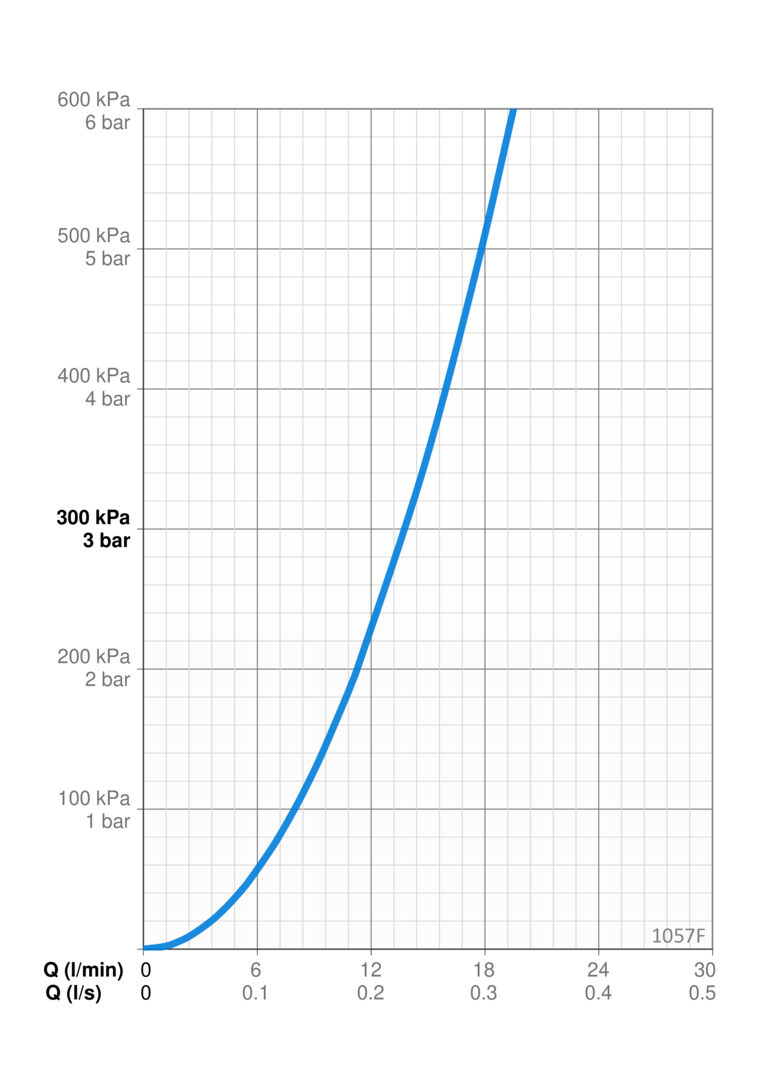

Flow attributes

• Flow-rate at 300 kPa
0.23 l/s
• Pressure loss with flow (0.2 l/s)
240 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

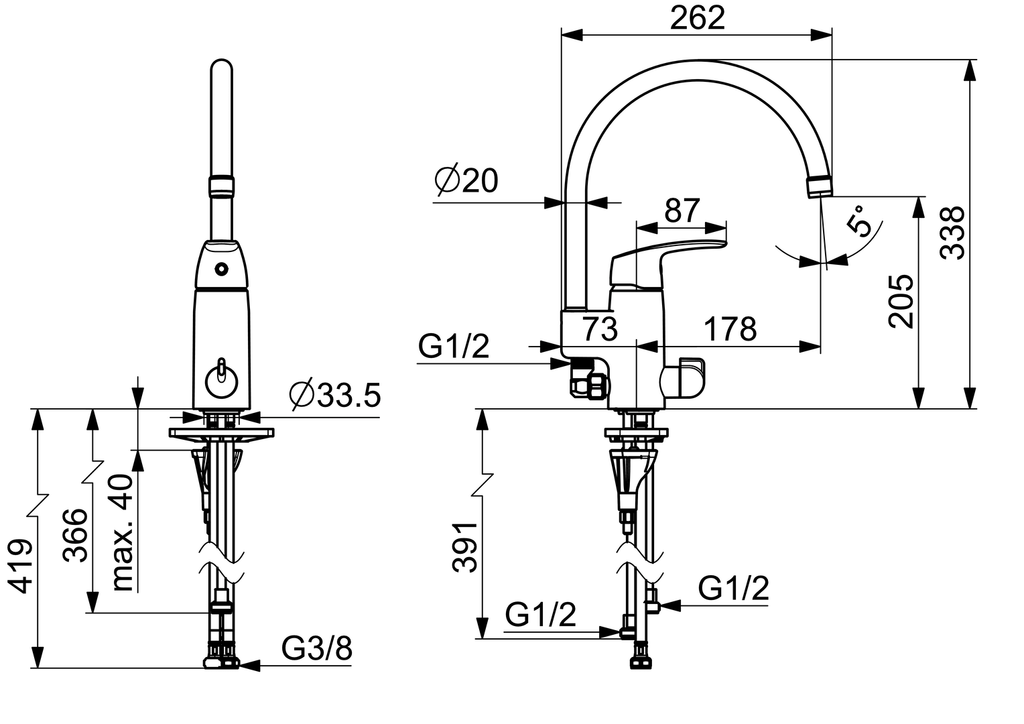

• Projection
178 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005194-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
10,45
• EPD module A1-A3 (kg CO2 eq.)
15,53
• EPD module A2 (kg CO2 eq.)
0,50
• EPD module A3 (kg CO2 eq.)
4,59
• EPD module A4 (kg CO2 eq.)
0,31
• EPD module B7 (kg CO2 eq.)
5437,20
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,47
• EPD module D (kg CO2 eq.)
-8,78

Spare Parts
Oras Safira - Kitchen faucet with dishwasher valve (1057F)

01 Aerator, M22x1 HC B (Chrome) / 232201

02 Spout (Chrome) / 159695V

03 Spout overturning stopper, 60°/0° / 159667V

04 Spout overturning stopper, 60°/0° / 159667/10

05 Spout overturning stopper, 120° / 159670/10

06 Sealing kit / 159499

07 Lever (Chrome) / 602502V

08 Covering cap (Chrome) / 602589V

09 Tightening nut, M42x1.5, SW 38 / 158726

10 Cartridge / 158890

11 Headpart, G1/2 / 602600V

12 Handle for washing machine valve (Chrome) / 1005697V

13 Bottom seal / 1002371V

14 Supporting plate, 100x60mm / 158825

15 Fixing screw, M8x1, L=130 / 1000780V

16 Fixing set / 602610V
