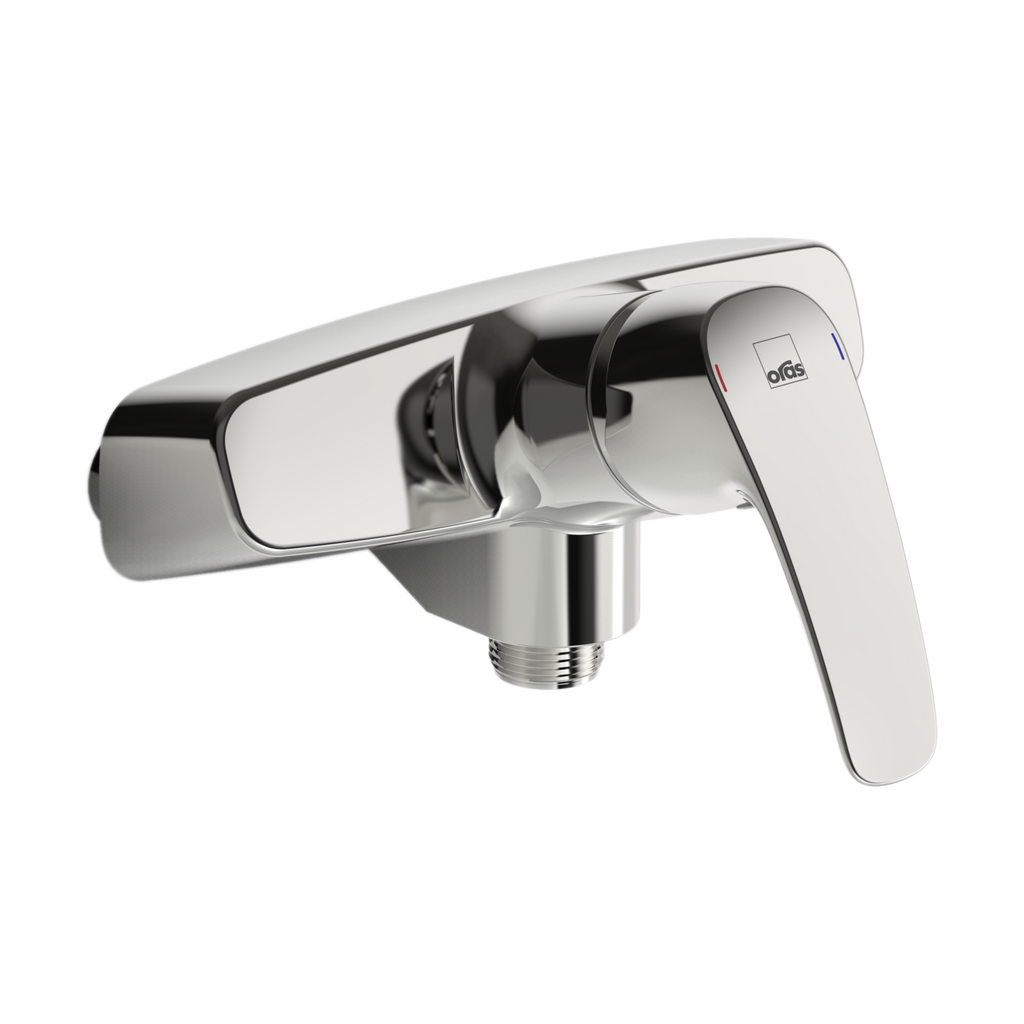

Oras Safira - Shower faucet

Features

• Connection
Silencer(s)
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

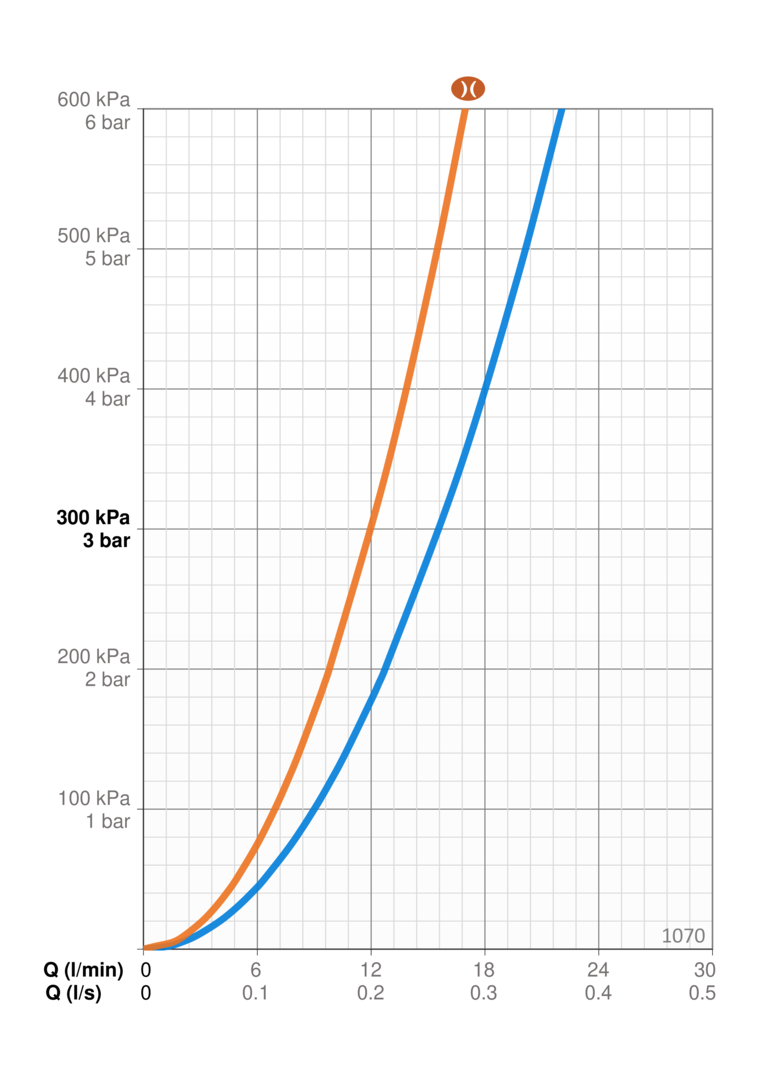

Flow attributes

• Flow-rate at 300 kPa
0.26 l/s
• Flow-rate at 300 kPa (with flow reducers)
0.2 l/s
• Pressure loss 0.2 l/s (with flow reducers)
300 kPa
• Pressure loss with flow (0.2 l/s)
180 kPa

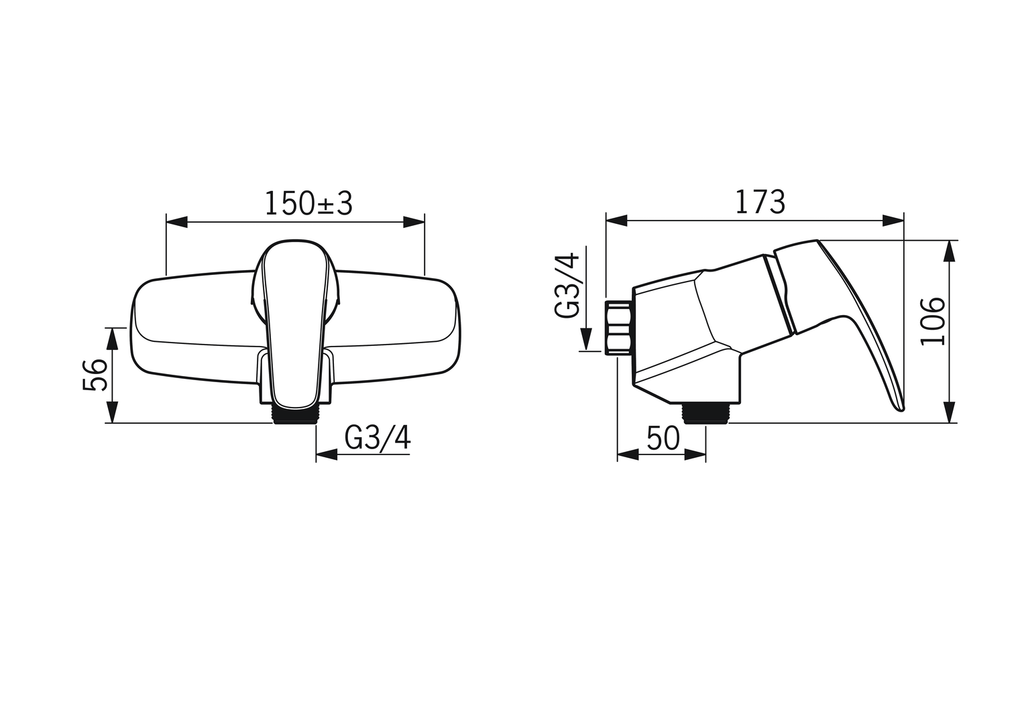

Technical properties

• Connection size
G3/4
• Hot water supply
max. +80°C
• Installation width
150 ± 3 mm
• Material
Brass
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class 0.2 l/s
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 0126
• STF
EUFI29-22005196-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
5,69
• EPD module A1-A3 (kg CO2 eq.)
6,63
• EPD module A2 (kg CO2 eq.)
0,30
• EPD module A3 (kg CO2 eq.)
0,64
• EPD module A4 (kg CO2 eq.)
0,26
• EPD module B7 (kg CO2 eq.)
2064,00
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,01
• EPD module C4 (kg CO2 eq.)
0,97
• EPD module D (kg CO2 eq.)
-4,20
