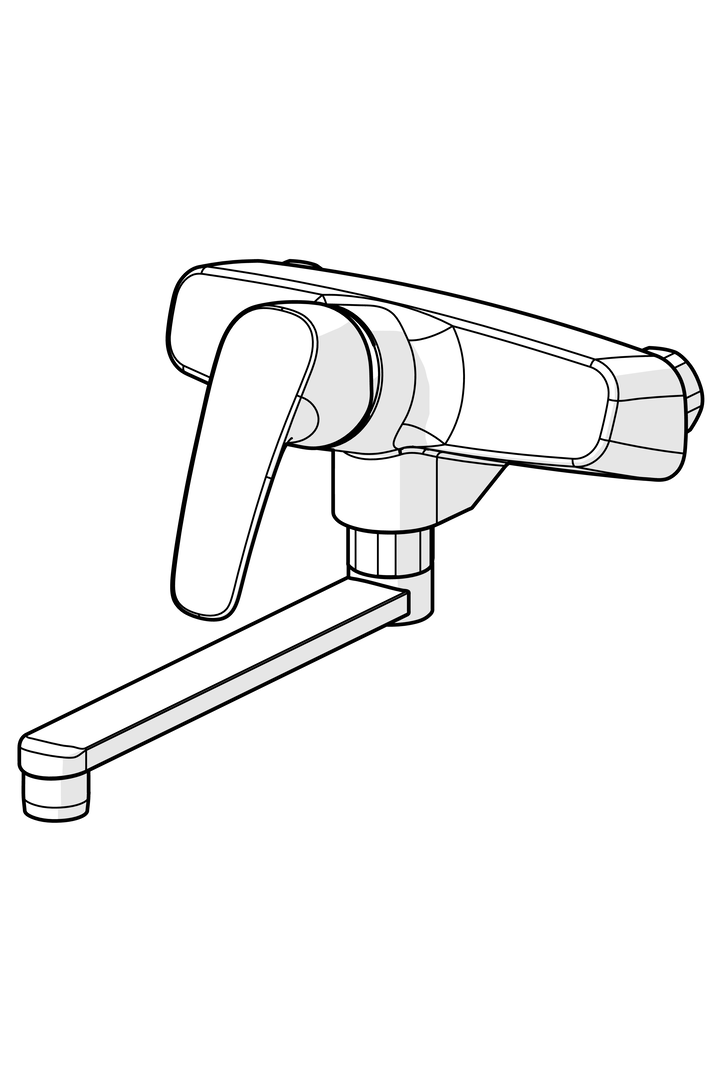

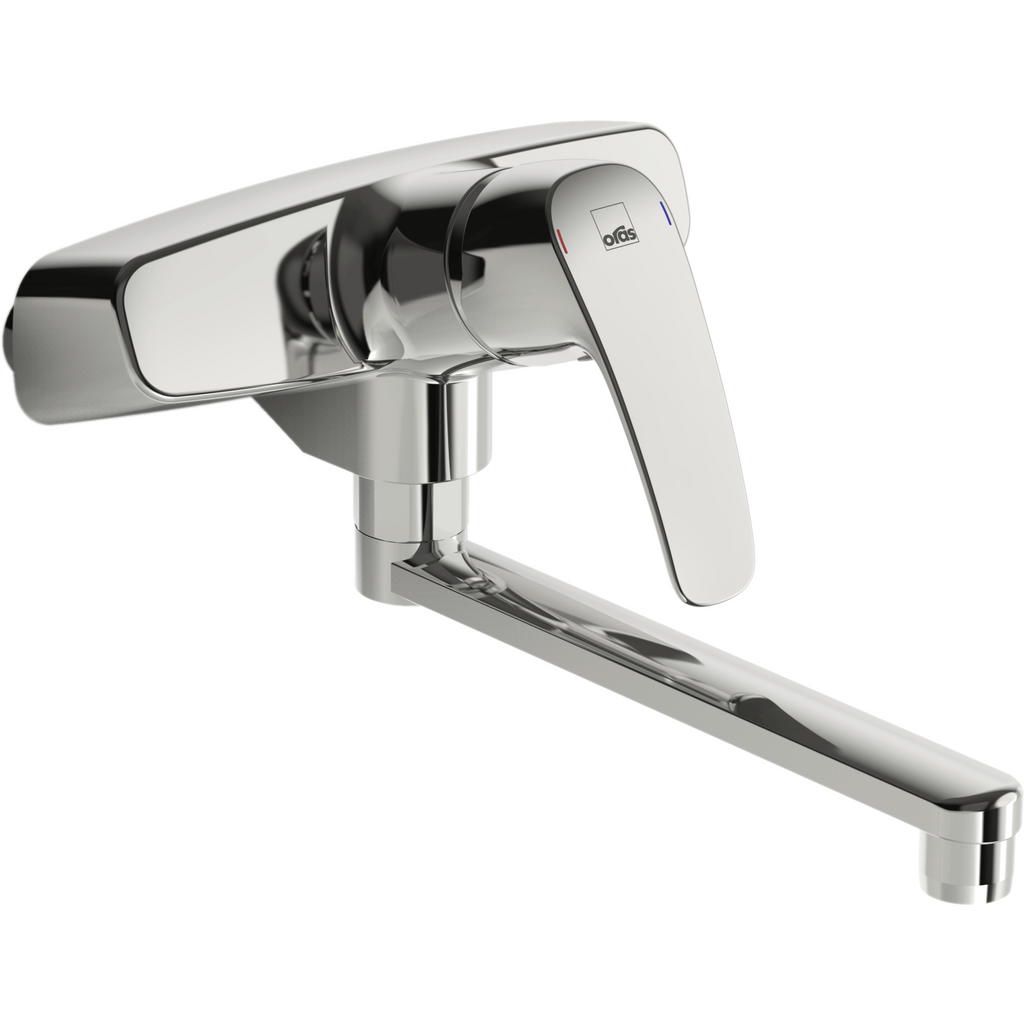

Oras Safira - Utility room faucet (1036-104)

Features

• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Spout
Swivel spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

Flow attributes

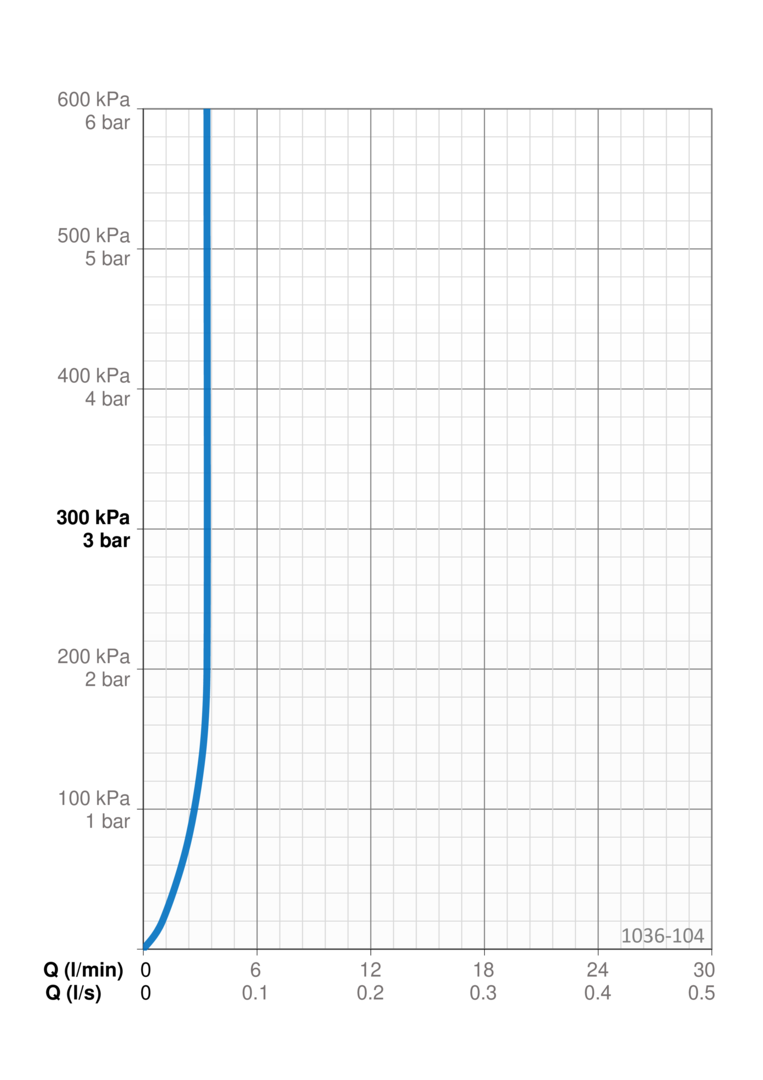

• Flow-rate at 300 kPa (with flow controller)
0.056 l/s

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/4
• Hot water supply
max. +80°C

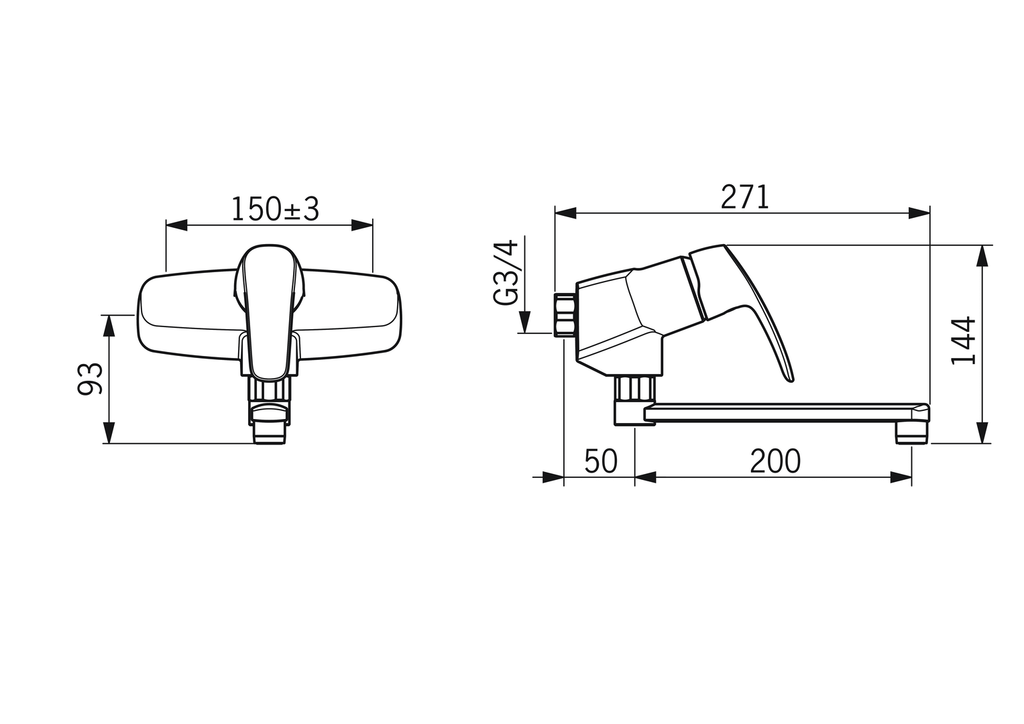

• Installation width
150 ± 3 mm
• Material
Brass
• Projection
200 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822) Oras lab.

Approvals and Declarations

• STF
EUFI29-22005196-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
7,14
• EPD module A1-A3 (kg CO2 eq.)
10,62
• EPD module A2 (kg CO2 eq.)
0,34
• EPD module A3 (kg CO2 eq.)
3,14
• EPD module A4 (kg CO2 eq.)
0,21
• EPD module B7 (kg CO2 eq.)
1323,84
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,32
• EPD module D (kg CO2 eq.)
-6,00
