Oras Safira - Utility room faucet (1077)

Features

• Connection
Silencer(s)
• Hand shower
Side brush
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Spout
Swivel spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

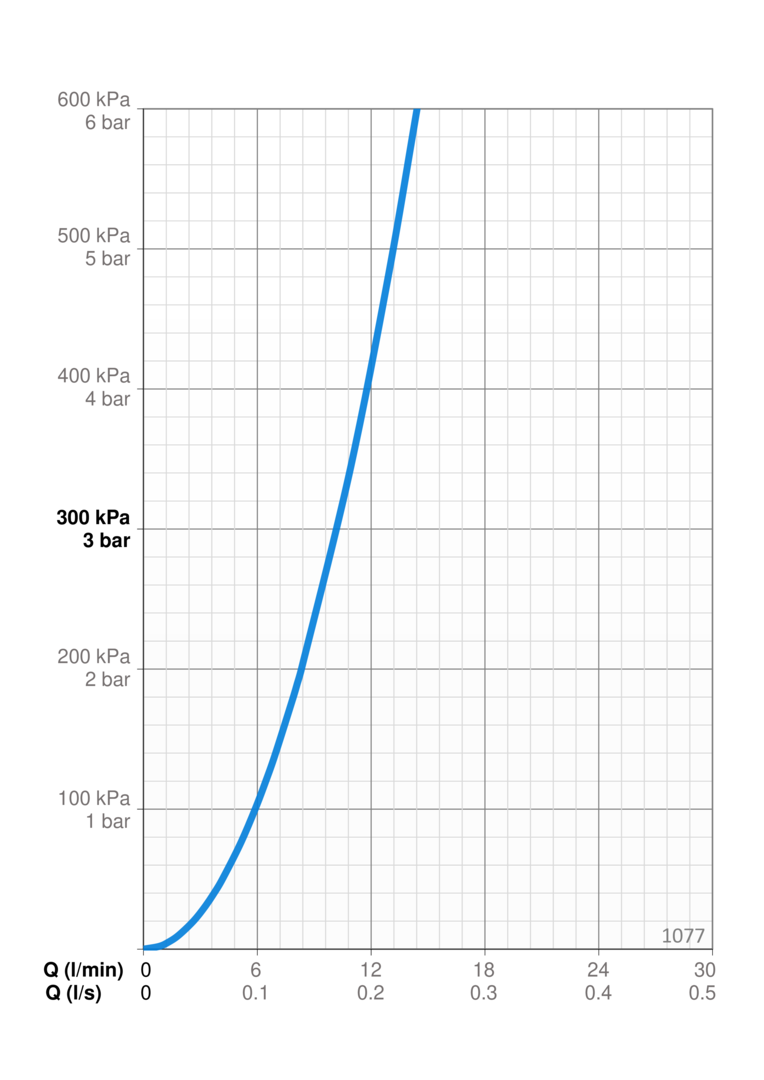

Flow attributes

• Flow-rate at 300 kPa
0.17 l/s
• Pressure loss with flow (0.1 l/s)
100 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/4
• Hot water supply
max. +80°C
• Installation width
150 ± 3 mm
• Material
Brass
• Projection
250 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005196-TH
