Oras Safira - Utility room faucet with dishwasher valve

Oras Safira - Utility room faucet with dishwasher valve

€298,50
Sale price  €298,50 Regular price
Skip to product information
Oras Safira - Utility room faucet with dishwasher valve

Oras Safira - Utility room faucet with dishwasher valve

€298,50
Sale price  €298,50 Regular price
Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
2 hole
• Spout
Swivel spout, Swivel range limiting option, Profile construction
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (40° - 80°)

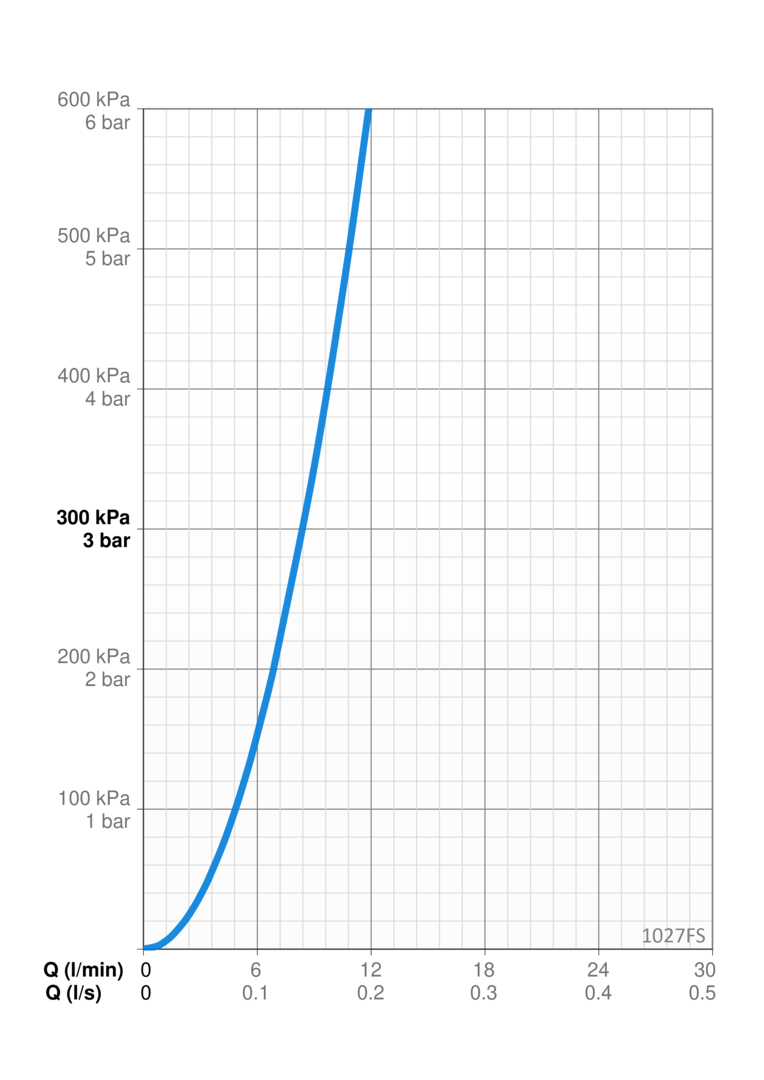

Flow attributes

• Flow-rate at 300 kPa
0.14 l/s
• Pressure loss with flow (0.1 l/s)
160 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
214 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005194-TH

Spare Parts
Oras Safira - Utility room faucet with dishwasher valve

01 Lever (Chrome) / 602502V

02 Covering cap (Chrome) / 602589V

03 Tightening nut, M42x1.5, SW 38 / 158726

04 Cartridge, Green building / 600979V

05 Cartridge / 158890

06 Spout, L=210 (Chrome) / 1005585V

07 Spout overturning stopper, 120° / 1001406/10

08 Spout overturning stopper, 40°-80° / 1002207/10

09 Fixing screw, M8x1, L=130 / 1000780V

10 Fixing set / 602610V

11 Aerator, M24x1, -105 / 601166V

12 Aerator, M24x1, -104 / 601434V

13 Aerator, M24x1 STD HC B (Chrome) / 232210

14 Bearing ring / 601097/10

15 X-sealing set / 158735

16 Bearing ring / 159423/10

17 Headpart, G1/2 / 602600V

18 Handle for washing machine valve (Chrome) / 1005697V

19 Bottom seal / 1002371V

20 Supporting plate, 100x60mm / 158825
