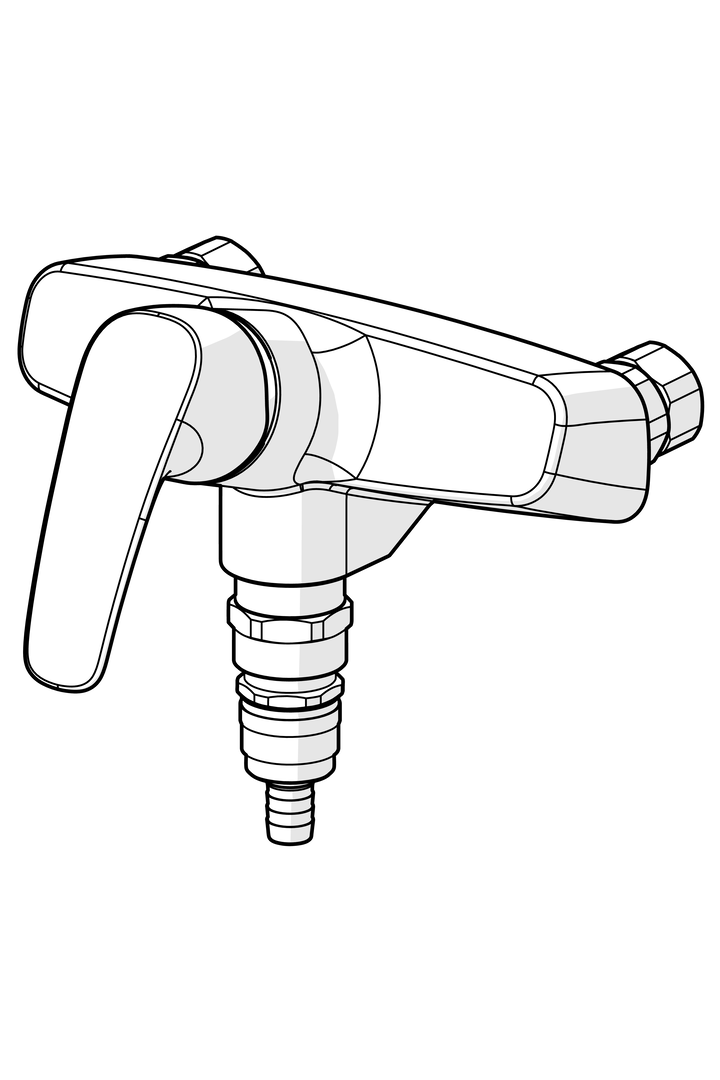

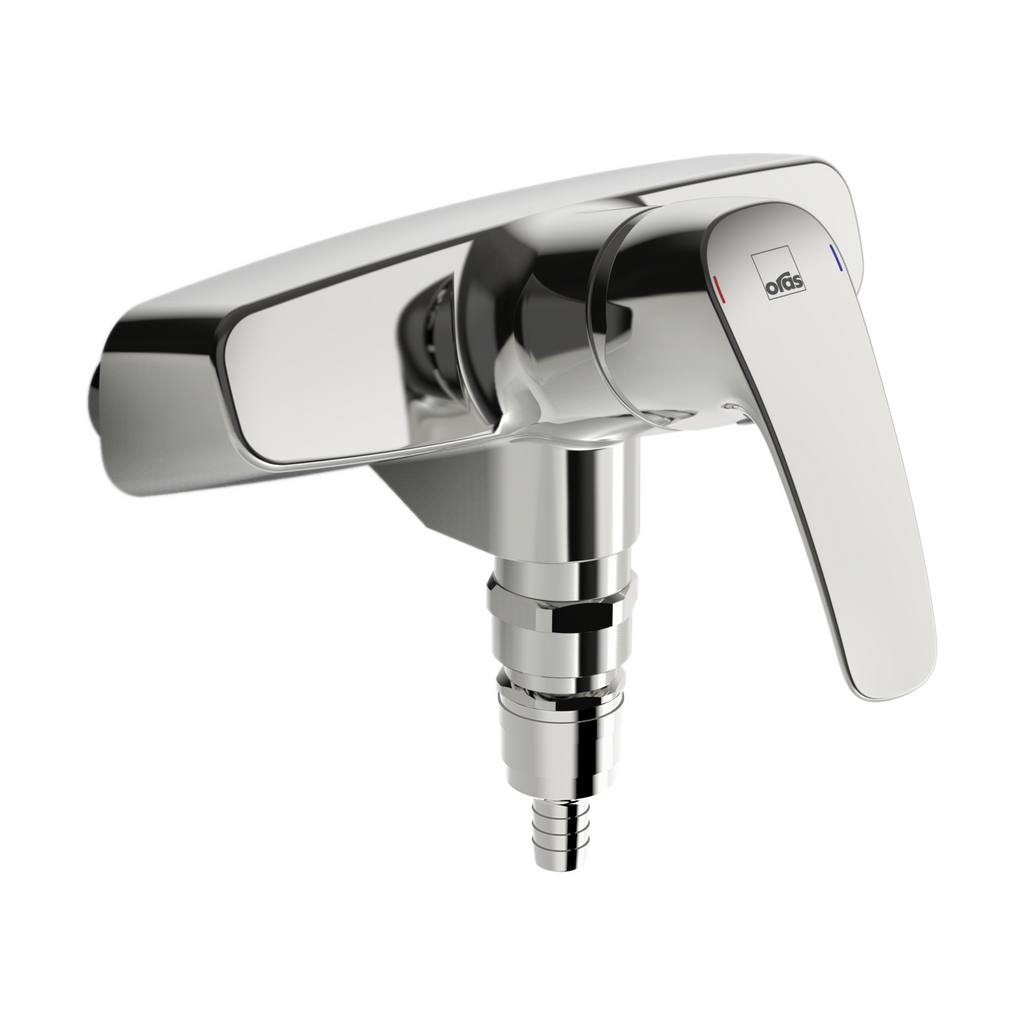

Oras Safira - Utility room faucet

Oras Safira - Utility room faucet

€211,04
Sale price  €211,04 Regular price
Skip to product information
Oras Safira - Utility room faucet

Oras Safira - Utility room faucet

€211,04
Sale price  €211,04 Regular price

Utility room faucet. Wall-mounted utility room faucet with quick release coupling for ø13 mm hose and vacuum breaker. There are also in-built limitation options for water temperature and maximum flow-rate.

Technical Data

Features

• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
Vacuum breaker, ø 40 mm ceramic cartridge for flow and temperature control
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

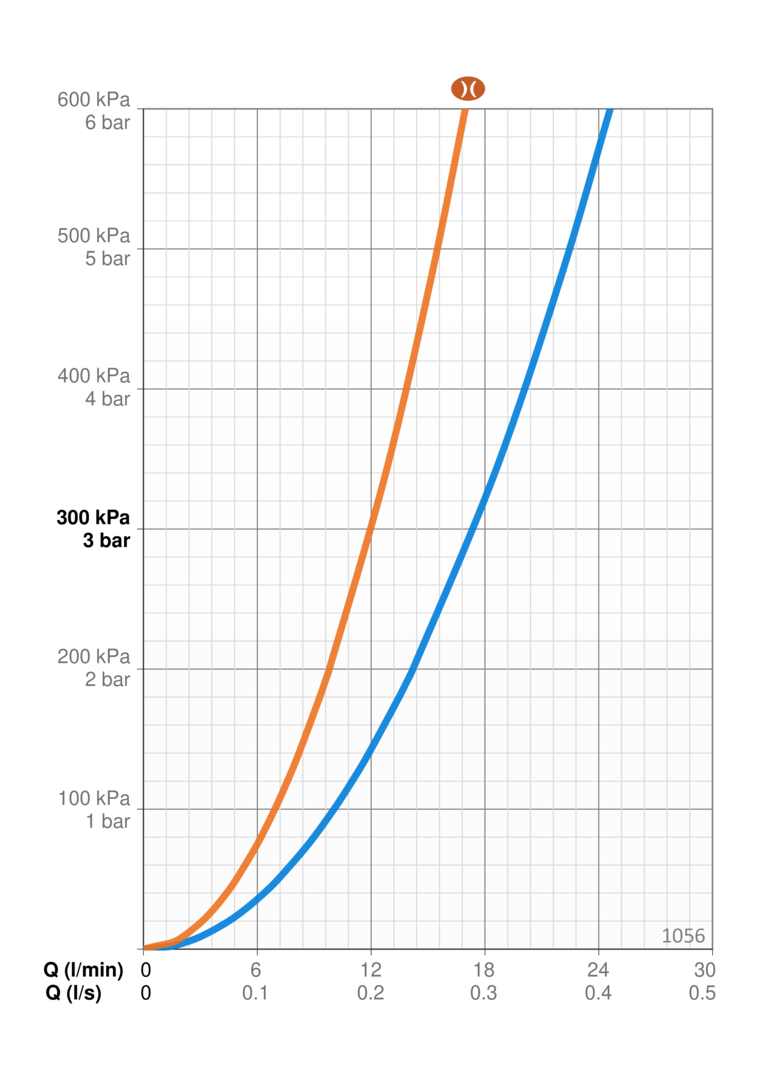

Flow attributes

• Flow-rate at 300 kPa
0.29 l/s
• Flow-rate at 300 kPa (with flow reducers)
0.2 l/s
• Pressure loss 0.2 l/s (with flow reducers)
300 kPa
• Pressure loss with flow (0.2 l/s)
140 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/4
• Hot water supply
max. +80°C

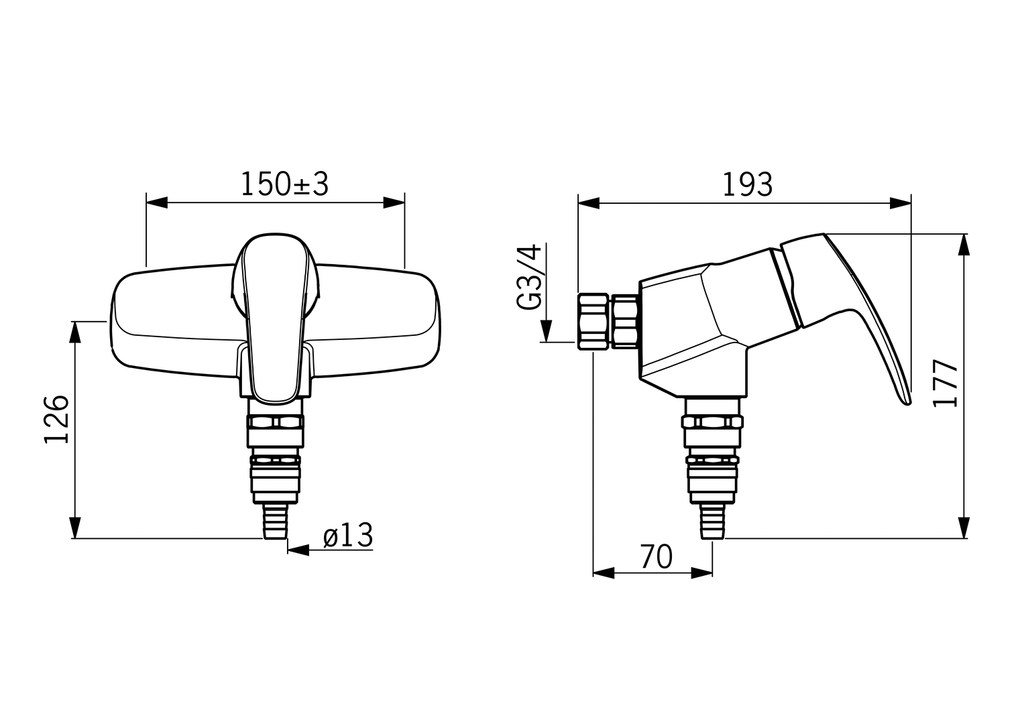

• Installation width
150 ± 3 mm
• Material
Brass
• Projection
70 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class 0.2 l/s
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005196-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
7,00
• EPD module A1-A3 (kg CO2 eq.)
10,41
• EPD module A2 (kg CO2 eq.)
0,33
• EPD module A3 (kg CO2 eq.)
3,08
• EPD module A4 (kg CO2 eq.)
0,21
• EPD module B7 (kg CO2 eq.)
4728,00
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,32
• EPD module D (kg CO2 eq.)
-5,89

Spare Parts
Oras Safira - Utility  room faucet

01 Lever (Chrome) / 602502V

02 Covering cap (Chrome) / 1000785V

03 Tightening nut, M42x1.5, SW 38 / 158726

04 Cartridge / 158890
